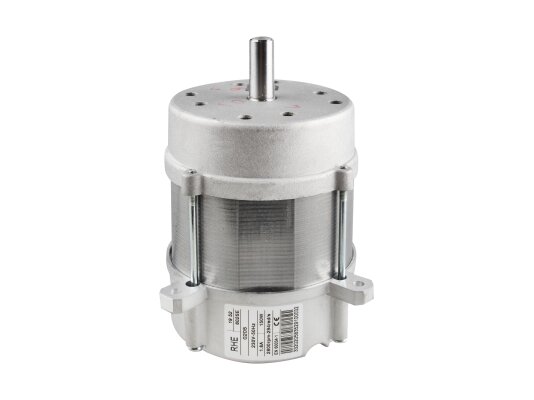

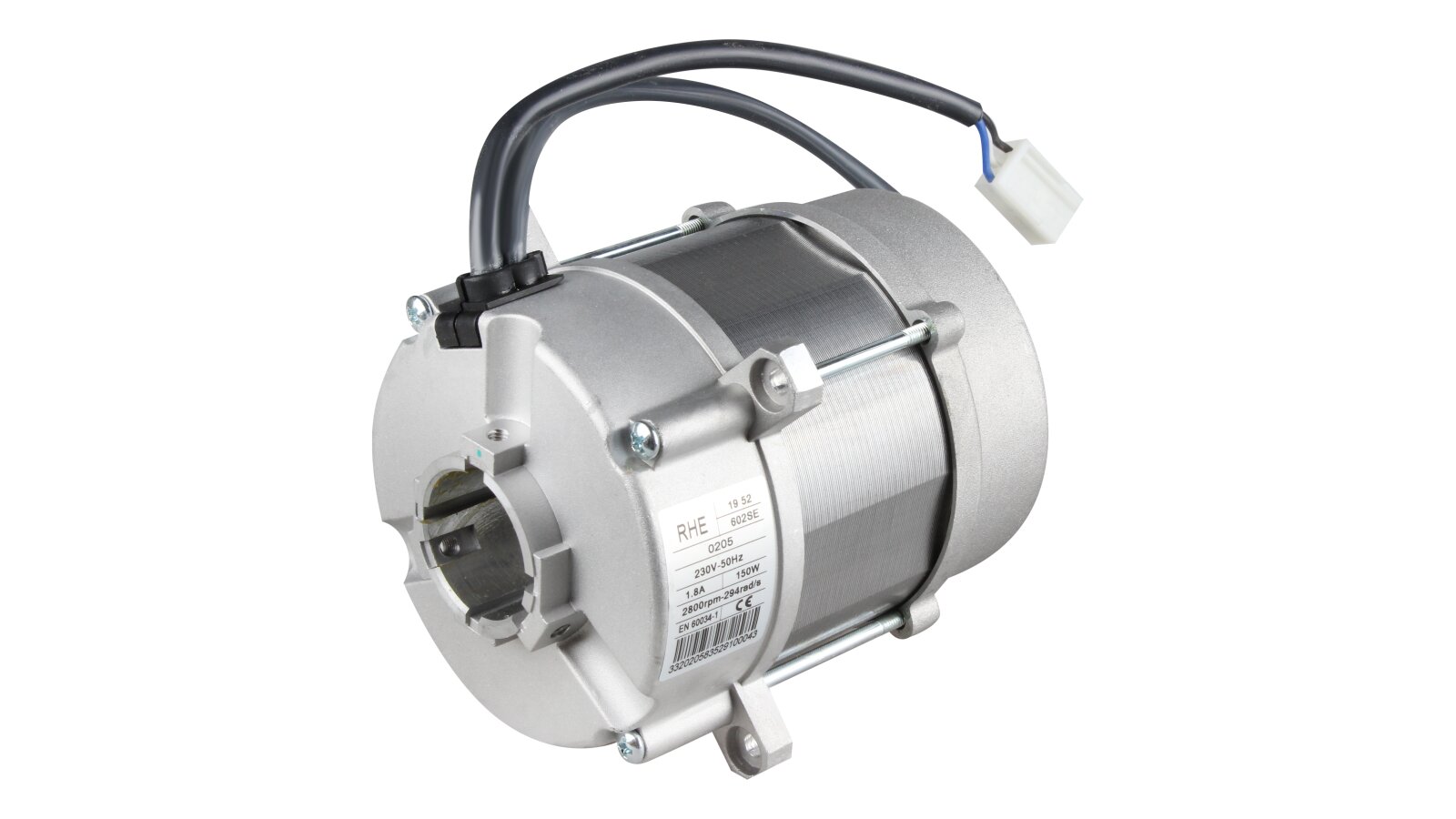

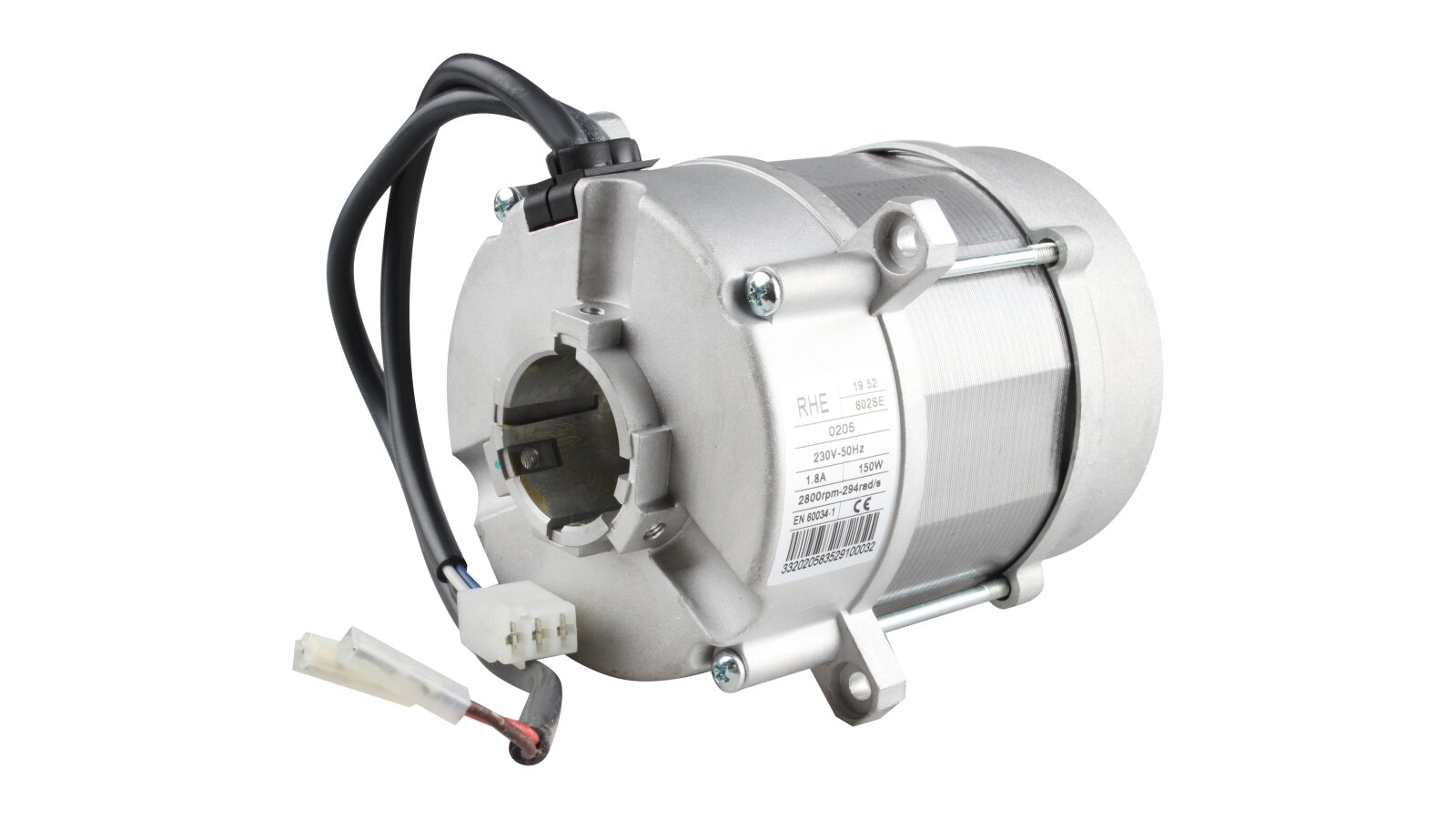

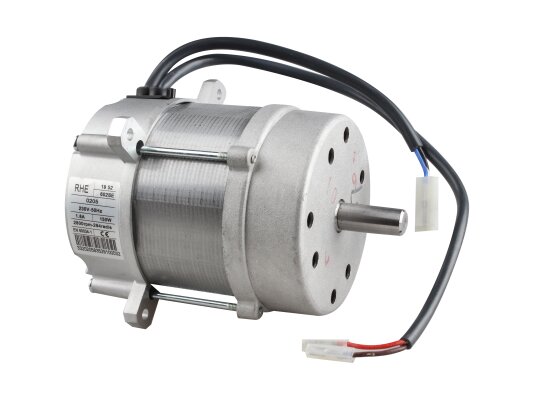

Motor Riello 602SE 0205

Electric motor (motor) RHE 602SE for burners with forced draft (used with capacitor 3007655 or 20087037)

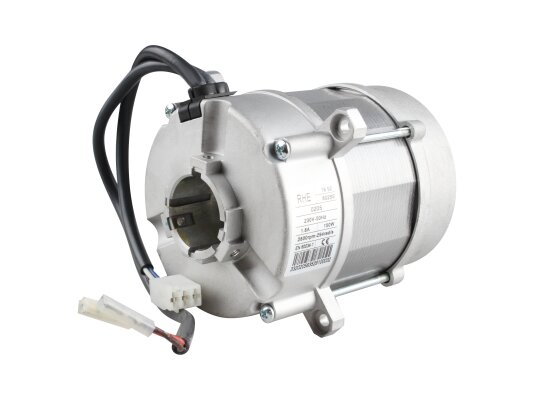

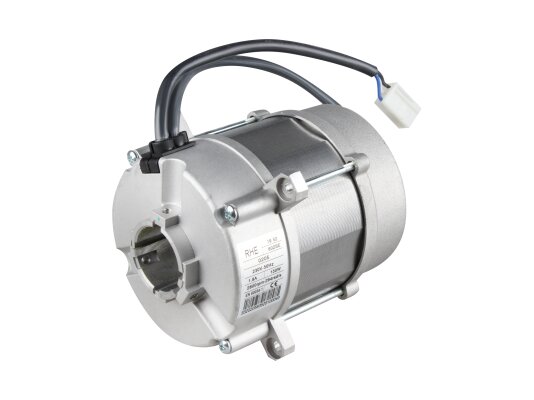

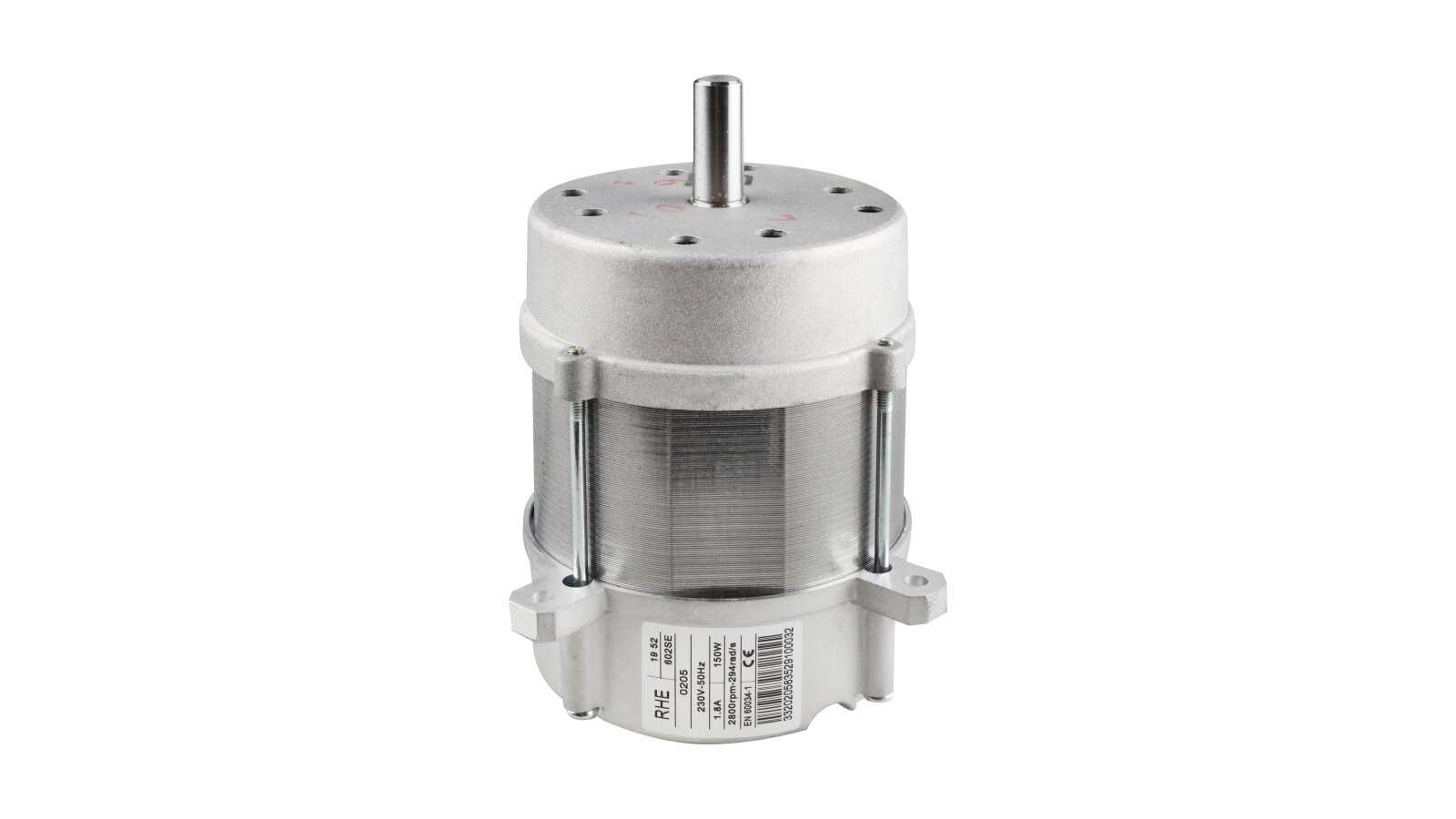

The compact two-pole electric motor RHE 150 W (602SE) with article number 3002851-RL is used to complete liquid fuel burners with forced draft as a power unit for pumps or fans. The IP20 casing protection rating does not allow the equipment to be used in dusty rooms or outdoors with the risk of dripping or splashing water.

Features of the RHE 150 W electric motor:

• The device is powered by a household network with a voltage of ~220 V / 50 Hz. To create torque when starting the unit, it is recommended to install a starting capacitor 3007655 or 20087037. A 31 cm long cable is provided for its connection.

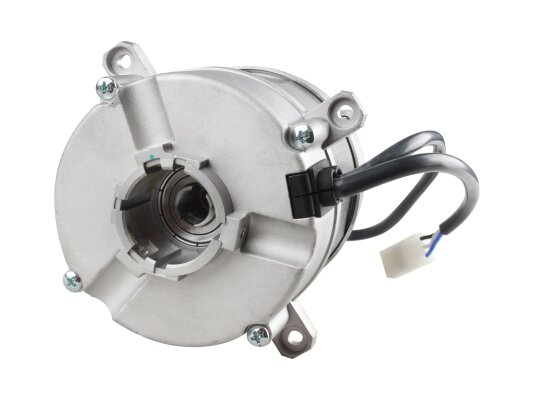

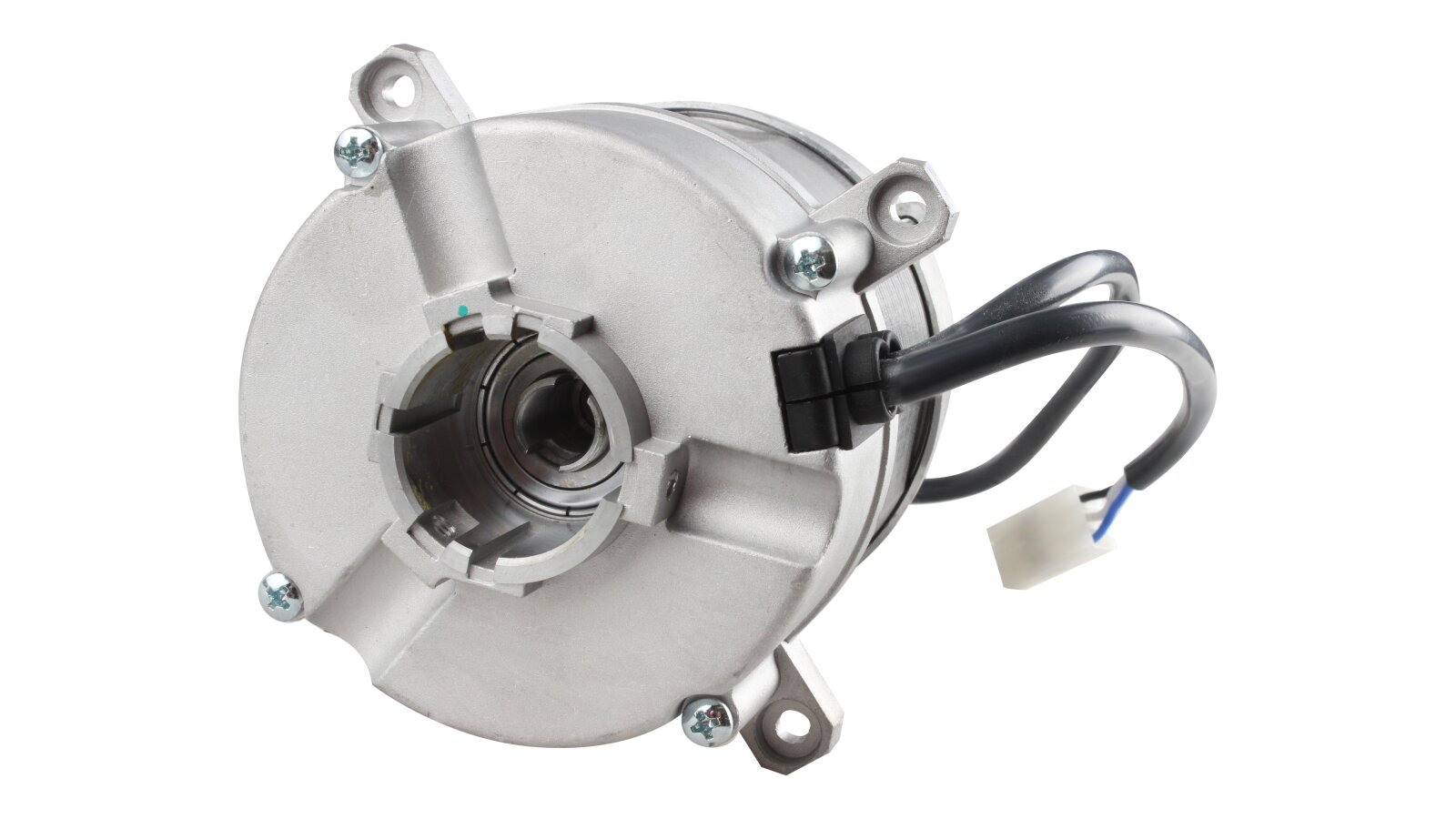

• The motor body is lightweight and corrosion-resistant, as it is made of aluminum alloy using the die-casting method. A convenient and durable flange mount with a pump seat diameter of 32 mm is used for installation.

• The coating of the stator and rotor windings with a double layer of enamel provides heat resistance class F, as well as protection against oxidation and short circuits.

Main advantages:

• low current consumption and stable operation of the electric motor in continuous mode S1;

• the output shaft of the electric motor is made of wear-resistant alloy steel;

• simple connection to the power source using the network cables included;

• the ability to start from a power contactor or controlled operation from a frequency converter.

Technical quality control of parts and materials, as well as strict adherence to the technology of manufacturing electrical equipment contribute to high wear resistance and long service life of RHE motors. If the installation rules, operating conditions and recommended connection diagrams are observed, proper operation with minimal material costs is guaranteed.
