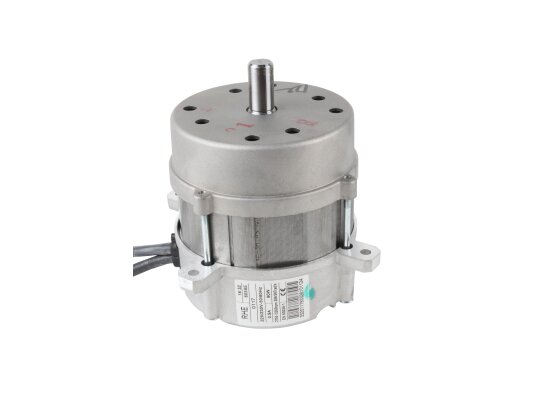

Motor Riello RHE 603SE 0117

Electric motor (engine) RHE 603SE for blown burners (used with clutch 3000443)

The model of low-power single-phase motor in an unprotected housing 603SE with article number 3008489-RL is produced by the European company RHE. The device complies with the international standard EN 60034-1, used in the production of rotating electrical machines.

Electrical parameters:

• A two-pole motor with a squirrel-cage rotor is powered by a single-phase AC network with a voltage of 220 to 240 V. This allows the unit to be used at home.

• The rated power consumption is 90 W, which is a sufficient characteristic for the operation of domestic liquid fuel burners with blown burners.

• Under normal operating conditions, the current does not exceed 900 mA.

• The protruding part of the drive shaft Ø12.7 mm is 24 mm, and the diameter of the connecting connector for the fuel pump is 3.2 cm.

Economic and technological advantages:

• Economical power consumption and standard drive efficiency;

• equipment with a 170 mm long power cable for power supply and a 330 mm cable for the capacitor will simplify the connection of the unit to the circuit;

• failure-free operation and anti-corrosion properties of the cast aluminum alloy casing;

• long service life of the device without lubrication operations;

• additional installation of a starting capacitor, which allows overcoming starting loads, has a beneficial effect on the performance of the motor.

Single-phase asynchronous electric motor RHE 90 W (603SE) is the optimal solution from a European manufacturer, which the company "ANKAS" offers to buy at an affordable price. The products are dynamically balanced, have successfully passed tests and are ready for installation in heating forced-draft burners.
