Motor Riello 603SE 0120

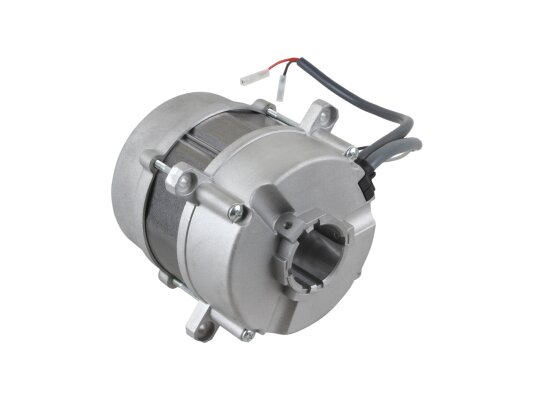

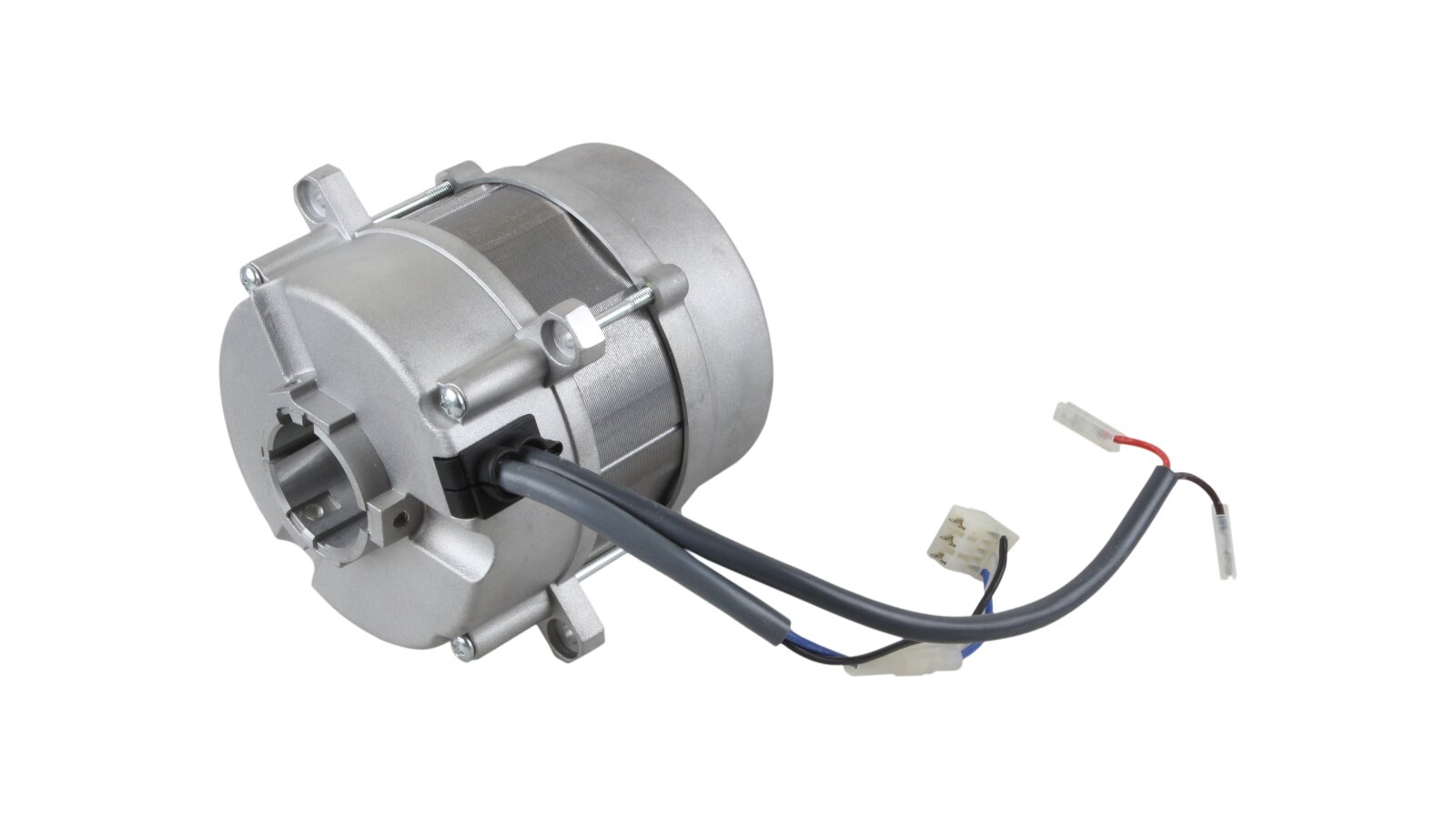

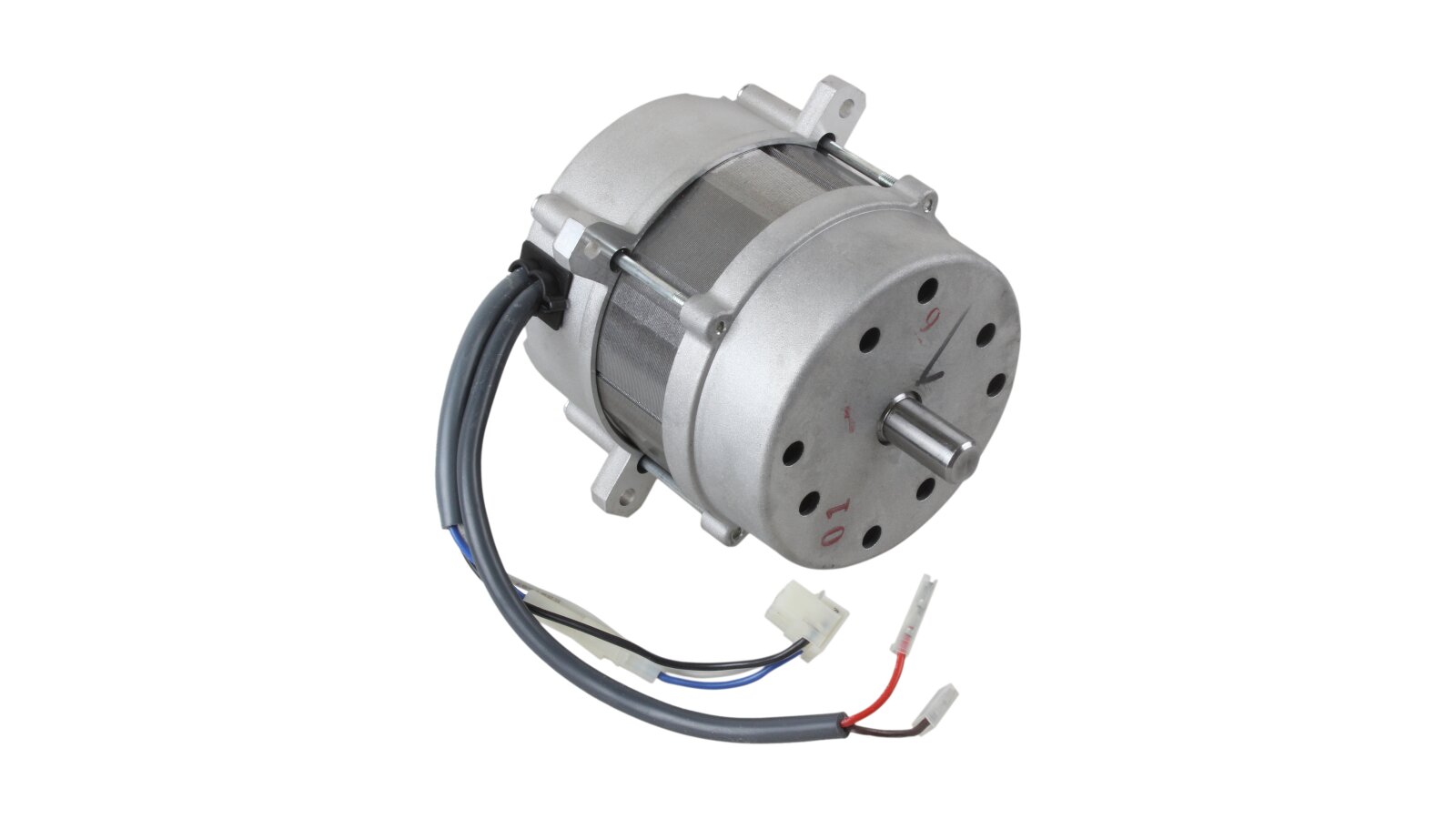

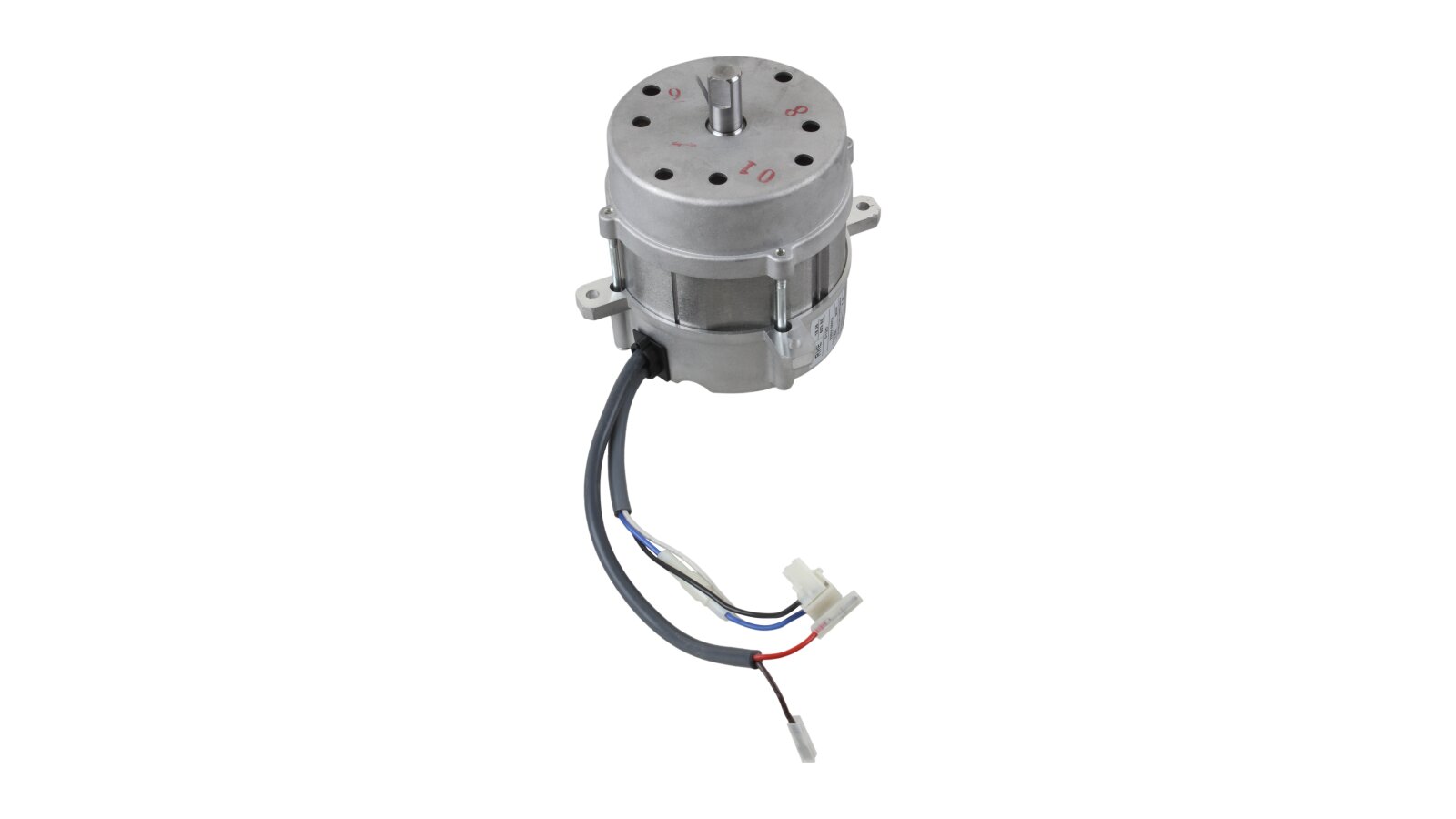

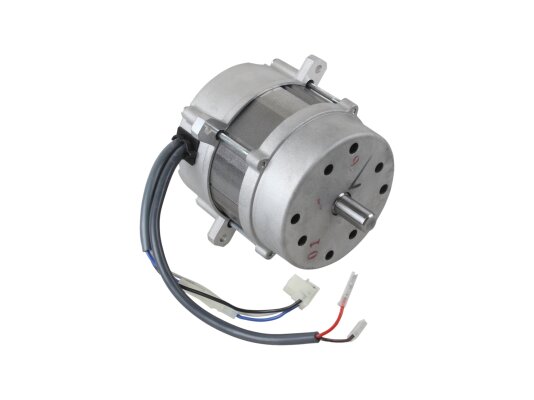

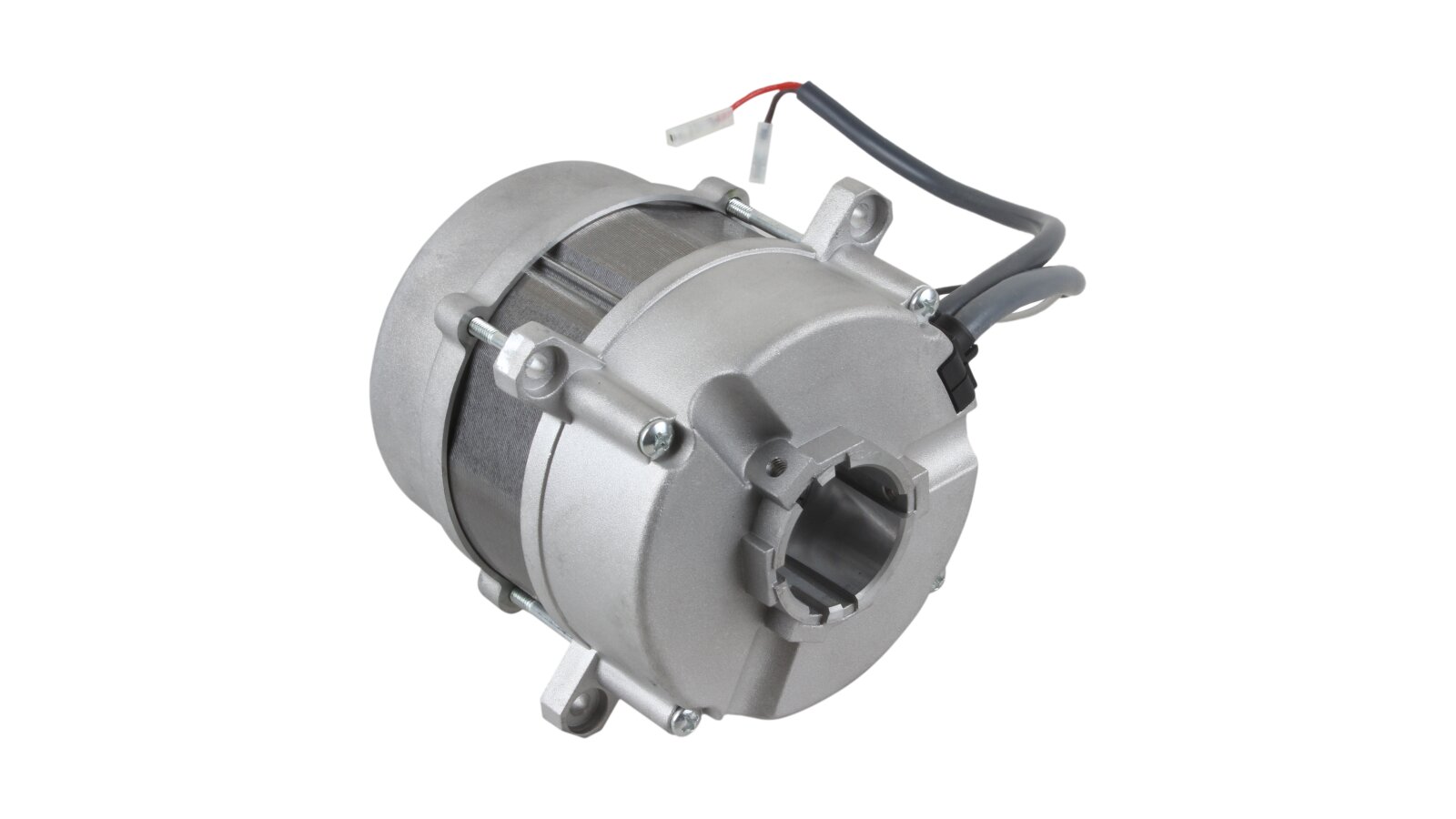

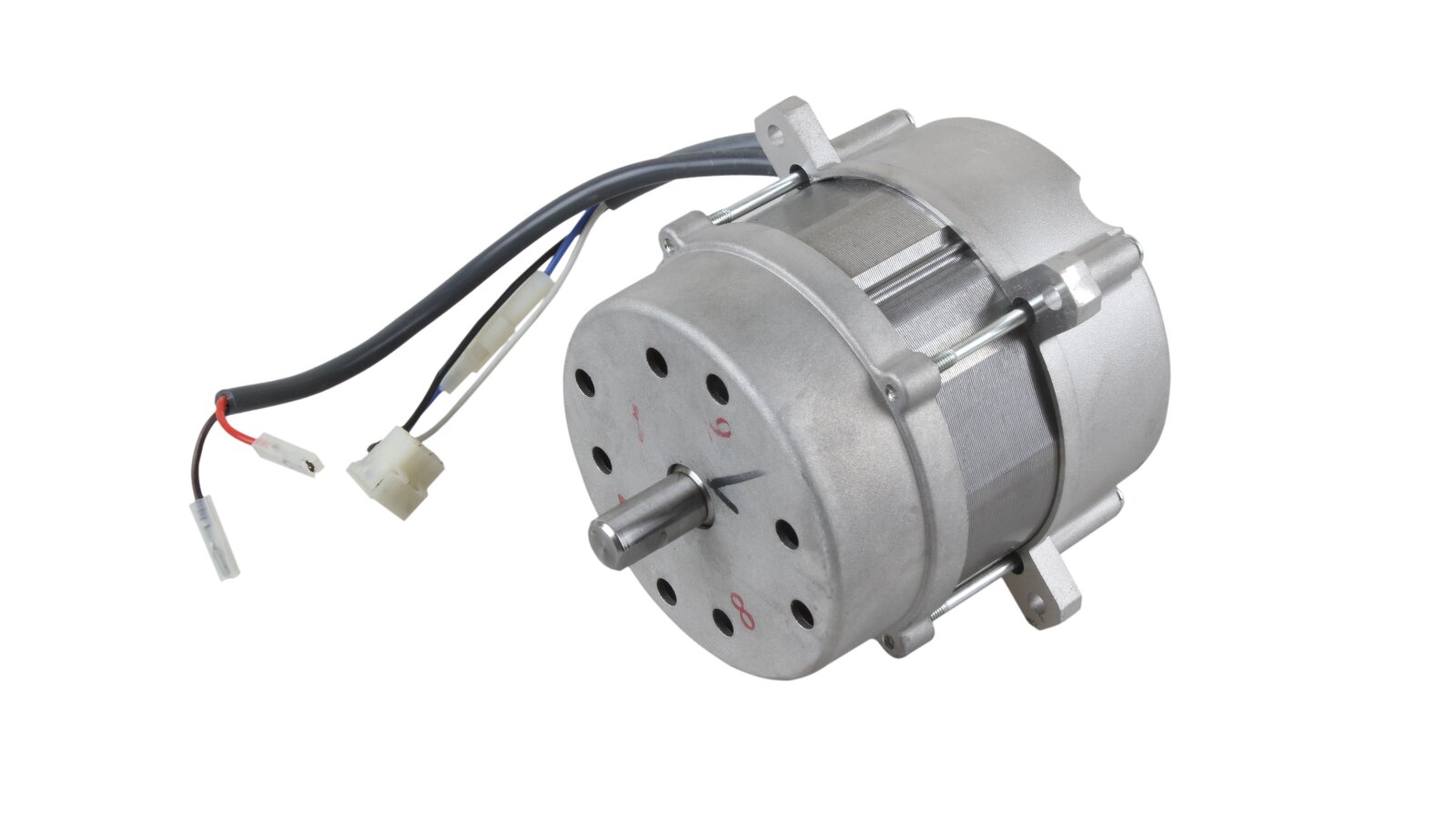

Electric motor (motor) RHE 603SE for burners with forced draft (used with clutch 3000443)

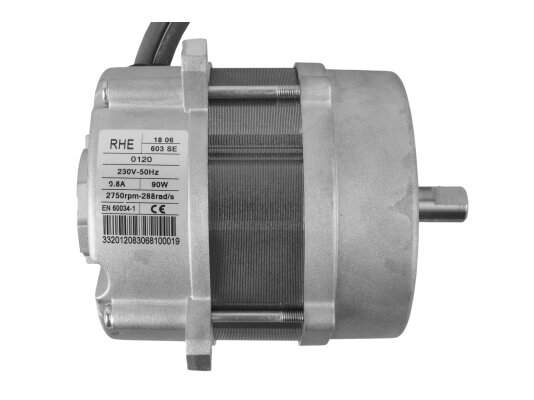

Compact two-pole asynchronous motor from the European company RHE 90 W (603SE) is a reliable electric drive for liquid fuel forced draft burners, which is designed for connection to a single-phase alternating current source with a voltage of 230 V and a network frequency of 50 Hz. The unprotected model with an open casing is manufactured according to the international standard for rotating electrical machines EN 60034-1 and has an electrical protection rating of IP20.

Technical features:

• A low-power single-phase electric motor with a squirrel-cage rotor is designed for a power of 90 W and an economical current consumption of 0.8 A.

• Connection of the device is simplified by the presence of a wire for the capacitor (230 mm) and a cable (180 mm) for supplying voltage from an AC source with a voltage of 230 V.

• For mounting on a seat of a fuel pump with a diameter of 32 mm, there are 8 mounting holes on the front part of the device with a flange type of connection.

• The diameter of the drive shaft is 12.7 mm, and its length is 24 mm. The connection to the driven axis of the pump is carried out using a 3000443 coupling.

Main advantages:

• lightweight and compact corrosion-resistant casing made of aluminum alloy by high-pressure casting;

• convenient installation and easy maintenance of the power unit;

• long service life if the operating rules are observed at rated load in continuous mode S1;

• heat resistance class of the insulating material B, allowing an increase in the temperature of the current-carrying parts of the stator to +130°C.

Asynchronous single-phase electric motor RHE 90 W (603SE) is electrical equipment from a European developer, manufactured according to international safety standards and the ISO 14000 Environmental Protection Standard.
