Motor Riello 606SE 0400

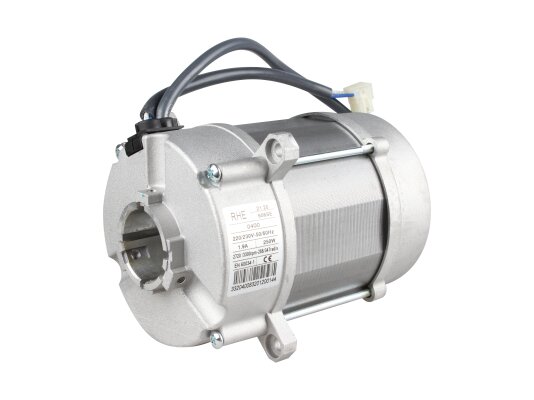

Electric motor (engine) RHE 606SE for burners with forced draft (used with clutch 3000443)

Single-phase asynchronous electric motor RHE 606SE with power consumption of 250 W was developed by a European company to replace the fuel pump drive of forced draft liquid fuel burners. The compact device is intended for operation in single-phase (~220 V) electrical networks and is mounted in industrial premises with a minimum content of dust and small particles in the air. Direct splashes and drops of water on the motor casing are not allowed.

The main advantages of the model are:

• stable operation with significant fluctuations in line voltage up to ±5%;

• double enamel insulation of windings, impregnated with resin, will protect against short circuits and oxidation, and also guarantees trouble-free operation at temperatures up to +155 ° C (heat resistance class F);

• cast aluminum alloy outer shell provides high corrosion resistance when installed in rooms with high humidity;

• convenient installation and quick connection of the power unit due to reliable flange mounting and pre-installed power cable.

For continuous operation with a constant load (S1), direct start of the electric motor using a power contactor is optimal. To extend the service life of the motor when operating in S2 and S3 modes, it is recommended to operate the device from a frequency converter.

The two-pole asynchronous electric motor RHE 250 W with a squirrel-cage rotor is manufactured in accordance with international quality standards from durable materials and modern components. You can buy this unit at an affordable price in the online store of the official dealer - the company "ANKAS".
