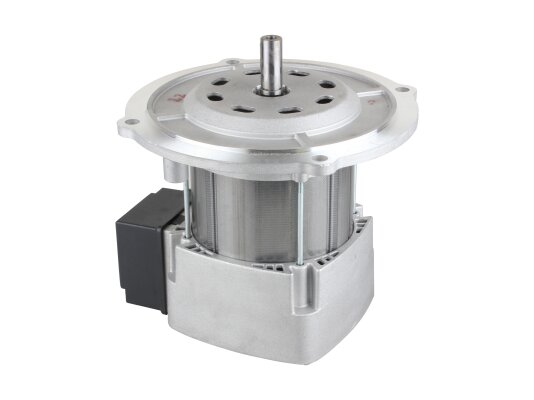

Motor Riello RH S 110, 3003773

The two-pole asynchronous electric motor RHE (RH S 110) in an unprotected housing with a power consumption of 650 W is designed for continuous operation mode S1 as part of forced-draft heating burners running on diesel and biodiesel. The device is equipped with cable outlets for connection to a power source (40 cm) and a grounding circuit (50 cm).

Technical parameters:

• The open casing of the device with IP20 does not provide protection of current-carrying parts from dust, splashes and water drops. Therefore, the motor can only be installed in industrial premises and boiler rooms.

• Three-phase or single-phase current with a voltage of 230-260 or 400-460 V, respectively, with a network frequency of 50/60 Hz can be used for power supply. Current consumption when powered from a 0.4 kW source is lower and equals 2.4 A.

• The greatest energy savings can be achieved when operating the motor by controlling the frequency converter. This connection principle will allow the drive shaft to rotate at the speed required to supply fuel at the current operating time of the heating burner.

• The device is mounted using a flange method on several holes around the circumference of the seat. This avoids weakening and vibration during use of the device.

The main advantages of the model:

• double insulation of windings, impregnated with resin, with heat resistance class F;

• cast motor casing made of aluminum alloy with high anti-corrosion properties;

• wear-resistant rotating parts made of alloy steel;

• convenient installation that does not require professional skills.

The compact open-type electric motor RHE 650 W is a high-quality and modern product from a European manufacturer, which is developed in accordance with international ISO standards and has successfully passed pre-sale testing.
