Motor Riello RHT 135

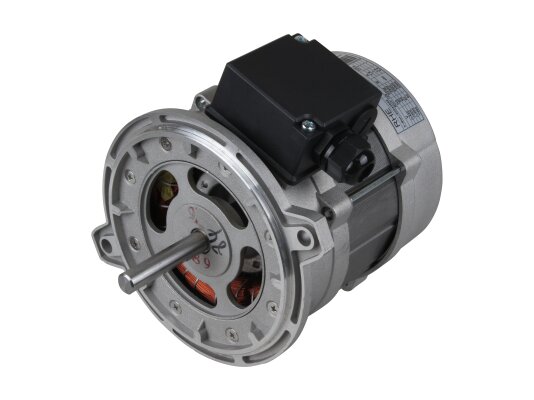

Electric motor (engine) RHE RH T 135 for forced-draft burners

The compact three-phase asynchronous electric motor RHE 450 W (RH T 135) is equipped with a squirrel-cage rotor and is designed to operate as part of liquid-fuel forced-draft burners. The device has output ends for connection to a power source and a grounding circuit, which simplifies its installation.

Design features and parameters:

• The power unit can be connected to both a three-phase and a single-phase AC circuit. The rated current consumption depends on the voltage and frequency of the network. It is 1.8-1.6 A at 230-260 V (50/60 Hz) and 1.0-0.9 A at 400-460 V (50/60 Hz).

• The cast motor housing is lightweight and has high anti-corrosion properties, as it is made of aluminum alloy. The IP20 casing will not prevent splashes and drops of water from getting on the current-carrying parts, but will not allow particles with a linear size of more than 12.5 mm to penetrate into the device.

• The insulating material of the rotor and stator windings with heat resistance class F retains its properties when the temperature of the current-carrying parts increases to +155°C.

• The bearing units are serviced with a long-life lubricant that does not require replacement throughout the entire service life of the electric drive.

The main advantages of the electric motor:

• reliable design, steel shaft and bearings made of wear-resistant materials;

• optimal energy efficiency and standard motor efficiency;

• the device is designed for operation from -40 to +40°C;

• permissible vibration and noise that do not exceed the established standards.

The two-pole asynchronous motor RHE 450 W in an open case is manufactured in accordance with international quality standards ISO 9001 and the Environmental Protection Standard ISO 14000. The online store of the company "ANKAS" offers to buy an electric motor for burners at an affordable price.
