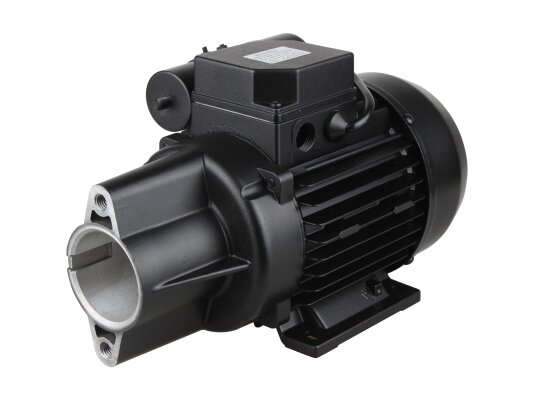

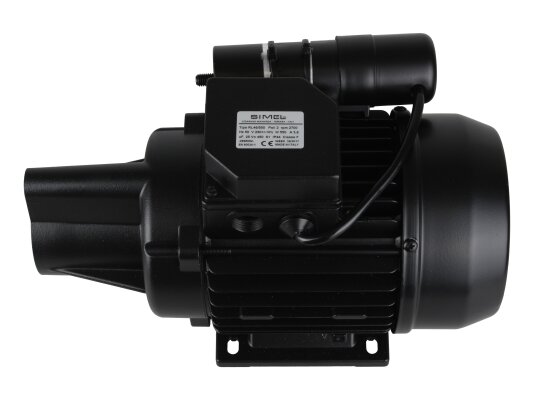

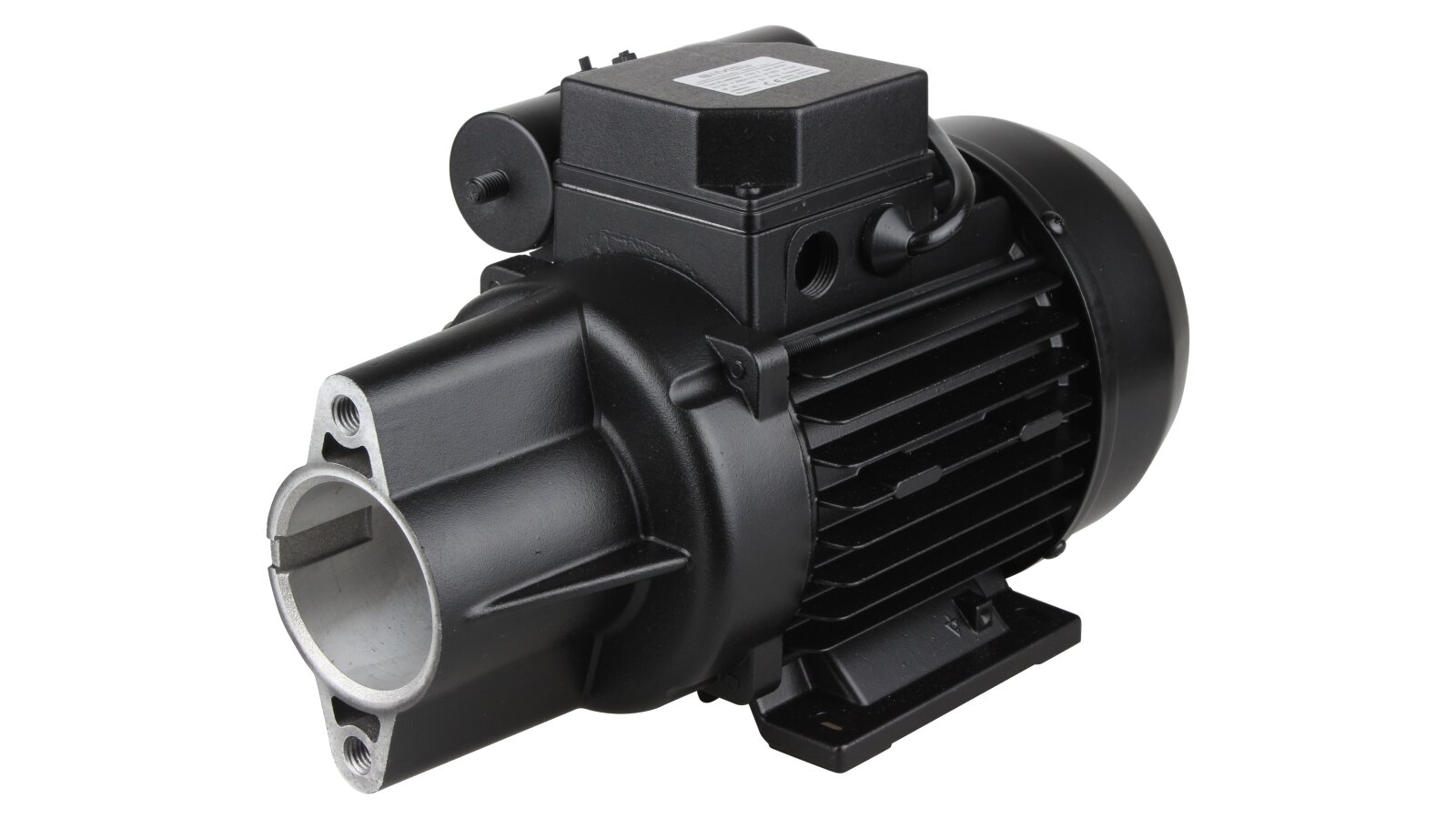

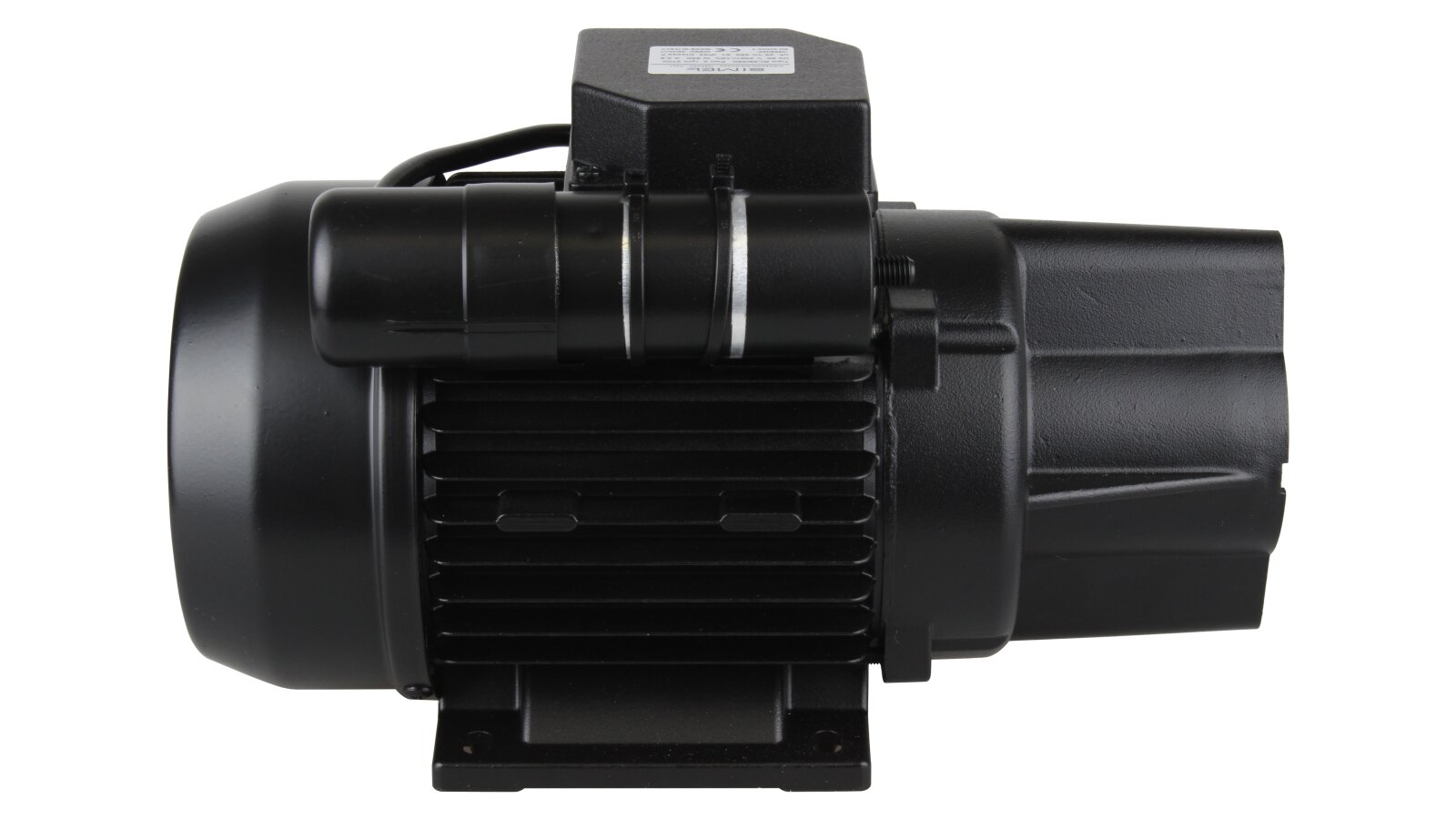

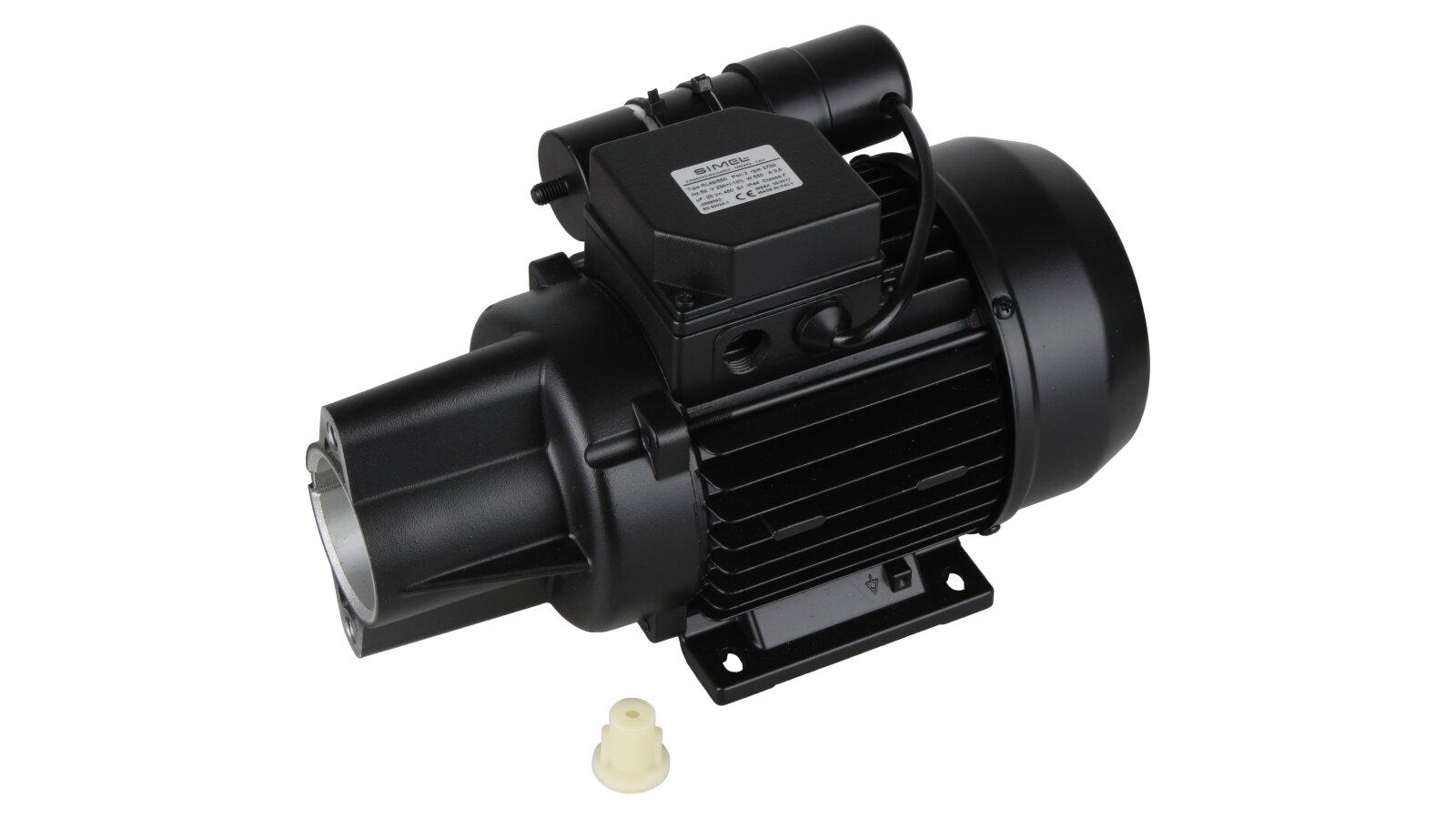

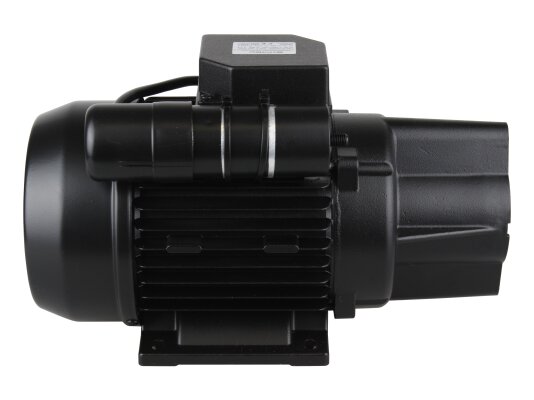

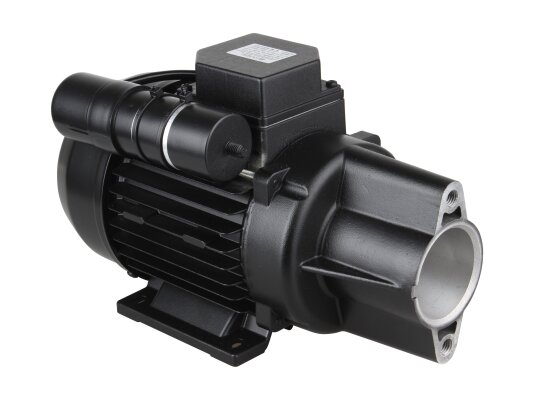

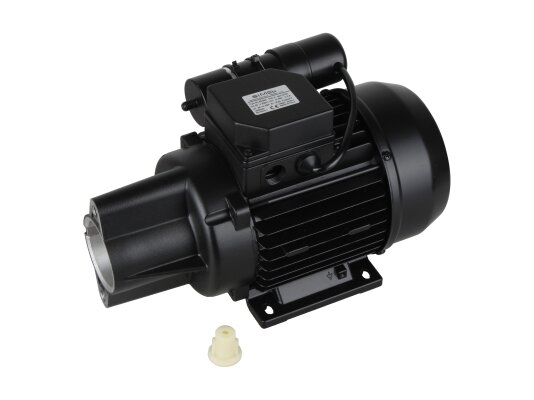

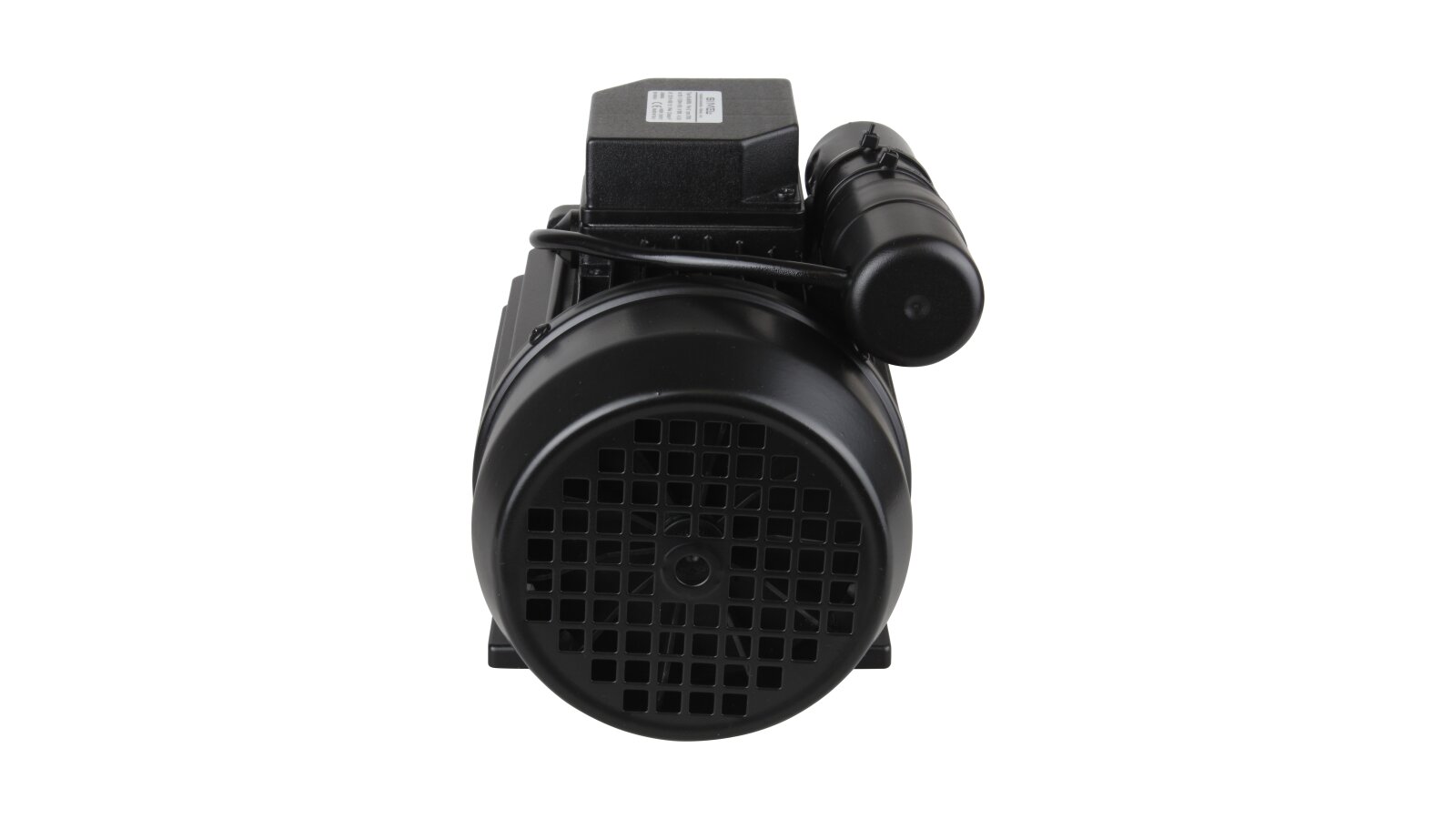

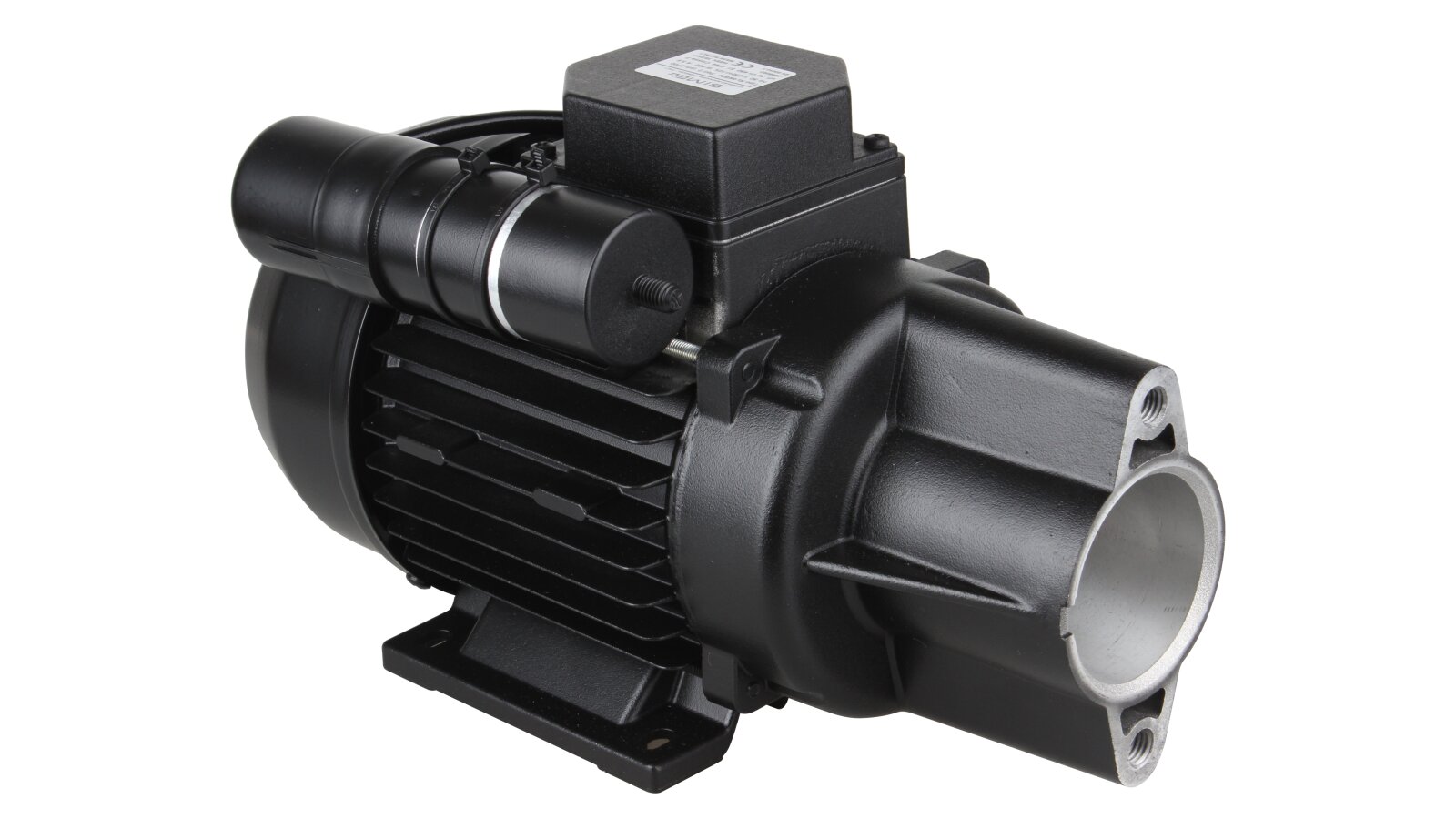

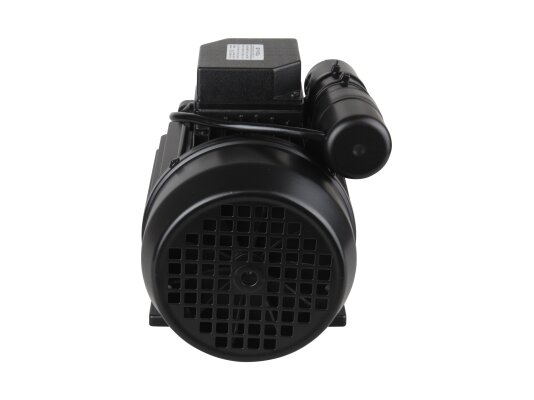

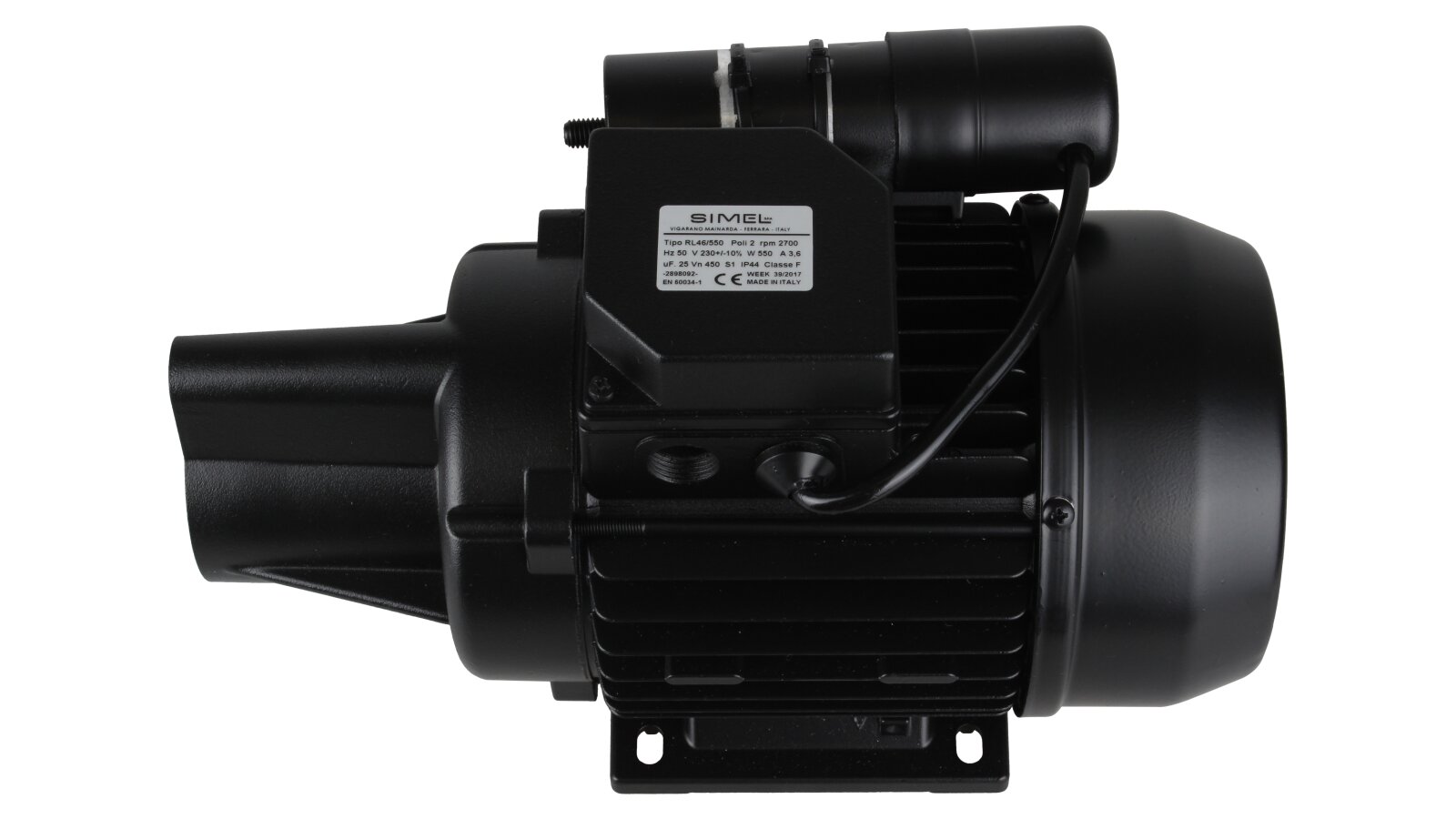

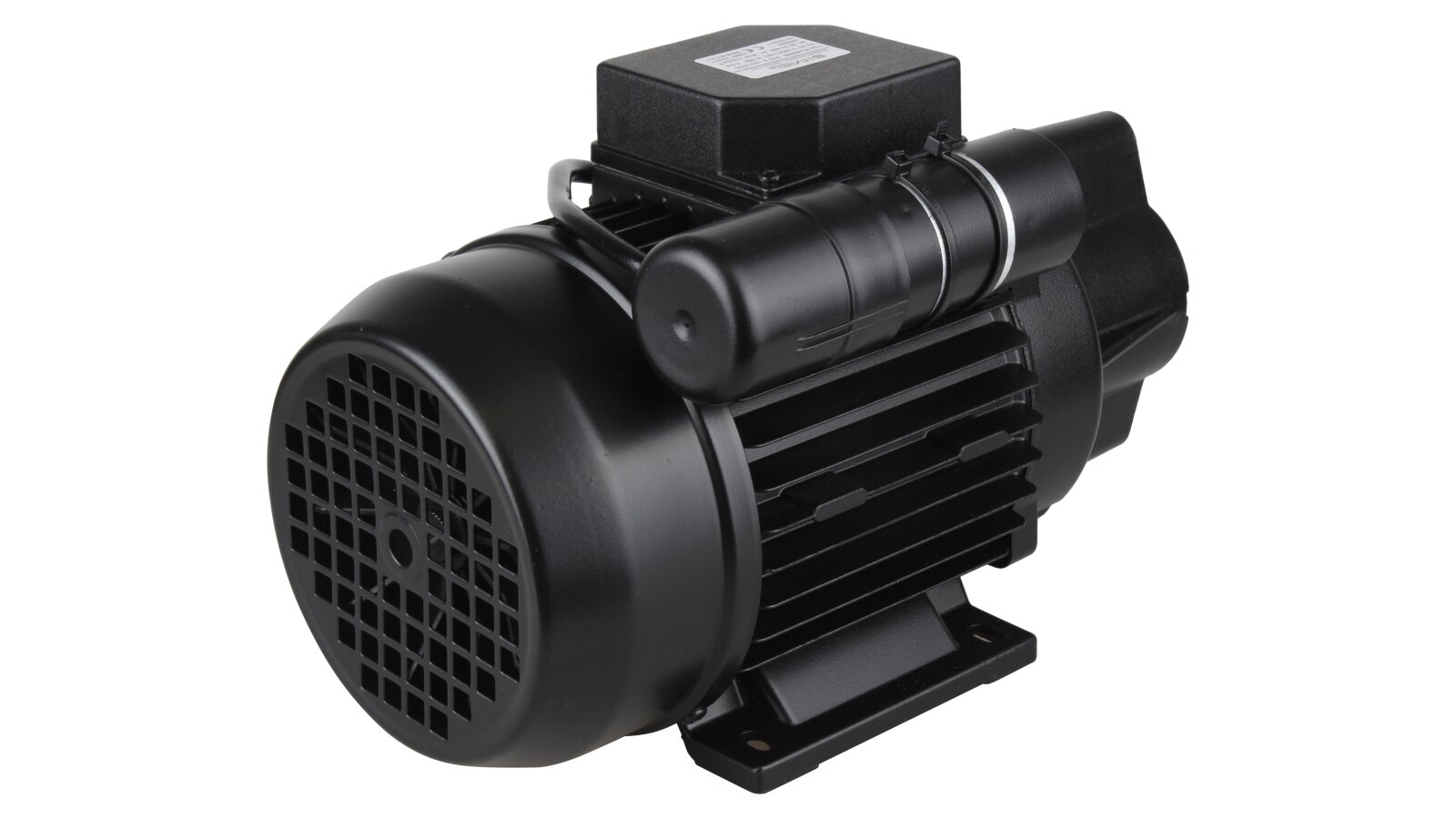

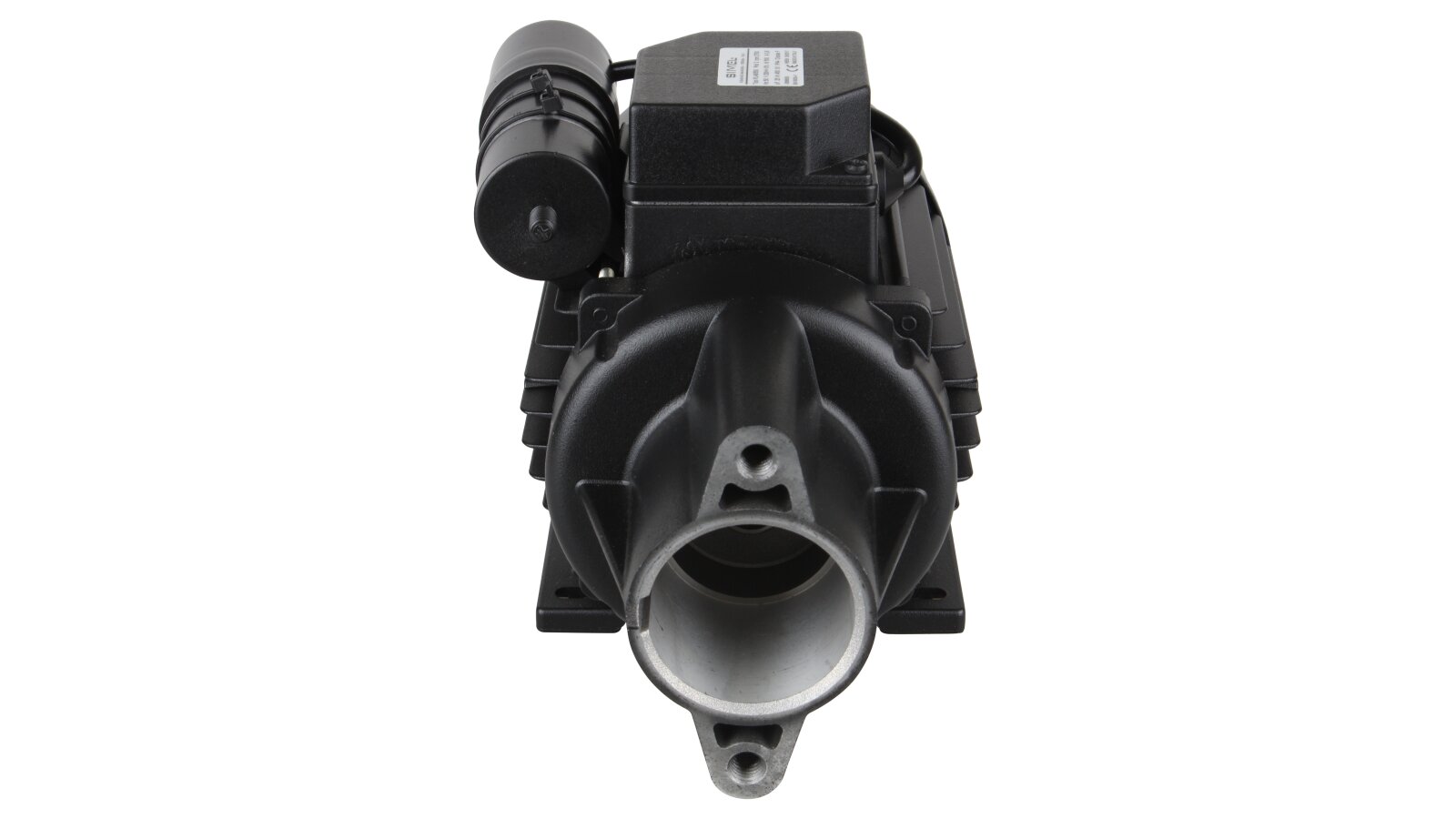

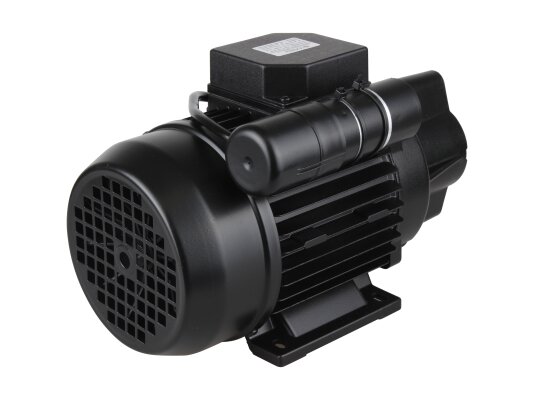

Motor Riello RL46/550

Electric motor (engine) MY 712-2 B5 for burners with forced draft:

Single-phase asynchronous motor MY 712-2 B5 with a starting capacitor is manufactured by the European manufacturer Riello. It is a component when operating burners with forced draft in domestic and industrial heating systems.

Design features:

The unit is certified by the International Electrotechnical Commission (IEC) and fully complies with its standards.

Simple design and low weight facilitate maintenance and installation when connecting a burner with forced draft.

The device is usually used in cases where long-term continuous operation is required with low requirements for the starting torque, the multiplicity of which is 0.35.

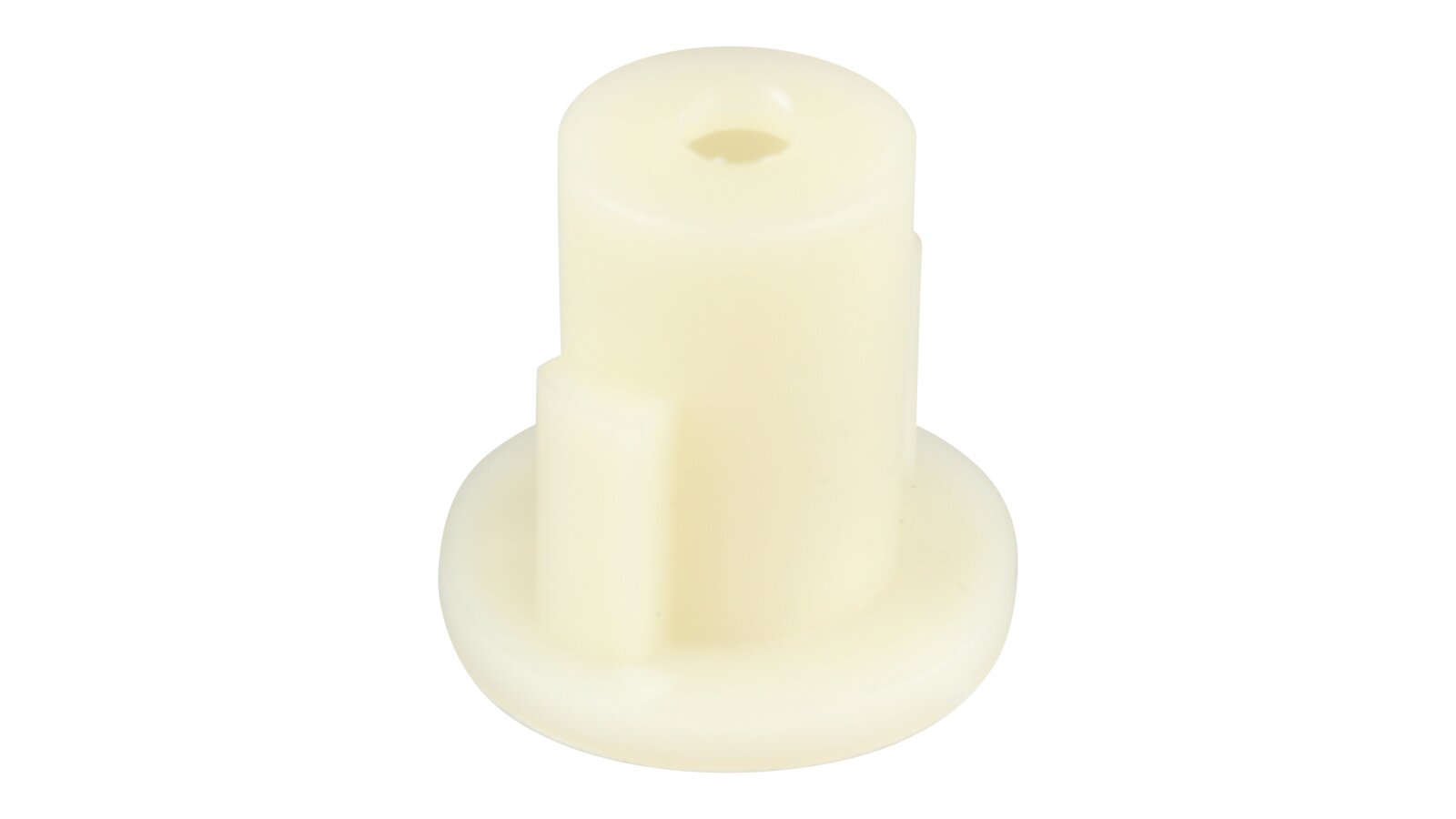

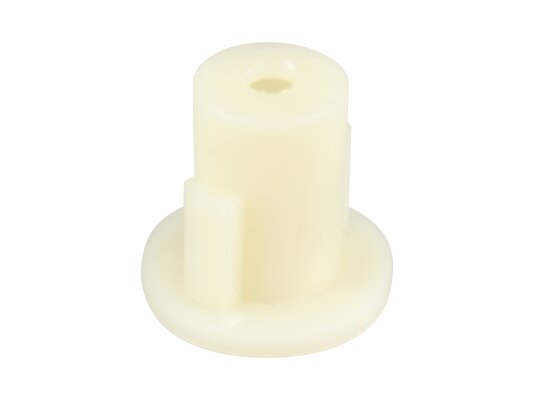

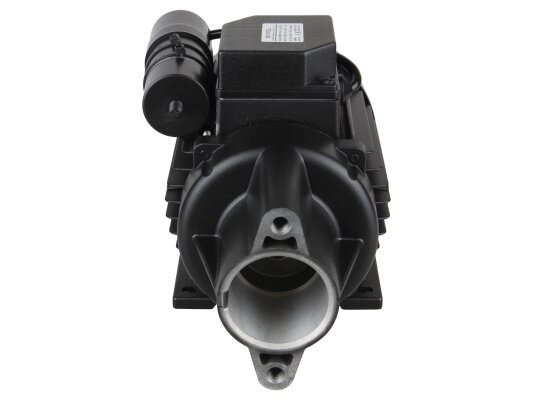

The electric drive is connected to the liquid fuel pump using a flange joint with a diameter of Ø54 mm. Used with clutch 3013828.

Main advantages:

• The electric motor is a modern design and is made of high-quality materials - corrosion-resistant aluminum;

• The device is characterized by high energy efficiency, as well as reduced noise and vibration levels;

• It has an optimal degree of maintainability and a long service life.

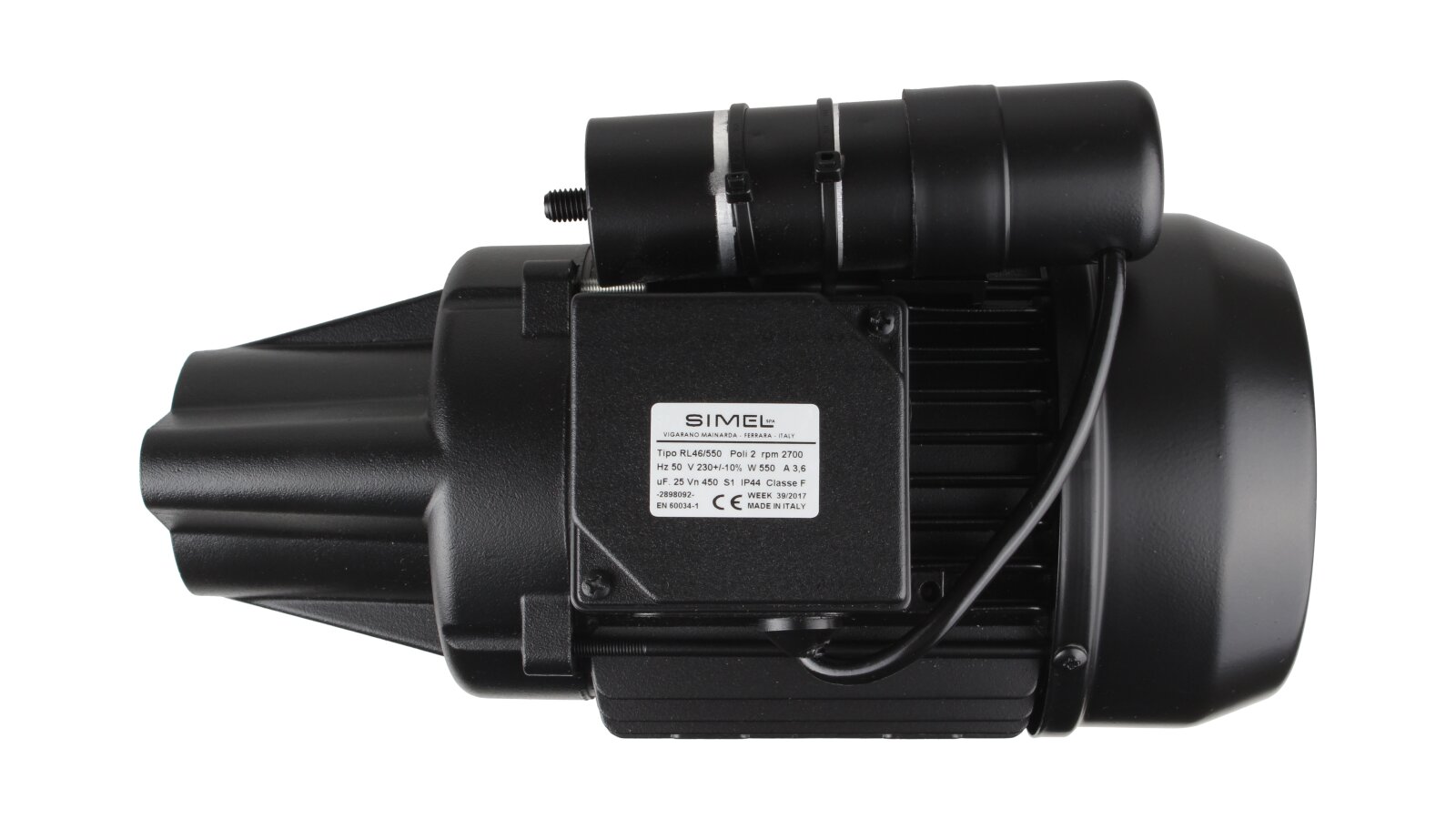

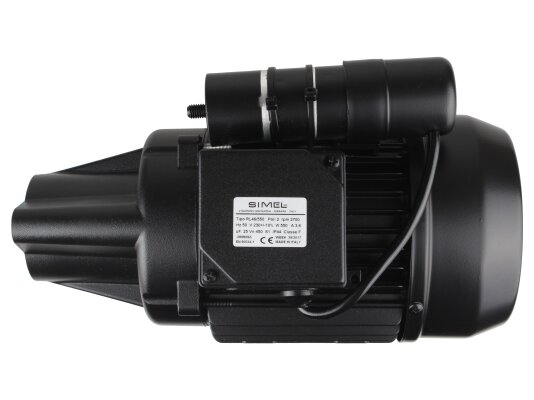

The Riello electric motor with a power of 550 W with a capacitor of 25 μF / 450 V is a reliable power unit designed for power supply from a single-phase alternating current network with a voltage of 220 V.
