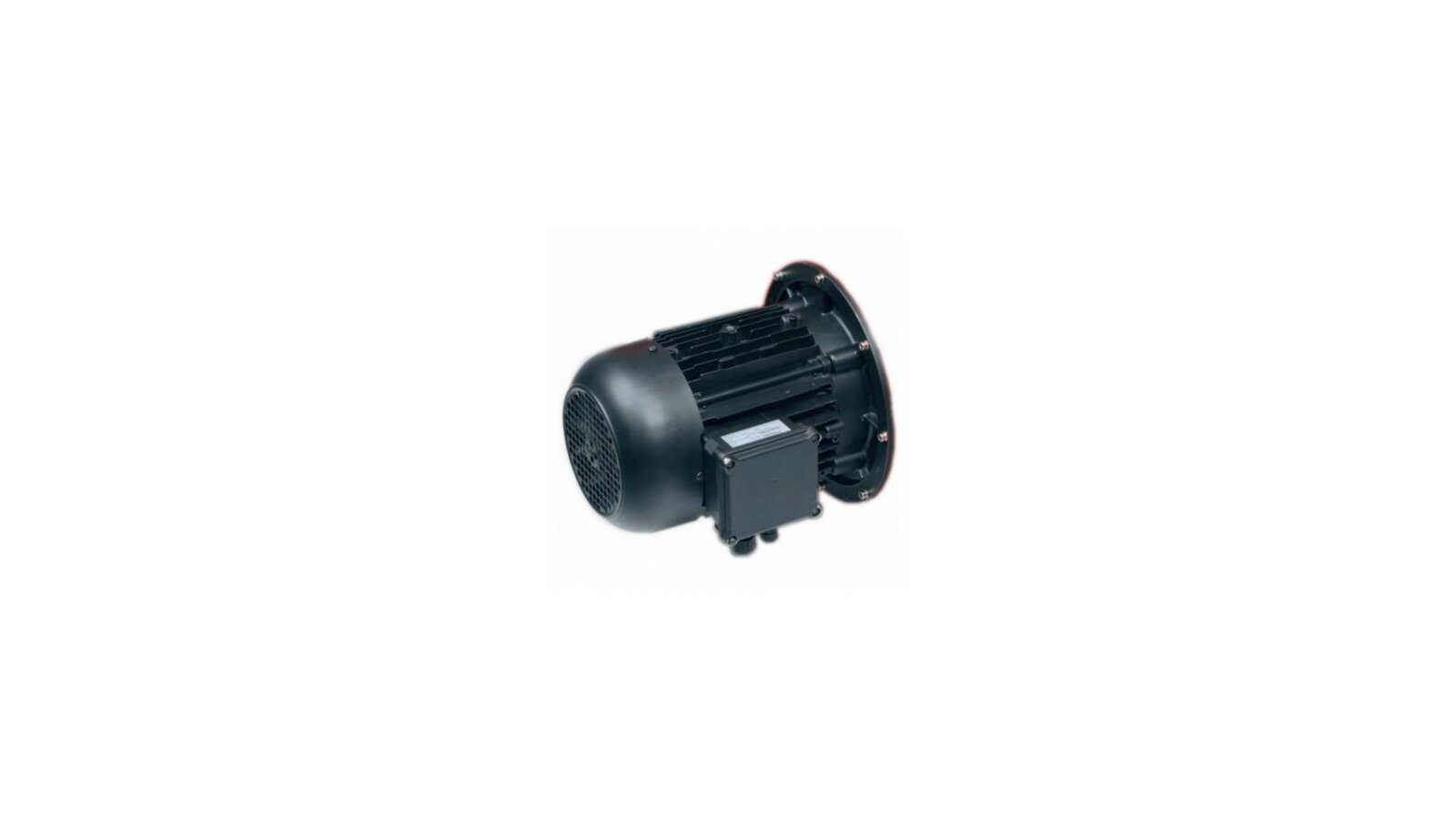

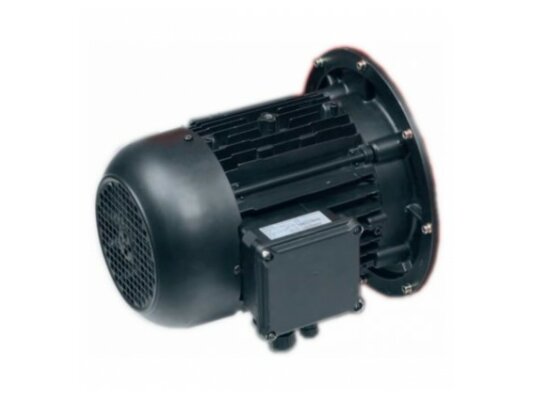

Motor Weishaupt W-D132/170-2/6K5, 25191707010

The Weishaupt electric motor, art: 25191707010, ensures efficient and stable operation of industrial burners. Connects to a 380-volt power source. It is characterized by reliable performance, energy-efficient operation, and a high level of dust and moisture protection.

Main characteristics and features:

• asynchronous motor;

• connection to a three-phase power grid 380-415 V, 50 Hz;

• electric power: 3000 W;

• dust and moisture protection level of electrical components from dust/moisture: IP55;

• wear- and corrosion-resistant moving parts and assemblies;

• rated speed: 2800 rpm;

• maintenance-free, durable bearings treated with permanent grease.

Design

The electric motor is assembled in a compact housing made of corrosion-resistant alloy. Equipped with wide cooling fins to remove excess heat and prevent winding overheating. Manufactured in accordance with European electrical safety standards, reliable in operation. The drive shaft is made of high-strength stainless steel, withstands prolonged intensive loads. The dust and moisture protection level IP55 allows the motor to be used in dusty rooms and in the presence of water jets.

The electric motor complies with the highest energy efficiency class (IE3), and is capable of operating smoothly under long-term overloads.

Application

The electric motor is used to complete WEISHAUPT industrial burners.

Advantages:

• high energy efficiency class;

• reliable protection against dust and water jets;

• ribbed body for heat dissipation;

• wear-resistant moving parts;

• low maintenance requirements.

The electric motor is manufactured in accordance with electrical safety standards developed in the EU.
