Motor Weishaupt ECK 03/F-2

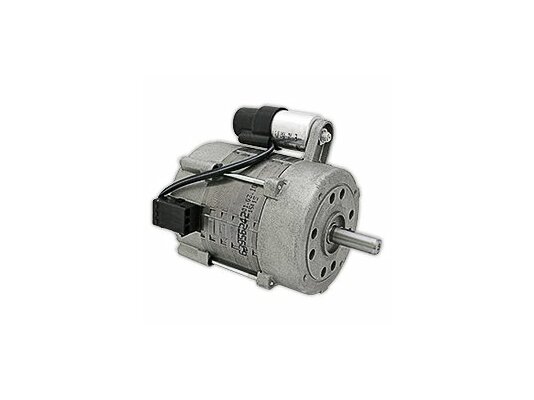

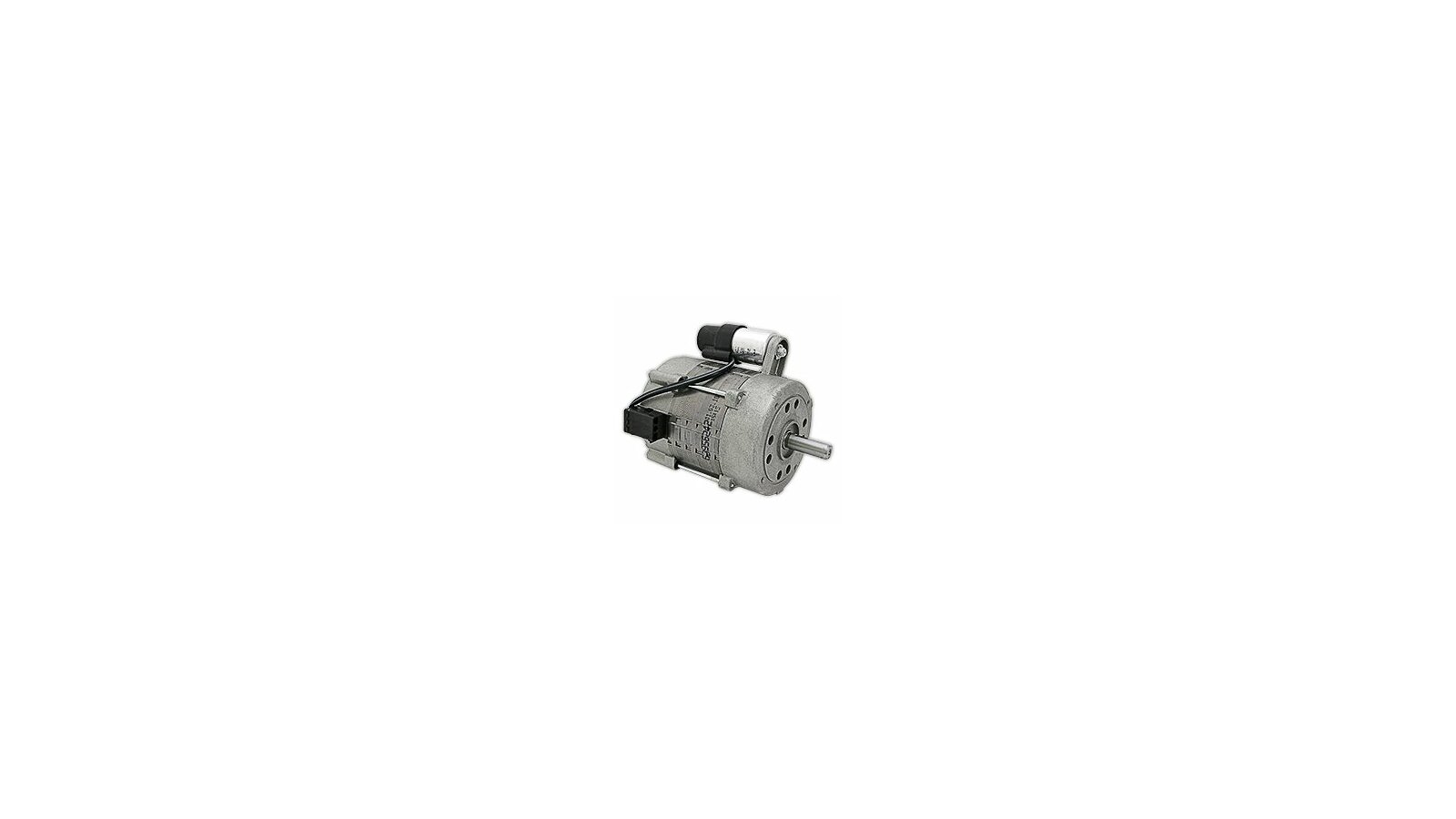

Electric motor (motor) ACC/AEG/FHP for burners with forced draft EB 95C52/2:

The European company ACC presents a 130-watt asynchronous electric motor with flange mounting EB 95C52/2, which is specially designed for installation in heating burners with forced draft. The device is a power drive for a liquid fuel pump or fan designed to create a swirl of air flow in the combustion chamber of the burner.

Technical features:

• To power the two-pole motor, only a single-phase network with a voltage of 230 V and a frequency of 50 Hz is used. To create a start of the stationary rotor, a phase-shifting capacitor with an electrical capacity of 4 μF is mounted on the housing.

• The casing of the device consists of two elements connected with screws. The material of manufacture is an aluminum alloy, which improves the anti-corrosion properties of the part and increases heat transfer from the current-carrying parts of the stator. Thus, forced air flow by a fan for cooling the stator winding is not required.

• Despite the high energy efficiency of the electrical appliance - IE2, its control using a frequency converter, current or voltage inverter will significantly extend the service life of the electric motor and save resources.

The main advantages of the model:

• small weight and compact overall dimensions of the device;

• long-lasting heat-resistant grease of bearing units, designed for the entire service life of the parts;

• the ability to operate the power unit in continuous mode S1 without overheating and premature wear of rotating parts;

• resin-impregnated, double insulation of windings with heat resistance class F.

Asynchronous motor with squirrel-cage rotor ACC 130 W is reliable electrical equipment manufactured in accordance with the European standard EN 60034-1 and designed for long-term operation in industrial conditions.
