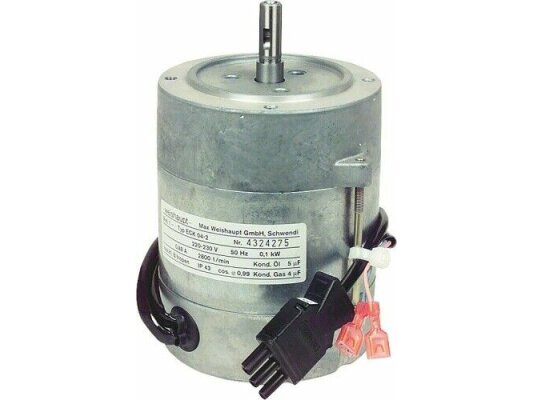

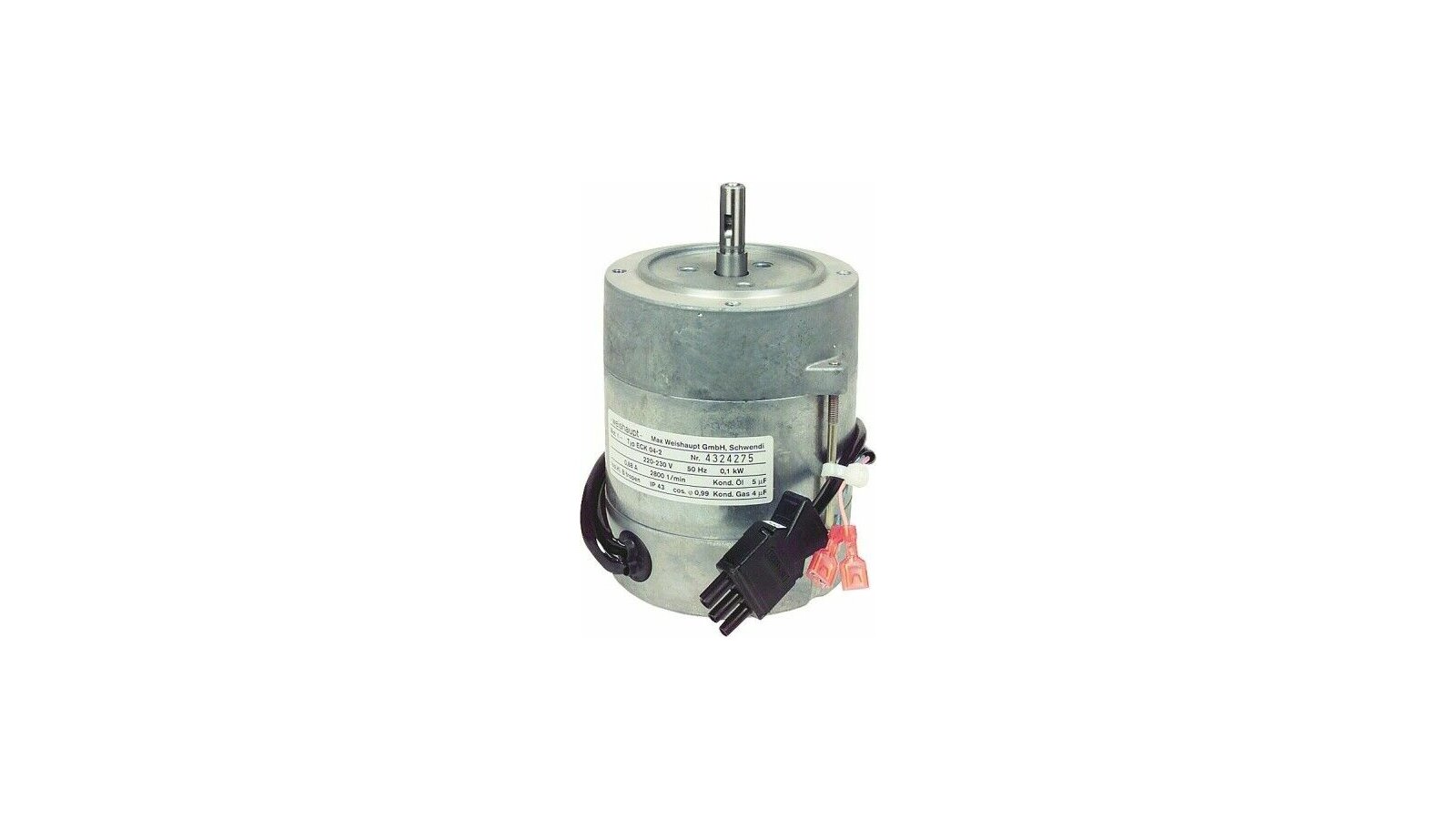

Motor Weishaupt ECK 04-2

The Weishaupt ECK 04-2 electric motor, art.: 24120007140, is used to drive the fan of a gas/liquid fuel burner and supply air to the firebox. Ensures uninterrupted operation of forced-draft industrial and domestic burners. Equipped with a compact aluminum housing. Works from a single-phase network. The built-in starting capacitor increases the torque when starting the engine.

Main parameters and features:

• Power supply from the 220-230 V, 50 Hz electrical network;

• Fan capacity 5 μF;

• Protection of electrical components from dust and moisture class IP 43;

• Speed ​​2800 rpm;

• Low energy consumption, engine power 100 W;

• Operation with a low sound pressure and vibration level;

• Corrosion- and heat-resistant aluminum housing;

• Reliable electrical insulation;

• Cable with a plug for electrical connection.

Weishaupt ECK electric motors comply with European safety and quality standards.

Advantages:

• low energy consumption;

• compact dimensions, light weight;

• protection against penetration of solid particles from 1 mm, raindrops;

• built-in starting capacitor to increase torque;

• long service life.

On the ANKAS website you can buy an electric motor and other spare parts for burners.
