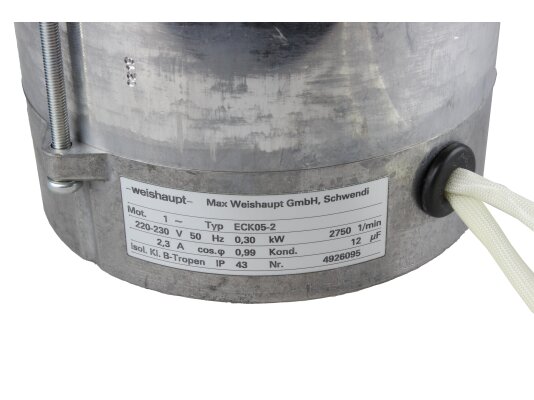

Motor Weishaupt ECK05-2

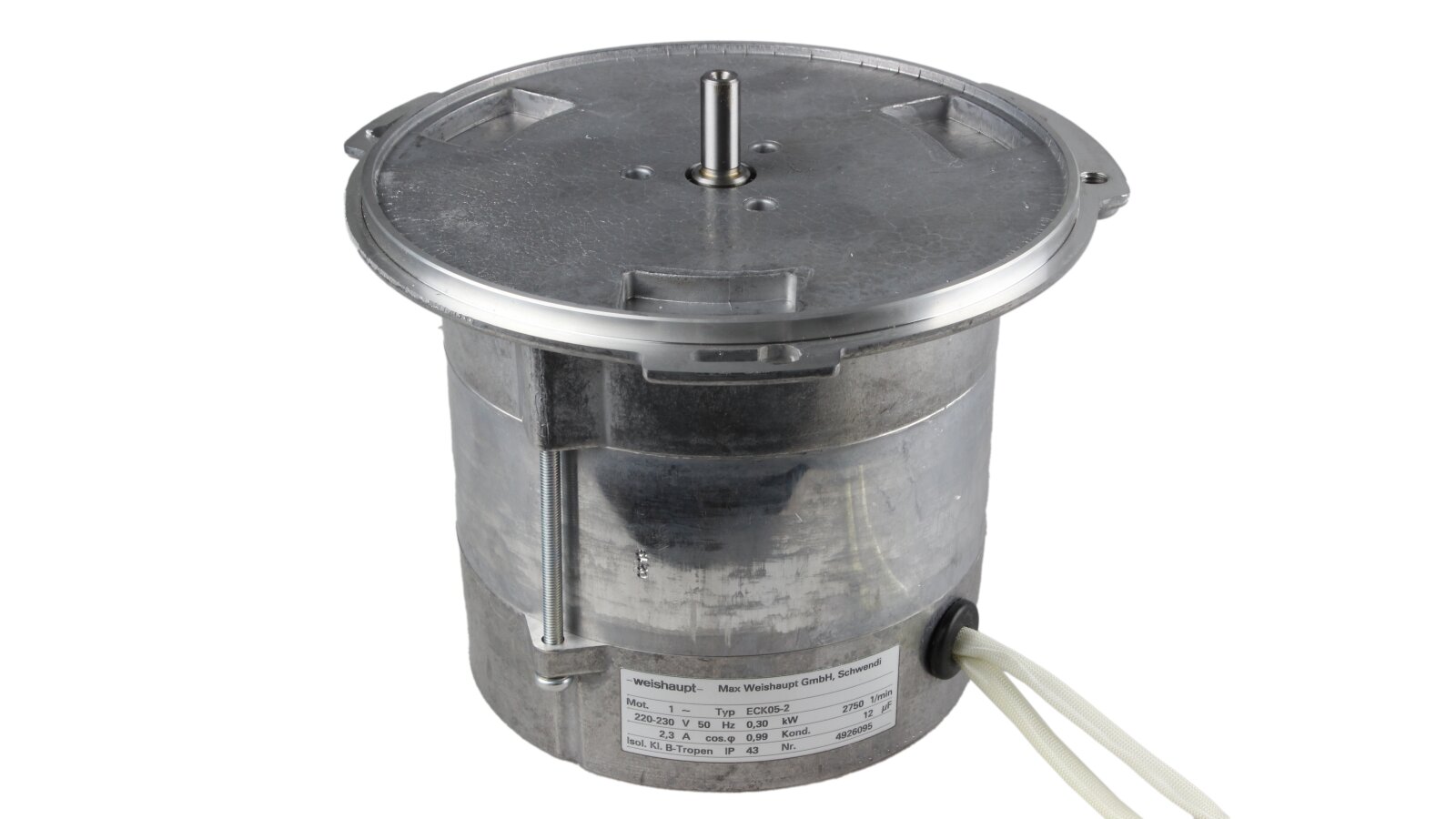

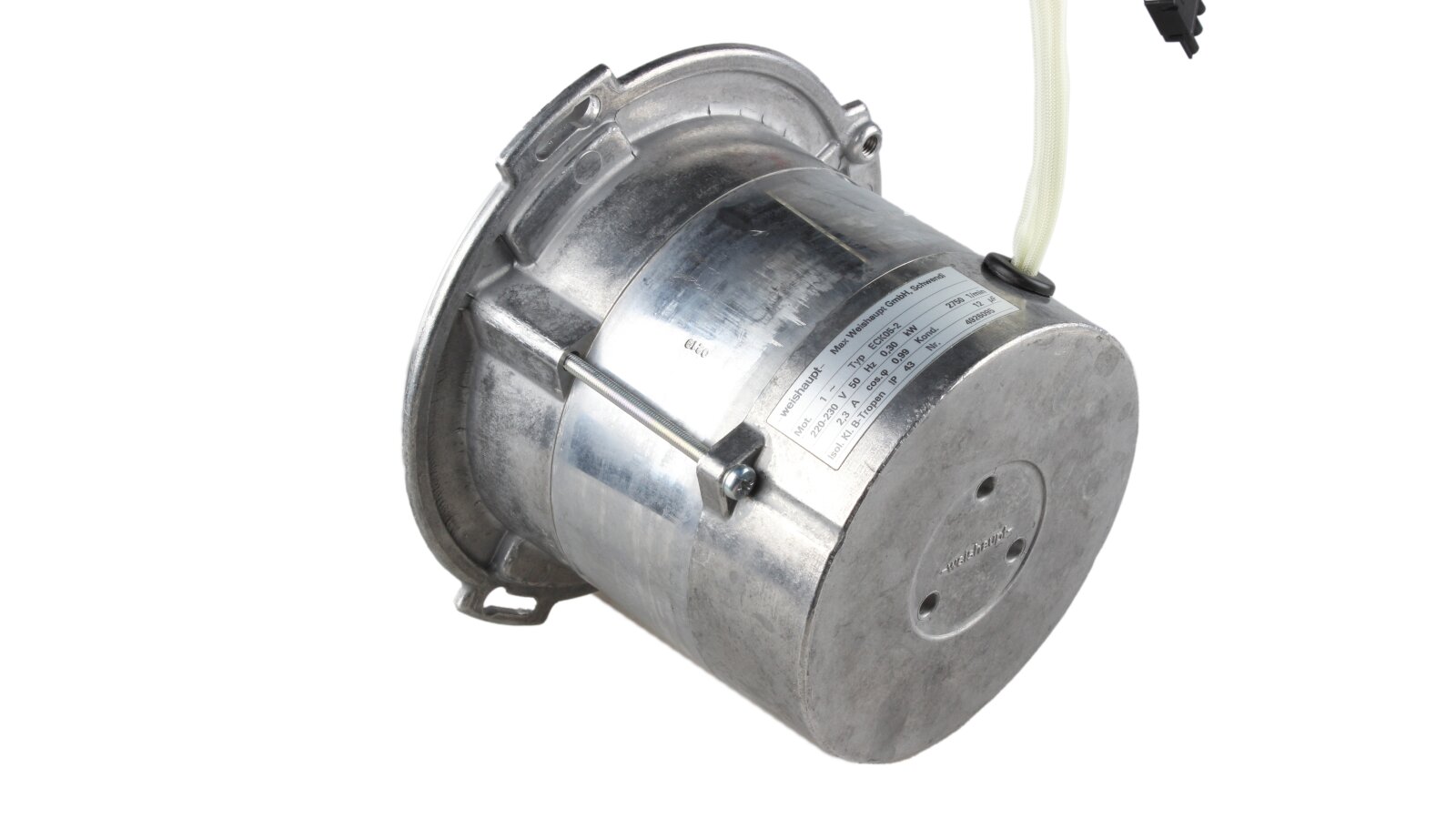

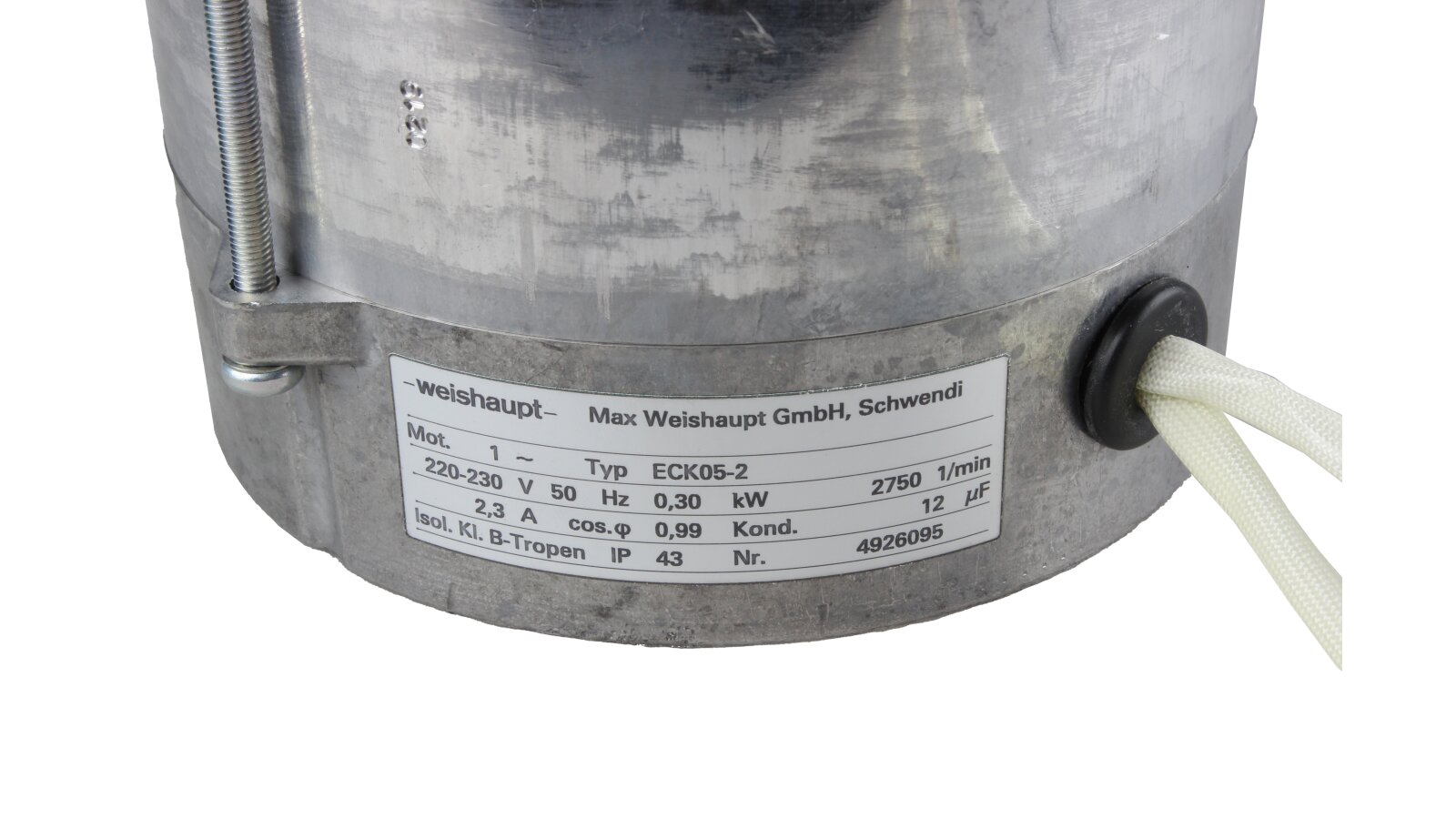

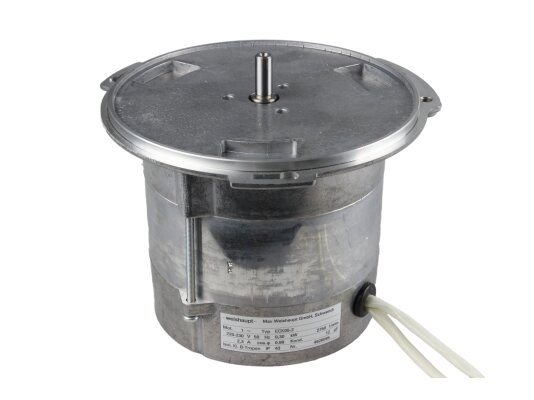

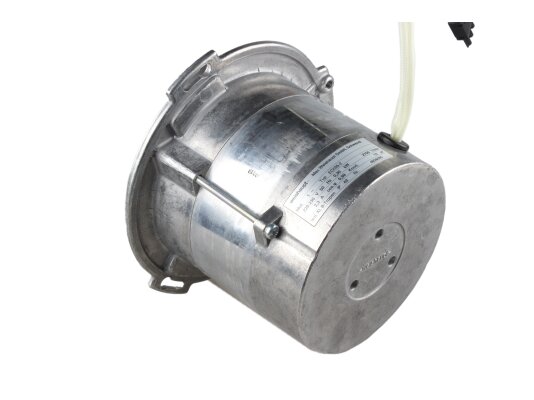

The Weishaupt ECK05-2 electric motor, art.: 24130007090, drives the fan of a forced-air gas or liquid fuel burner. It is equipped with a 12 μF starting capacitor to increase the torque at the start and to equalize the voltage parameters. The equipment is characterized by reliable performance, high resistance to corrosion, overheating, made of wear-resistant and corrosion-resistant materials. Conforms to EN 60034.

Features:

• operates from a single-phase 230 V network;

• power - 300 W;

• corrosion-resistant design in an aluminum cast housing;

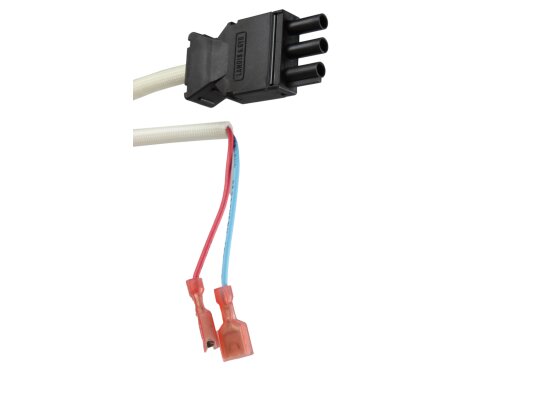

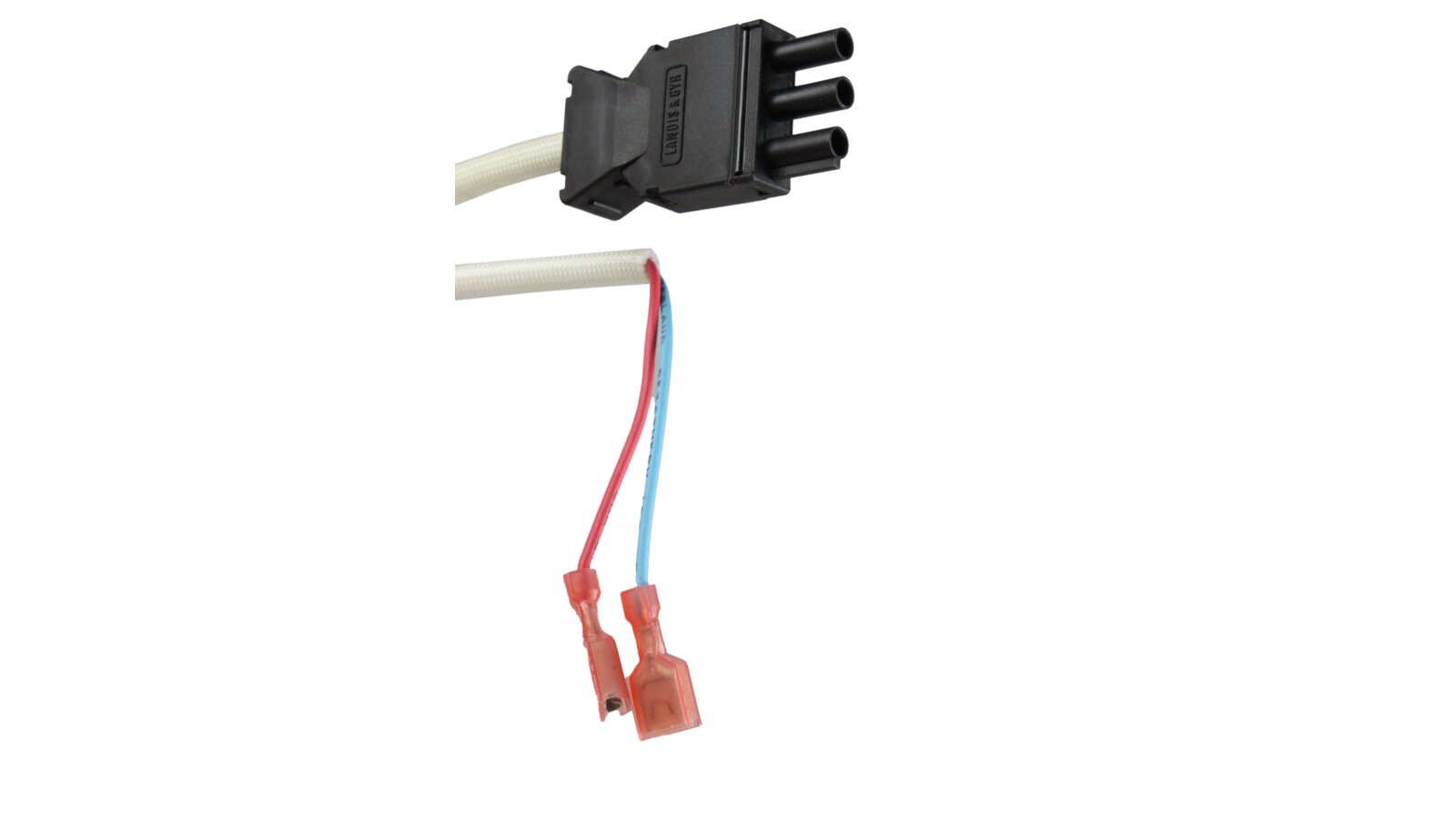

• connected power cable 0.28 m;

• starting using a power contact, frequency converter;

• protection against dust and moisture according to IP 43;

• insulation heat resistance class - B;

• maximum heating temperature of the conductive parts of the winding +130°.

For trouble-free service of the Weishaupt ECK05-2 electric motor, it is necessary to exclude exposure to moisture, voltage drops and ensure an optimal temperature regime.
