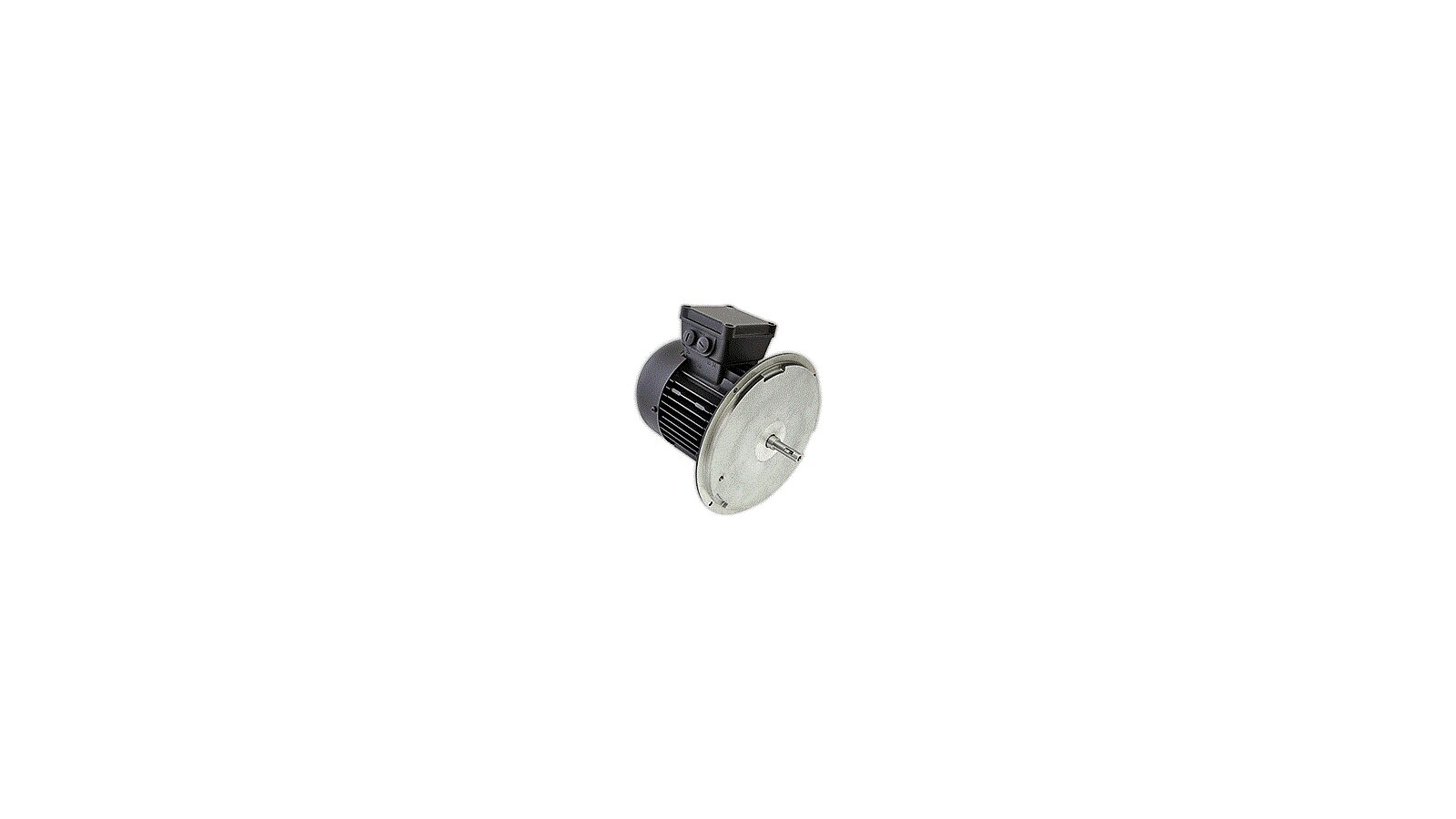

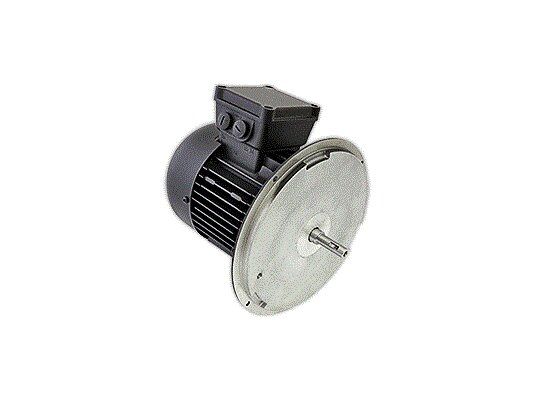

Motor Weishaupt W-D90/110-2/1K5, 25151307010
Alternative Part Number
Description
The Weishaupt W-D90/110-2/1K5 electric motor, art.: 25151307010, ensures efficient and uninterrupted operation of the industrial forced-draft burner fan. It can operate from a three-phase and single-phase power source. It features high efficiency and meets the IE2 energy efficiency class according to the international classifier.
More about the electric motor
The 1.5 kW asynchronous electric motor is assembled in a lightweight cast aluminum alloy housing and is equipped with a squirrel-cage rotor. It is switched on from a built-in power contactor or frequency converter. The drive shaft rotates at a speed of up to 2900 rpm.
The housing is equipped with cooling fins for efficient heat dissipation and prevention of overheating, as well as forced air flow by a built-in galvanized steel fan for reliable operation of the motor during long-term use. A 10-amp fuse and current protection relay are installed.
High level of dust and moisture protection IP 55 ensures safe operation of the electric motor in conditions of high humidity and placement in dusty rooms. Energy efficiency class IE2 indicates high-performance operation of the motor.
Main advantages:
Energy efficiency class IE2;
Cooling system for long-term operation without the risk of overheating;
Built-in fuse and relay;
Protection against dust and moisture penetration according to the IP 55 standard.
Other electric motors for burners are presented in the catalog.
