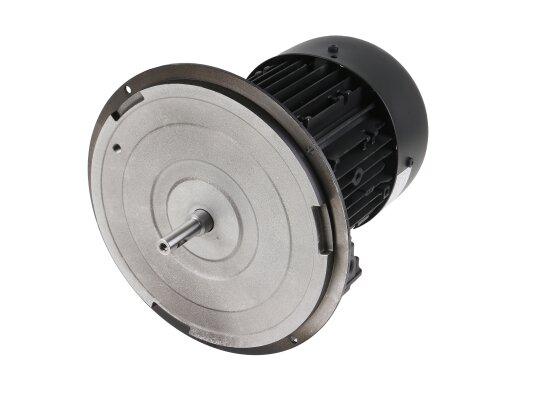

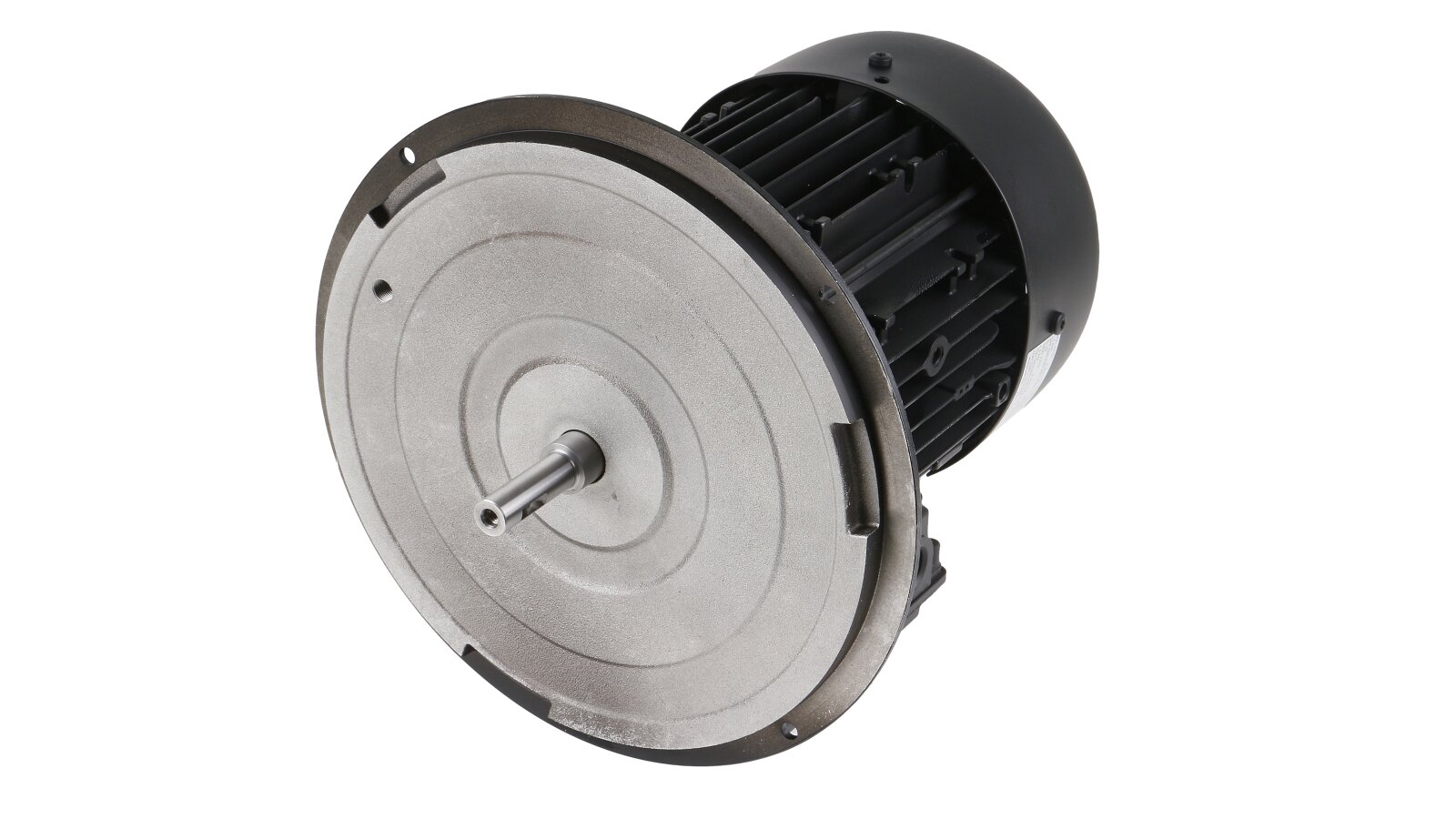

Motor Weishaupt WM-D90/90-2/1K5

The Weishaupt WM-D90/90-2/1K5 electric motor, art: 21710507010, is used in forced-draft industrial burners to drive and efficiently operate the fan. It features high efficiency and meets the IE2 energy efficiency class according to the international classifier. It can be connected to a 380 V or 230 V source.

More about the electric motor

The 1.5 kW asynchronous motor is equipped with a lightweight housing made of die-cast aluminum alloy and is equipped with a squirrel-cage rotor. It is switched on from a built-in power contactor or frequency converter. The drive shaft rotates at a speed of up to 2900 rpm

The housing is equipped with cooling fins to remove excess heat and prevent overheating. The built-in fan made of galvanized steel provides forced airflow around the motor, which eliminates thermal overload during continuous operation. Insulation heat resistance class F ensures stable operation of the motor under high-temperature conditions (up to +155°C).

Dust and moisture protection of the housing complies with the IP 55 standard, which allows the motor to be used in conditions of high humidity and dustiness. The motor is equipped with a 10-amp fuse and a current protection relay.

Main advantages:

• Optimal performance;

• Overheating protection system;

• Built-in fuse and relay;

• Dust and moisture resistance class IP 55.

We have electric motors for burners of any power and purpose, please contact us.
