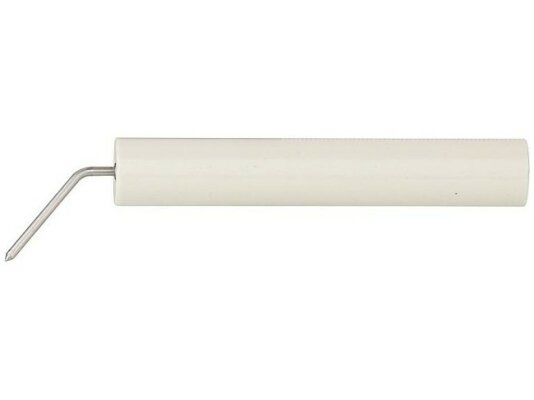

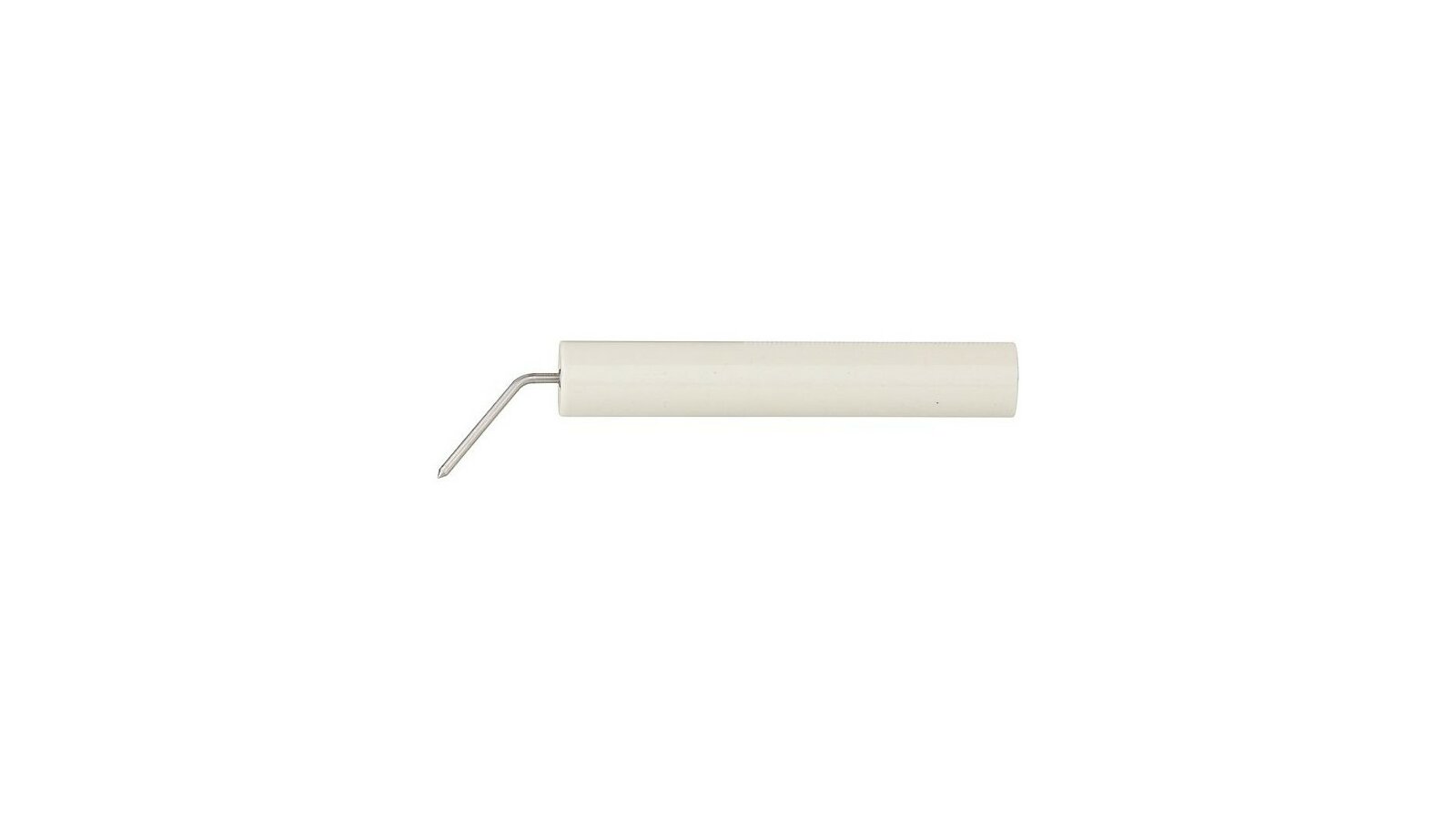

Ignition electrode Riello 105.3 mm, 3005225

The Riello ignition electrode 105.3 mm, art: 3005225, is used for instantaneous ignition of the fuel when starting the burner. It produces an electric discharge when high-voltage voltage is received from the ignition transformer. It consists of a metal rod and an insulating casing for protection against electric shock.

Features and main parameters:

• curved shape of the metal conductive rod;

• ceramic fixed insulation for safe operation;

• size of the insulating casing: Ø14x80 mm;

• use in Riello gas boilers;

• ignition rod Ø1.95x25.3 mm;

• plug Ø6 mm for quick and reliable connection to the ignition cable;

• total electrode length – 105.3 mm;

• instantaneous ignition of the gas-air mixture when starting the burner.

On the website you can also choose other original ignition and ionization electrodes for burners.
