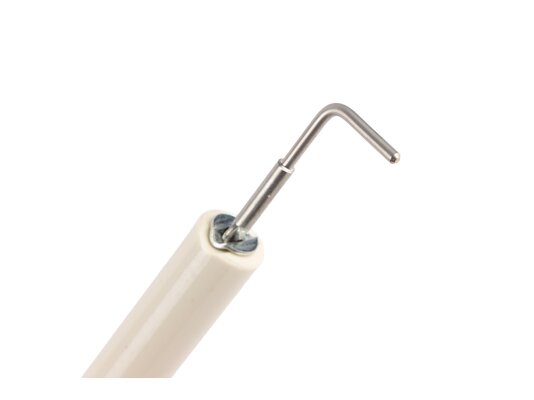

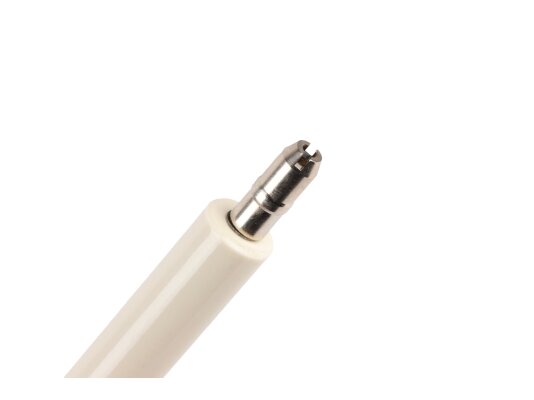

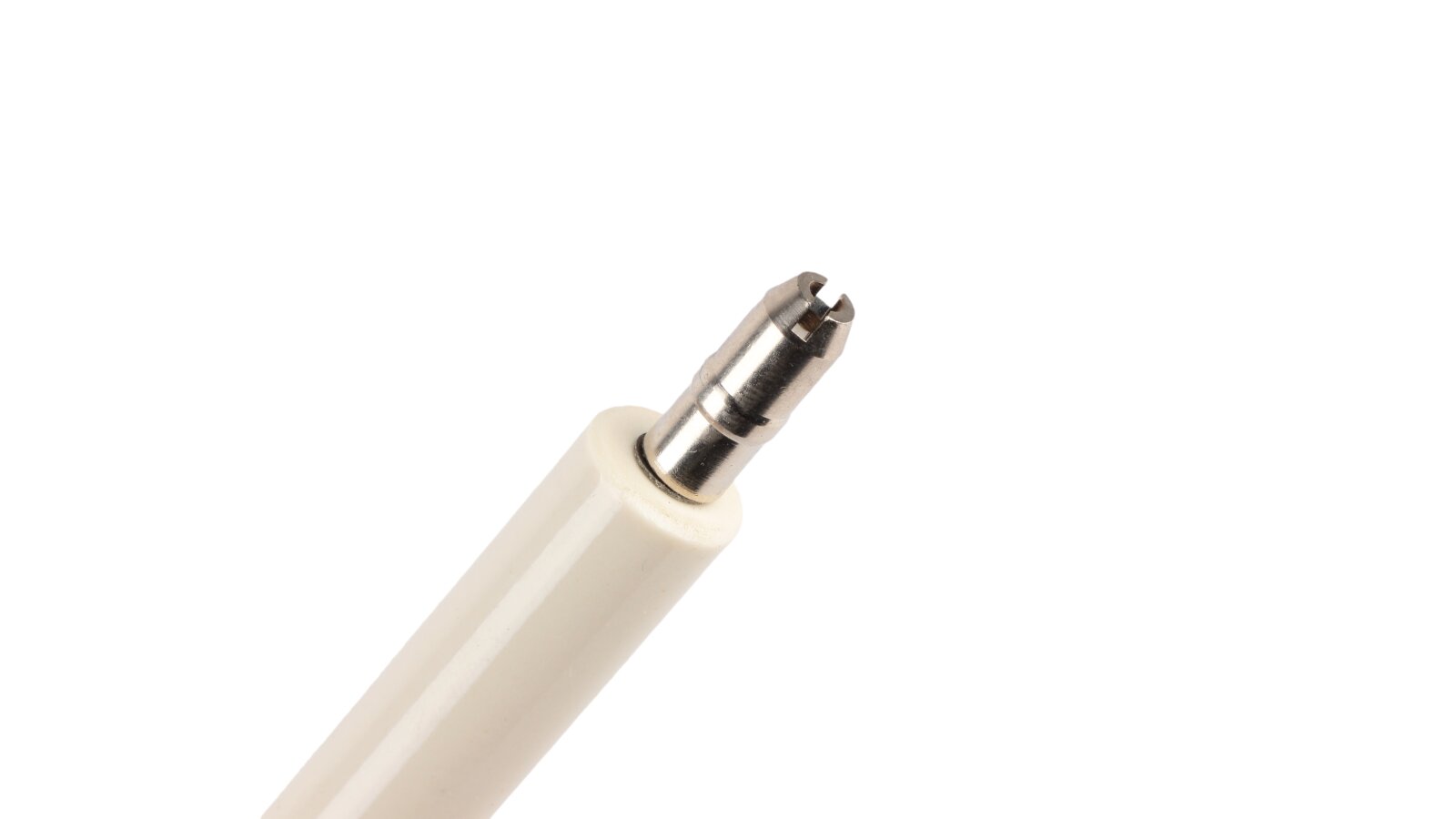

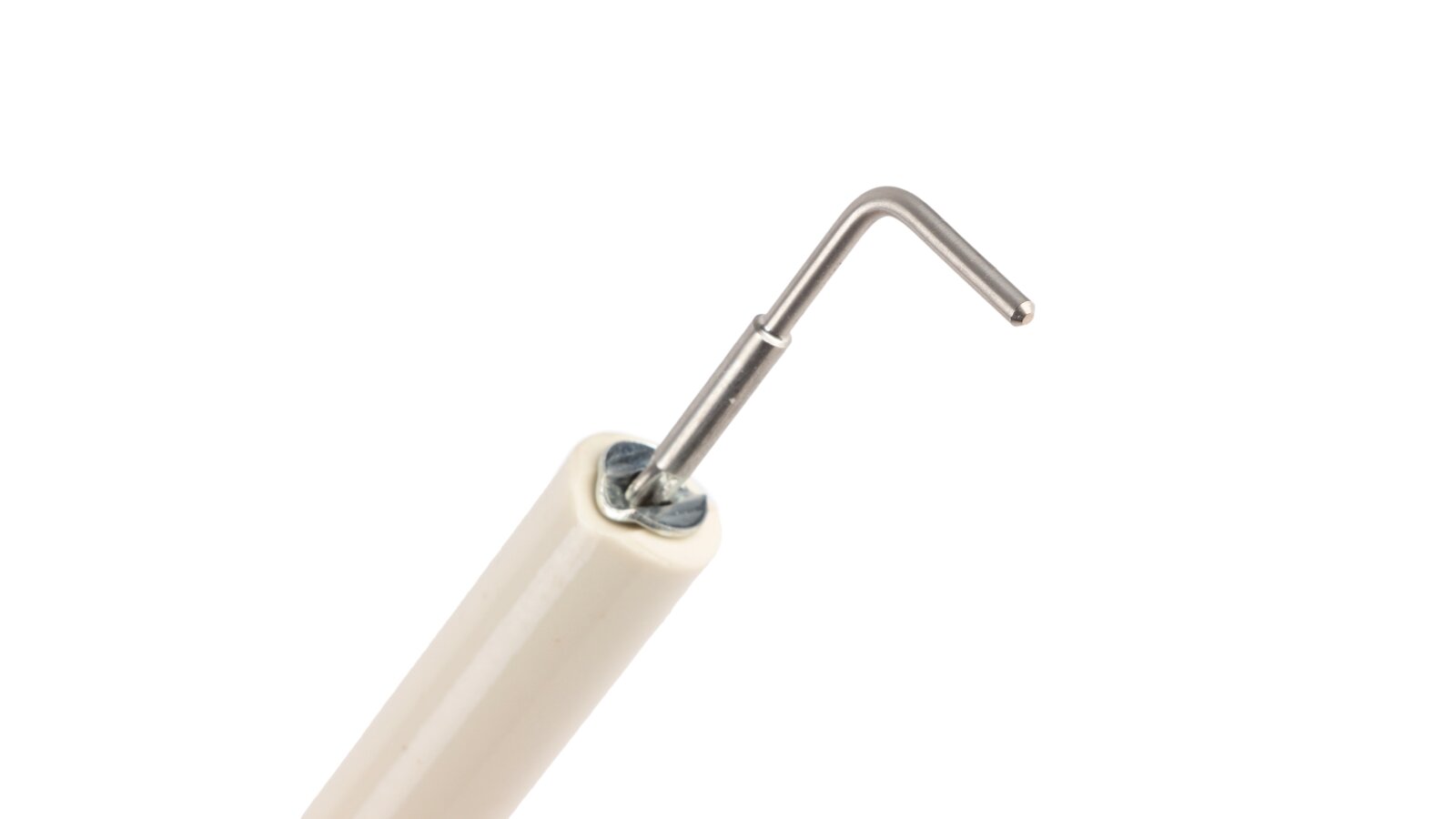

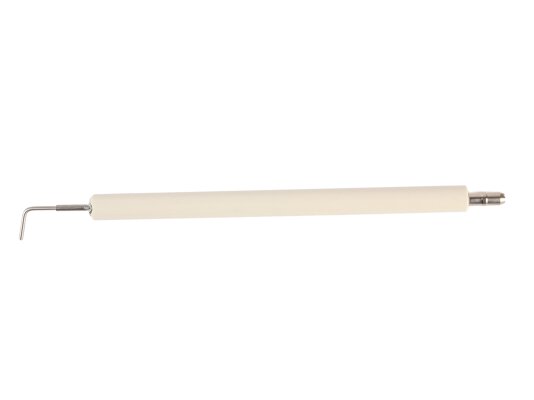

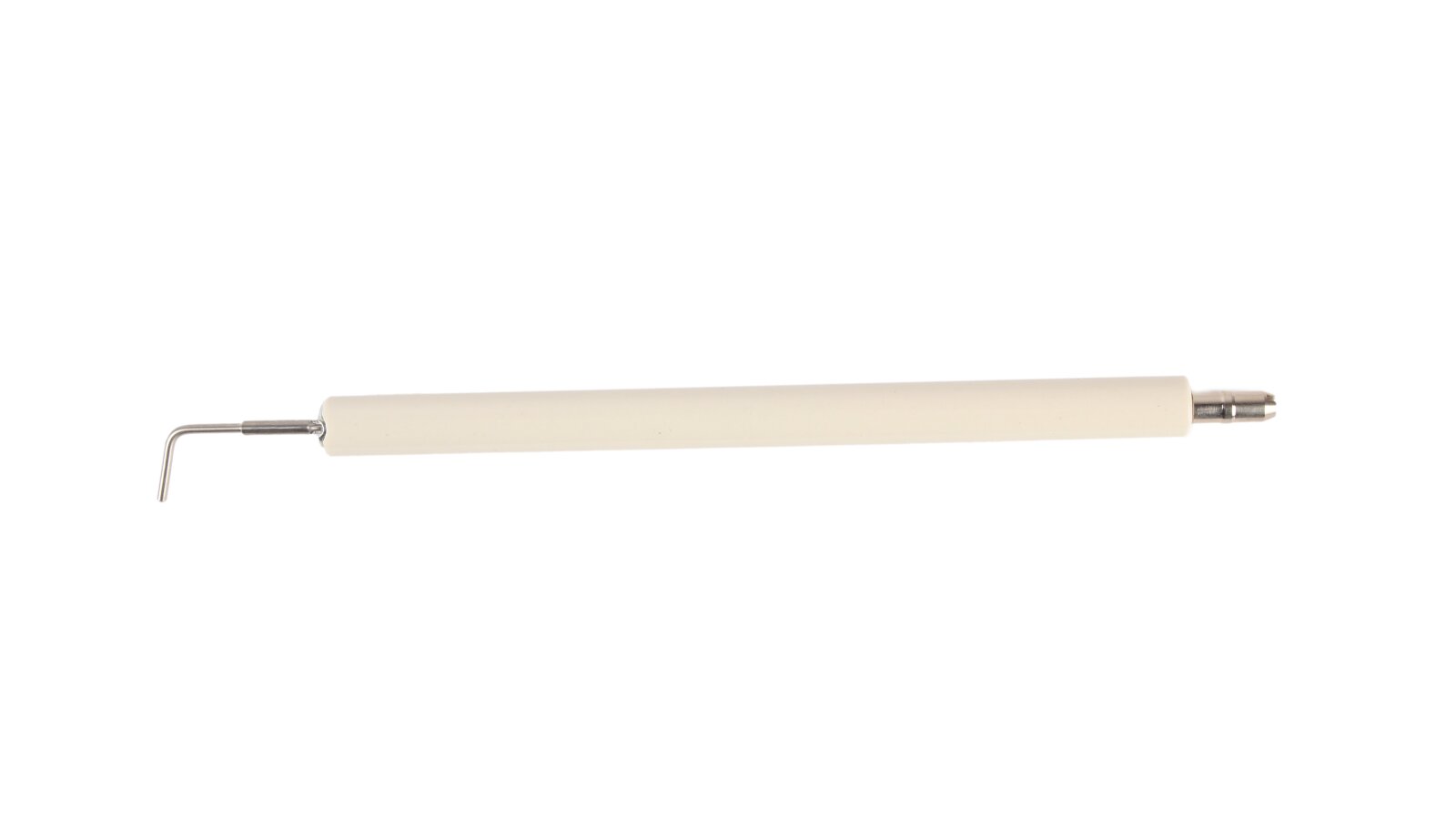

Ignition electrode Riello 214 mm, 3006706

The Riello 214 mm ignition electrode, art.: 3006706, is part of the ignition unit of the Riello industrial burner. High voltage generated by the ignition transformer is supplied to the electrode via the ignition cable, which produces a powerful electric discharge. Ceramic insulation and wear-resistant, corrosion-resistant alloy were used in the manufacture of the electrode.

Features of the ignition electrode:

• use in Riello industrial burners;

• parameters of the conductive metal rod: Ø2 mm, length 20 mm;

• reliable plug contact with the ignition cable Ø6 mm;

• ceramic insulation of the rod: Ø12x165 mm;

• total length – 214 mm.

You can find out more information about the ignition electrode from our specialists.
