Description

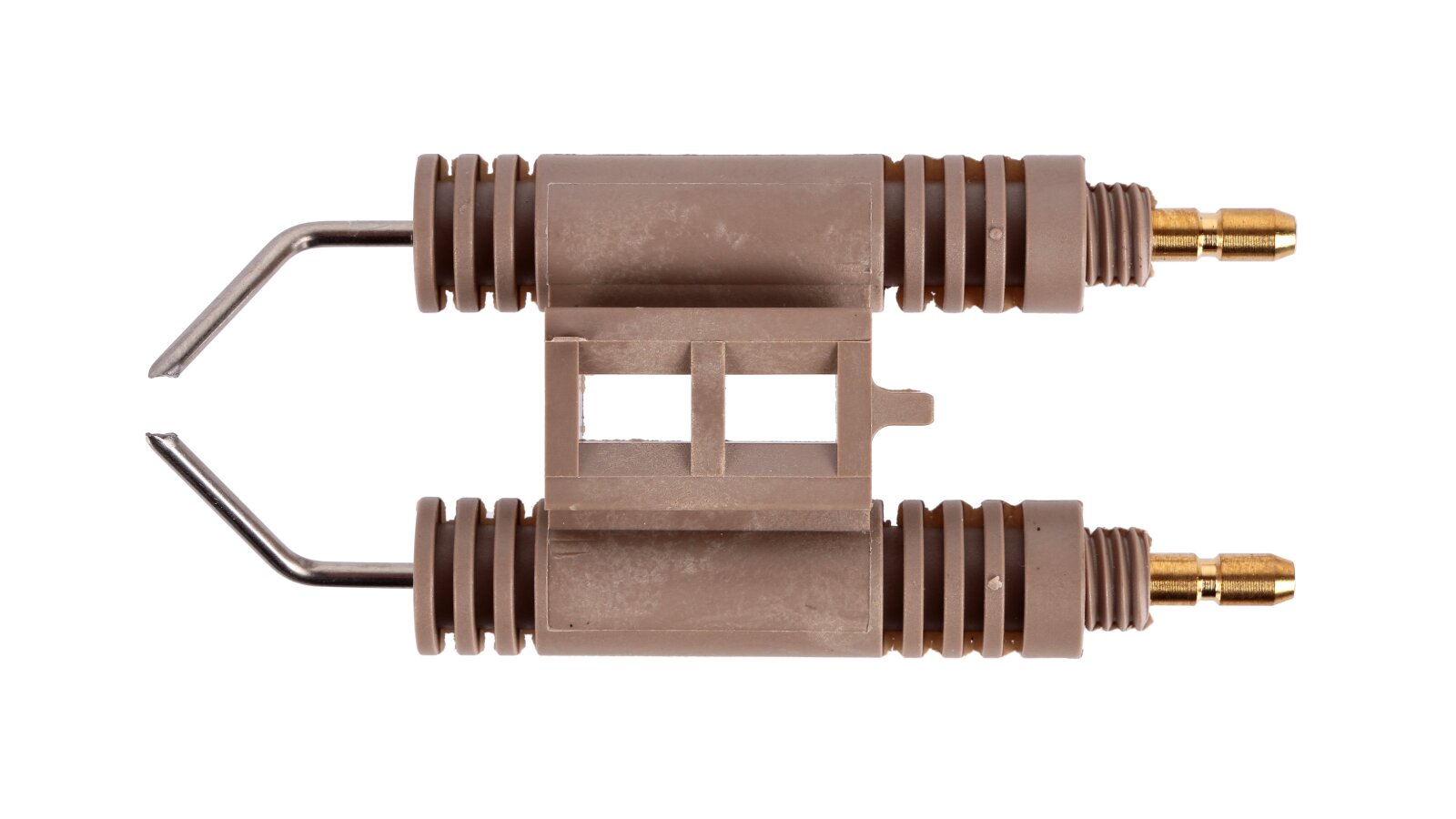

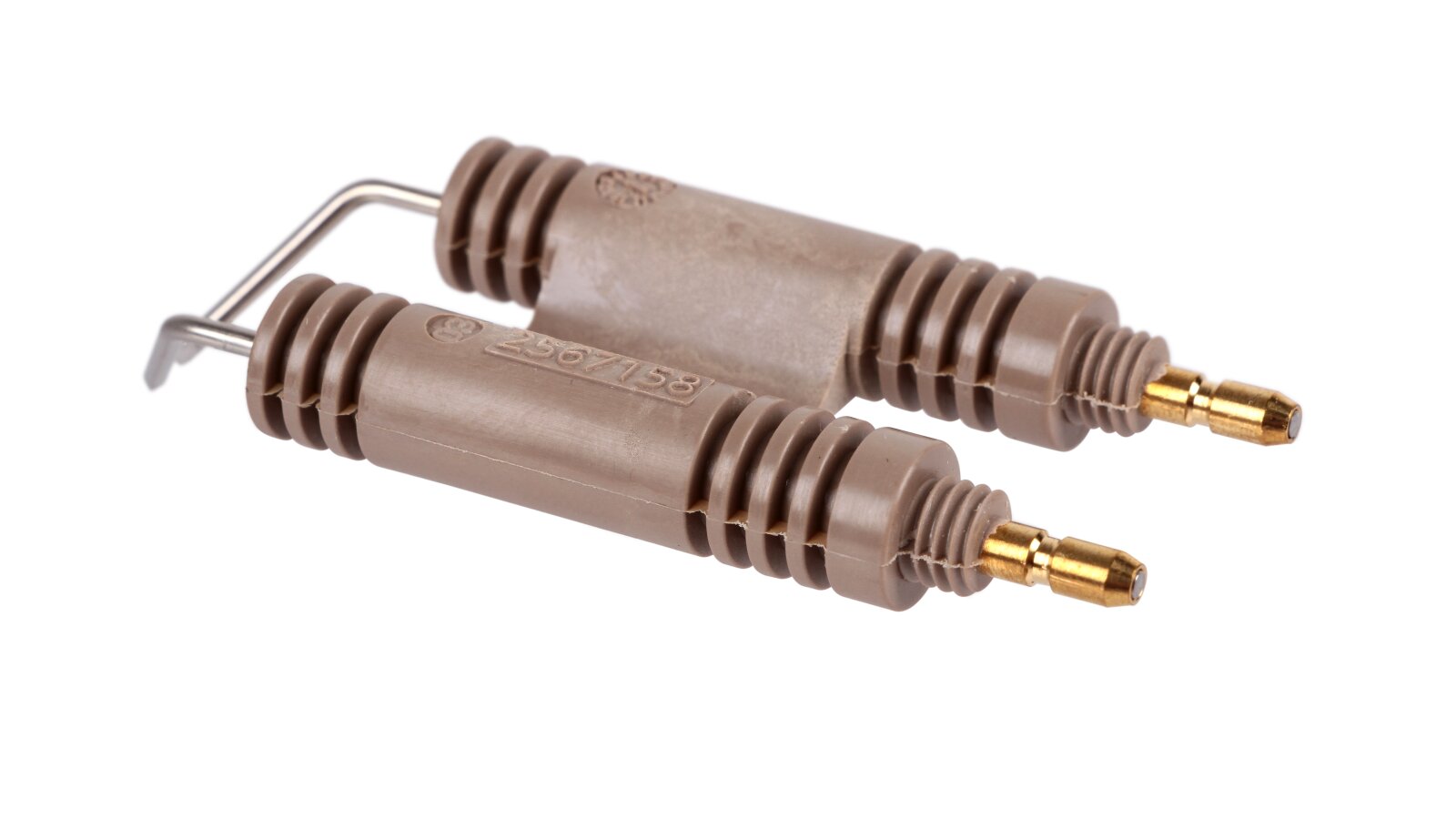

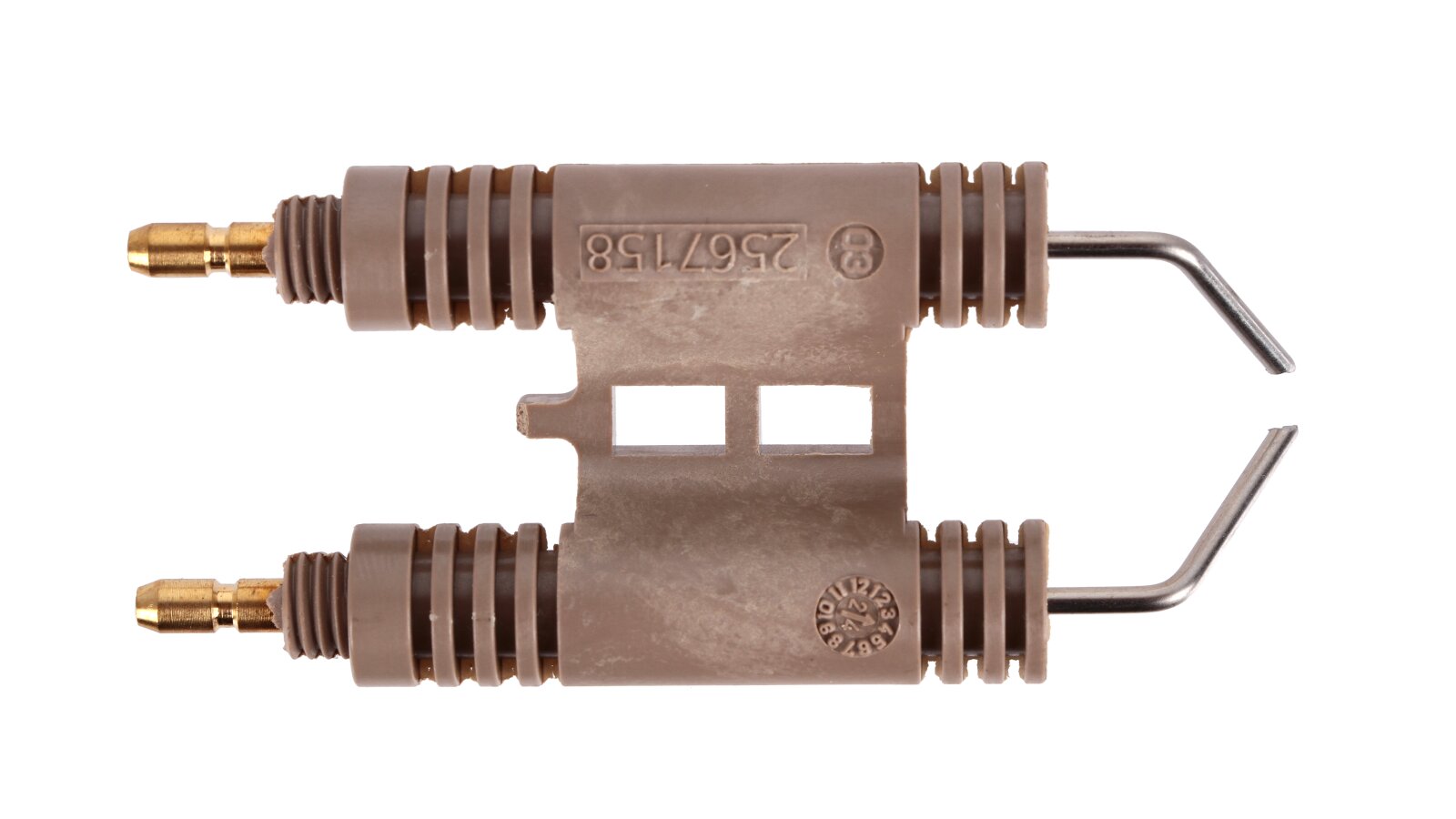

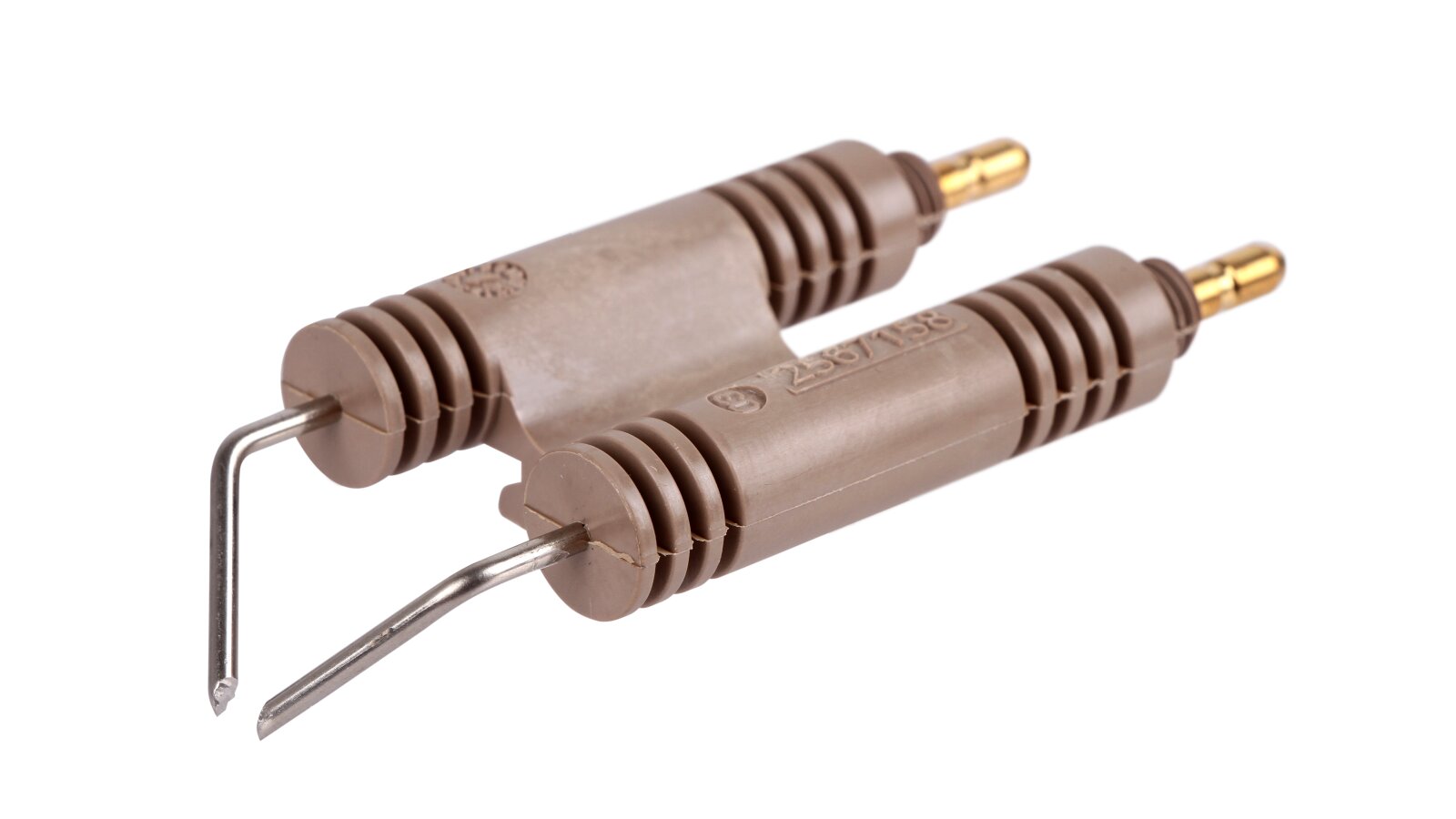

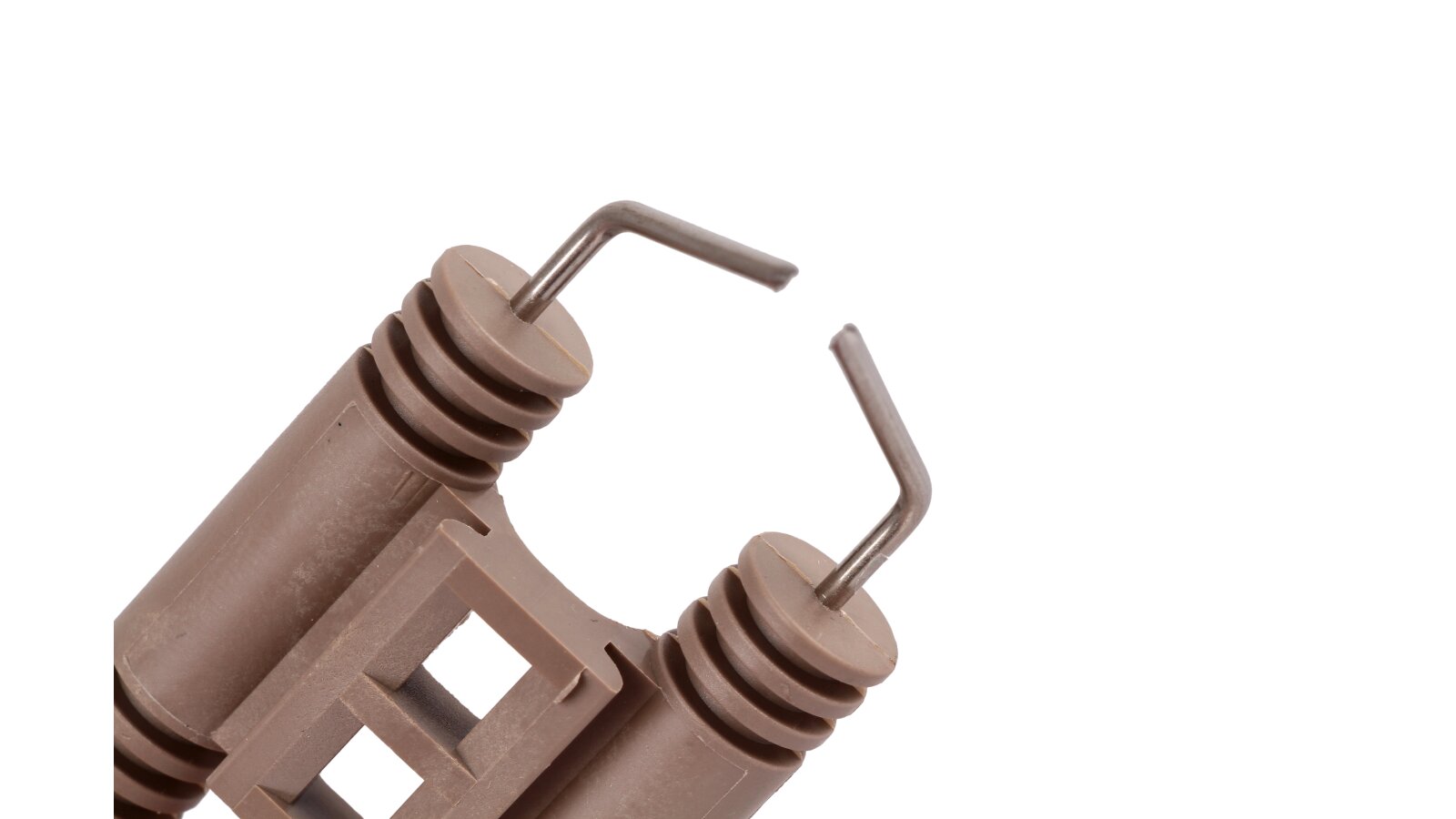

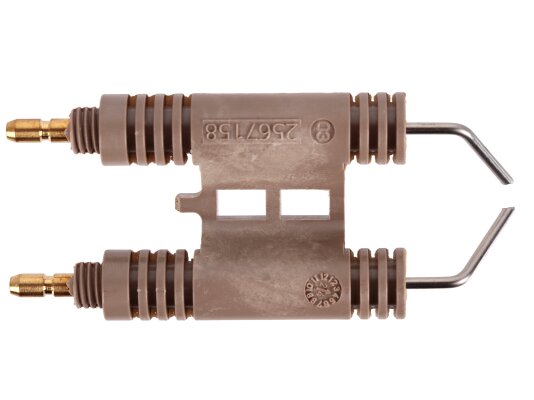

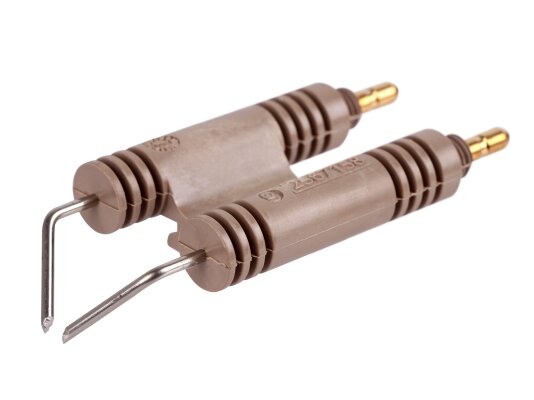

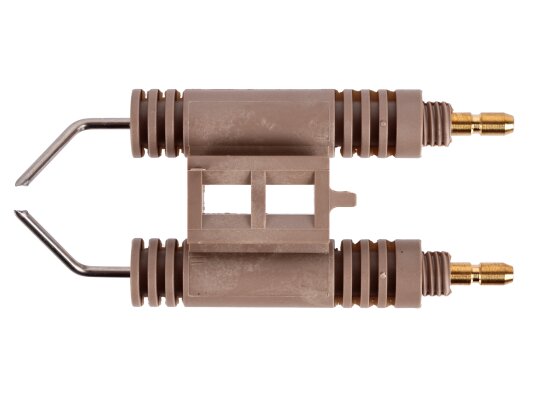

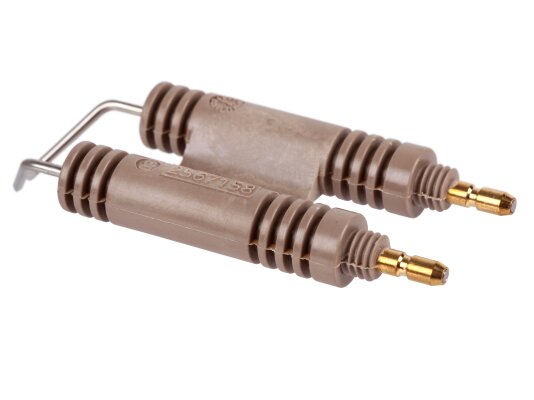

The Riello 86 mm ignition electrode block, art.: 3007513, is used to equip the burner ignition unit. It is connected to a step-up transformer to obtain the high-voltage current required to generate an electric spark. The block consists of two ignition electrodes secured in a single insulation housing.
Features and specifications:
common fixed insulation housing 50x37.8x15.4 mm with electrodes located at an optimal distance;

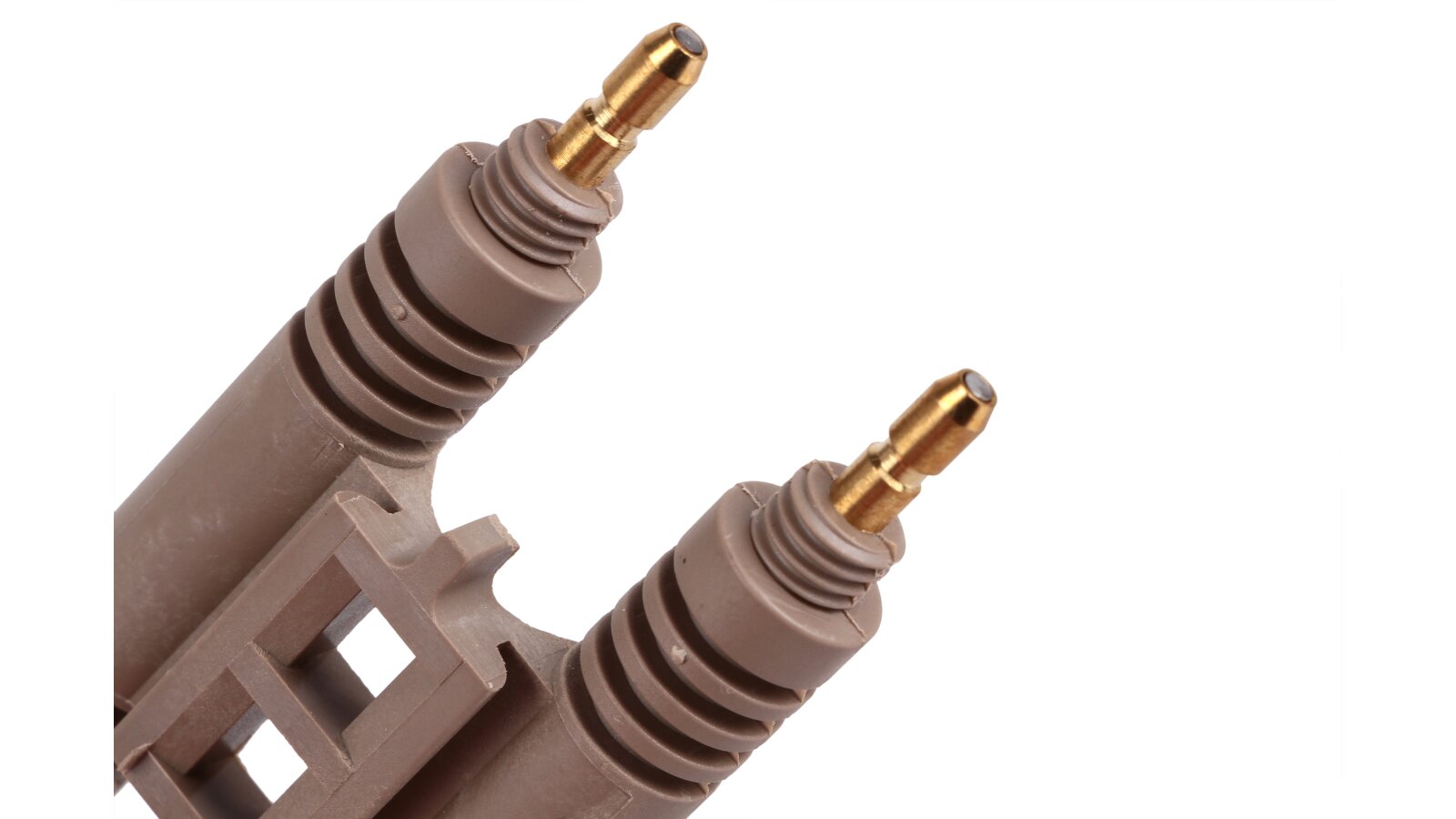

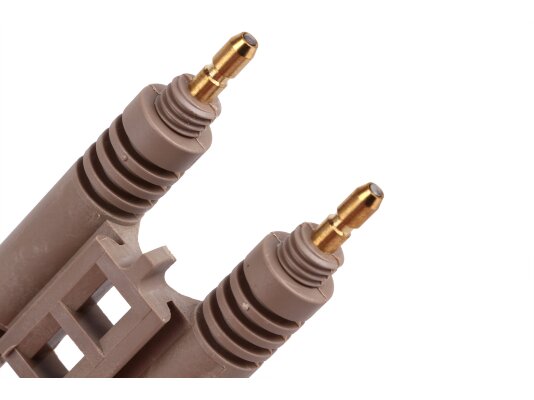

plug-in connection with ignition cables;
rod material - alloy resistant to electrochemical corrosion and high temperatures;
ceramic insulation with high dielectric strength, reliable protection against current leaks, short circuits;

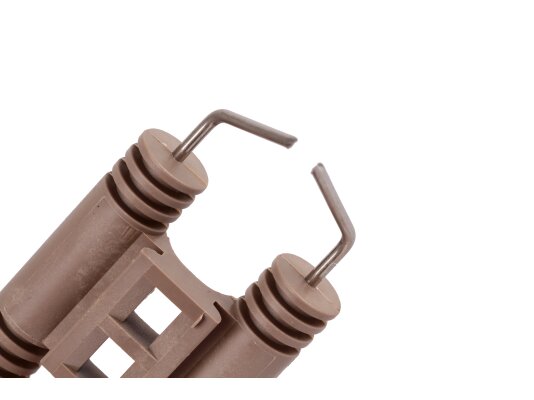

length of the ignition part of the rod: 20 mm.
Application
The ignition electrode block is designed for assembly and maintenance of Riello RG diesel burners.
Advantages:
effective spark ignition of the burner;
single insulation housing;
electrode placement at an optimal distance;
heat-resistant ceramic insulation;
easy installation and replacement.
The electrode block is manufactured in accordance with European electrical safety standards.
Characteristics
