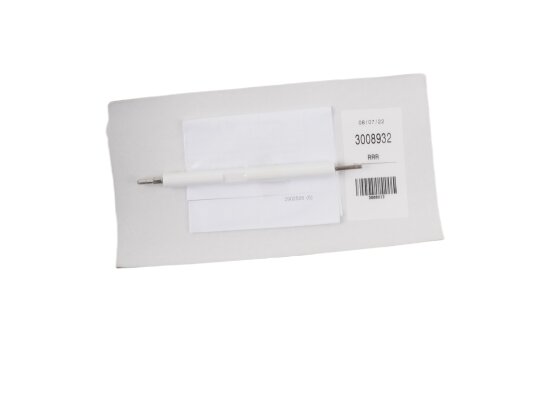

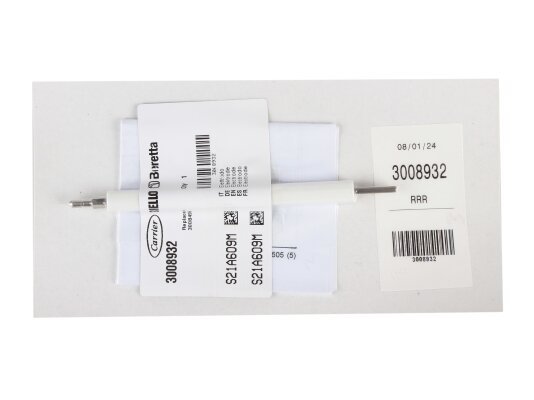

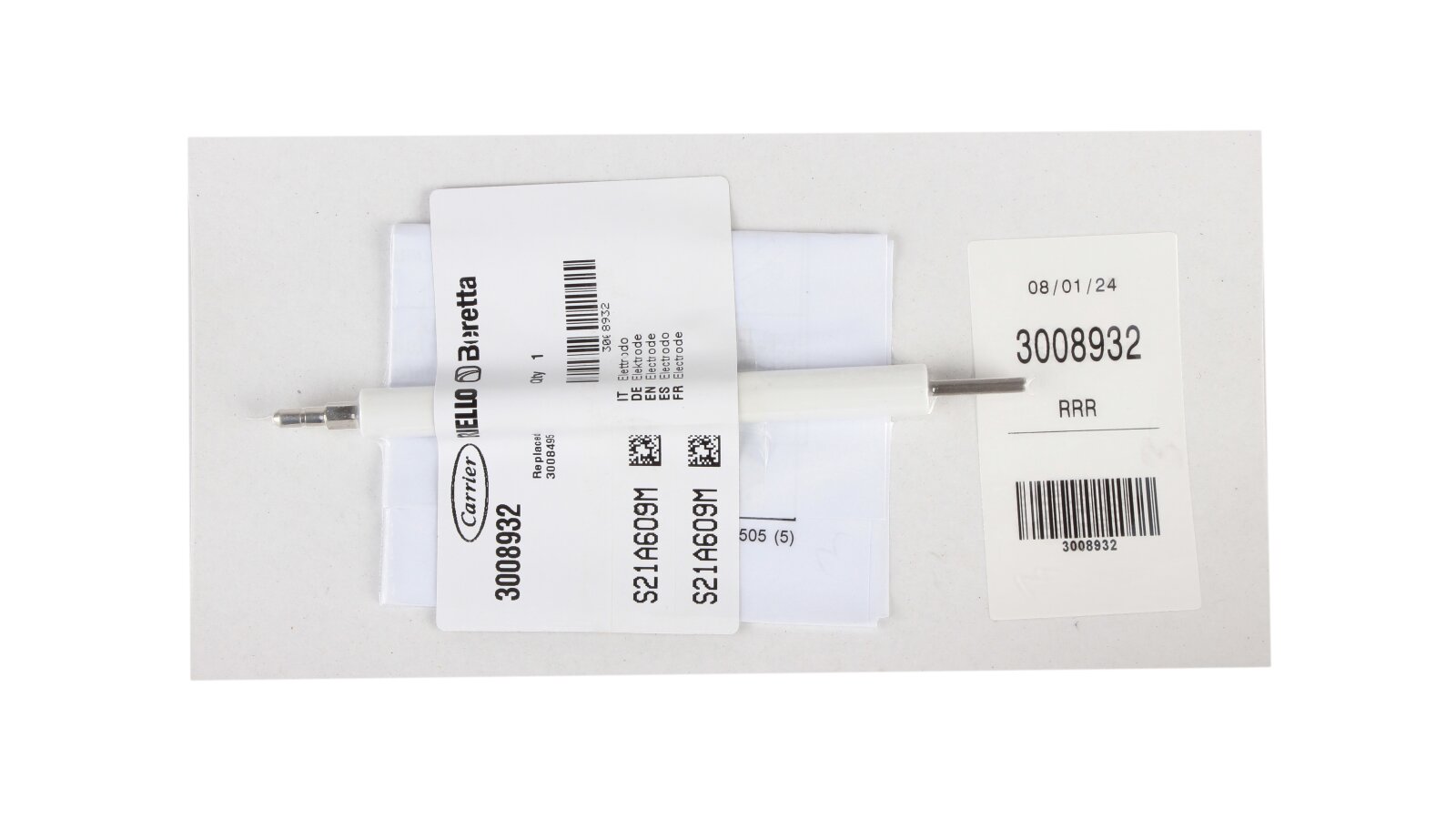

The Riello ignition electrode 159 mm, art. 3008932 is used in gas burners for rapid ignition of a combustible mixture by a spark discharge. It ignites the fuel due to high voltage coming from the ignition transformer. Ceramics are used as electrical and thermal insulation of the conductive rod
Features
The ignition electrode is connected to the high-voltage cable using a plug with a diameter of 4 mm. The electrode includes a metal conductive rod, a ceramic fixed shell Ø10x120 mm for thermal and electrical insulation. The electrode is designed for exposure to high temperatures and contact with flammable gases. It is built into the ignition unit of the Riello gas burner. Electrode length - 159 mm.
Characteristics
Manufacturer Part Number: 3008932Electrode length: 159 mmConnector diameter: 4 mmElectrode type: ignitionFixed insulation size: Ø10 x 120 mmRod size: Ø3 X 20 mm
