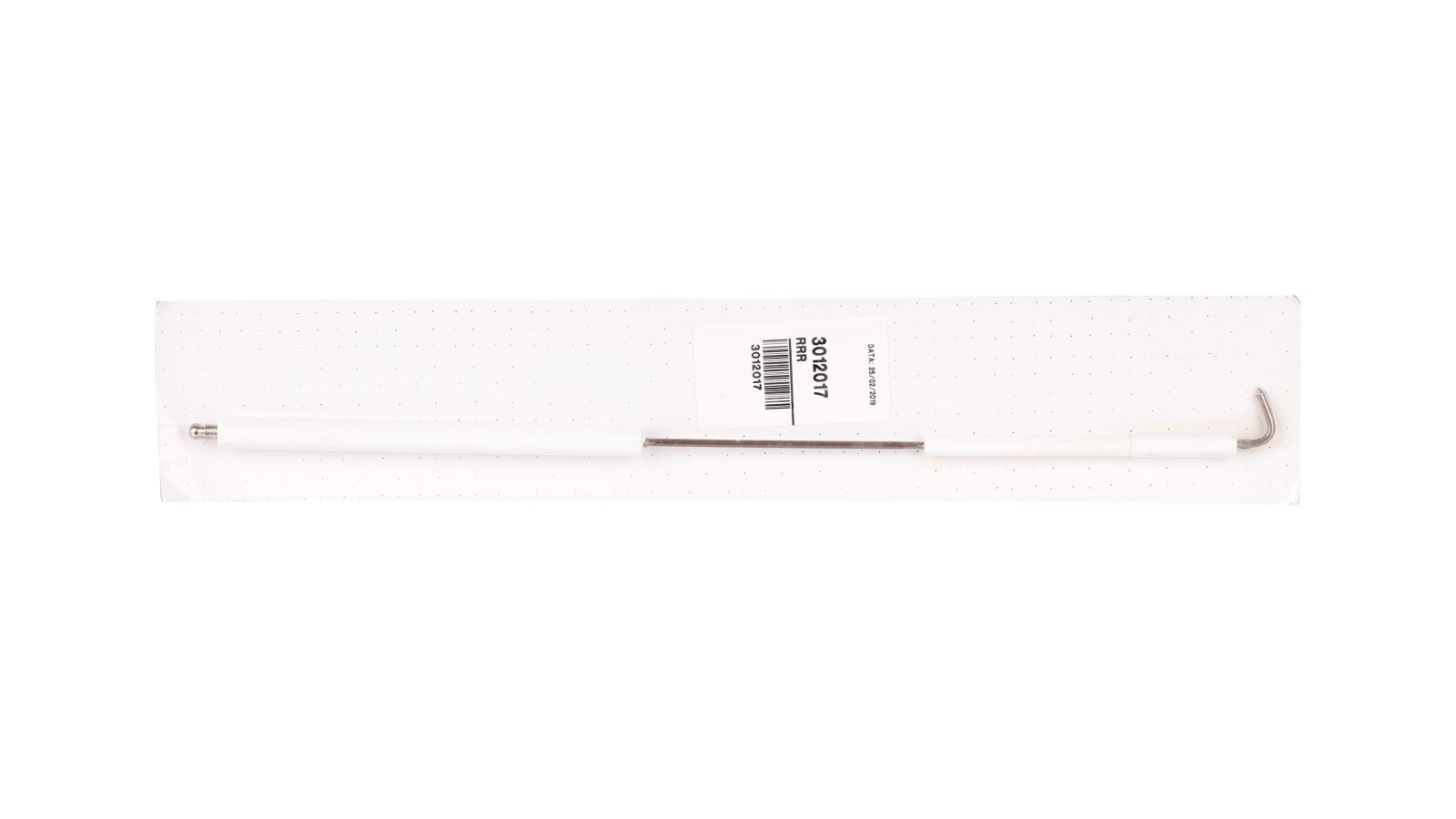

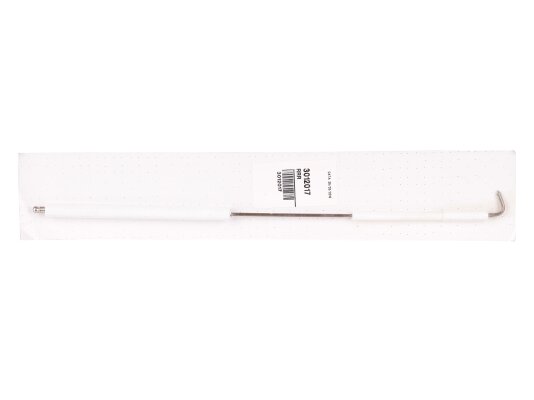

Ignition electrode Riello 418 mm, 3012017

The Riello ignition electrode, art. 3012017, is part of the ignition unit of the industrial burner. Creates an electric spark discharge for quick and safe ignition of the combustible mixture. The conductive rod is protected by reliable insulation for safe operation of the electrode. Reliable contact with the high-voltage cable is achieved through a plug connection.

Features of the ignition electrode:

• use in Riello industrial burners;

• overall length: 418 mm;

• parameters of the metal conductive rod: Ø3, length 120 mm;

• Ceramic insulation 1 - Ø12 X 165 mm;

• Ceramic insulation 2 - Ø8 X 80 mm;

• Ceramic insulation 3 - Ø9.3 X 40 mm;

• quick and reliable connection using a Ø6 mm plug;

• ceramic insulation of the rod.

For more information about the product, please contact our consultants.
