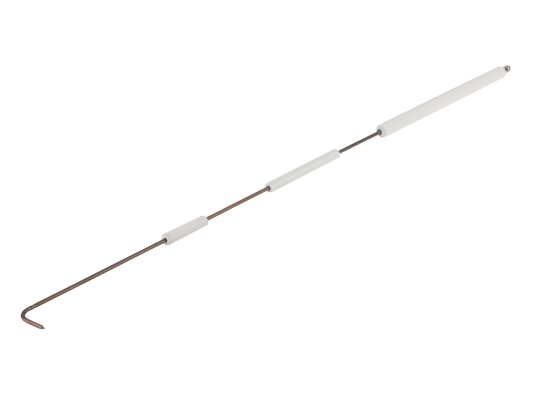

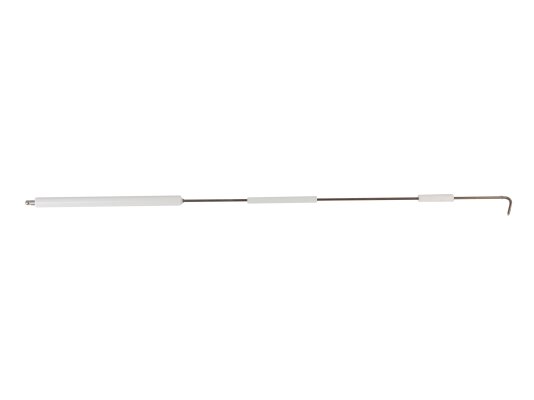

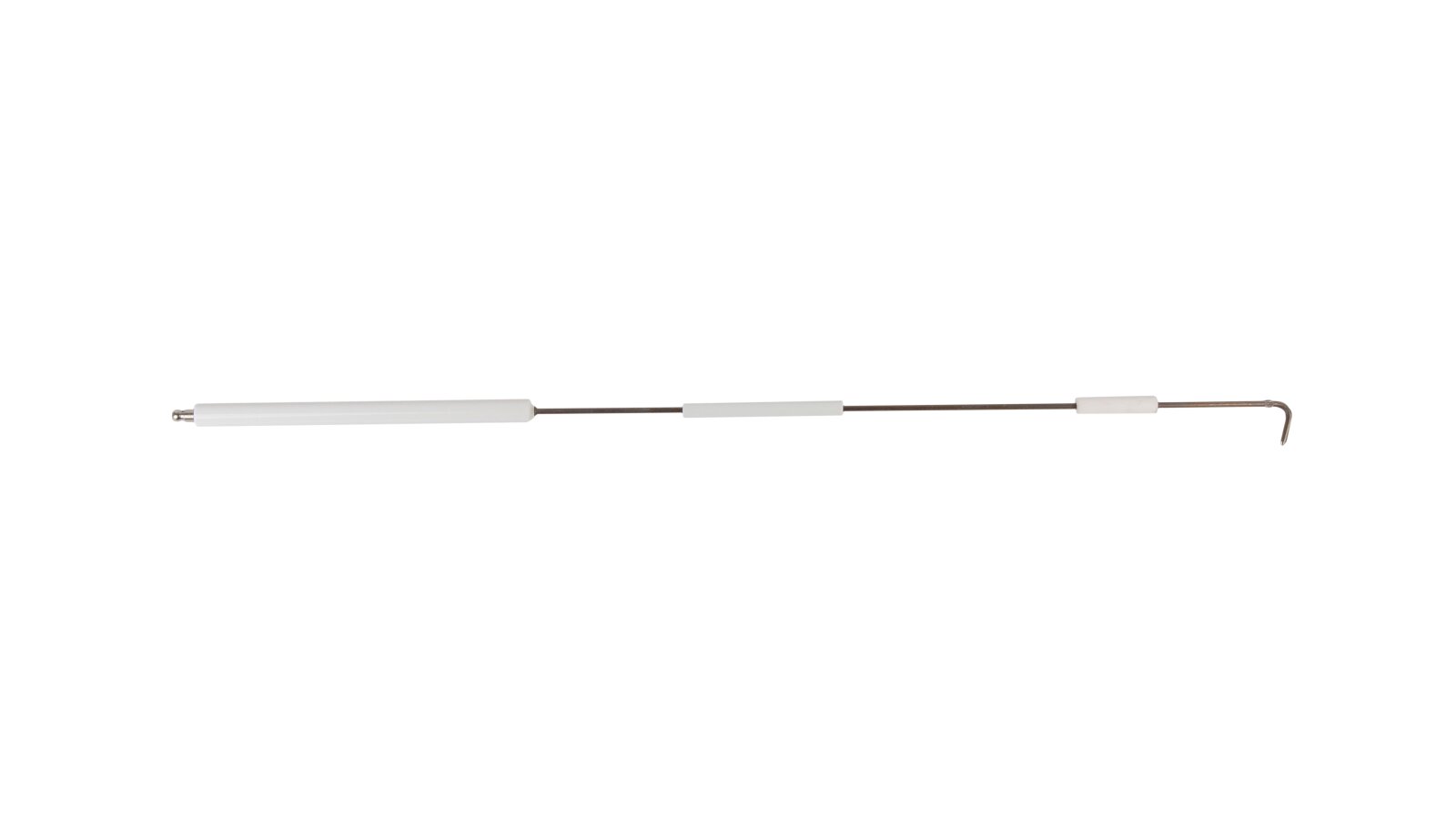

Ignition electrode Riello 555 mm, 3012018

The Riello 555 mm ignition electrode, art.: 3012018, is designed to equip the ignition unit of the Riello industrial gas burner. High voltage generated by the ignition transformer is supplied to the electrode via the ignition cable, which produces a powerful spark discharge. Ceramic insulation consisting of 3 parts was used in the manufacture of the electrode.

Features of the ignition electrode:

• use in Riello industrial burners;

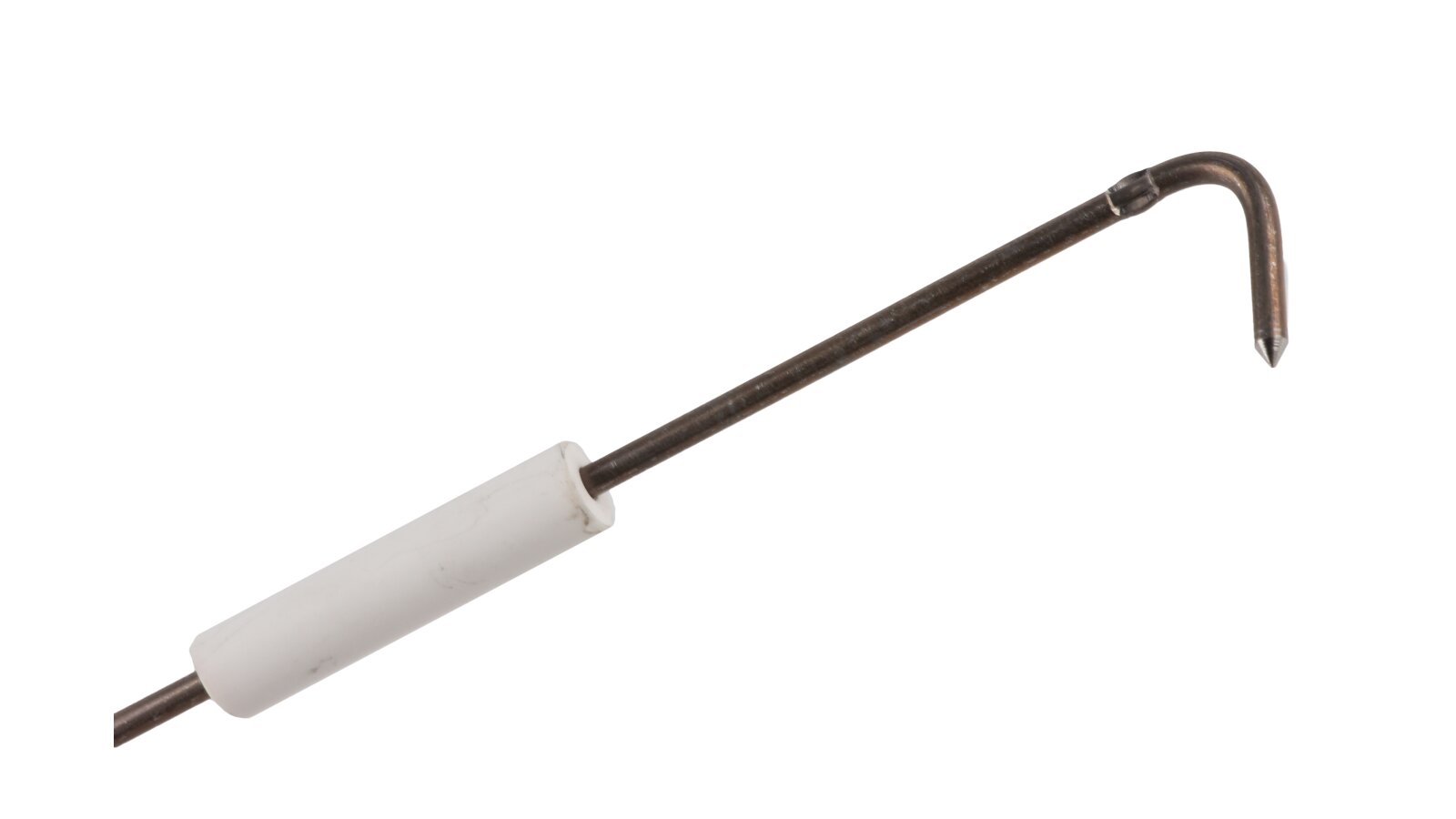

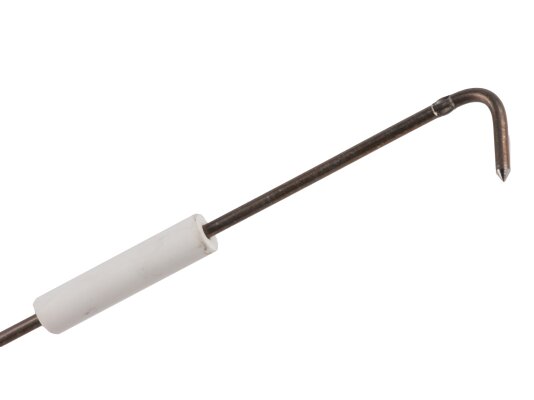

• parameters of the metal conductive rod: Ø3, length 13.8 mm;

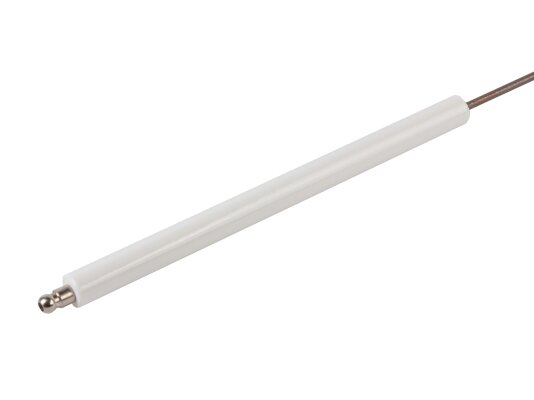

• reliable contact with the ignition cable using a Ø6 mm plug;

• ceramic insulation of the rod: Ø12x165 mm, Ø8x80 mm, Ø9.3x40 mm;

• total length – 555 mm.

You can find out more information about the ignition electrode from our consultants.
