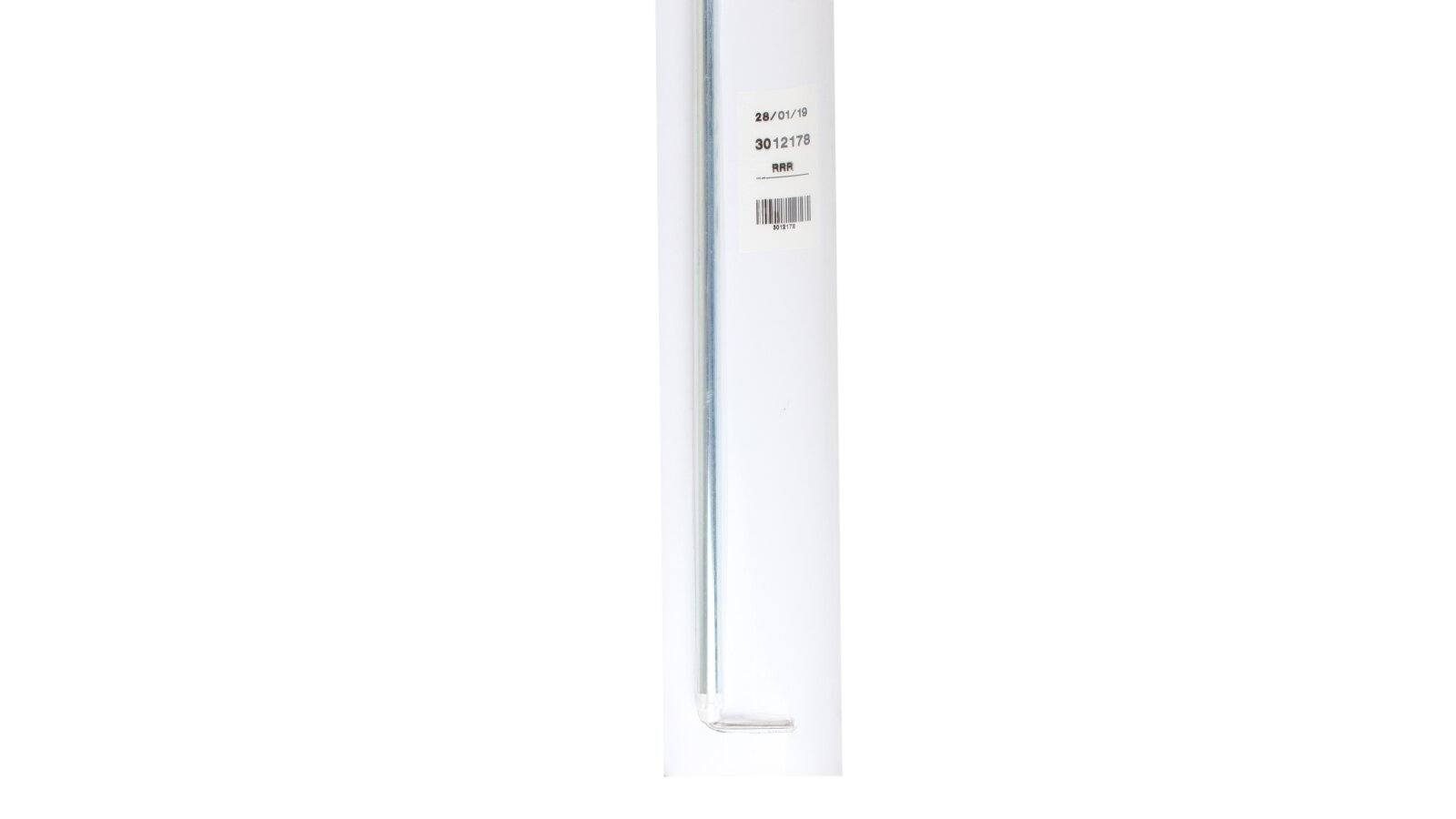

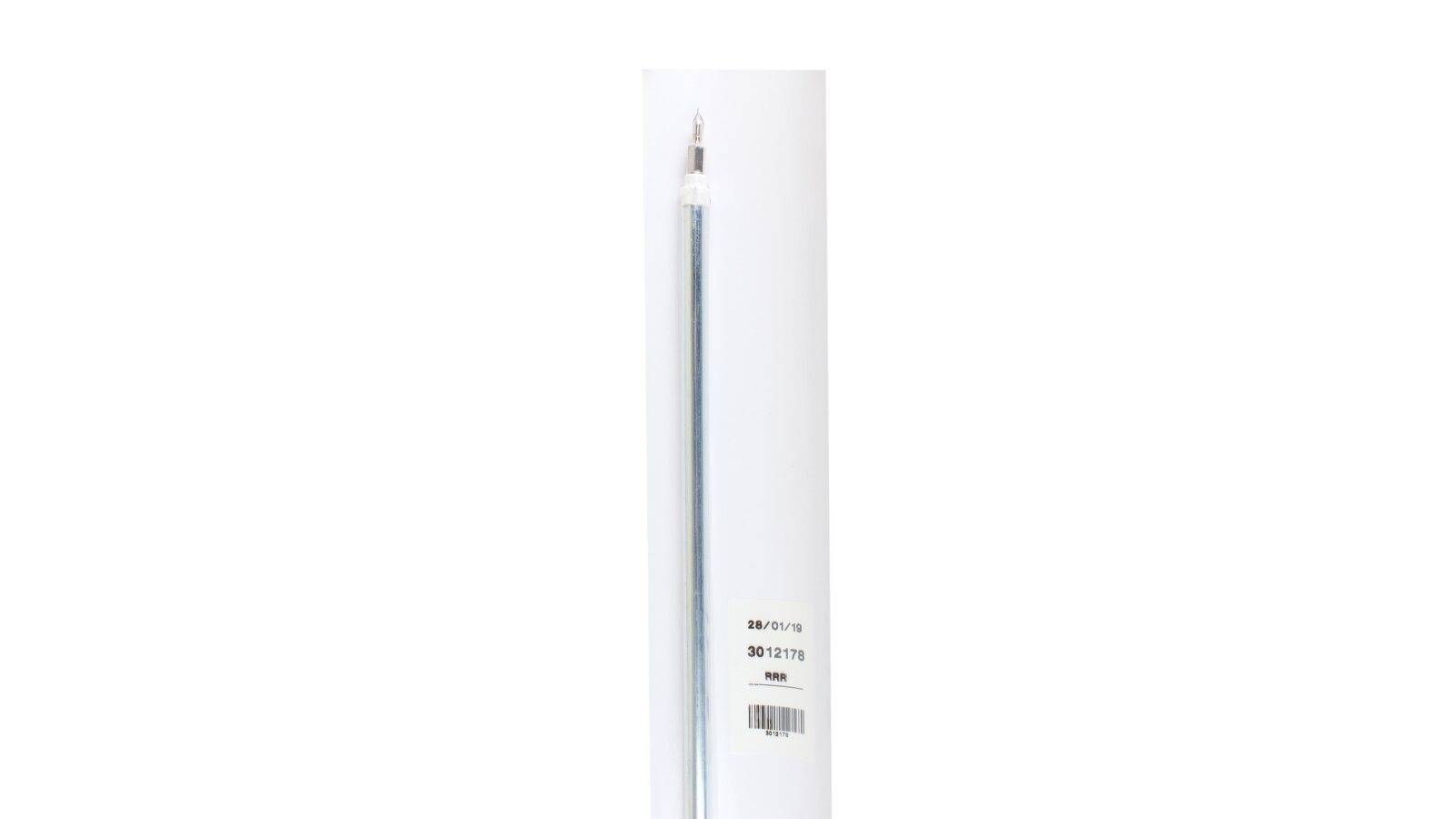

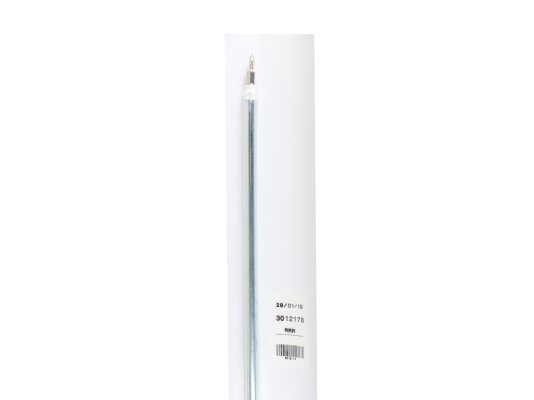

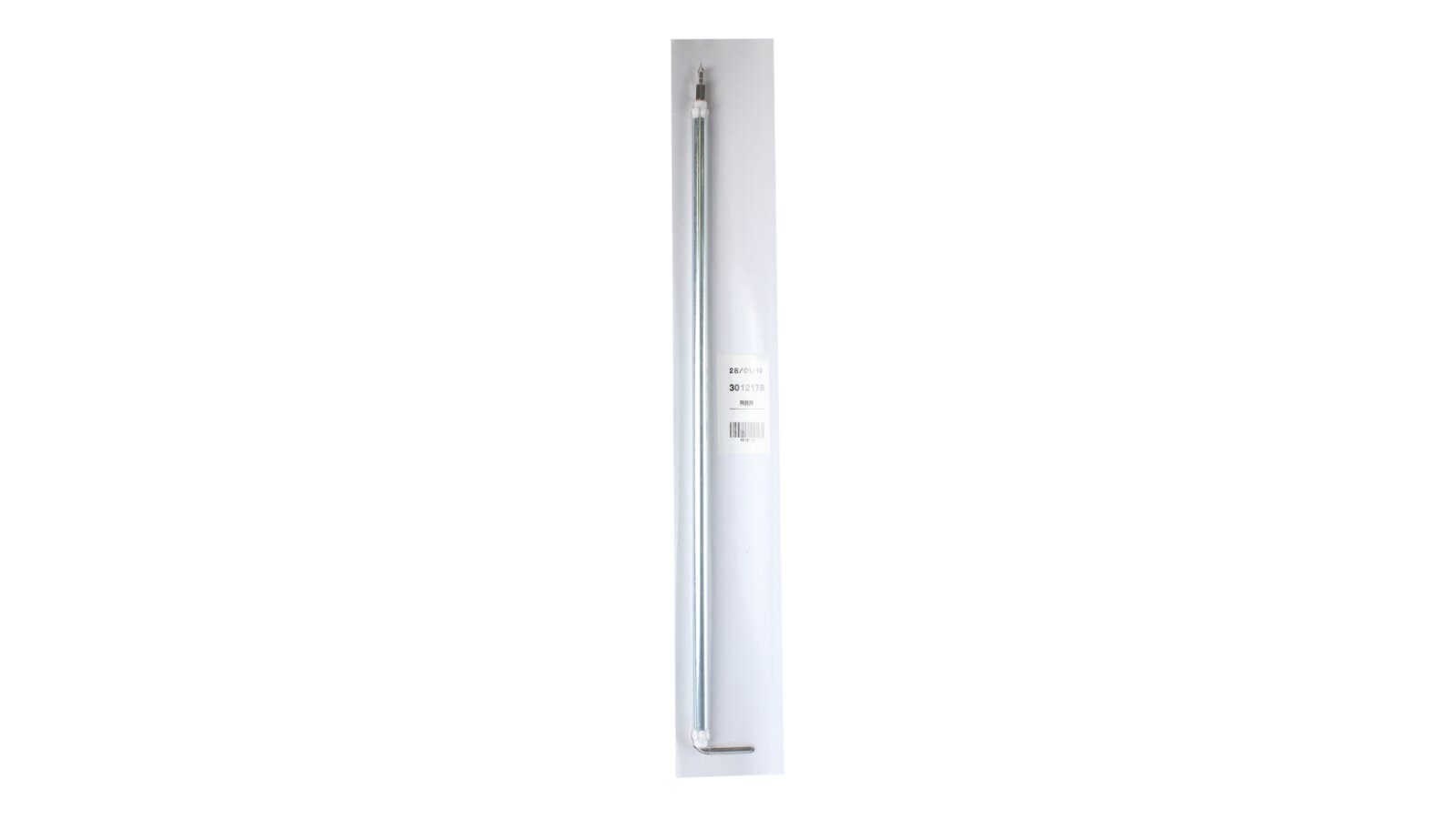

Ionization probe Riello 552 mm, 3012178

The Riello 552 mm ionization electrode, art. 3012178, monitors flame combustion to transmit detection results to the furnace automation system. It is part of the automatic control and management system for the gas burner. It continuously measures the ionization current generated during gas combustion. If the flame goes out during burner operation, the automation immediately receives a signal and blocks the gas supply. The electrode ensures safe operation of the furnace unit. It consists of a current conductor, insulation, and a plug for electrical connection.

Features and main parameters:

• Continuous monitoring of flame combustion by measuring the ionization current;

• Curved rod Ø29x5 mm 90° made of metal alloy for ionization current flow;

• Two insulation sections, metal tube: Ø12x465 mm,

• Reliable contact with the ionization cable due to connection to a Ø4 mm plug.

You can buy a Riello ionization electrode to replace the worn-out electrode of Riello RS industrial gas burners.
