Description

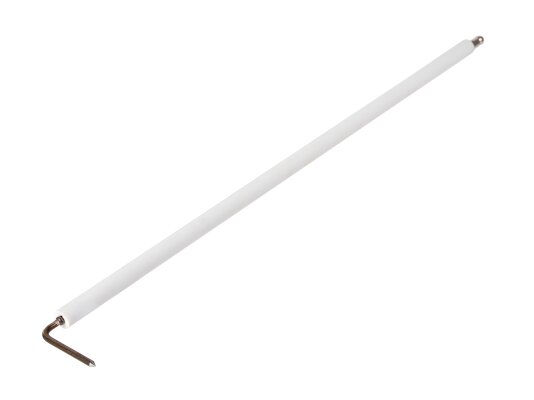

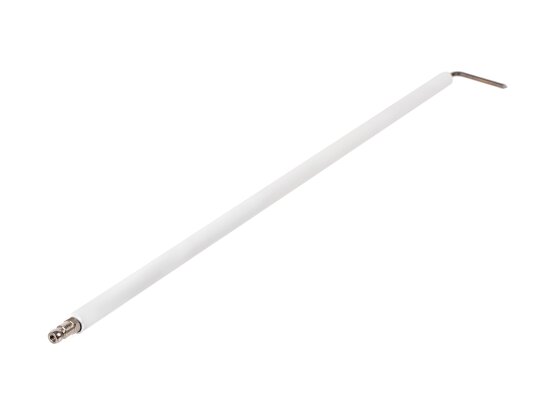

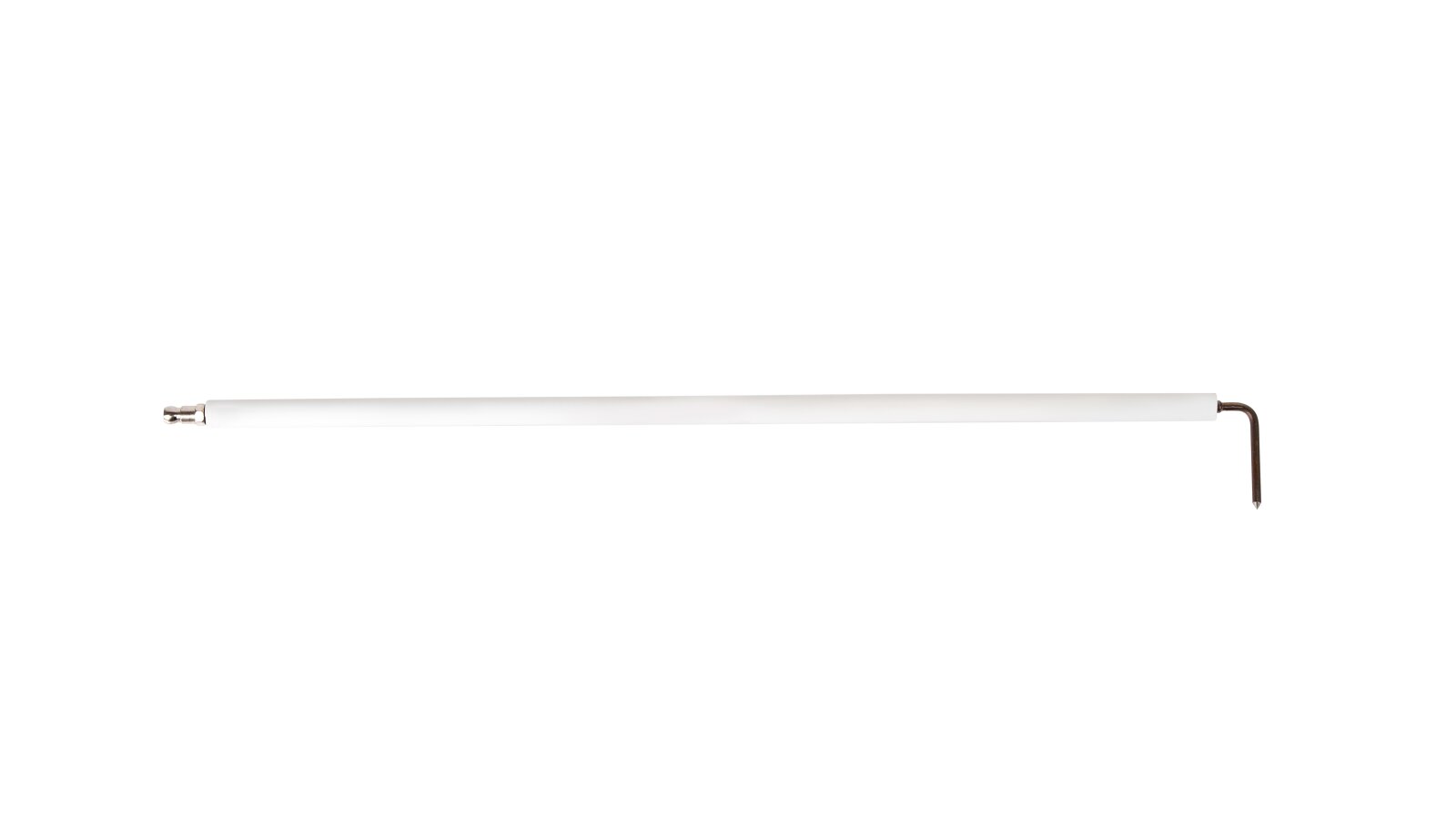

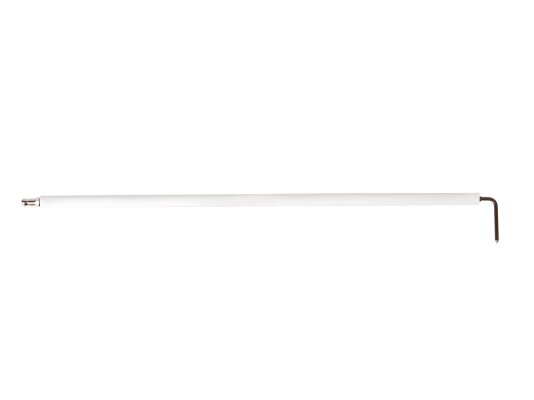

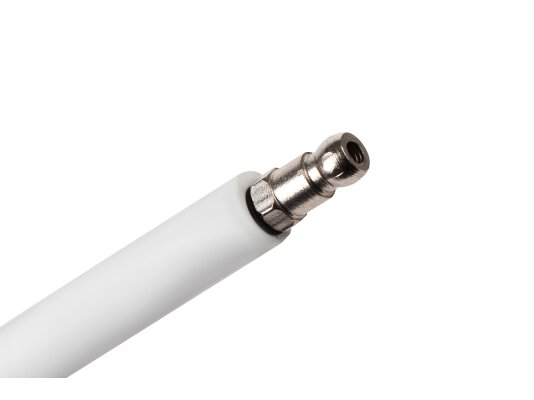

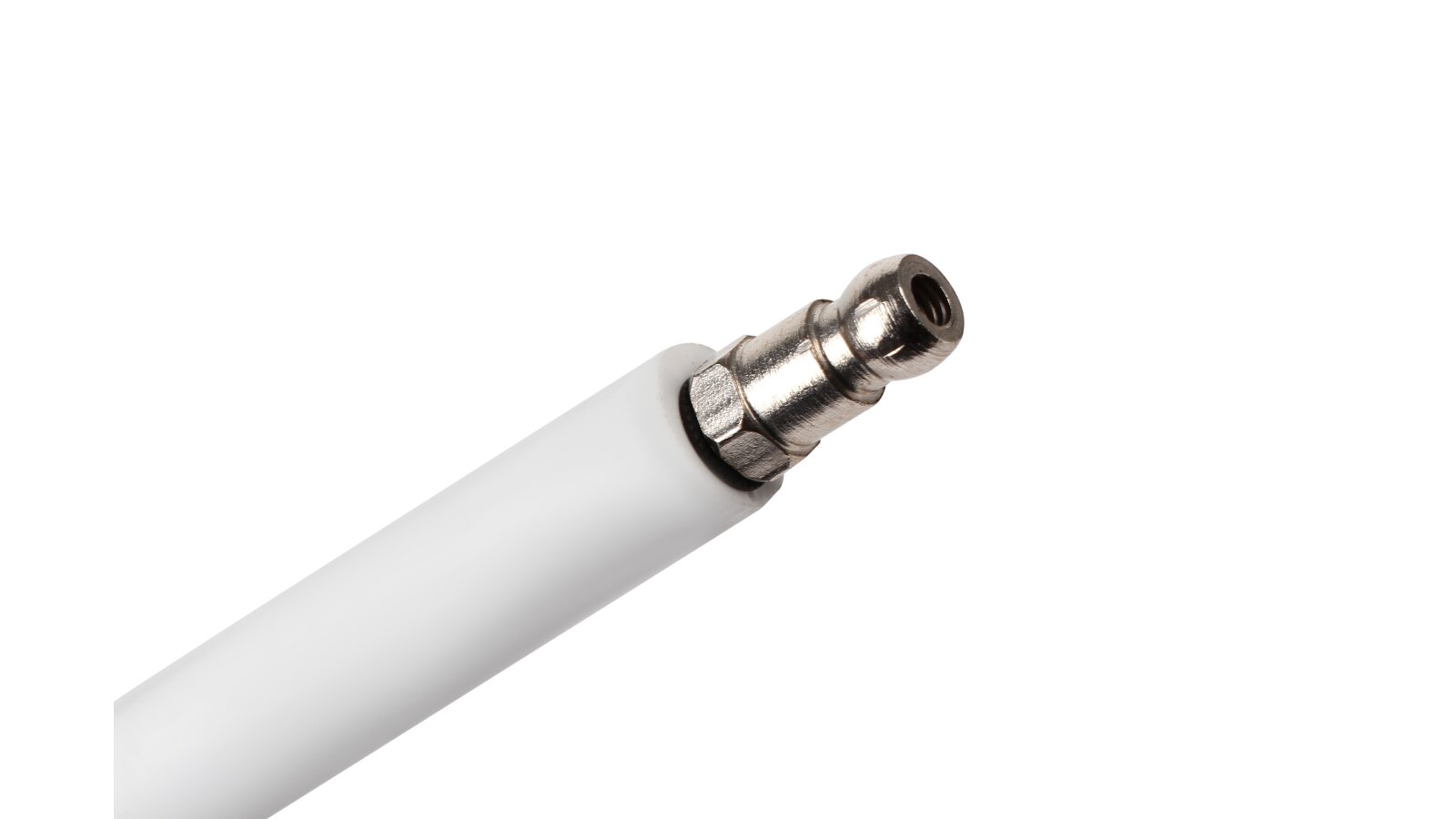

The Riello ignition electrode 384 mm, art: 3013106, is used for spark ignition of the fuel-air mixture using a high-voltage discharge. It is built into the ignition unit of an industrial burner. For safe operation, it is equipped with reliable heat and electrical insulation of the conductive cores.
Features:
Main elements: conductor, current insulator, connection;
Movable electrical insulation Ø10x355 mm made of high-strength ceramics;
Plug-in type connection with the ignition cable;
Conductive rod made of heat-resistant alloy;

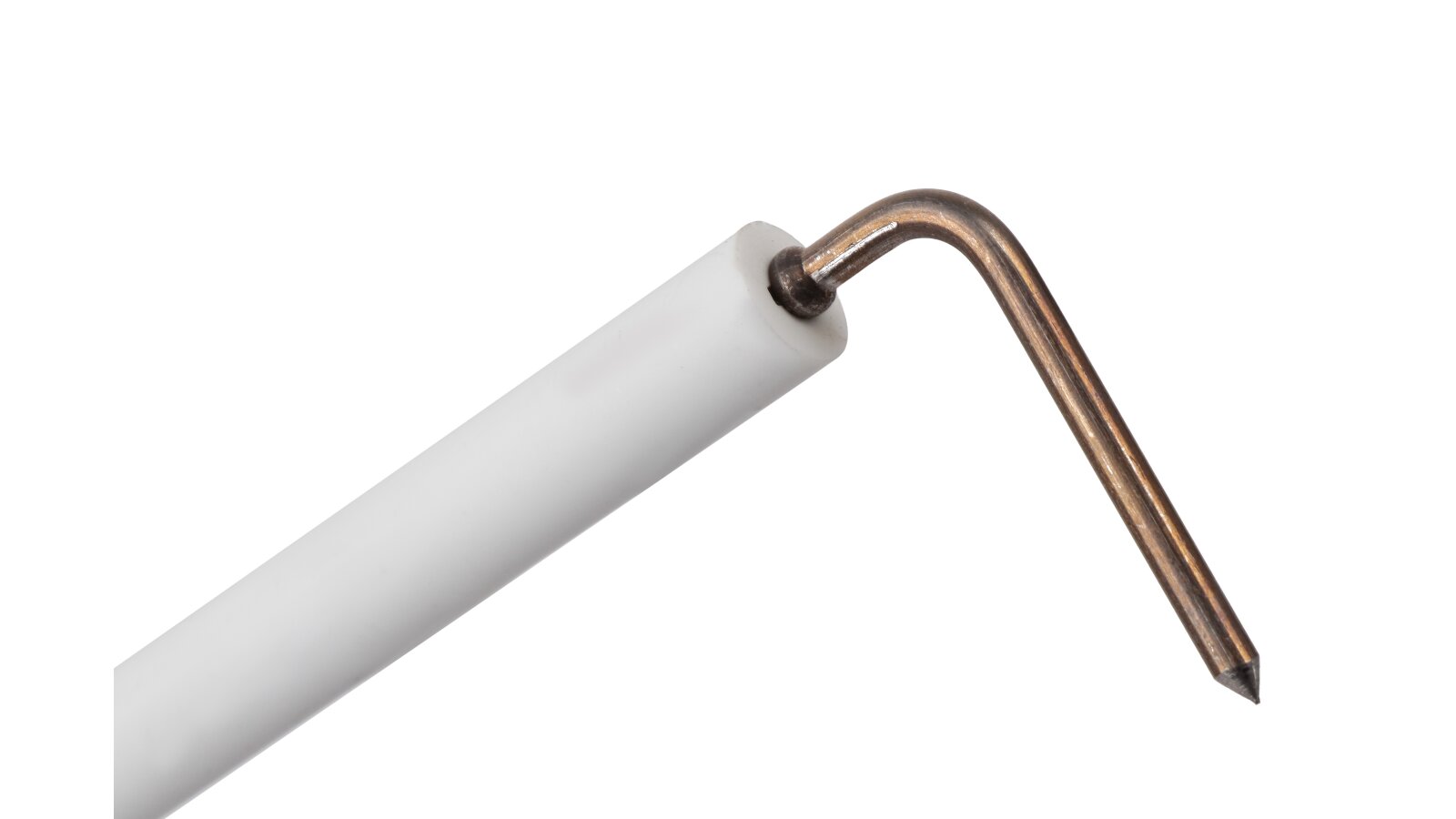

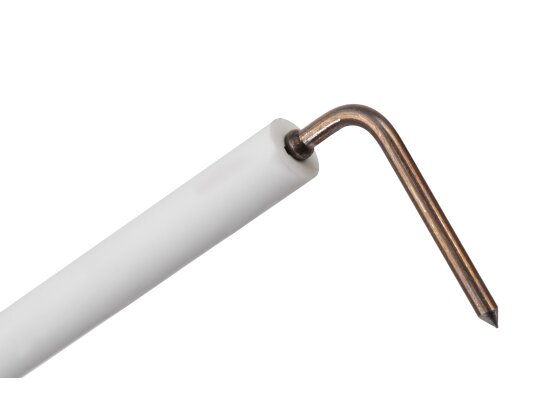

Ignition rod size: Ø3x15.7 mm;
Plug diameter to the high-voltage cable: 6 mm;
Efficient and safe fuel ignition.

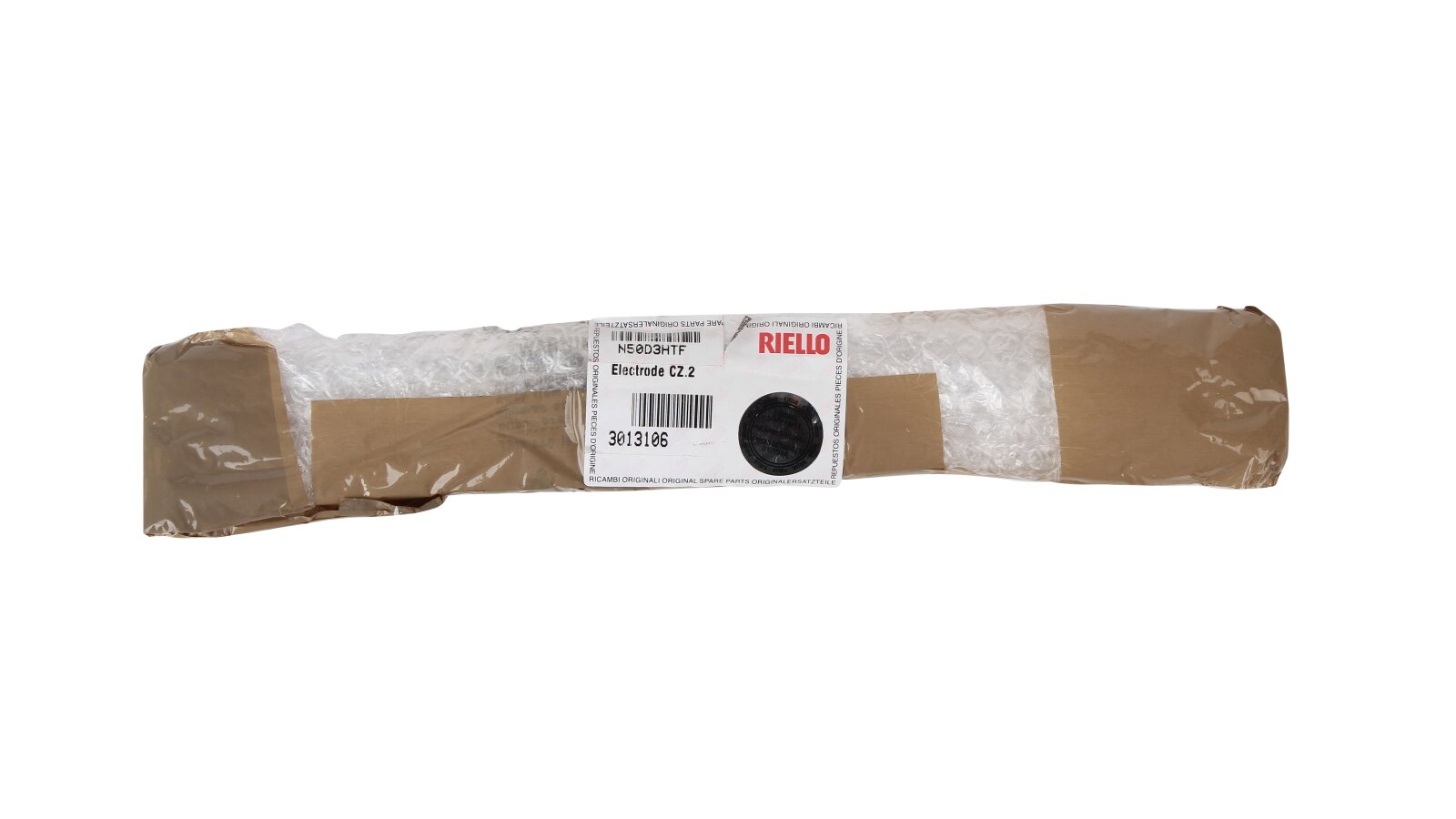

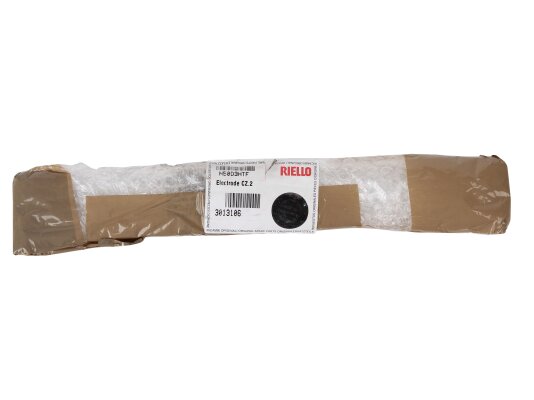

The kit includes 2 ignition electrodes.
Characteristics
Manufacturer Part Number: 3013106Electrode length: 384 mmConnector diameter: 6 mmMovable insulation size: Ø10 X 355 mmElectrode type: ignitionRod size: Ø3 X 15.7 mm
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
