Description

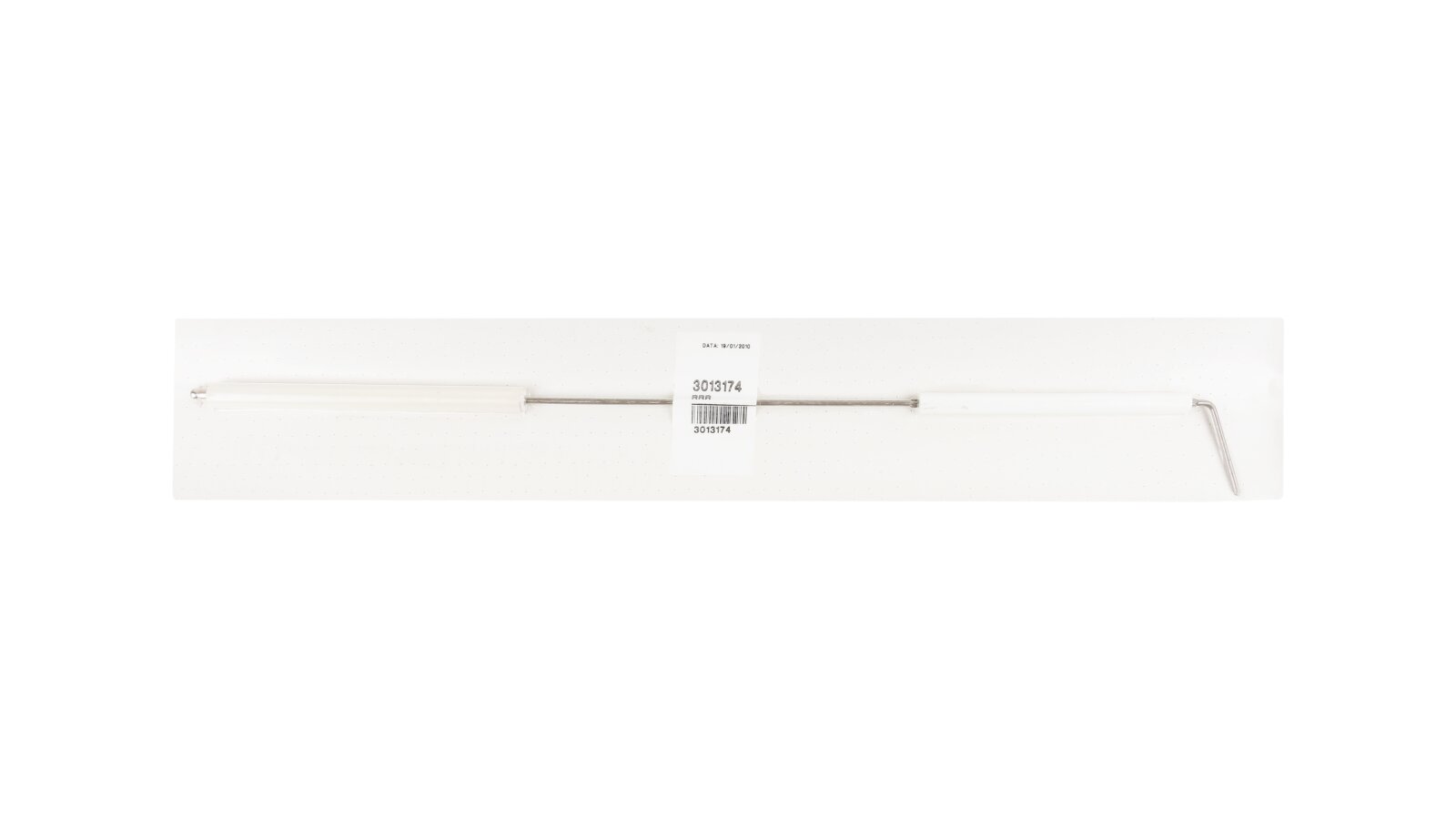

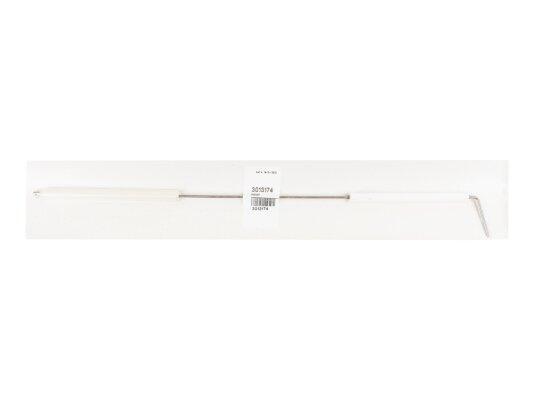

The Riello 541 mm ignition electrode, art.: 3013174, ensures effective ignition of the fuel-air mixture by spark discharge. The ignition spark is formed when high voltage is supplied from the transformer.
Design

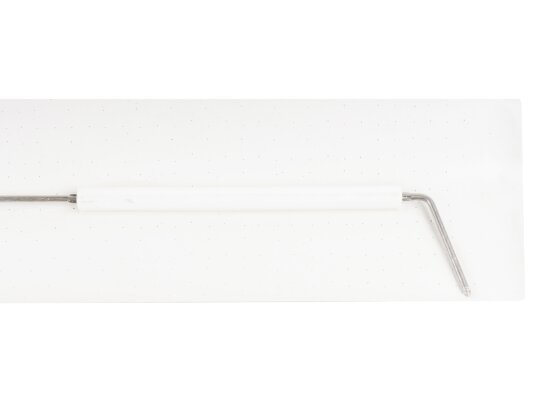

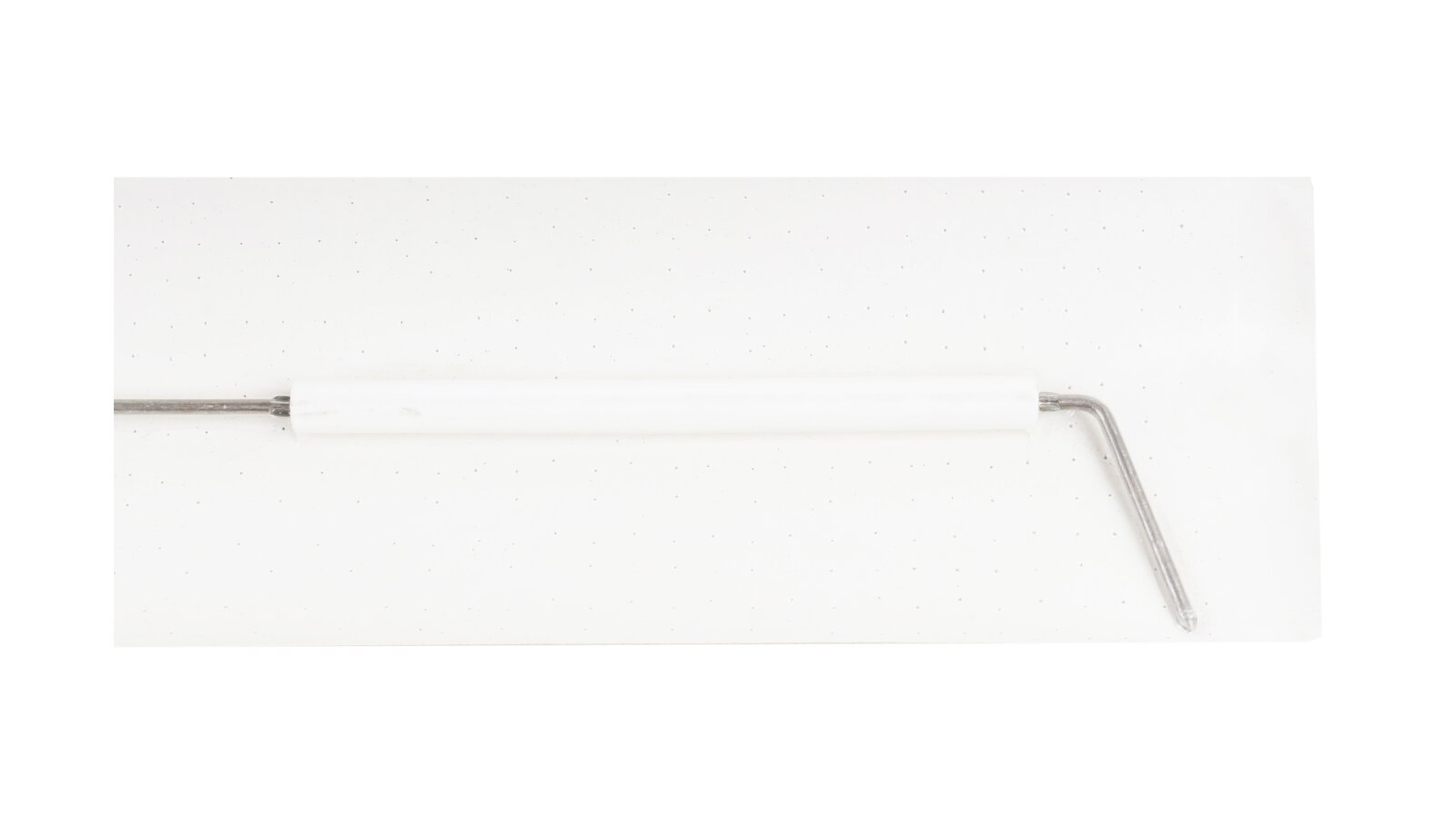

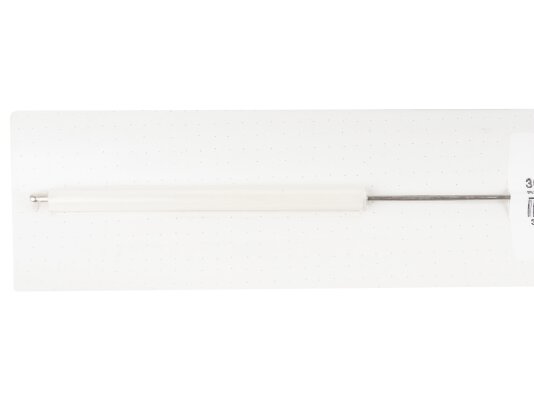

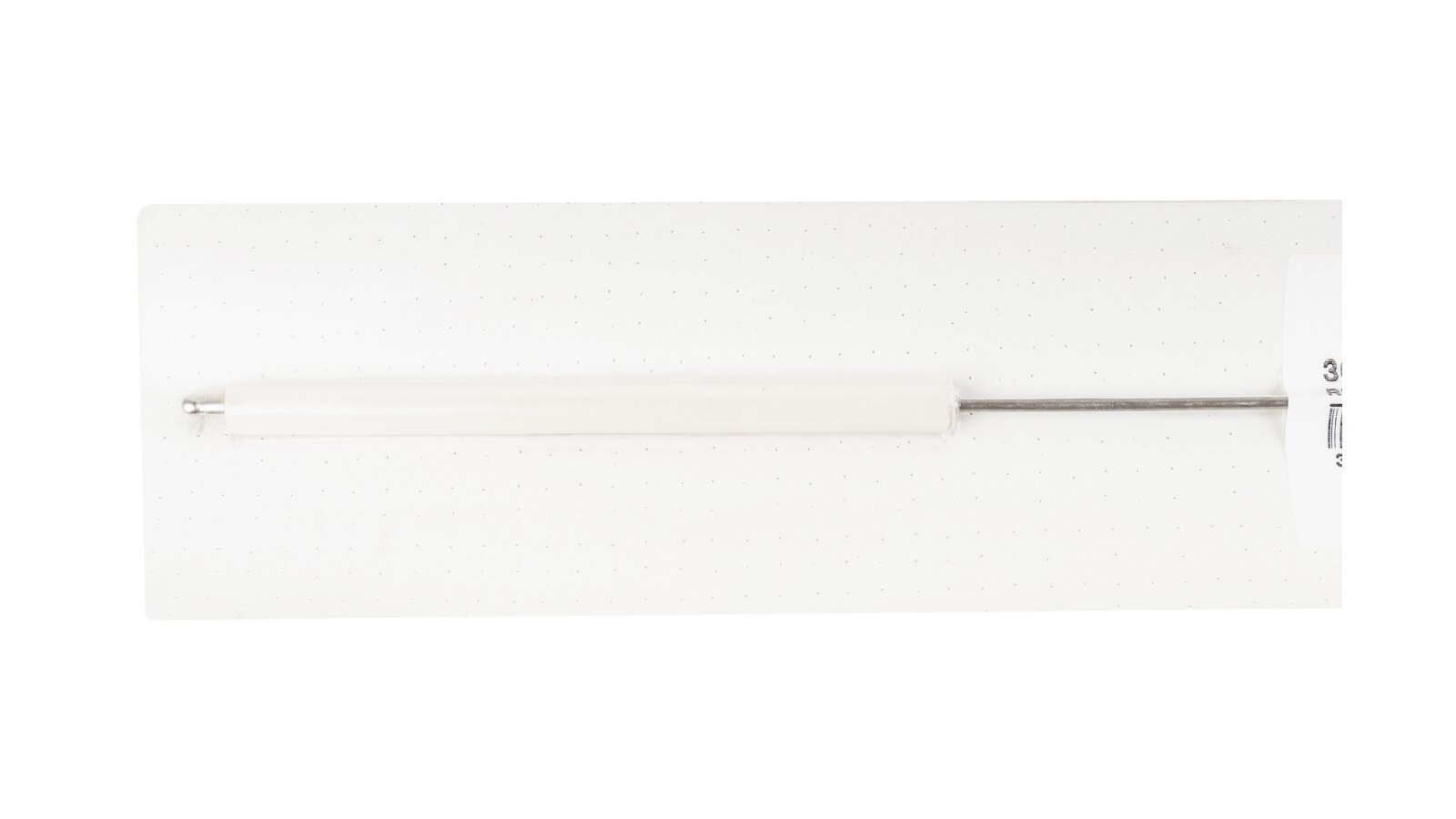

The electrode is a metal conductor protected by a ceramic insulating sheath of a fixed and movable type. A plug connection is provided for reliable contact with the high-voltage cable.
Features and specifications:
Length: 541 mm;
Ceramic insulation: Ø10 x 140 mm / Ø12 x 165 mm;
Ignition rod: Ø3 x 60 mm;
Ignition cable plug: Ø6 mm.
Advantages:
instant spark ignition when starting the burner;
heat-resistant ceramic insulation;
reliable contact with the high-voltage cable;
easy installation, maintenance and replacement.
Application
The ignition electrode is installed in the automatic ignition unit of the Riello RLS 190/M, 250/M burner.
