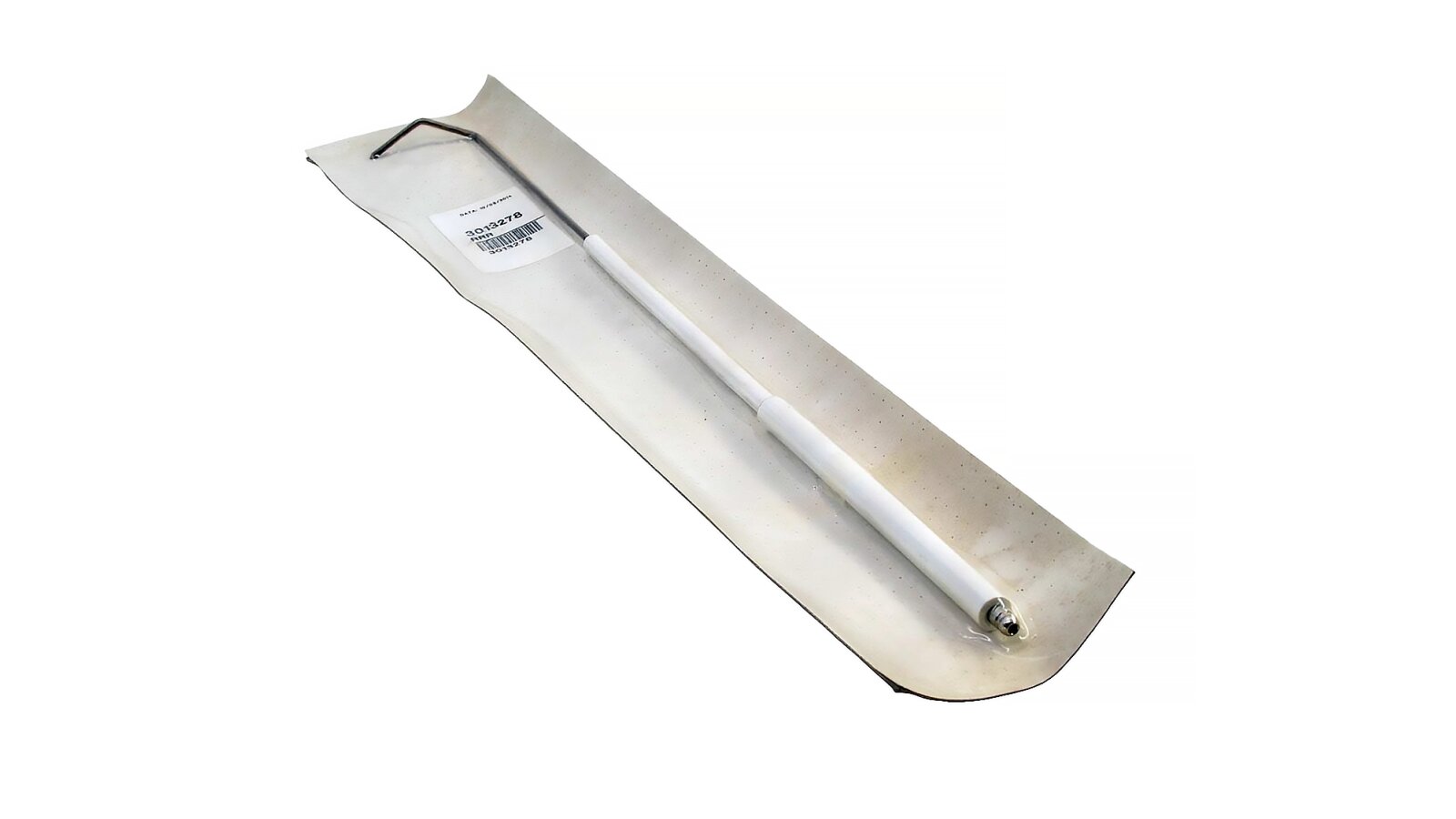

Ignition electrode Riello 515 mm, 3013278

The Riello ignition electrode, art. 3013278, produces a powerful spark discharge, which ignites the fuel-air mixture when the burner is started. The conductive rod is protected by ceramic insulation, consisting of two parts. Tight contact with the high-voltage cable is achieved due to the plug connection.

Features of the ignition electrode:

• use in Riello industrial burners;

• electrode length: 515 mm;

• parameters of the metal conductive rod: Ø3, length 157 mm;

• quick and reliable connection using a Ø6 mm plug;

• ceramic insulation of the rod Ø12x165 mm, Ø8x180 mm;

• effective ignition of the fuel-air mixture.

You can clarify additional information about the product from our consultants.
