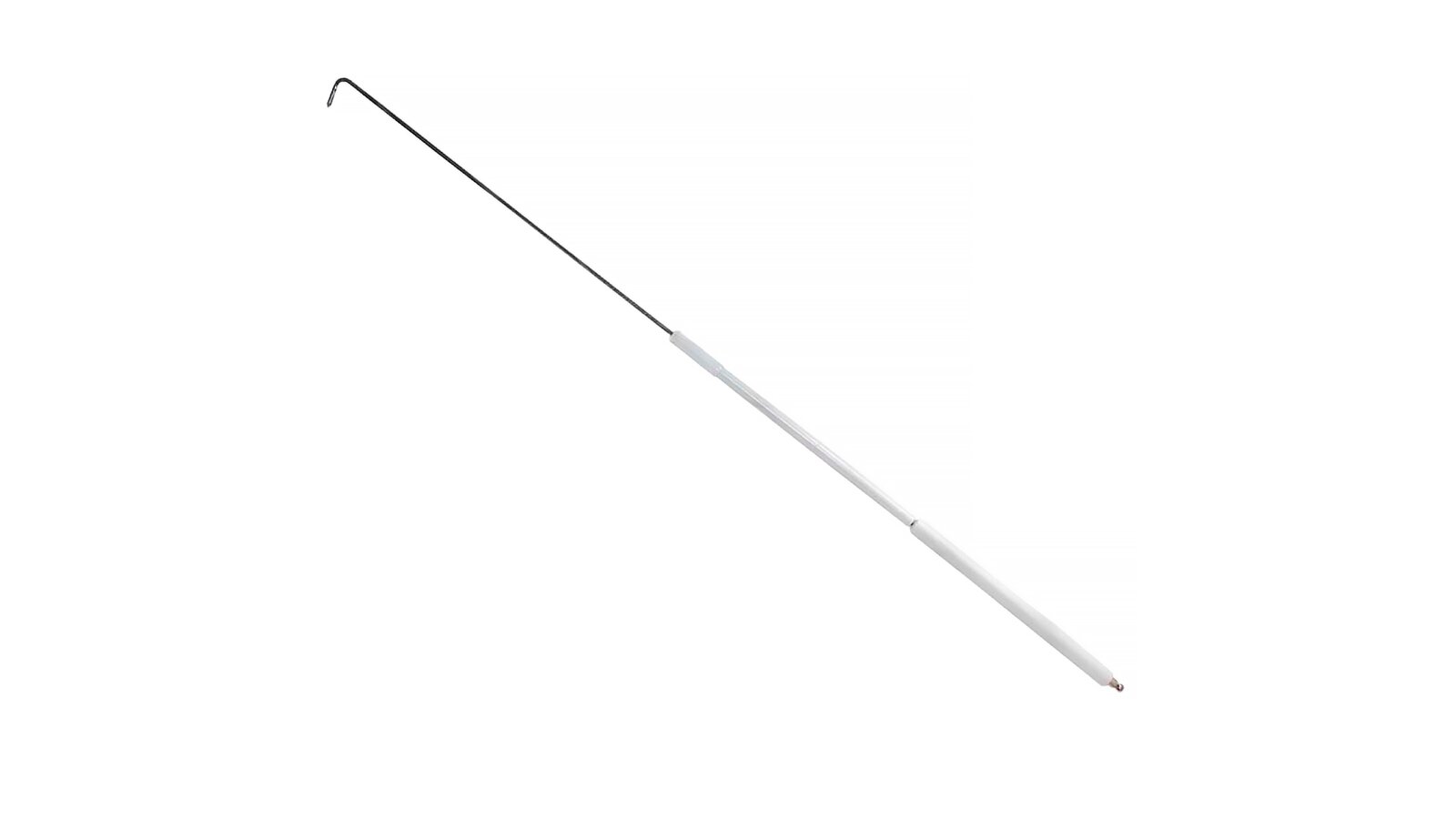

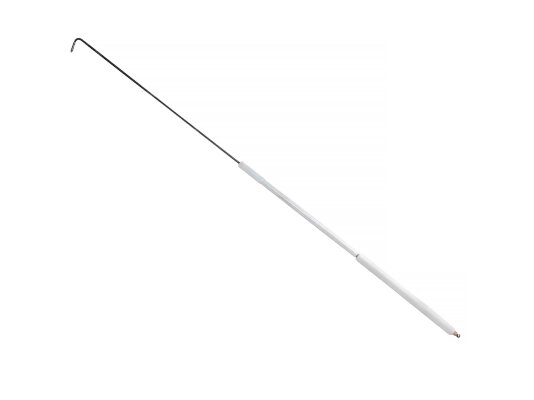

Ignition electrode Riello 677 mm, 3013705

The Riello ignition electrode 677 mm, art. 3013705, is built into the ignition unit of the Riello industrial burner. High voltage generated by the ignition transformer is supplied to the electrode via the ignition cable, which produces a powerful electric discharge. Ceramic insulation consisting of 4 parts was used in the manufacture of the electrode.

Features of the ignition electrode:

• use in Riello industrial burners;

• parameters of the conductive metal rod: Ø3, length 14 mm;

• reliable plug contact with the ignition cable Ø6 mm;

• ceramic insulation of the rod: Ø12x165 mm, Ø8x80 mm, Ø9.3x40 mm;

• total length – 677 mm.

You can find out more information about the ignition electrode from our specialists.
