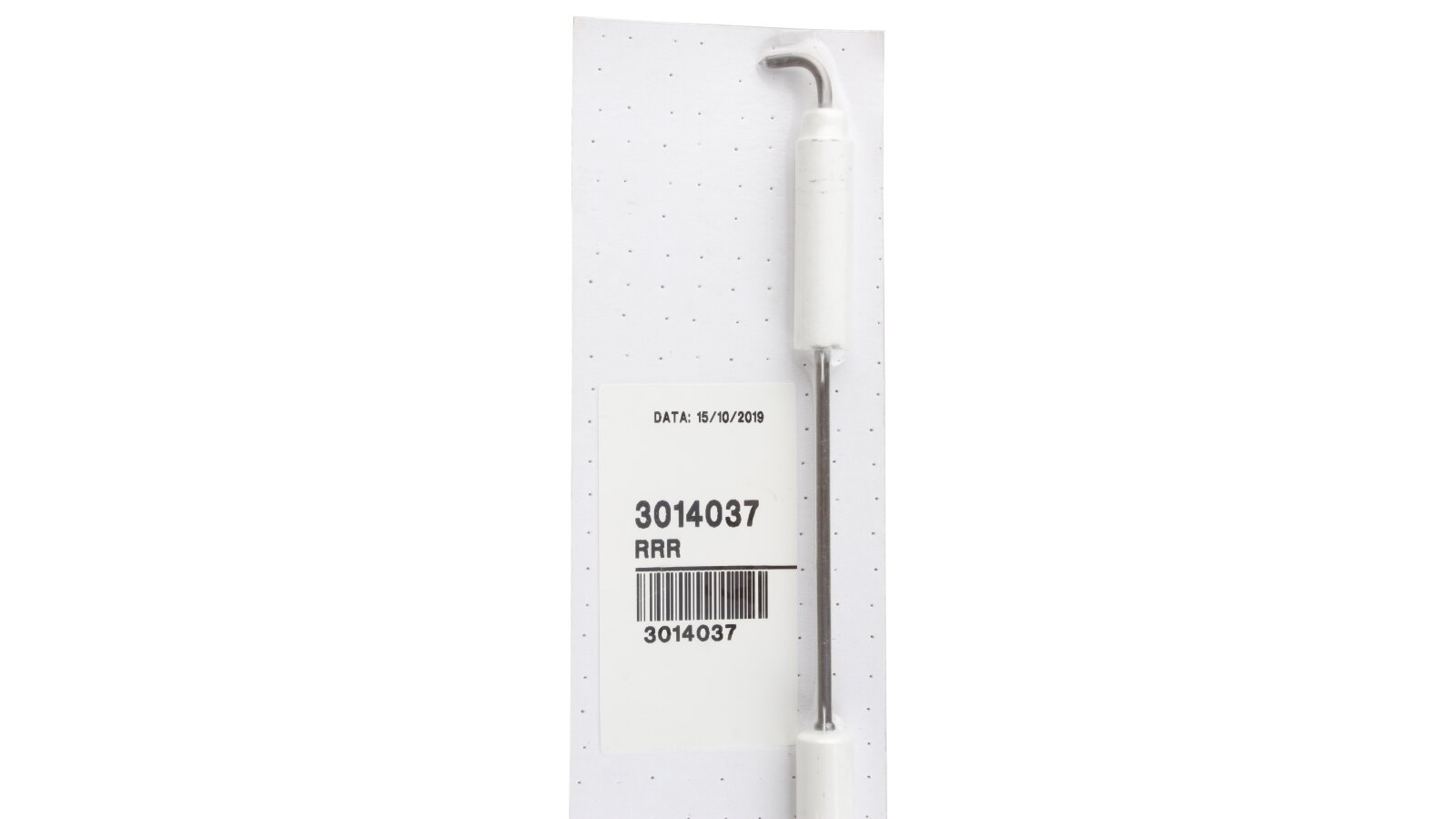

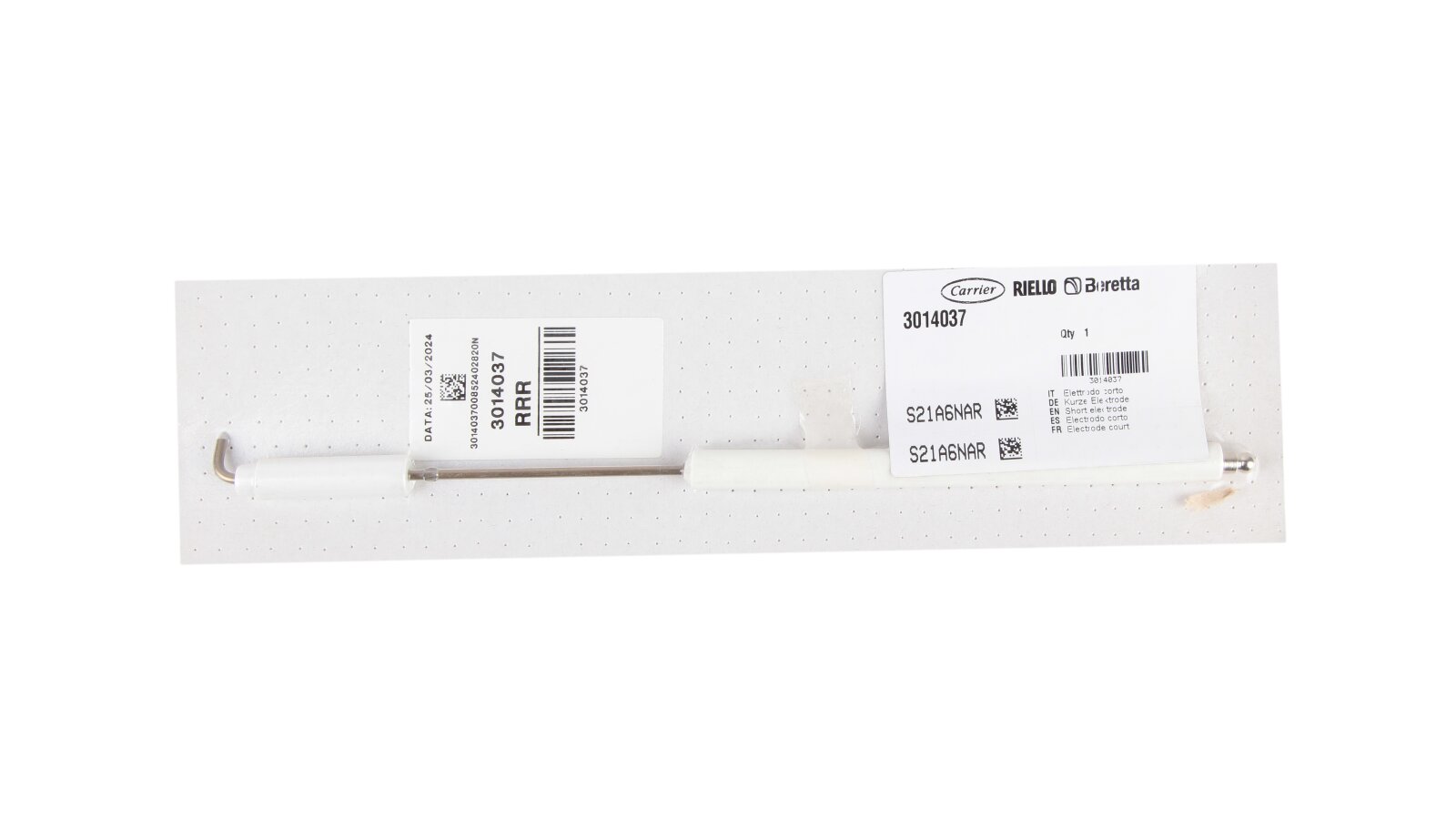

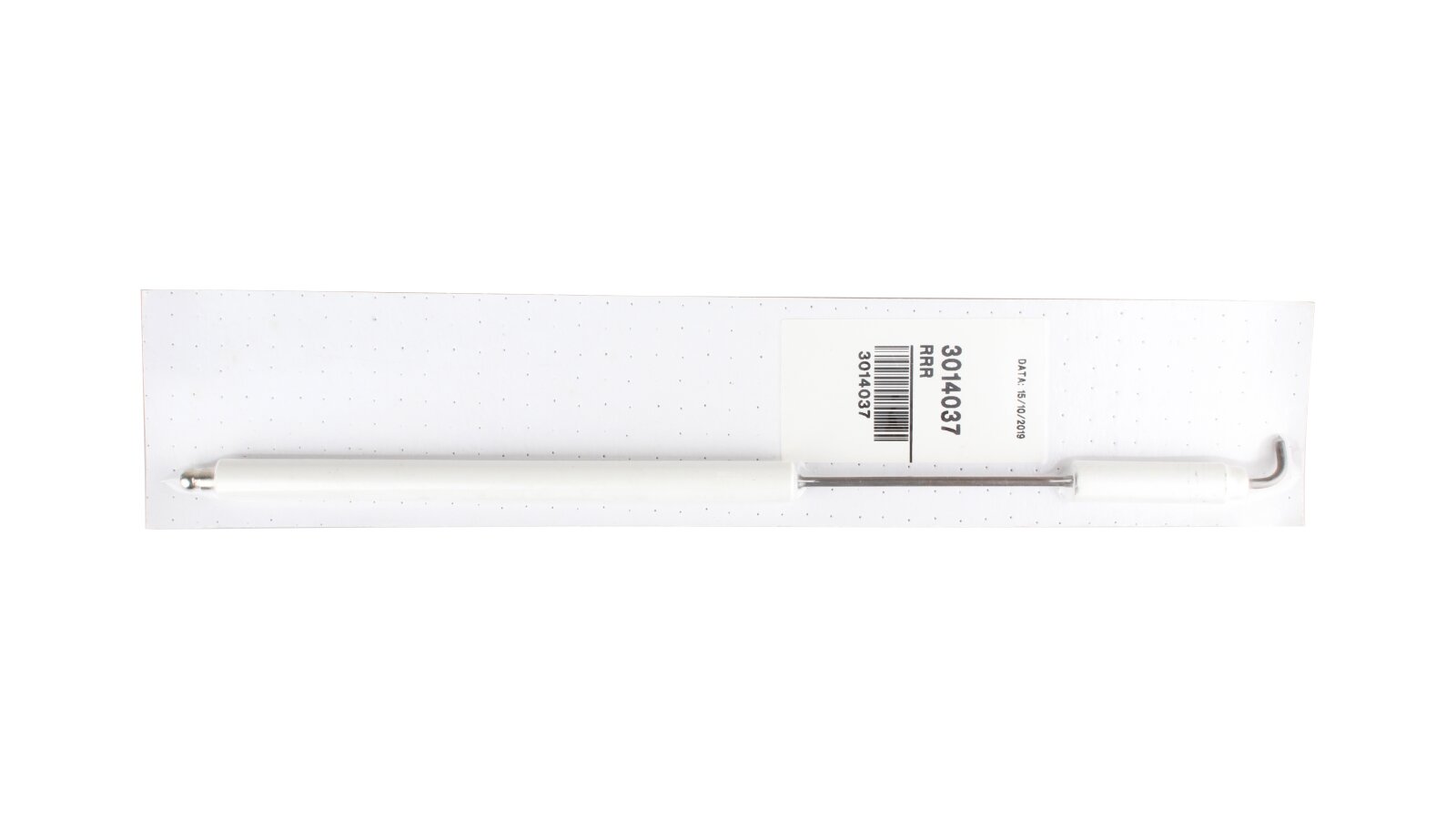

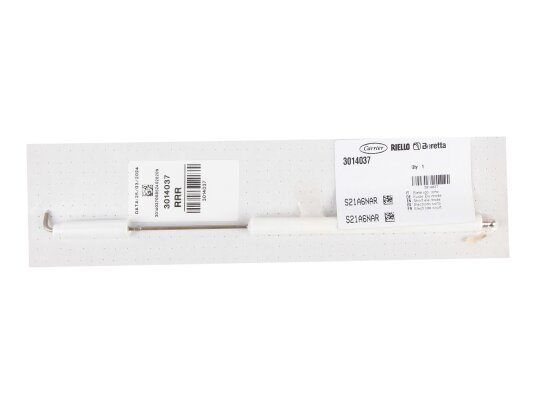

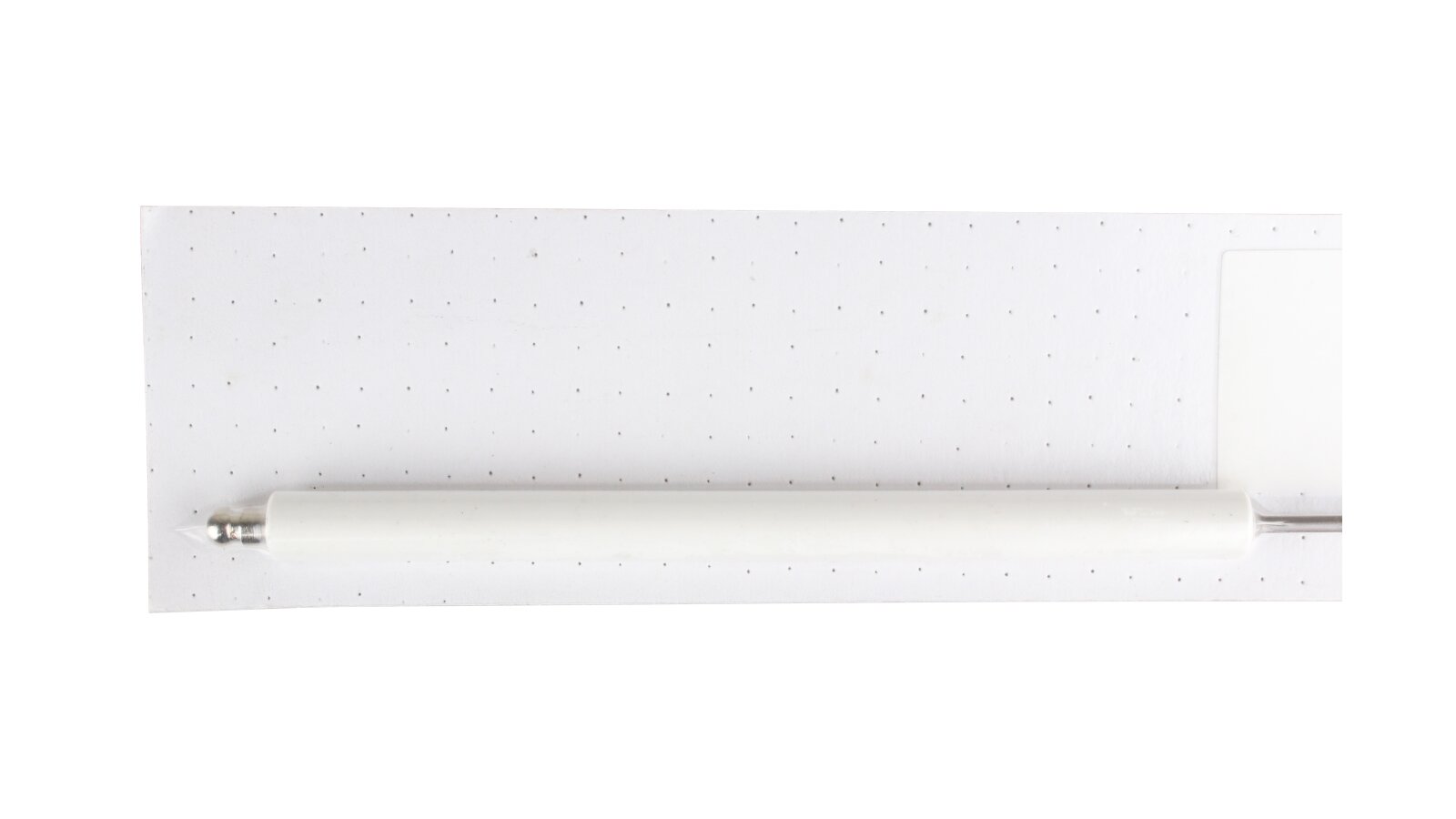

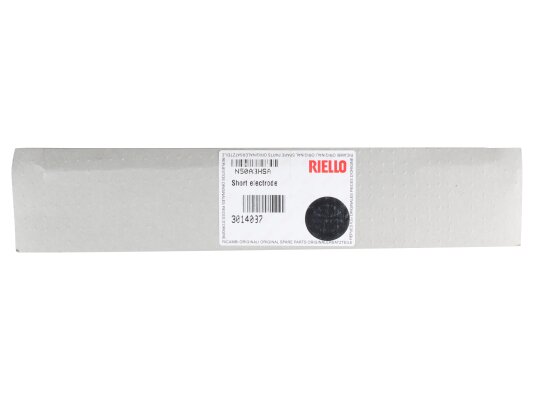

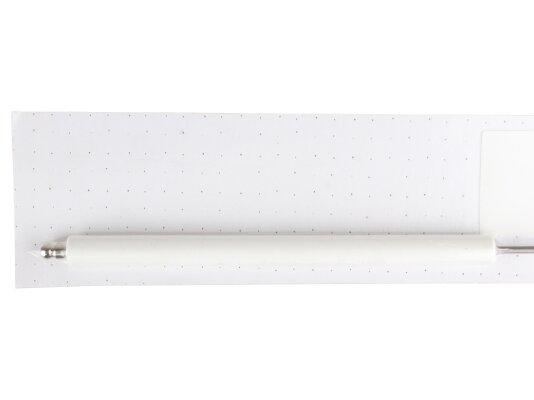

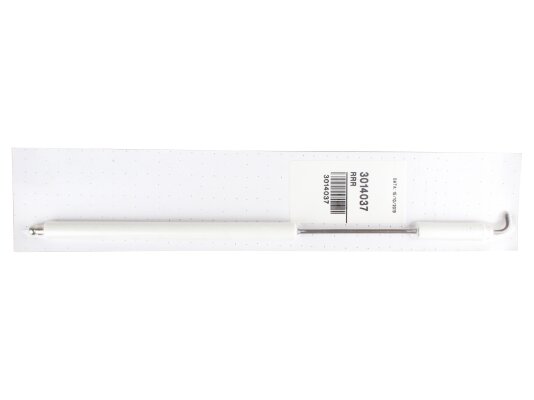

Description
The Riello ignition electrode, art. 3014037, is designed to generate an igniting electric spark and effectively ignite the fuel. It is built into the ignition unit of the heating burner. Designed for operation in difficult conditions.
The ignition electrode consists of:
a metal conductive rod Ø3 mm;
a heat- and electrically insulating sheath Ø12 mm in two parts;
a plug for connection to the ignition cable;
total length – 320 mm.
The Riello ignition electrode is installed by qualified personnel for safe and effective operation of the heating system.
Characteristics
Manufacturer Part Number: 3014037Electrode length: 320 mmConnector diameter: 6 mmElectrode type: ignitionFixed insulation size: Ø12 X 165 mm / Ø12/9.3 X 50 mmRod size: Ø3 X 14.3 mm
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
