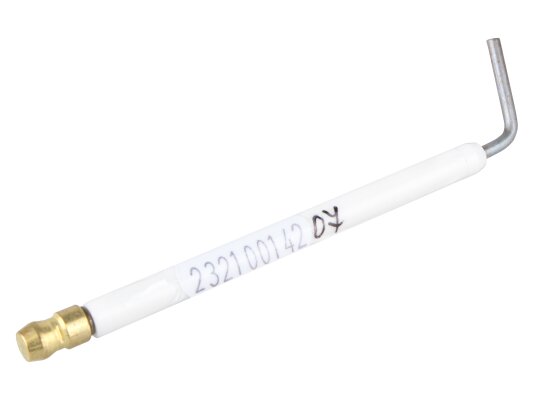

Ignition electrode Weishaupt 96 mm, 13210114037

Weishaupt13210114037

Alternative Part Number

Weishaupt We13210114037Weishaupt 132-101-14-03-7

AED 115

Ignition electrode Weishaupt 96 mm, Part Number: 13210114037, Alternative art.: We13210114037, 132 101 14 03 7.

About product

Go to description

Electrode type ignitionElectrode length 96 mmFixed insulation size Ø5.8 X 80 mmRod size Ø2.4 X 4.7 mmConnector diameter 6 mm

Electrodes

Description

Ignition electrode 96 mm, article: 13210114037 is involved in the burner ignition process. Under the influence of high voltage, it creates an electric spark to ignite the fuel-air mixture when the burner is turned on. Connection to the ignition cable is carried out using a Ø6 mm or Ø4 mm plug. The conductive rod is insulated with a Ø5.8x80 mm ceramic shell.

Characteristics

Manufacturer Part Number: 13210114037Electrode type: ignitionElectrode length: 96 mmFixed insulation size: Ø5.8 X 80 mmRod size: Ø2.4 X 4.7 mmConnector diameter: 6 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Ignition electrodes Electrodes

Weishaupt

Brand

Germany — home of the brand

Germany — country of origin

Packaging information

Weight, kg:: 0.012
Length, cm:: 9.6
