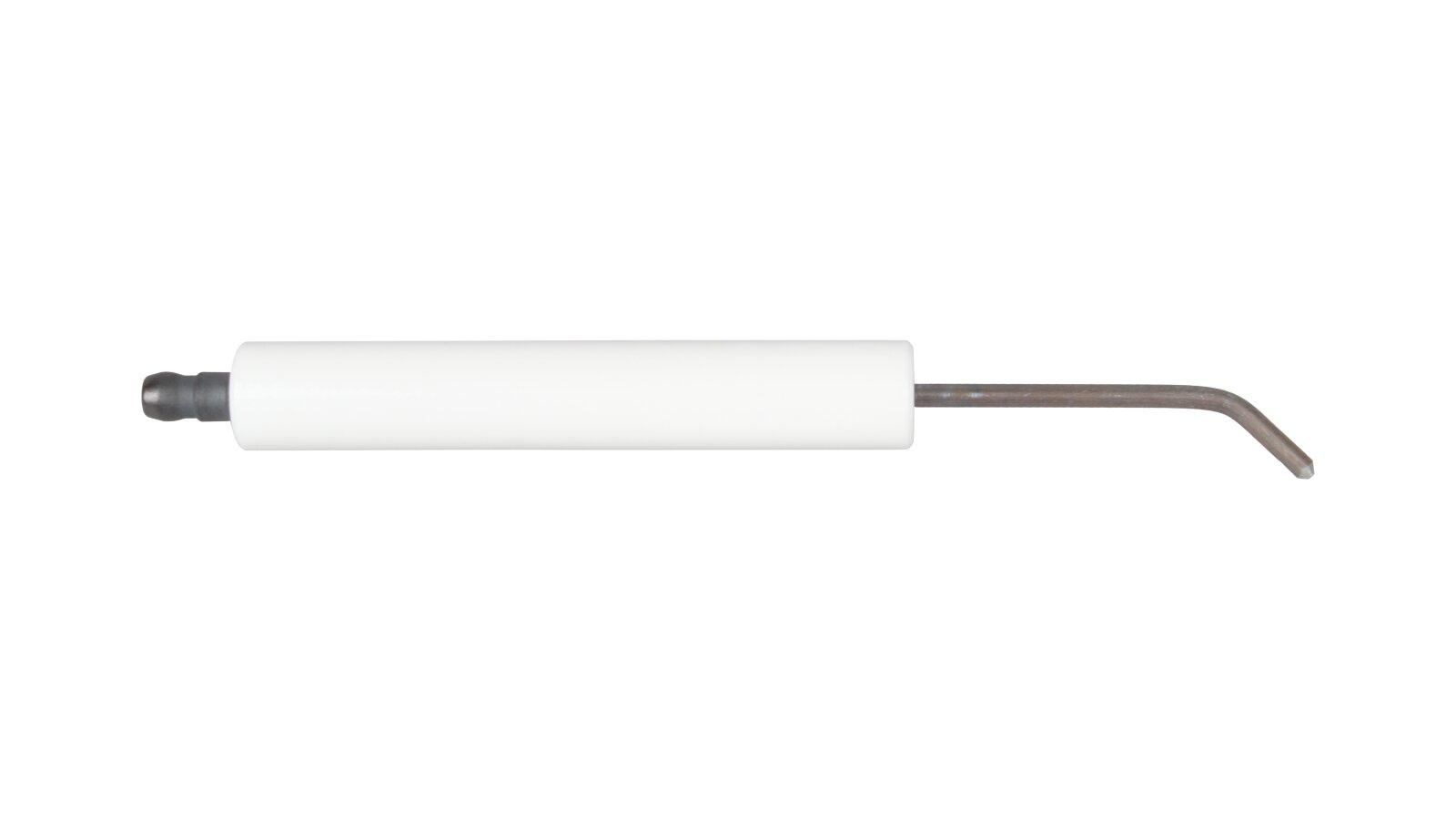

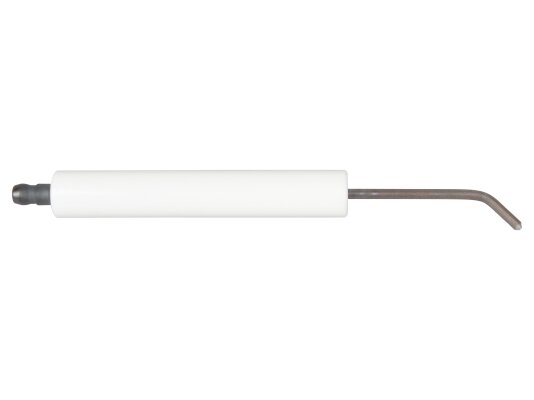

Ignition electrode Weishaupt, left, 147 mm, 15132714337

The Weishaupt ignition electrode 147 mm, left, art.: 15132714337 is used for spark ignition of the burner. Works together with a paired electrode and a high-voltage transformer. Manufactured in accordance with European safety and quality standards. Reliable contact with the high-voltage cable is achieved through a plug connection.

Materials used:

corrosion-resistant, heat-resistant alloy;

ceramics with high electrical and mechanical strength.

Operating principle

The left electrode together with the right electrode, art. 15532714207, is connected to the transformer via high-voltage cables (purchased separately). When high voltage is received, an electric spark is formed between the electrodes, igniting the fuel.

Device

The Weishaupt left ignition electrode consists of:

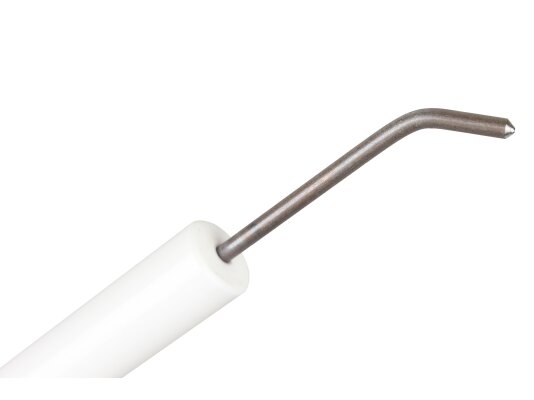

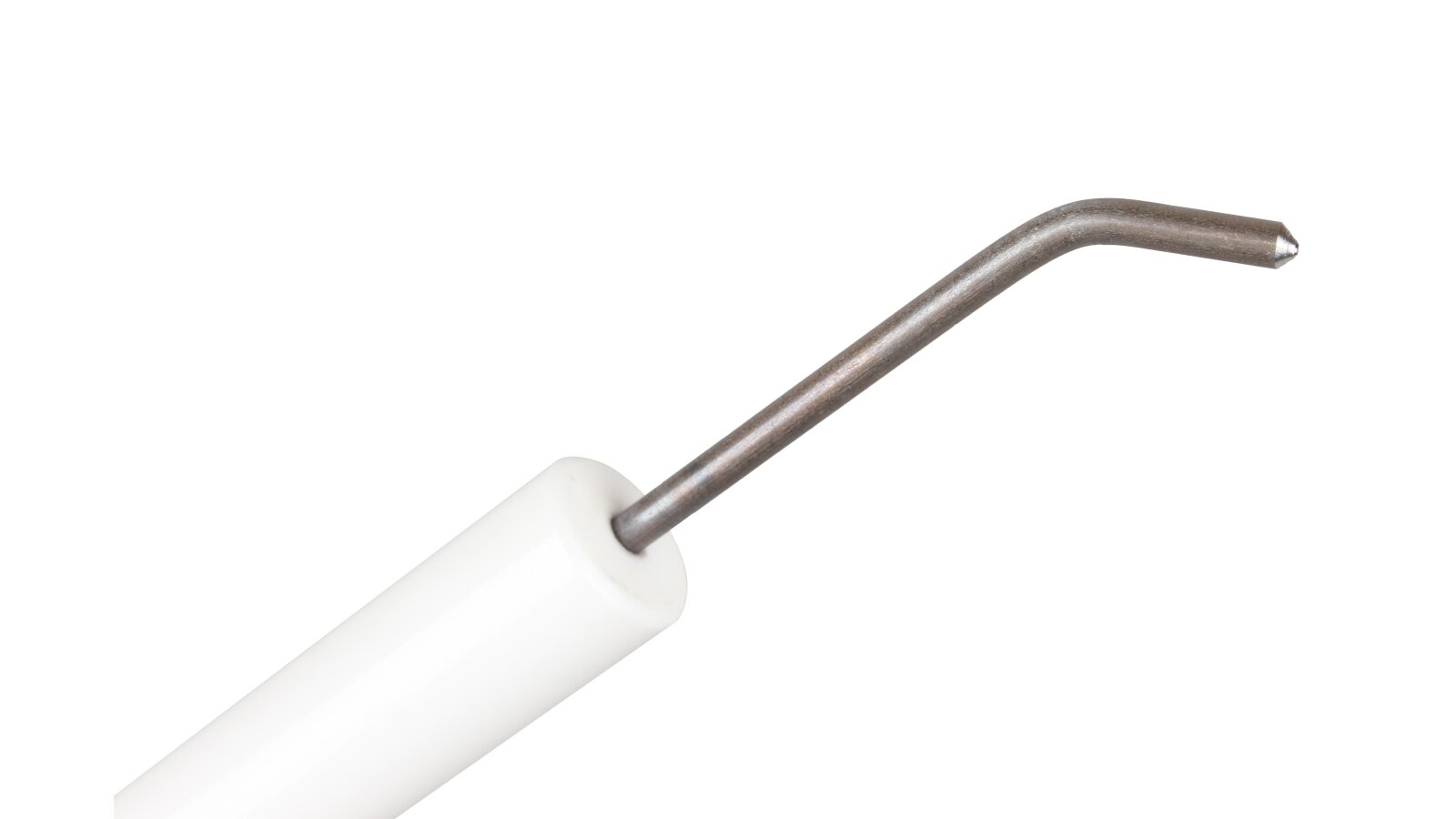

• a metal rod for current flow;

• protective fixed conductor insulation;

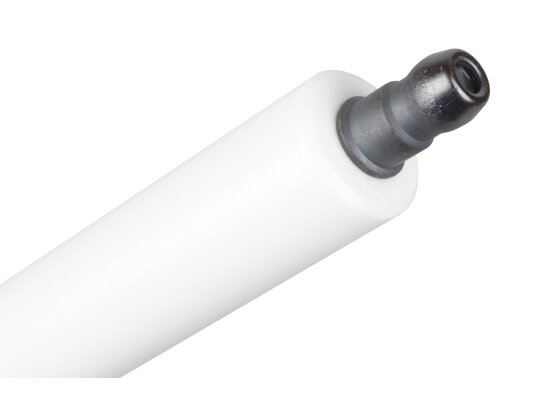

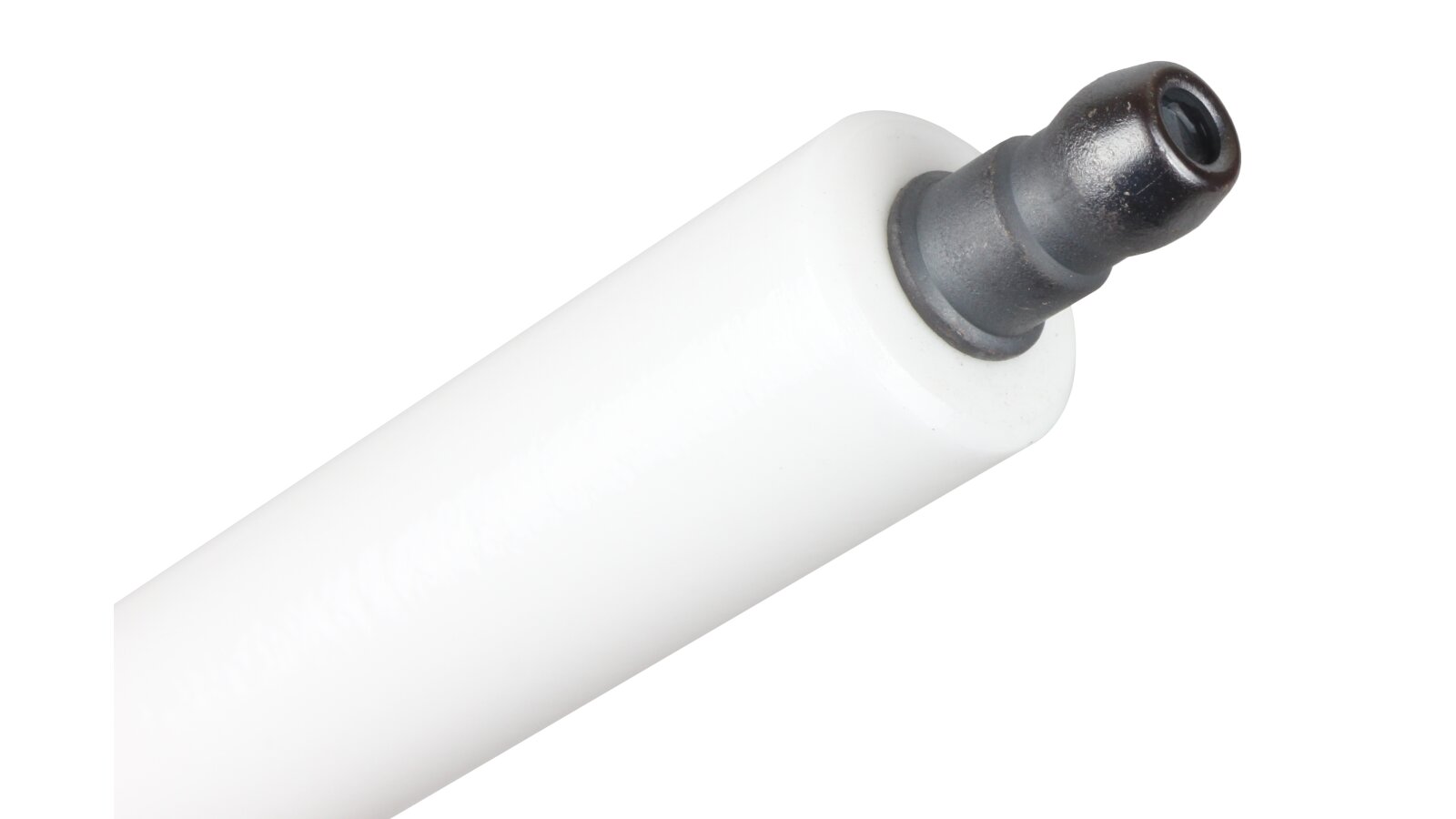

• Ø6 mm plug for connection to high-voltage cable.

Ignition electrodes are used for assembly of the ignition unit, burner maintenance and replacement of burnt (damaged) electrodes. You can buy the ignition electrode separately or together with the right electrode.
