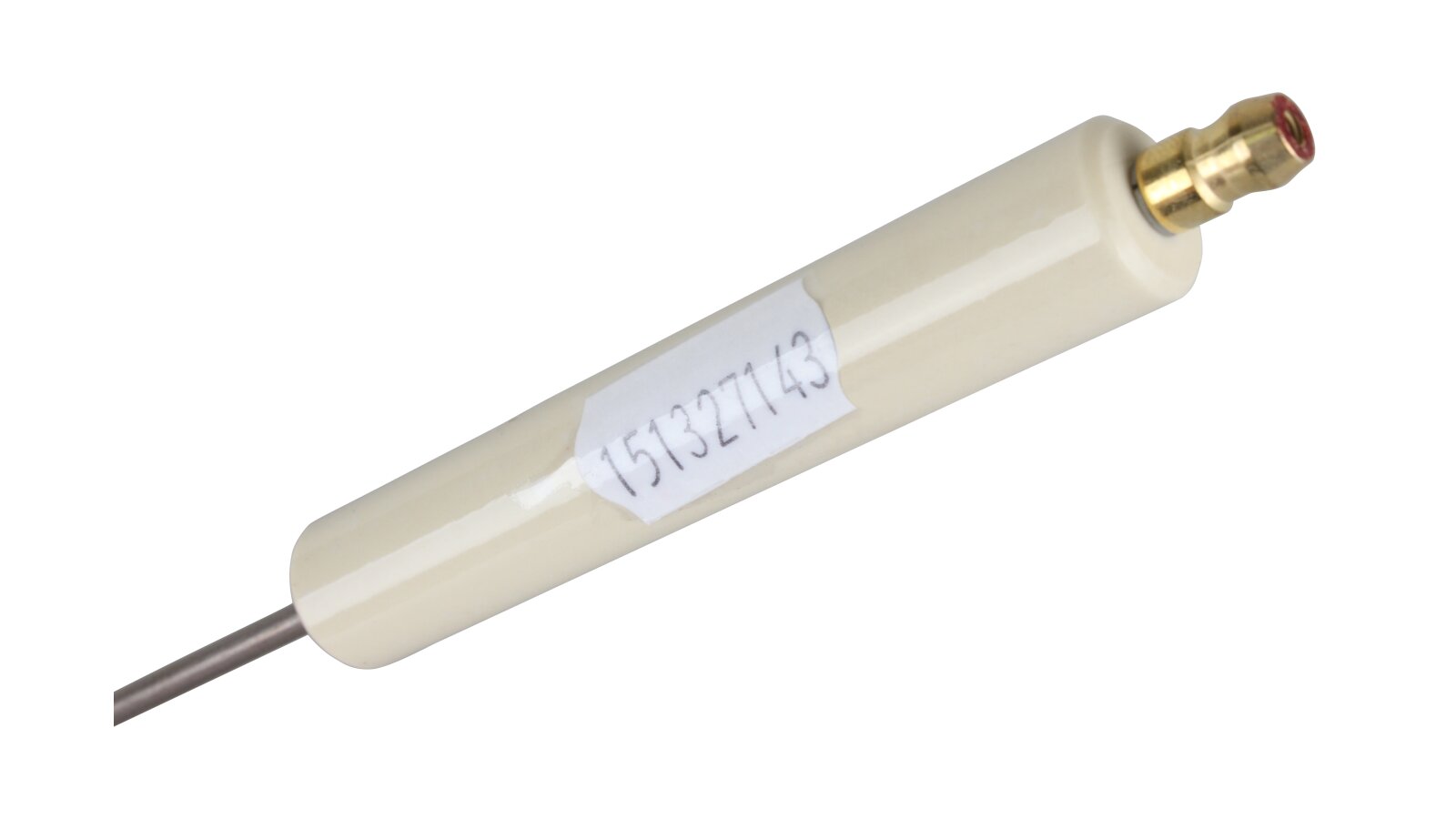

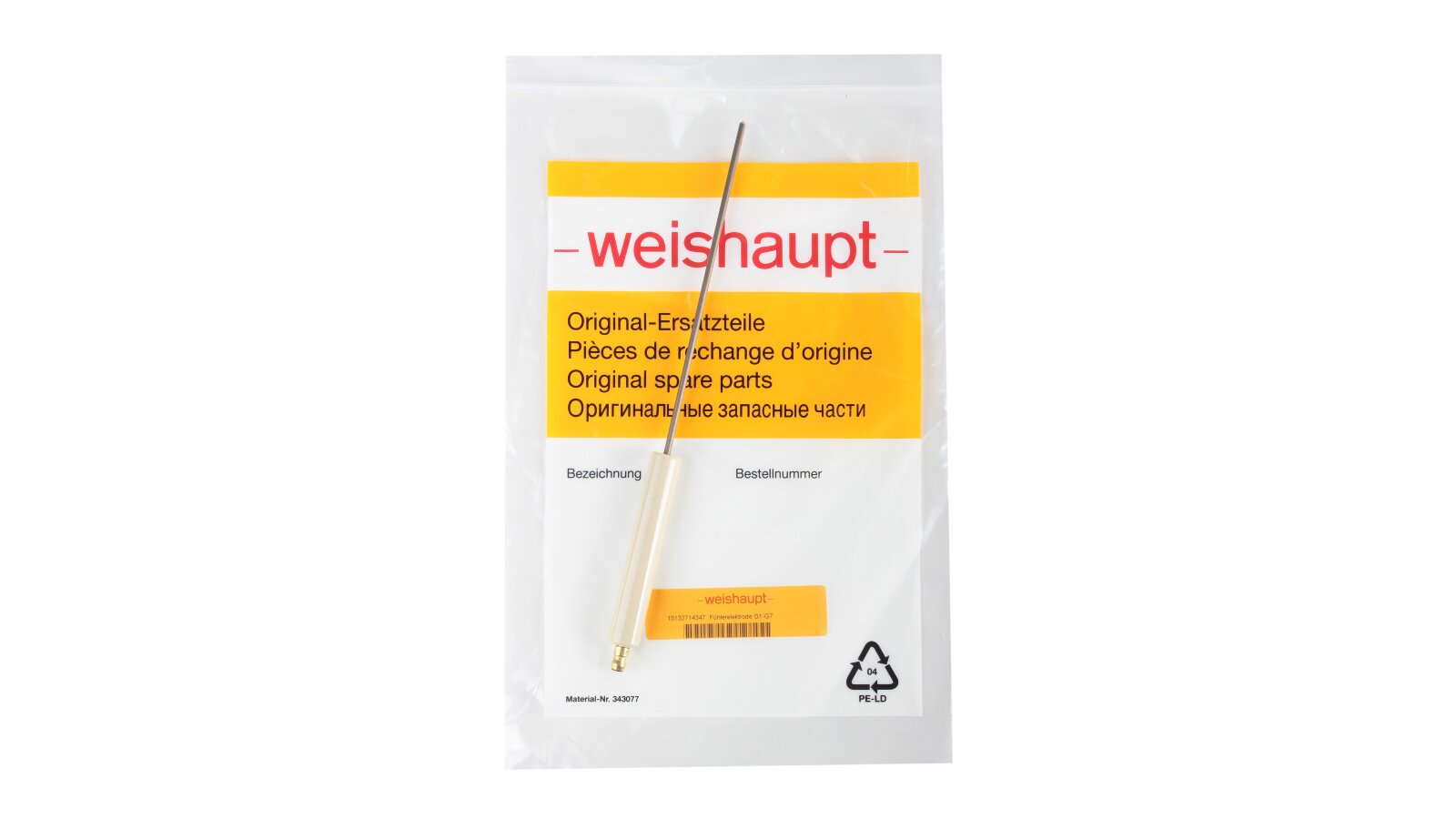

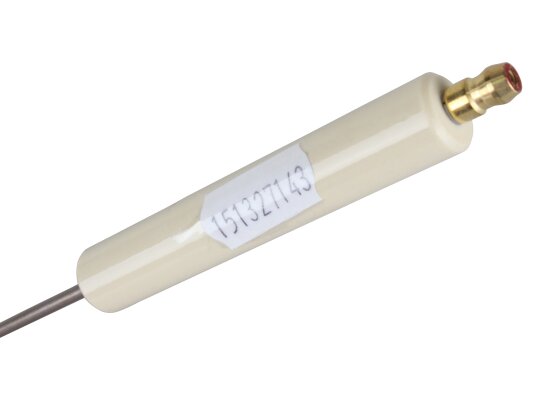

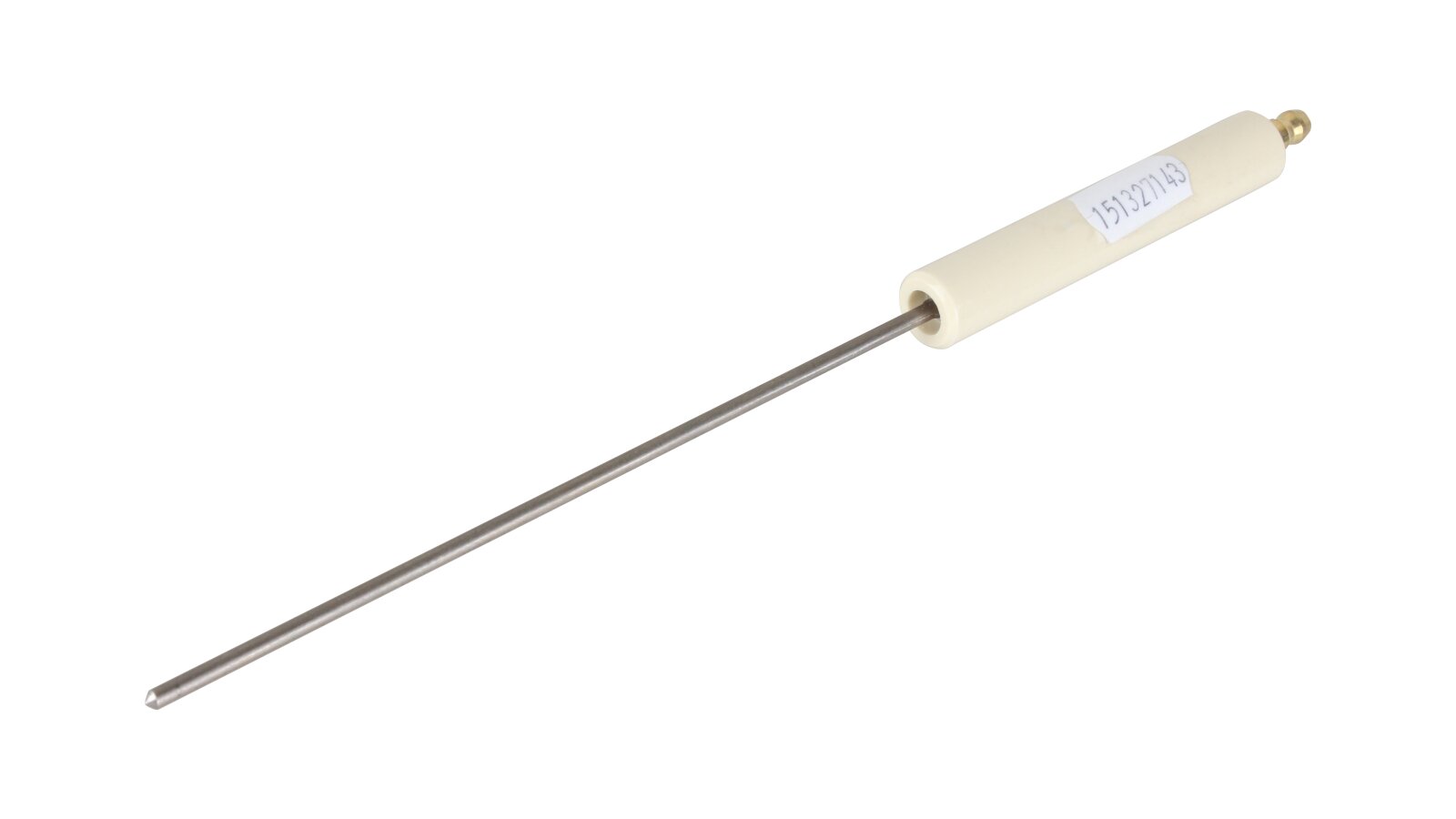

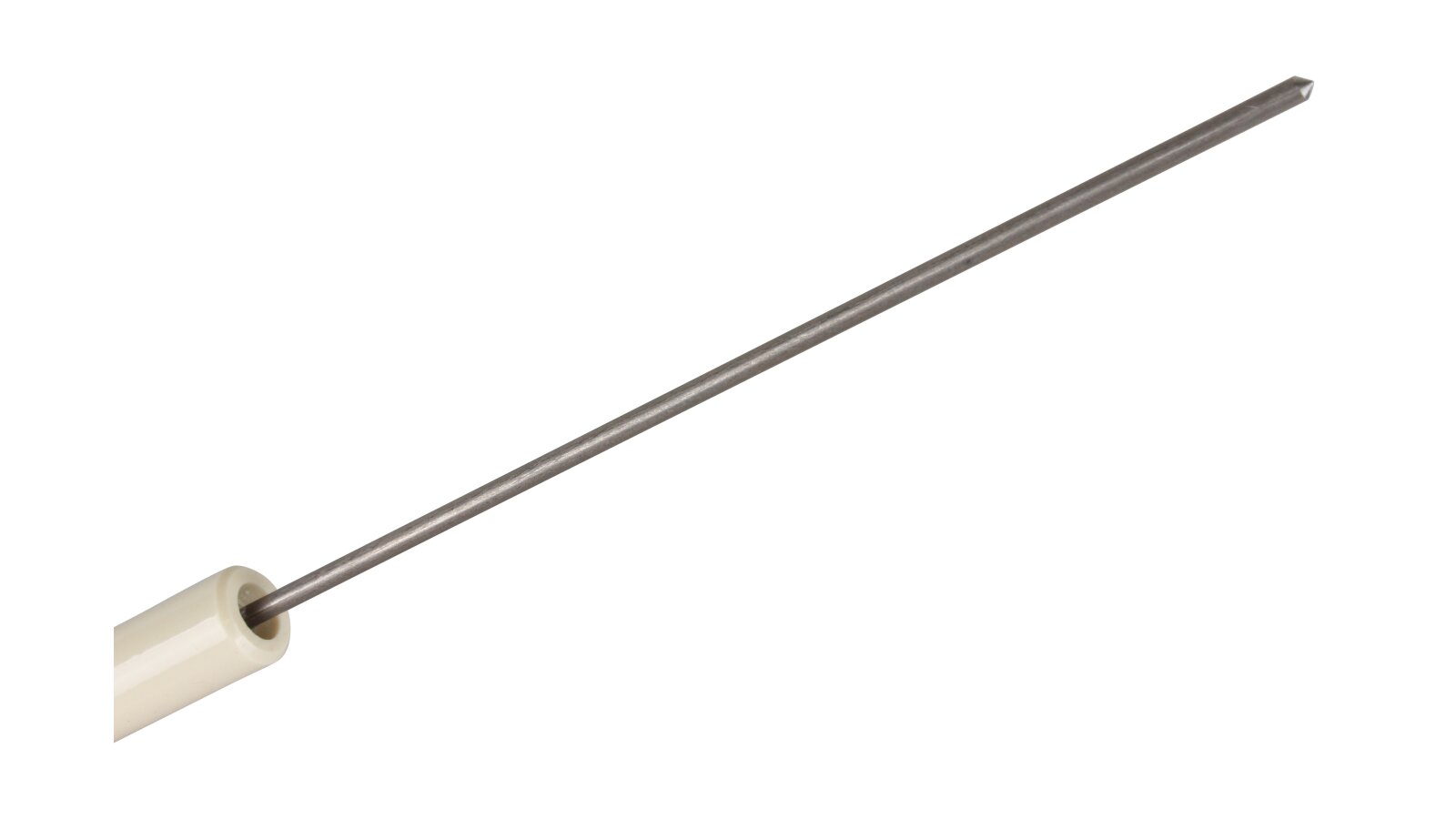

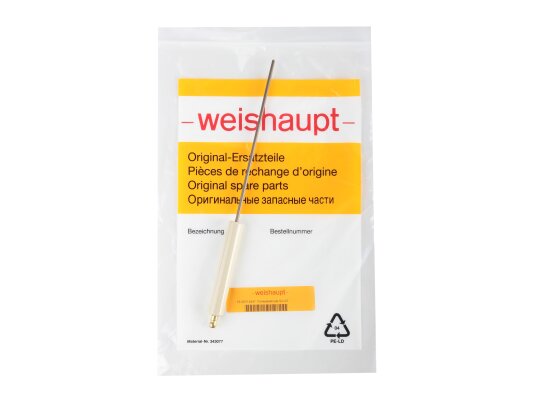

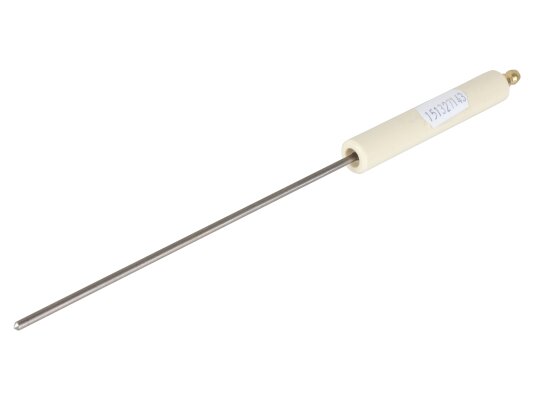

Ionisation electrode Weishaupt 246.5 mm, 15132714347

The Weishaupt 15132714347 ionization electrode is used for continuous monitoring of the open flame when the burner is running. It is one of the elements of the safety system of a heating boiler or other heating installation. The electrode is connected to the combustion control unit, which controls the fuel supply. When the flame goes out, the combustion control unit closes the fuel supply line. A cable is connected to the electrode to transmit the ionization current. A Ø6 mm plug connection ensures reliable contact. The metal conductive rod is covered with fixed ceramic insulation Ø14x85 mm.
