Ignition electrode Weishaupt, right, 147.5 mm, 15532714207

Weishaupt15532714207

Alternative Part Number

Weishaupt We15532714207Weishaupt We1553271420-7

AED 120

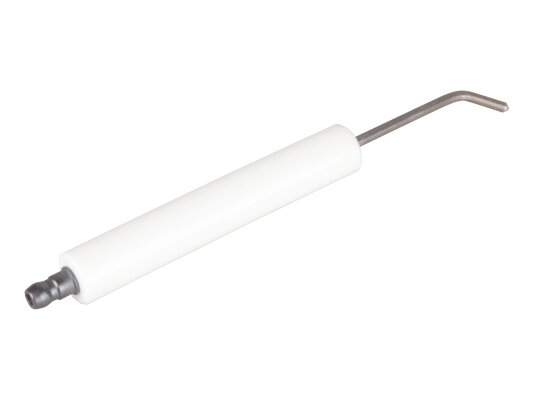

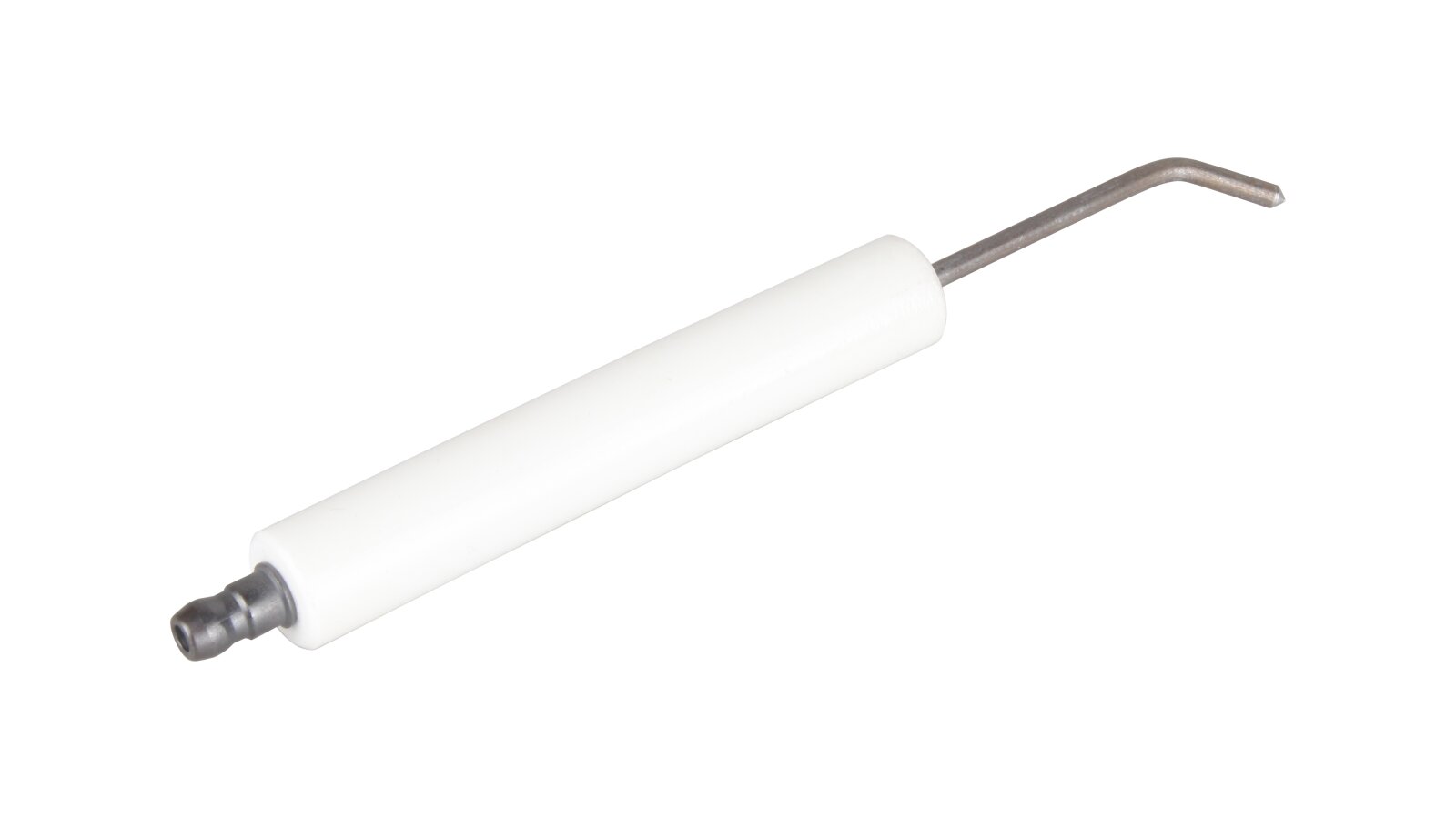

Ignition electrode Weishaupt, right, 147.5 mm, Part Number: 15532714207, Alternative art.: We15532714207, We1553271420-7.

About product

Go to description

Electrode type ignitionElectrode length 147.5 mmConnector diameter 6 mmFixed insulation size Ø14 X 85 mmRod size Ø3 X 50 mm

Electrodes

Description

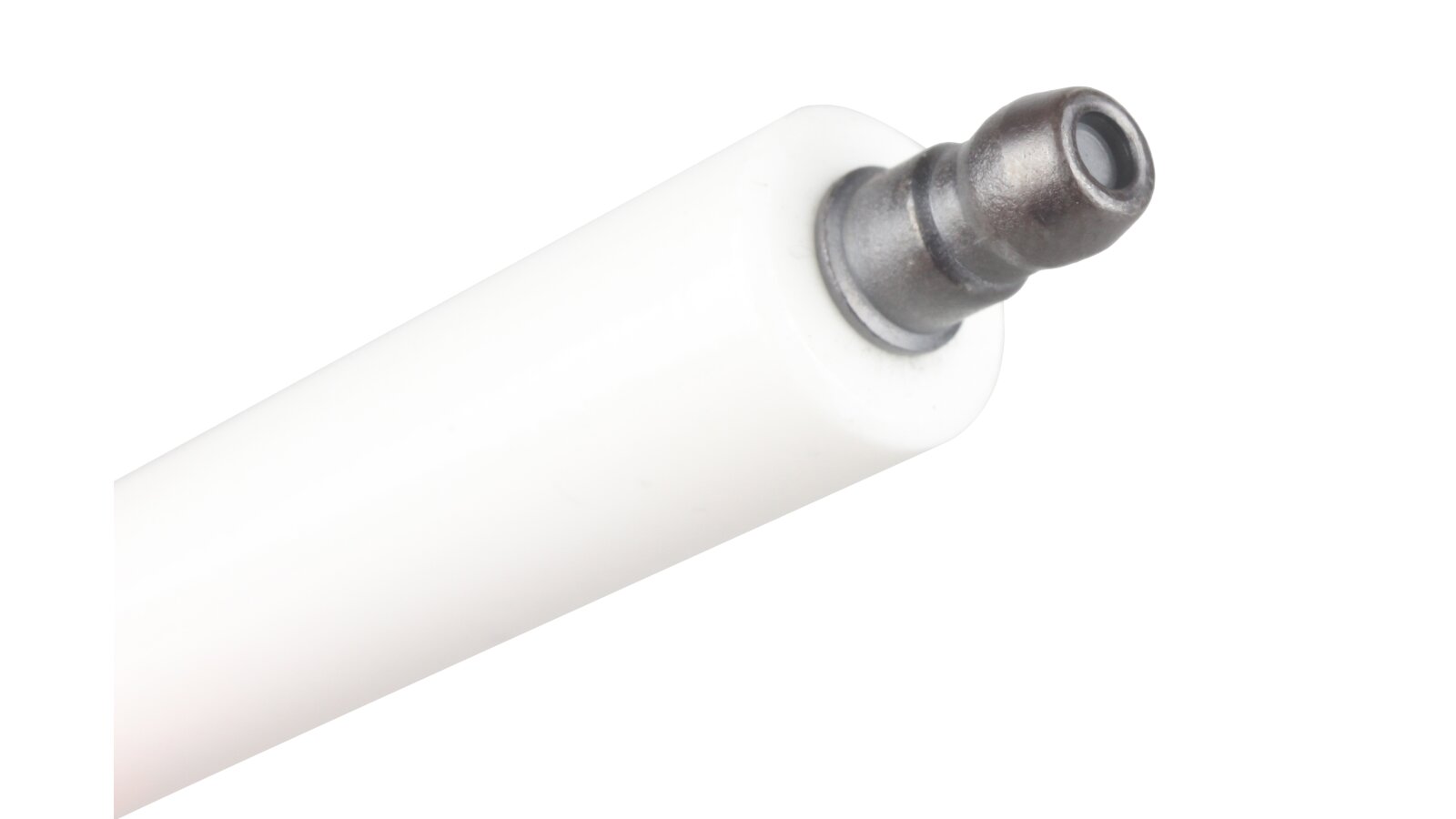

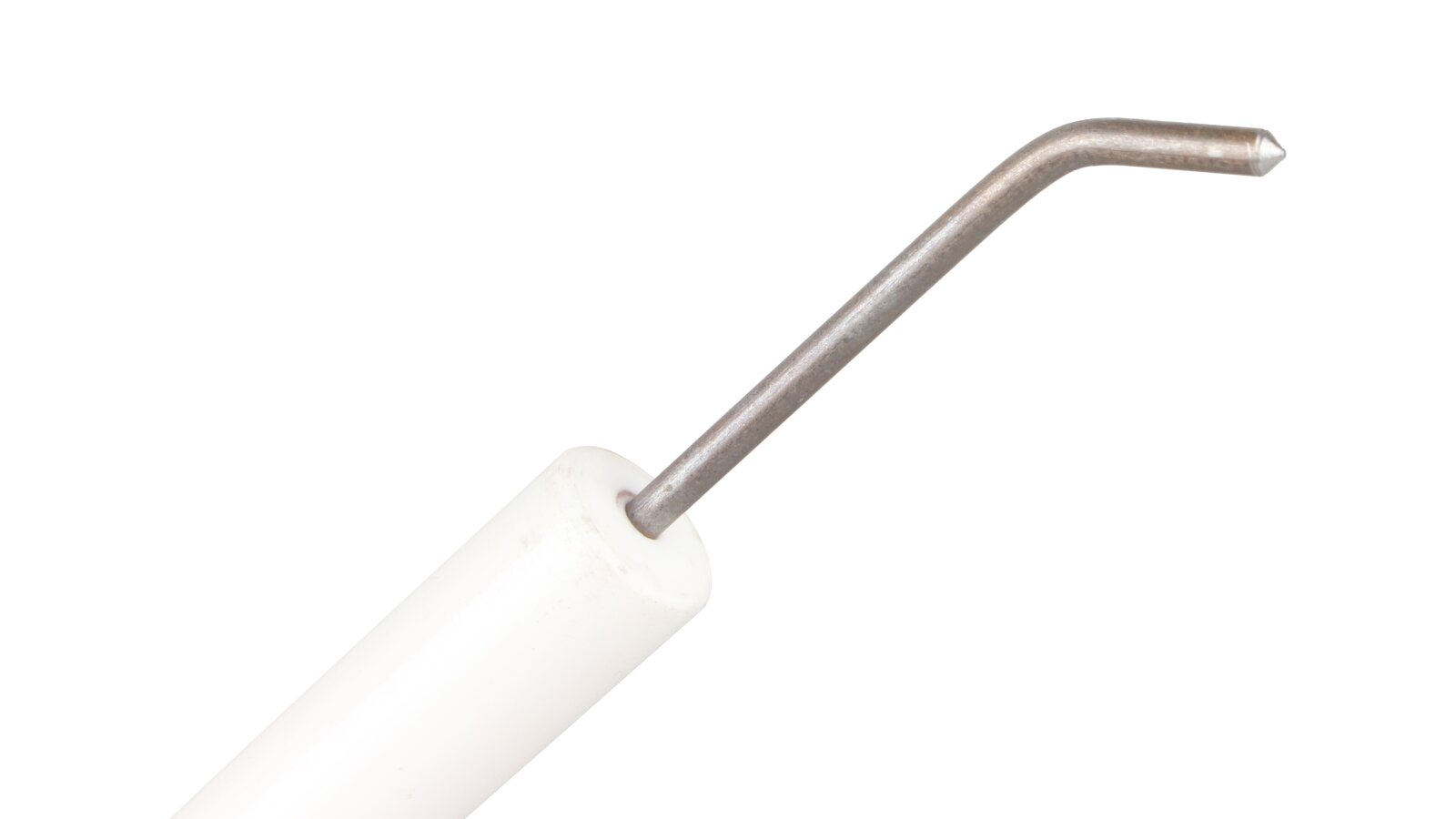

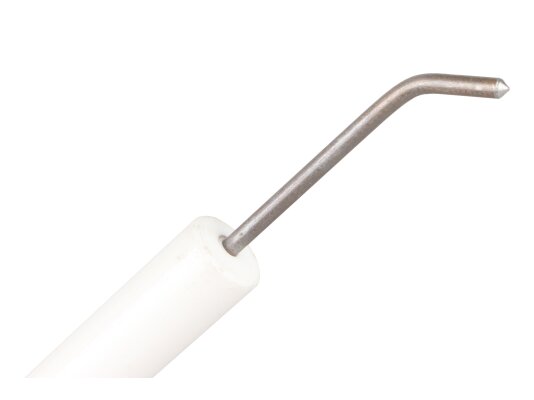

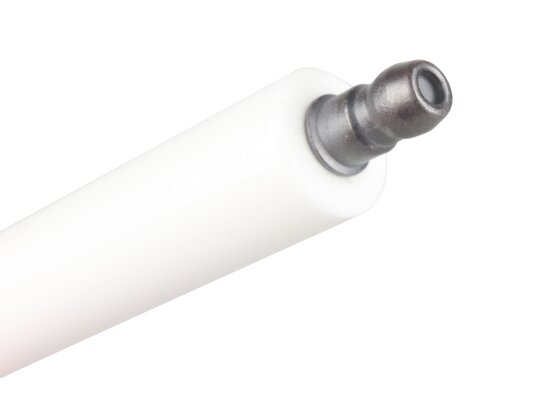

Ignition electrode 147.5 mm, right, article: 15532714207 is used to assemble the burner ignition unit. Together with the left electrode art. 15132714337, it creates an electric high-voltage arc, due to which the fuel in the burner ignites. The conductive rod is located inside the ceramic fixed insulation Ø14x85 mm. Reliable contact with the ignition cable is achieved due to the plug connection Ø6 mm.

Characteristics

Manufacturer Part Number: 15532714207Electrode type: ignitionElectrode length: 147.5 mmConnector diameter: 6 mmFixed insulation size: Ø14 X 85 mmRod size: Ø3 X 50 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Ignition electrodes Electrodes

Weishaupt

Brand

Germany — home of the brand

Germany — country of origin

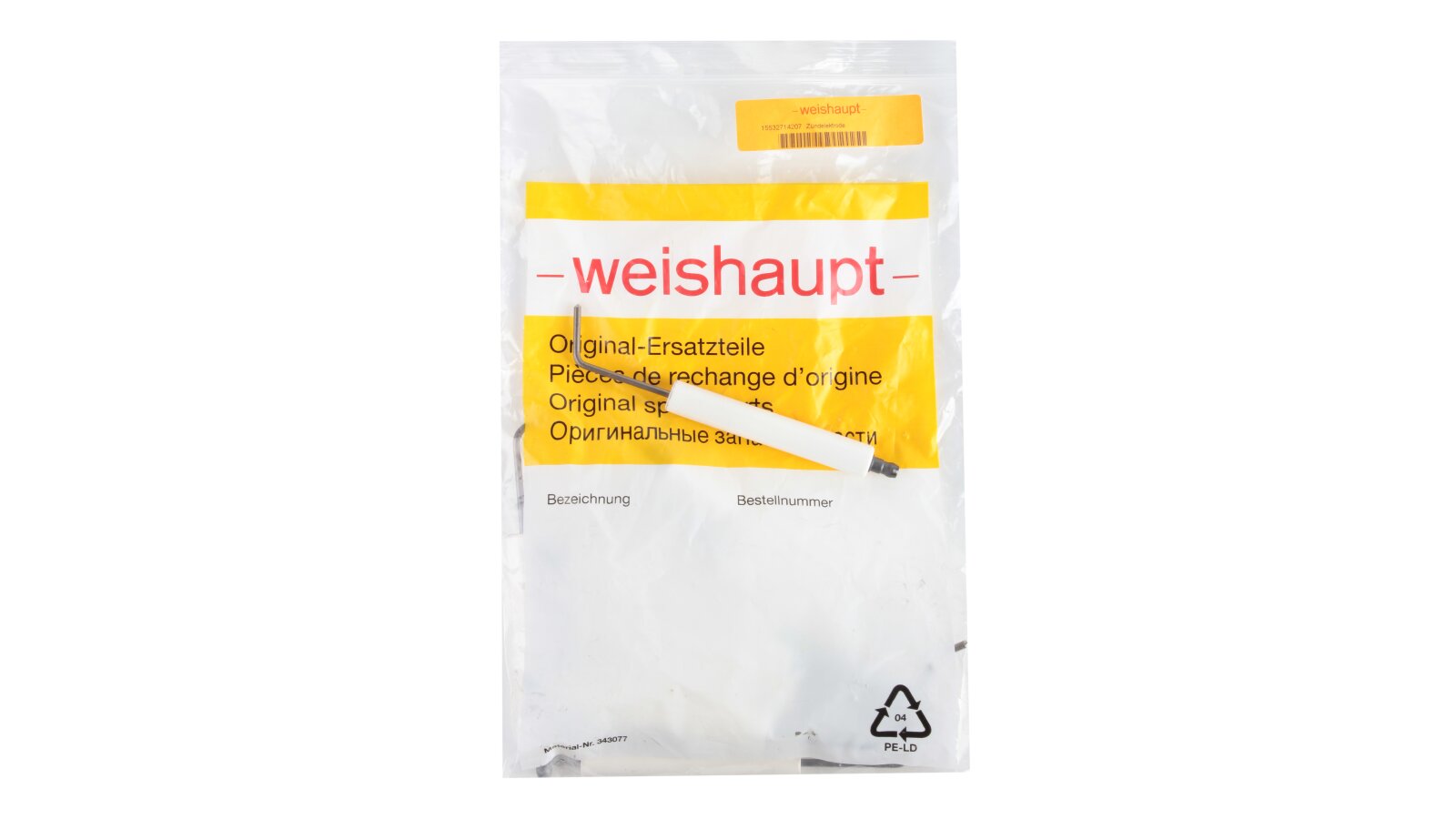

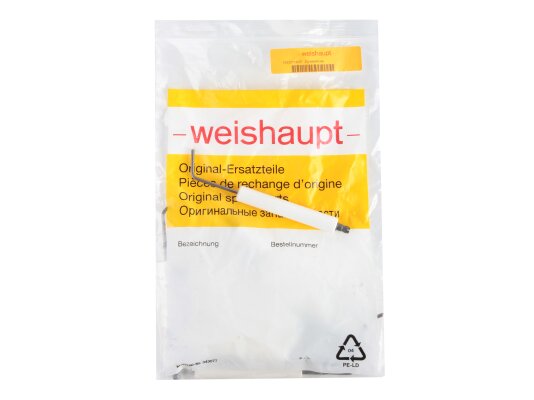

Packaging information

Weight, kg:: 0.022
Length, cm:: 14.75
