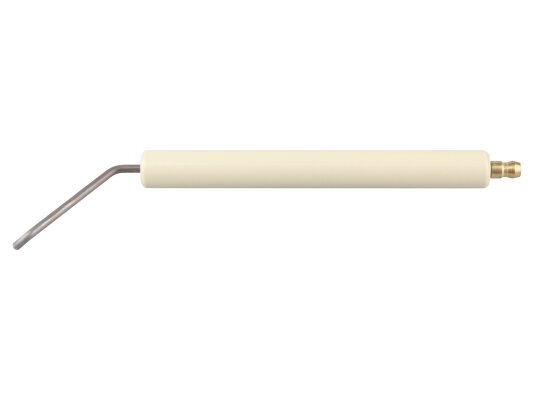

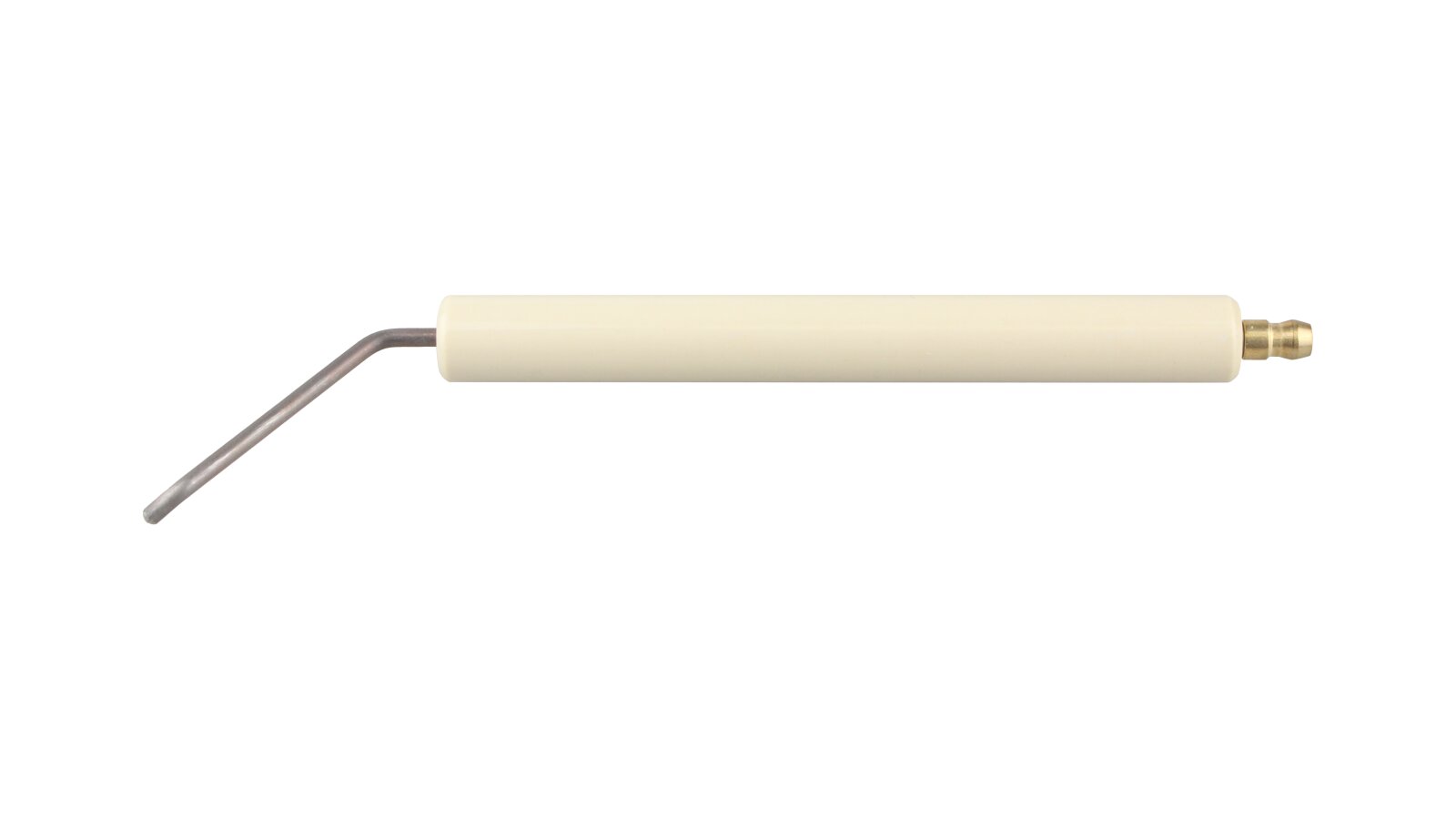

Ignition electrode Weishaupt, left, 178 mm, 21216310207

Weishaupt21216310207

Alternative Part Number

Weishaupt We21216310207Weishaupt We2121631020-7
AED 155
  1. Electrodes

Description

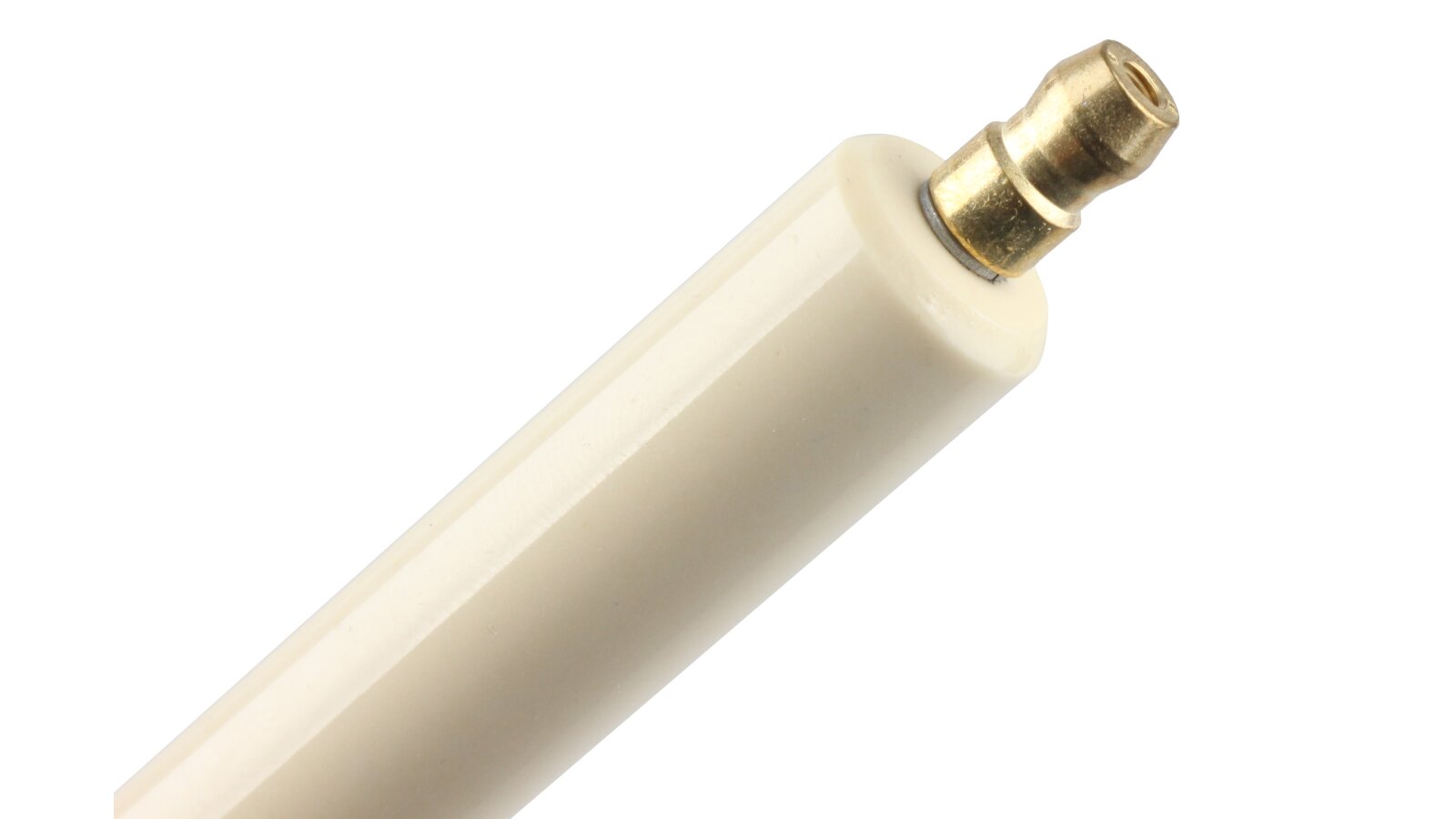

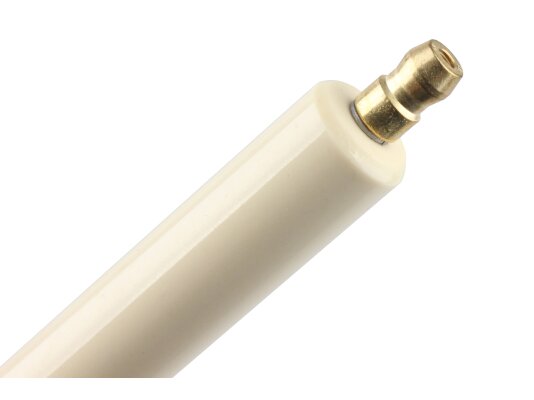

The ignition electrode 178 mm left article 21216310207 forms a high-voltage arc, due to which the fuel ignites when the burner is started. The electrical insulation of the conductive rod Ø14x125 mm is made of ceramics. Reliable contact with the ignition cable is ensured by a plug connection Ø6 mm. The electrode is made in accordance with European quality and safety standards. It is used in tandem with the right electrode art. 21216310217

Characteristics

Manufacturer Part Number: 21216310207Electrode type: ignitionElectrode length: 178 mmConnector diameter: 6 mmFixed insulation size: Ø14 x 125 mmRod size: Ø3 X 41.6 mm
