Ignition electrode Weishaupt 170.5 mm, 21740514167

Weishaupt21740514167

Alternative Part Number

Weishaupt We21740514167Weishaupt We2174051416-7

AED 195

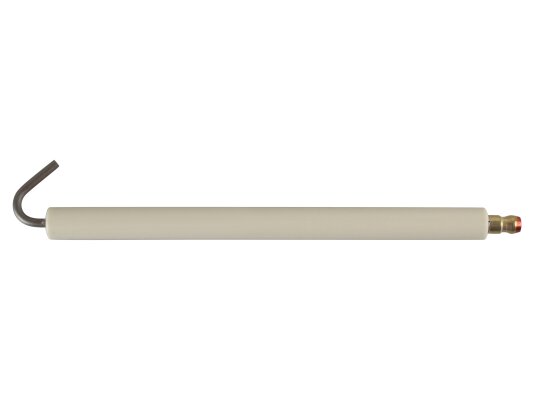

Ignition electrode Weishaupt 170.5 mm, Part Number: 21740514167, Alternative art.: We21740514167, We2174051416-7.

About product

Go to description

Electrode type ignitionElectrode length 170.5 mmConnector diameter 6 mmFixed insulation size Ø11 x 147 mmRod size Ø2.9 X 11.8 mm

Electrodes

Description

Ignition electrode 170.5 mm article 21740514167 is used to ignite the burner when switched on. Under the influence of high voltage generated by the ignition transformer, it creates an electric spark discharge to ignite the fuel-air mixture. Connection to the conductive cable is carried out using a Ø6 mm plug. The rod is insulated with a ceramic fixed shell Ø11x147 mm.

Characteristics

Manufacturer Part Number: 21740514167Electrode type: ignitionElectrode length: 170.5 mmConnector diameter: 6 mmFixed insulation size: Ø11 x 147 mmRod size: Ø2.9 X 11.8 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Electrodes Ignition electrodes

Weishaupt

Brand

Germany — home of the brand

Germany — country of origin

Packaging information

Weight, kg:: 0.0189
Length, cm:: 17.05
