Ionisation electrode Weishaupt 105.3 mm, 23210014207

Weishaupt23210014207

Alternative Part Number

Weishaupt We23210014207Weishaupt 232 100 14 20 7

AED 94

Ionisation electrode Weishaupt 105.3 mm, Part Number: 23210014207, Alternative MPN: We23210014207, 232 100 14 20 7.

About product

Go to description

Electrode type ionizationElectrode length 106 mmConnector diameter 6.4 mmFixed insulation size Ø6 X 80 mmRod size Ø2.5 X 29 mm

Electrodes

Description

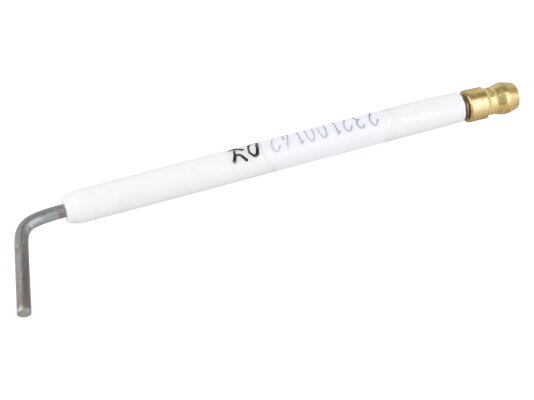

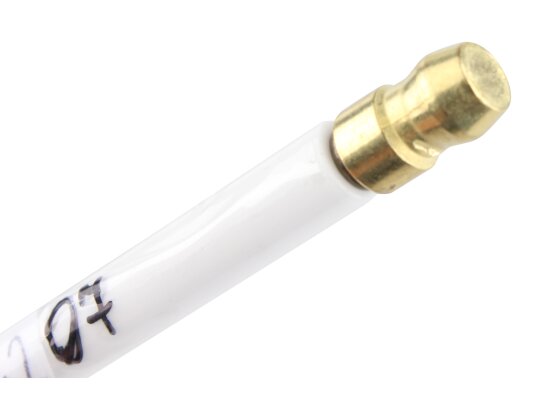

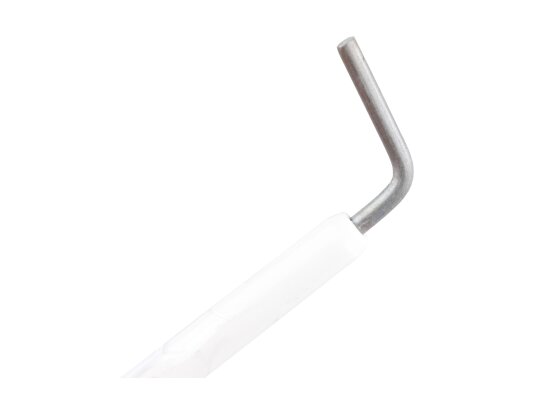

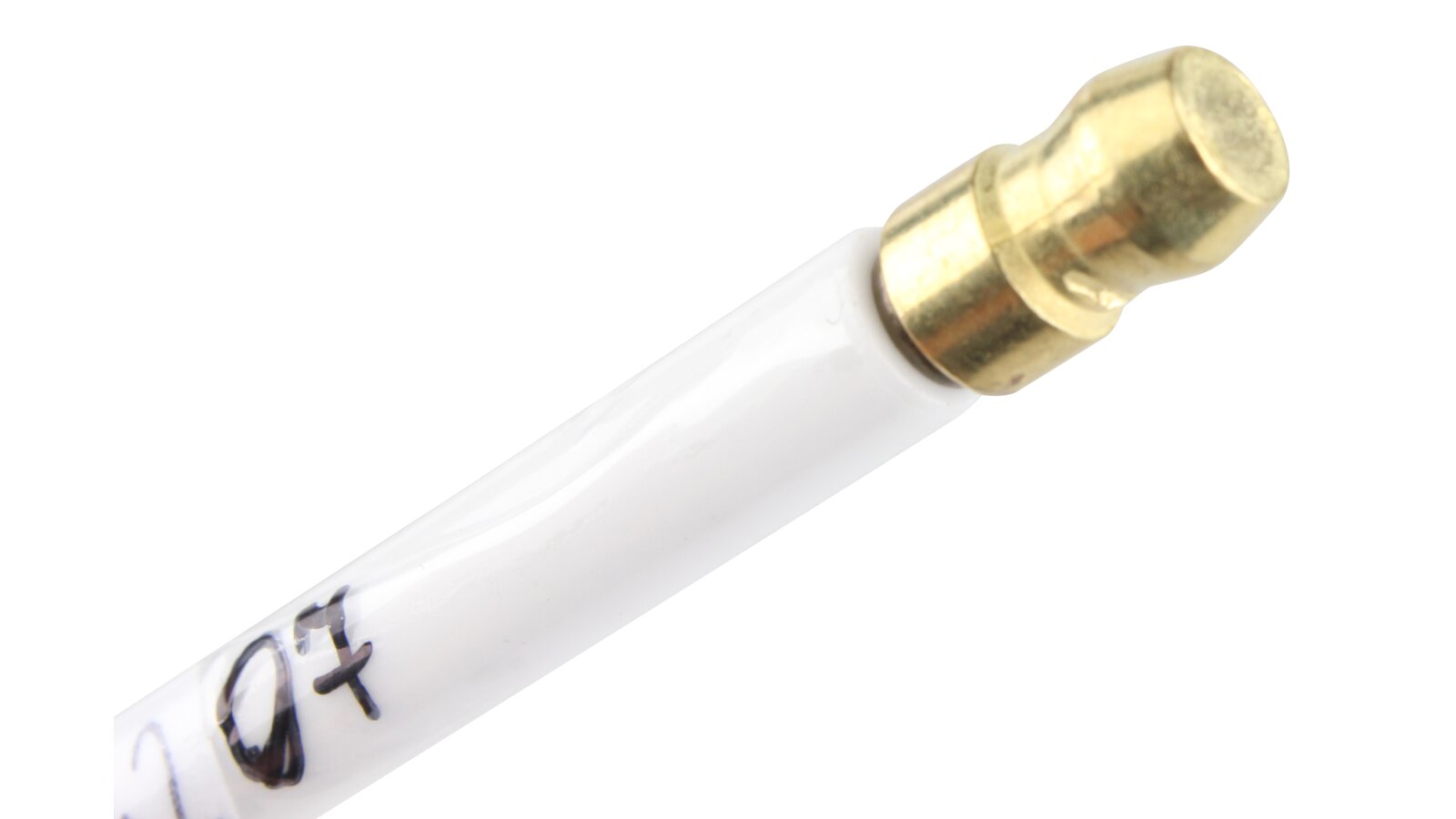

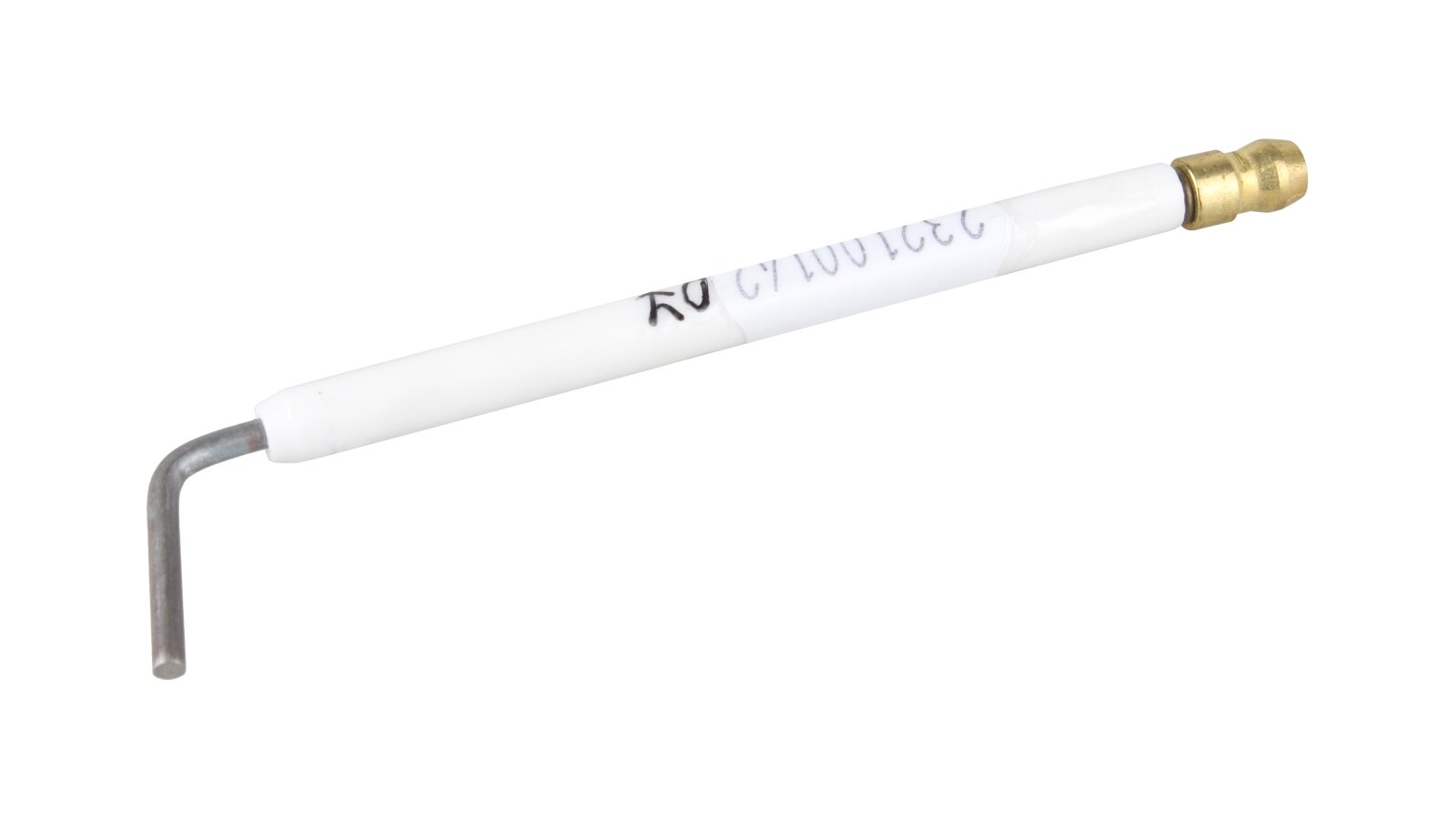

The Weishaupt 23210014207 ionization electrode is an element of the burner safety system. The ionization sensor is used to monitor flame combustion, transmits the ionization current to the burner control unit that controls the fuel supply. The conductive rod Ø2.5 X 29 mm is protected by fixed ceramic electrical and thermal insulation Ø6 X 80 mm. A Ø6.4 mm plug is used to connect the cable.

Characteristics

Manufacturer Part Number: 23210014207Electrode type: ionizationElectrode length: 106 mmConnector diameter: 6.4 mmFixed insulation size: Ø6 X 80 mmRod size: Ø2.5 X 29 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Electrodes Ionization electrodes

Weishaupt

Brand

Germany — home of the brand

Germany — country of origin

Packaging information

Weight, kg:: 0.1
Width, cm:: 2.2
Height, cm:: 0.64
Length, cm:: 10.6
