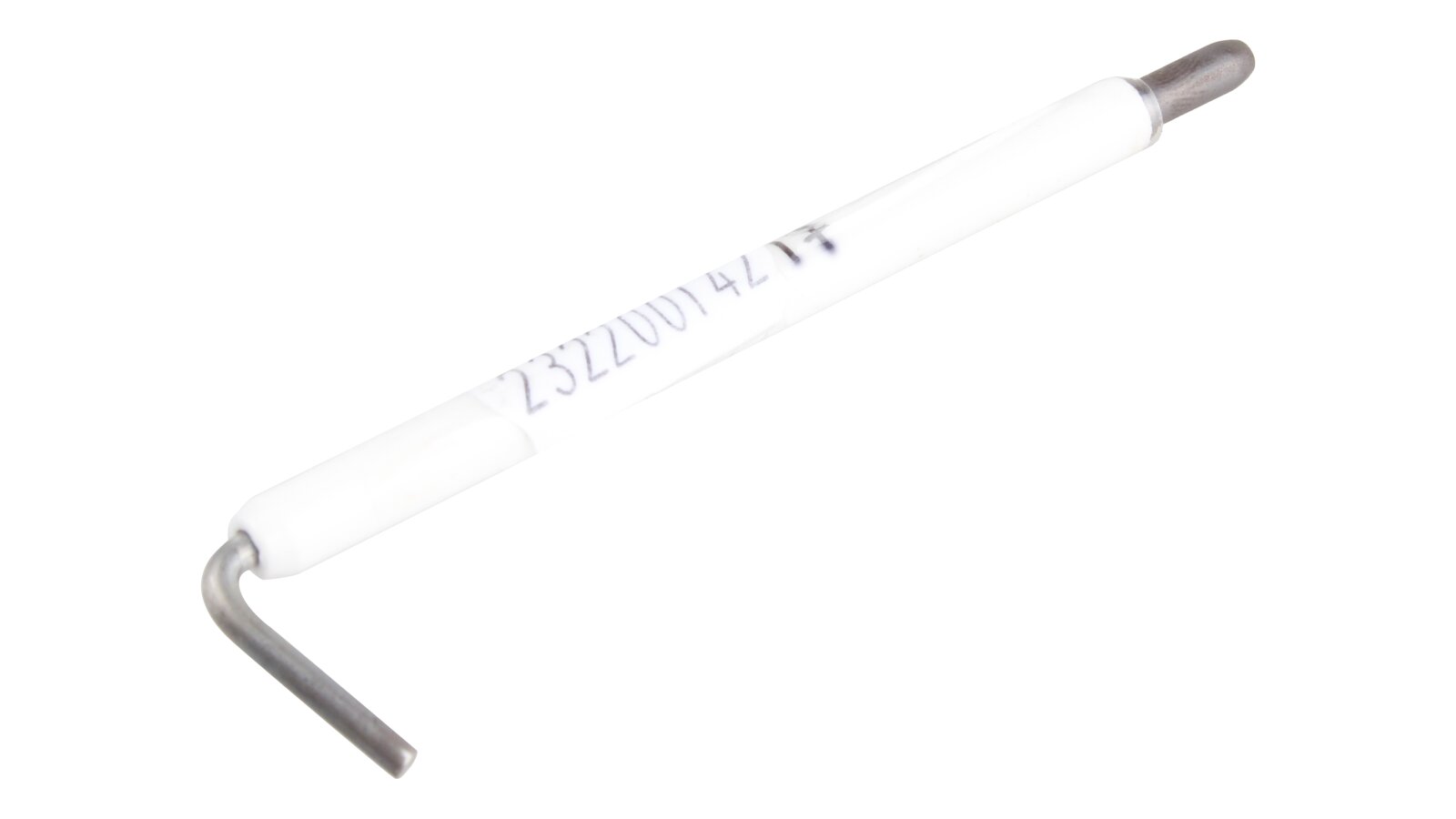

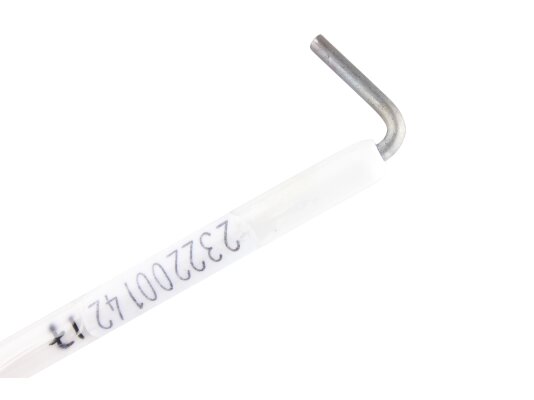

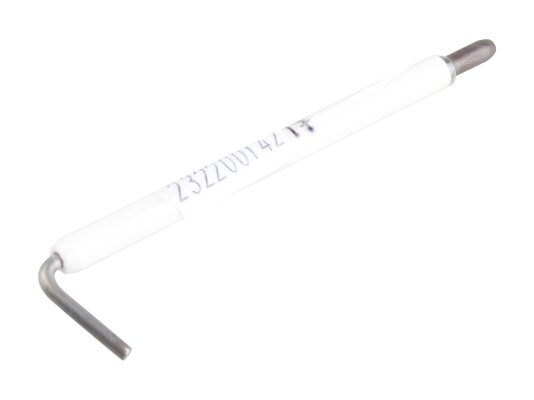

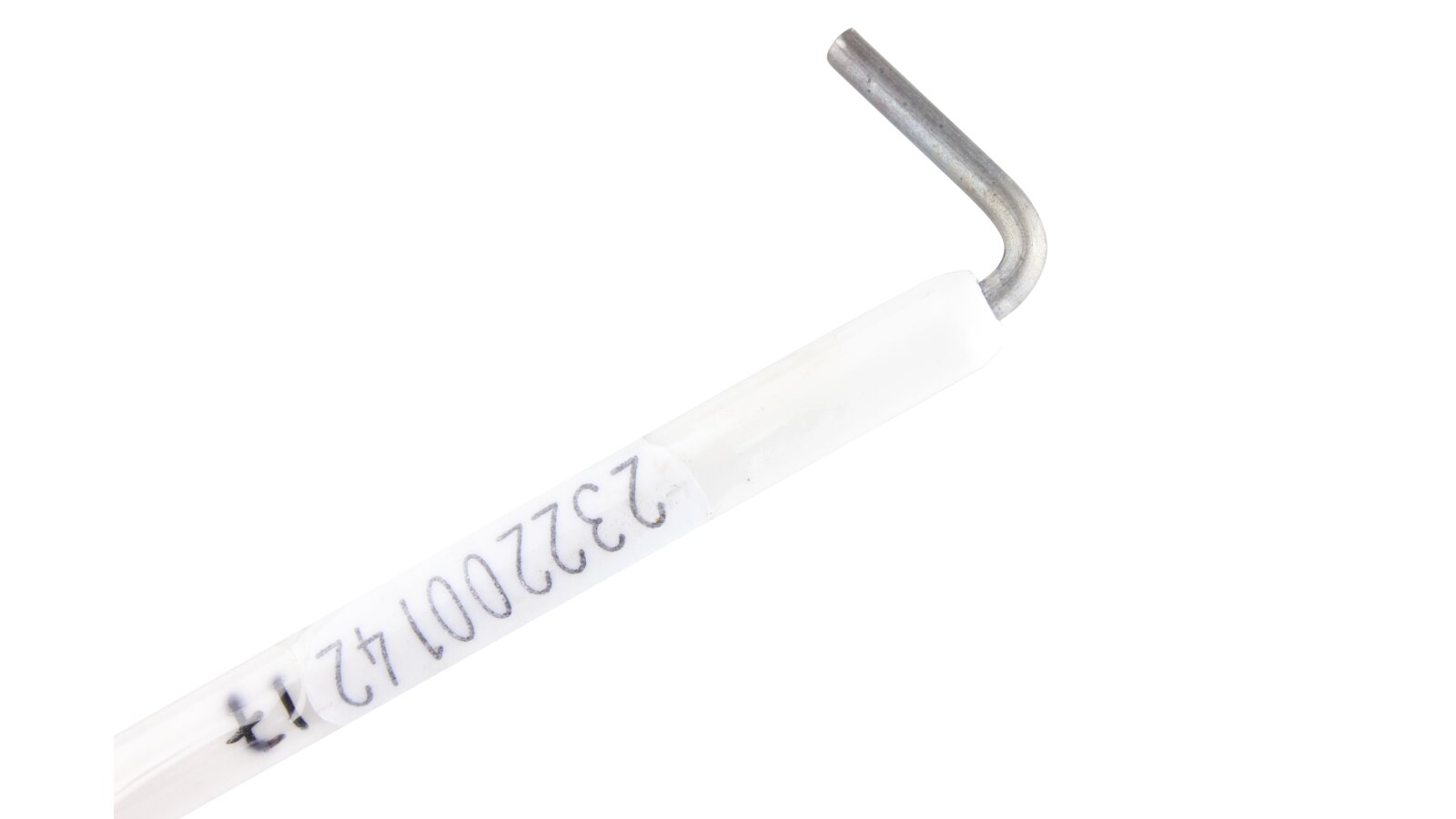

Ignition electrode Weishaupt 96 mm, 23220014217

Weishaupt23220014217

Alternative Part Number

Weishaupt We23220014217Weishaupt 232 200 14 21 7

AED 120

Ignition electrode Weishaupt 96 mm, Part Number: 23220014217, Alternative art.: We23220014217, 232 200 14 21 7.

About product

Go to description

Electrode type ignitionElectrode length 97 mmConnector diameter 4 mmFixed insulation size Ø6 X 81 mmRod size Ø2.5 X 4 mm

Electrodes

Description

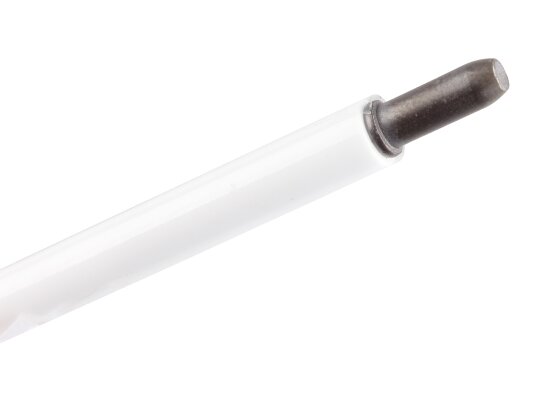

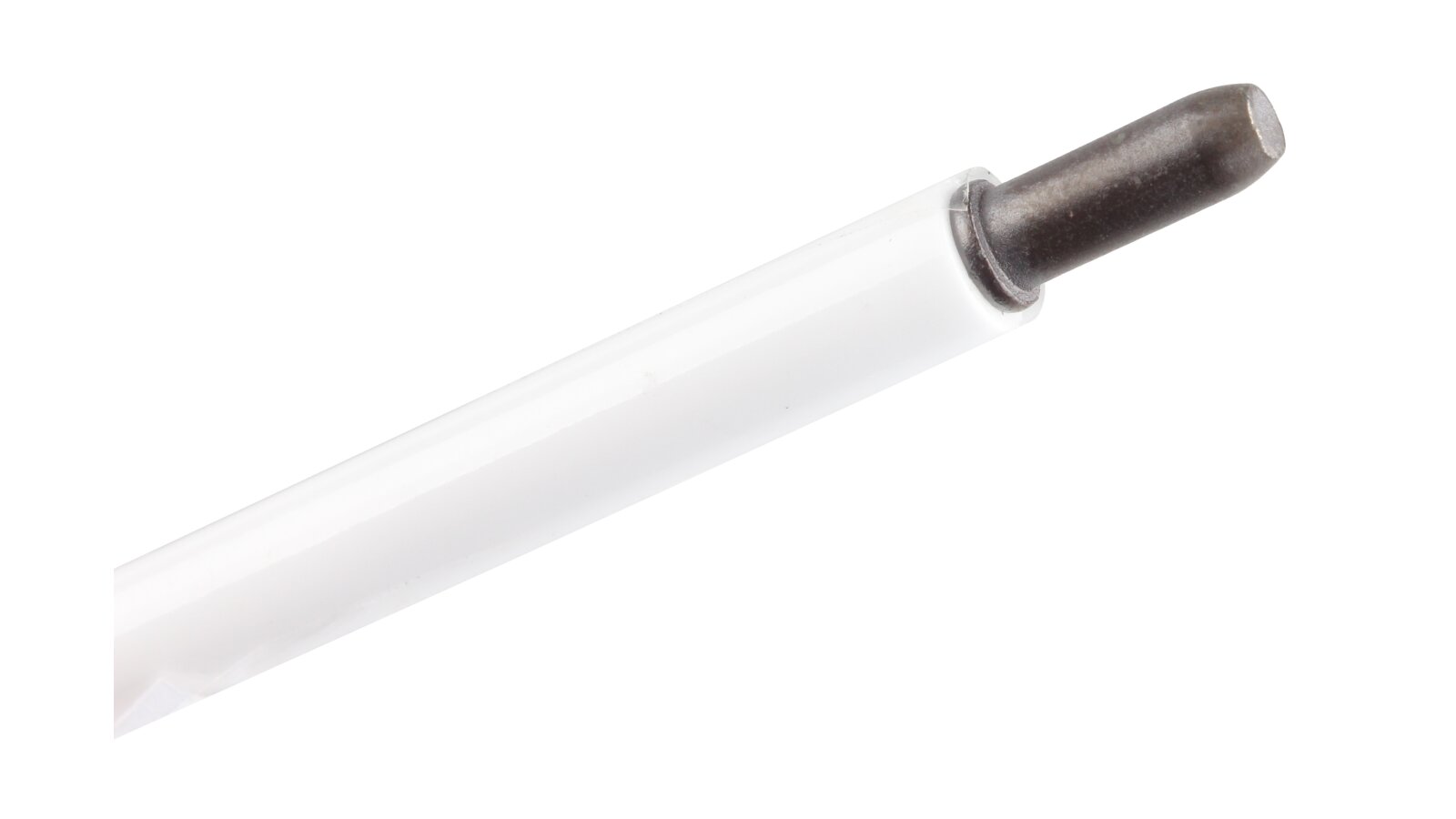

The Weishaupt 23220014217 ignition electrode is an element of the burner ignition unit. When high-voltage current generated by the ignition transformer is applied to the electrode, an electric spark discharge is formed that ignites the fuel. The rod is protected by fixed ceramic electrical and thermal insulation. A Ø4 mm plug is provided for connection to the ignition cable.

Characteristics

Manufacturer Part Number: 23220014217Electrode type: ignitionElectrode length: 97 mmConnector diameter: 4 mmFixed insulation size: Ø6 X 81 mmRod size: Ø2.5 X 4 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Electrodes Ignition electrodes

Weishaupt

Brand

Germany — home of the brand

Germany — country of origin

Packaging information

Weight, kg:: 0.2
Width, cm:: 2.2
Height, cm:: 0.6
Length, cm:: 9.7
