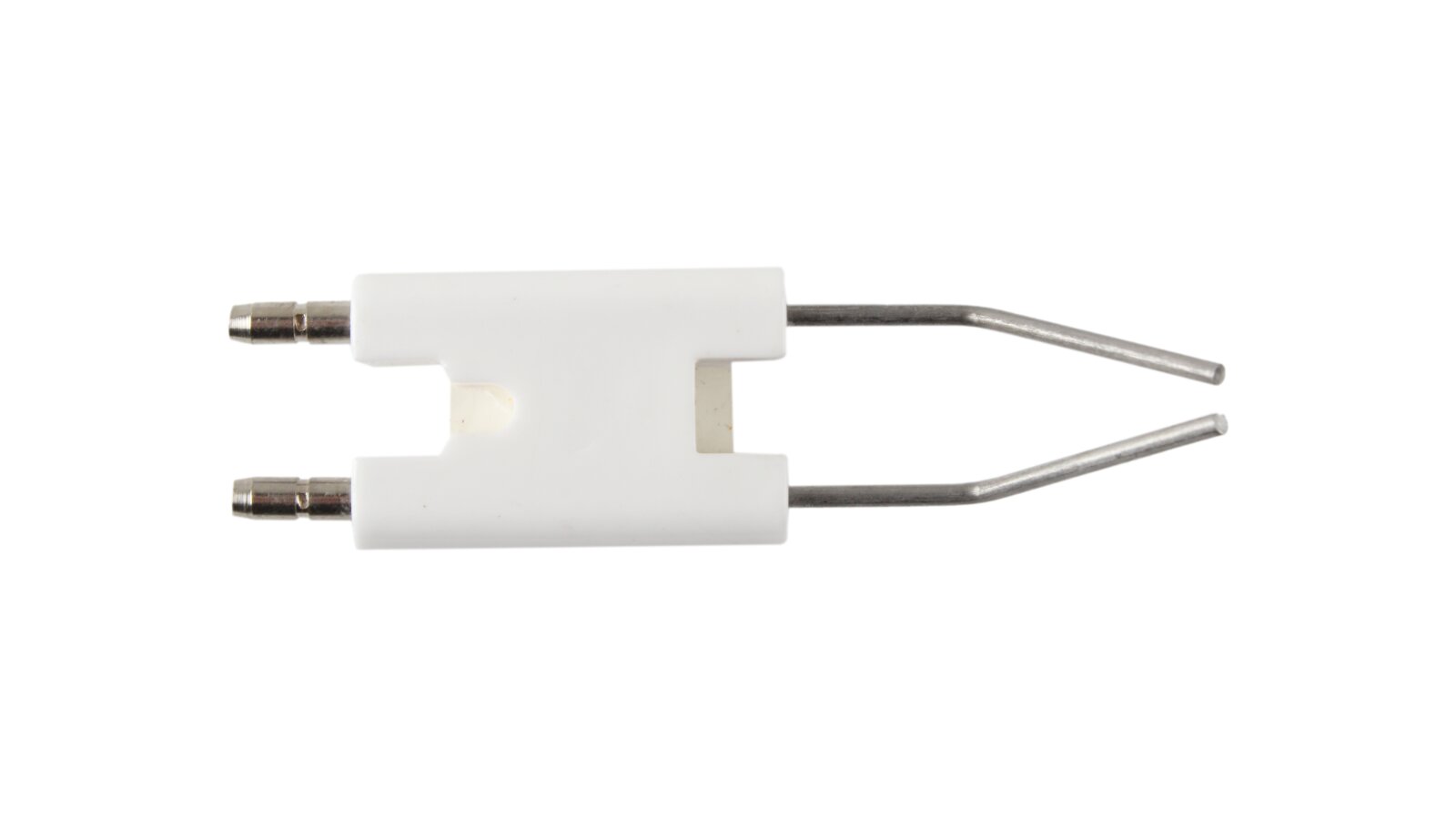

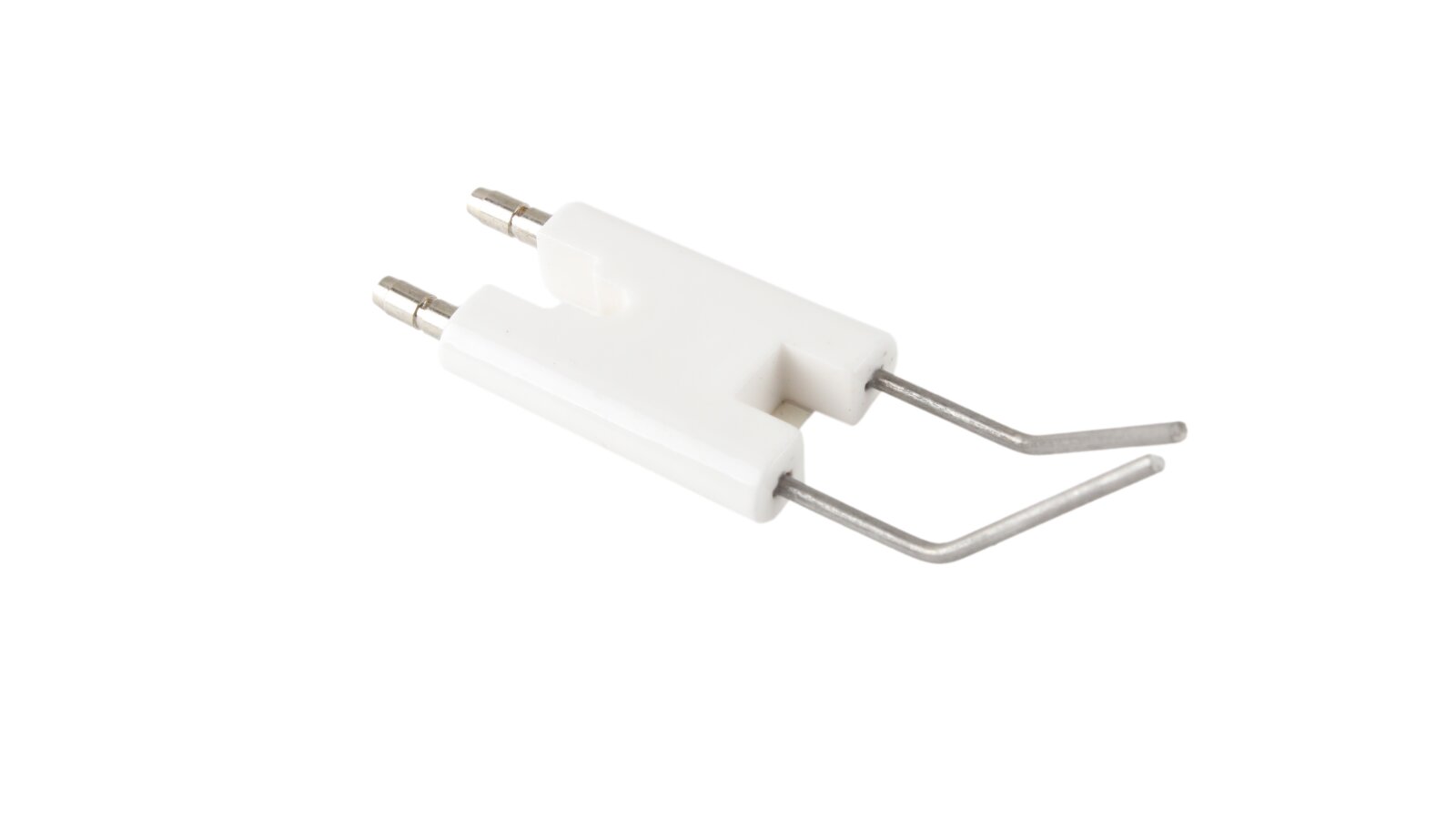

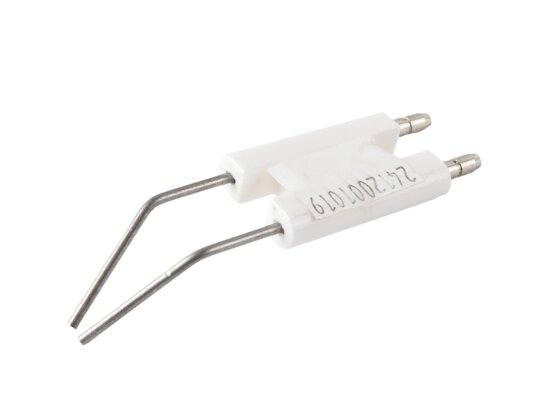

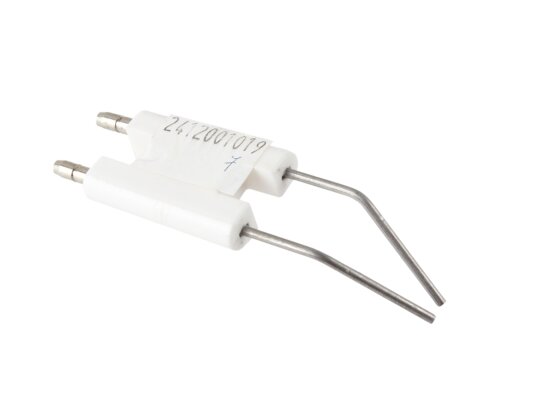

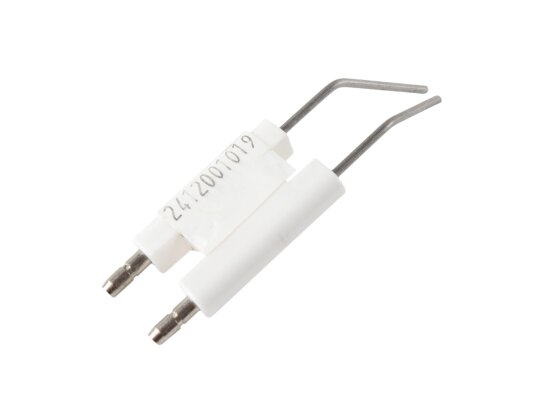

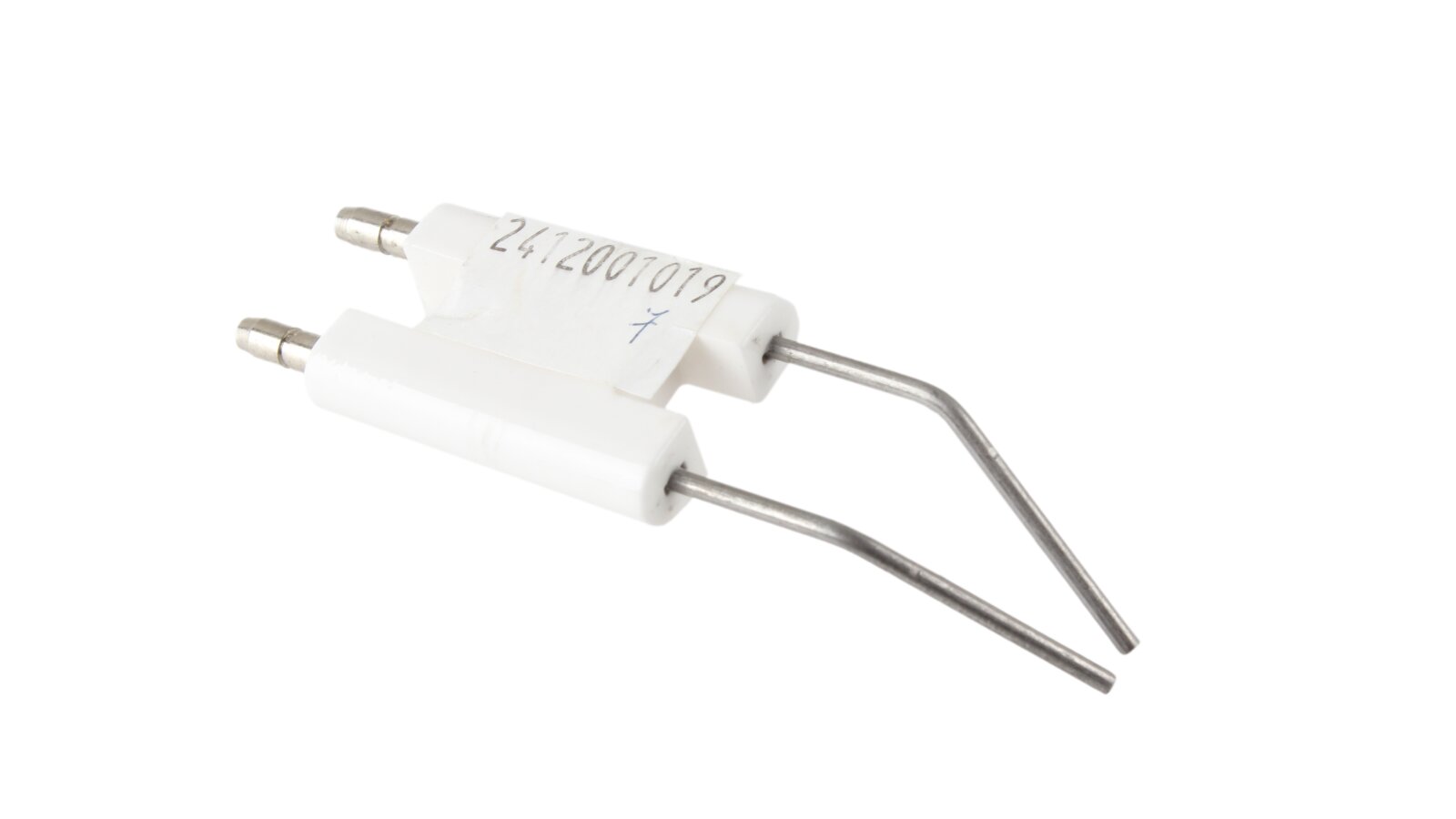

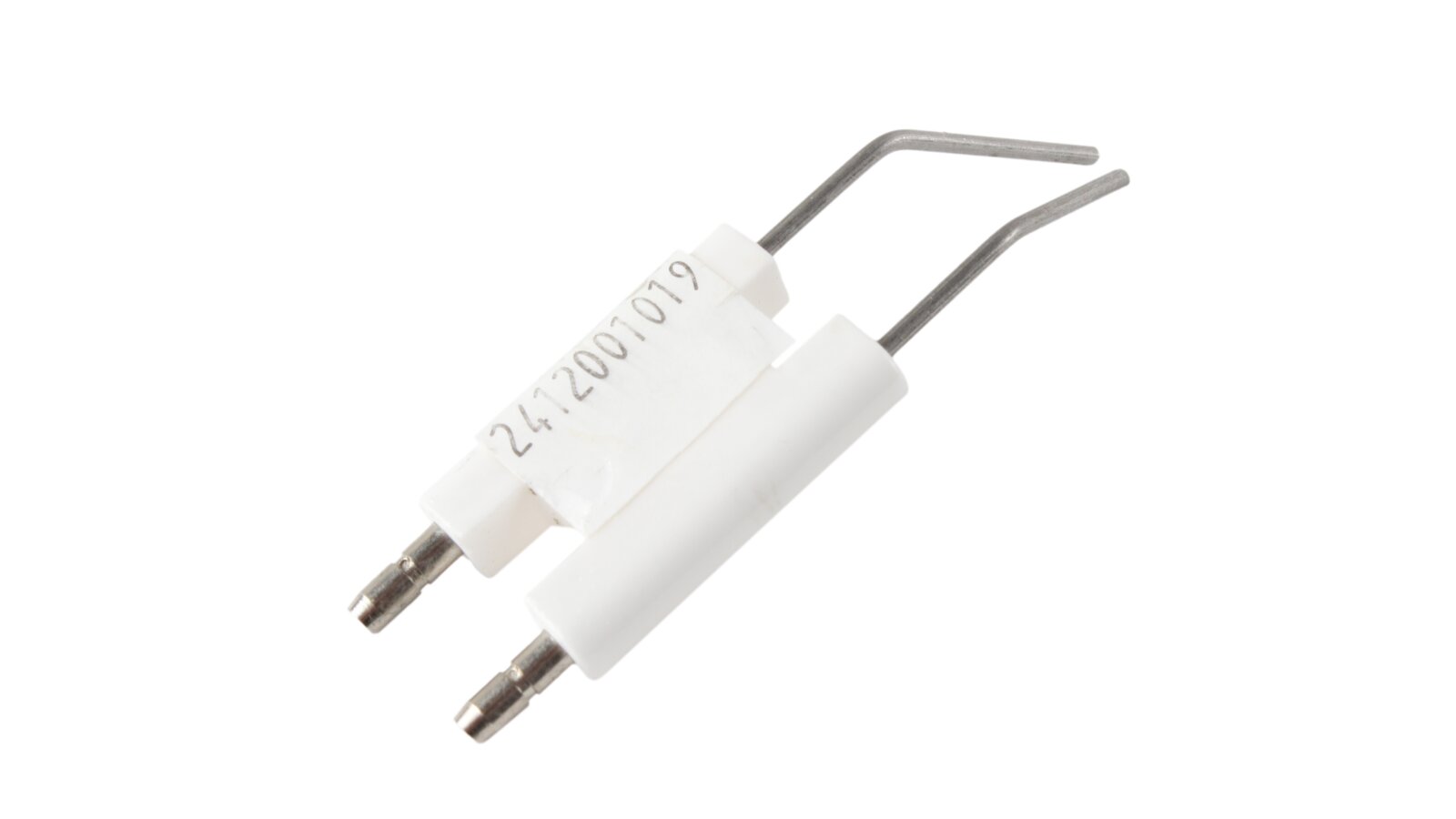

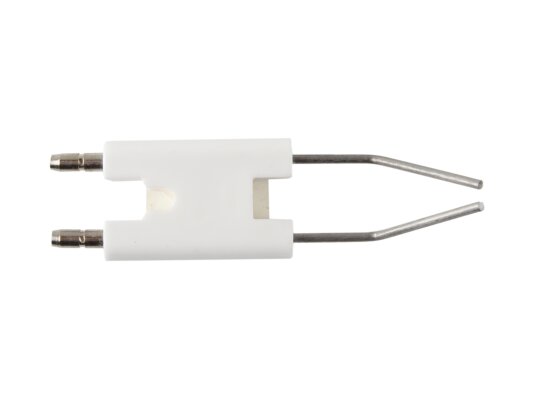

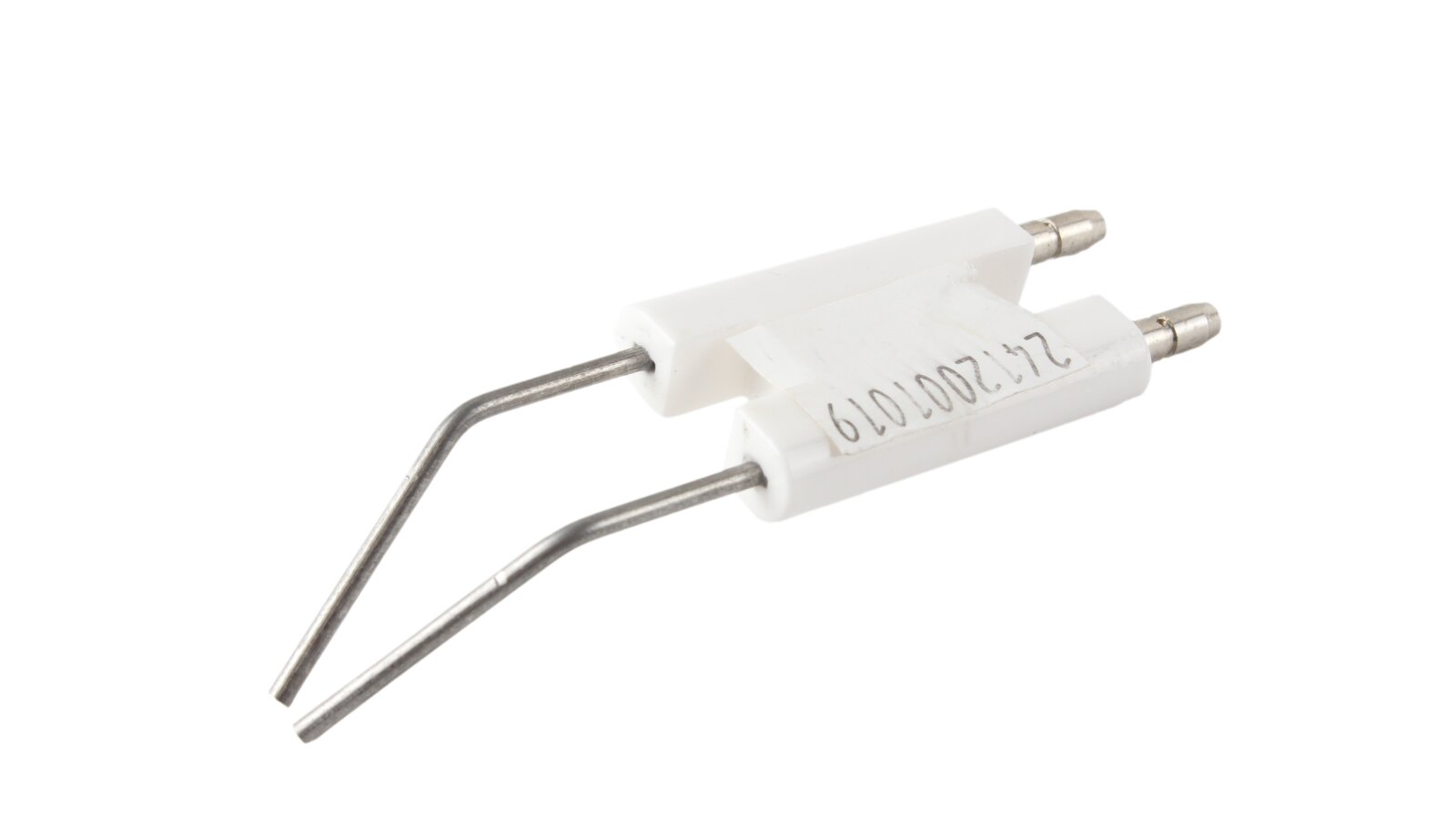

Ignition electrode block Weishaupt 86.5 mm, 24120010197

Weishaupt24120010197

Alternative Part Number

Weishaupt We24120010197Weishaupt We2412001019-7

AED 105

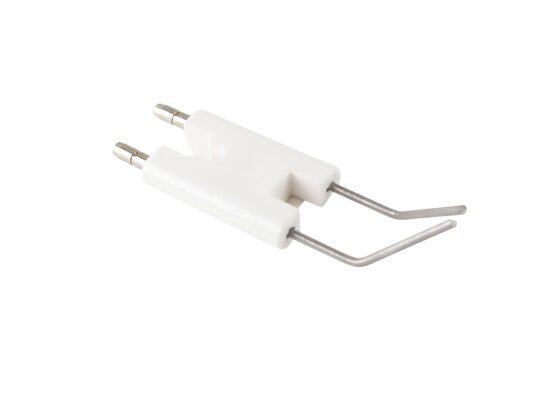

Ignition electrode block Weishaupt 86.5 mm, Part number: 24120010197, Alternative art.: We24120010197, We2412001019-7.

About product

Go to description

Electrode type ignitionElectrode length 86.5 mmConnector diameter 4 mmFixed insulation size Ø8 X 25 X 38 mmRod size Ø2 X 34 mm

Electrodes

Description

The ignition electrode block 86.5 mm article 24120010197 is used to ignite the burner. When high-voltage current is supplied, an electric spark discharge is formed between the electrodes, igniting the fuel mixture. The block has a single ceramic electrical insulation of the conductive rods (size 38x25x8 mm). Plug connections Ø4 mm are provided for connecting ignition cables and reliable contact.

Characteristics

Manufacturer Part Number: 24120010197Electrode type: ignitionElectrode length: 86.5 mmConnector diameter: 4 mmFixed insulation size: Ø8 X 25 X 38 mmRod size: Ø2 X 34 mm

Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication

This product is from the collections

Electrodes Ignition electrodes

Weishaupt

Brand

Germany — home of the brand

Packaging information

Weight, kg:: 0.01
Length, cm:: 8.65
