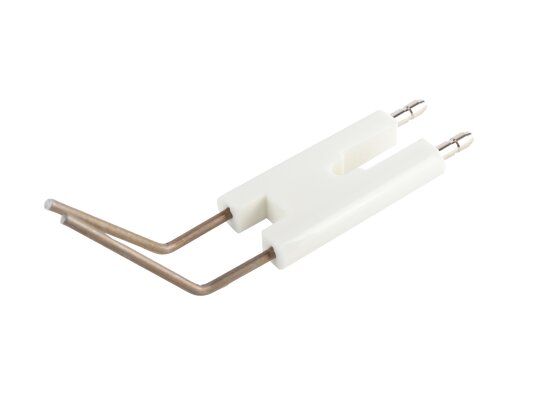

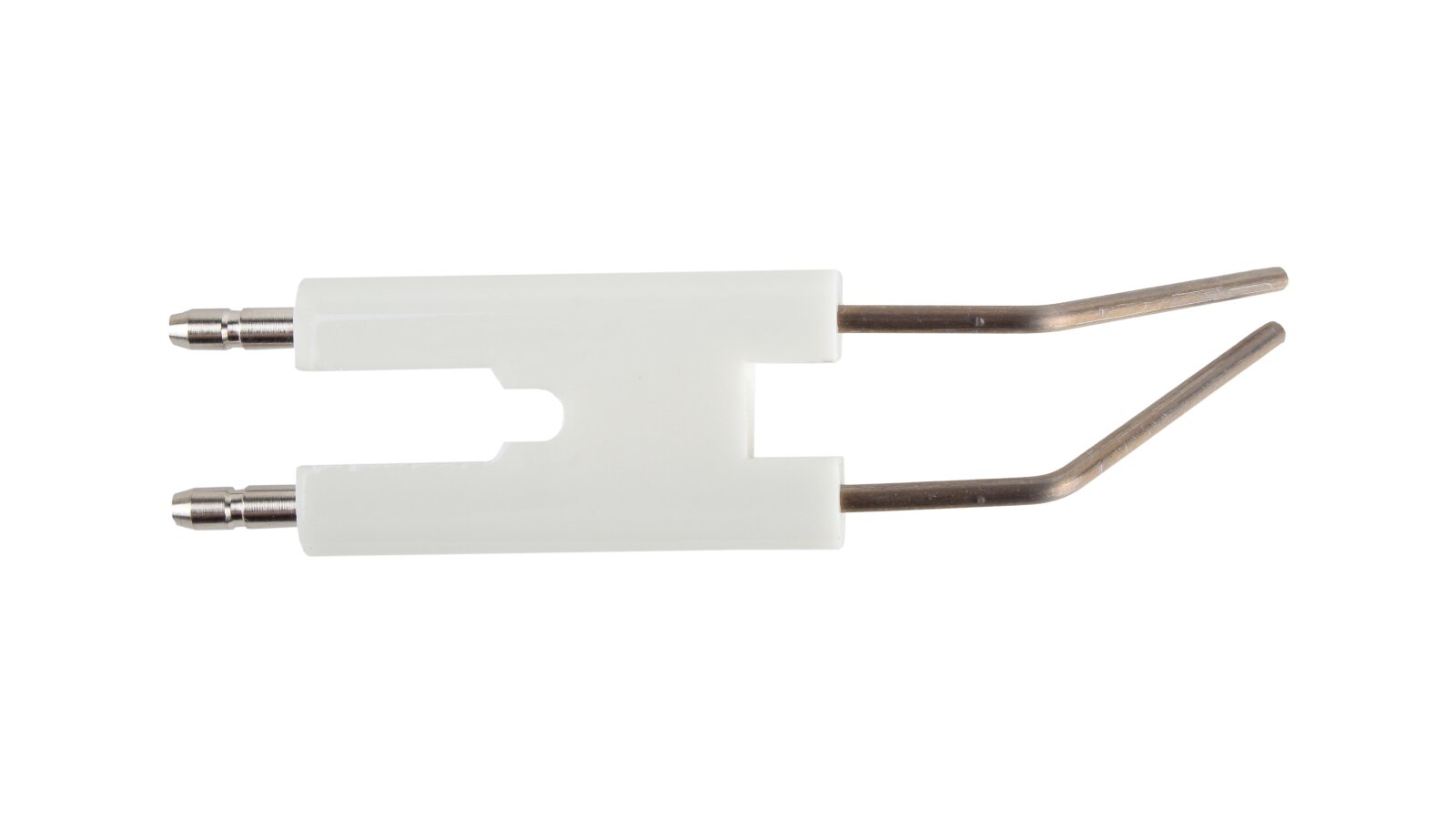

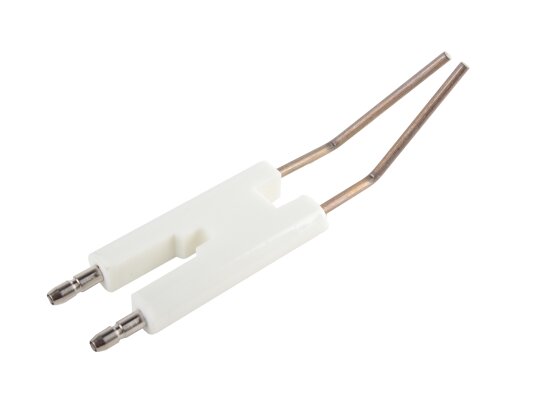

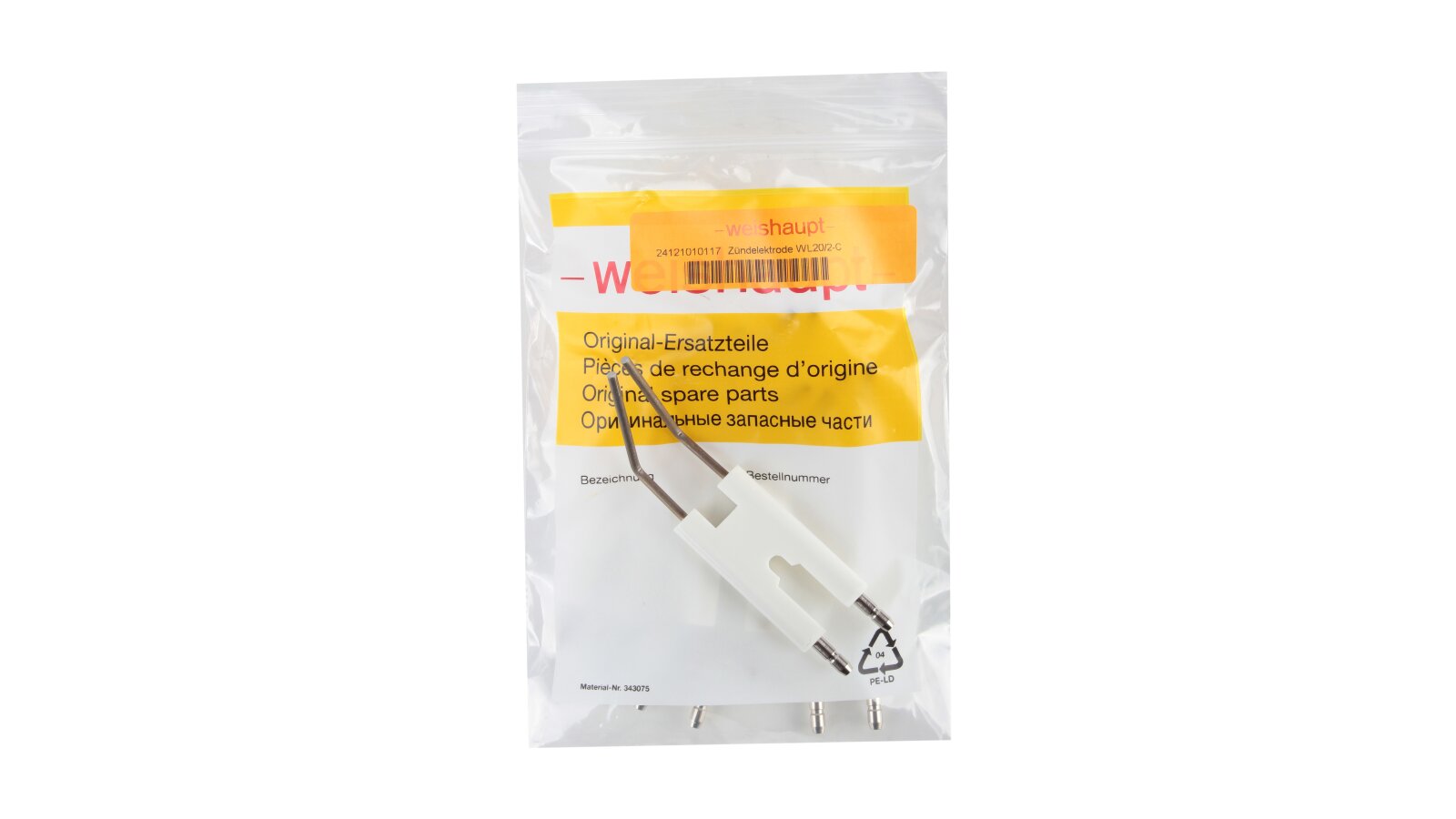

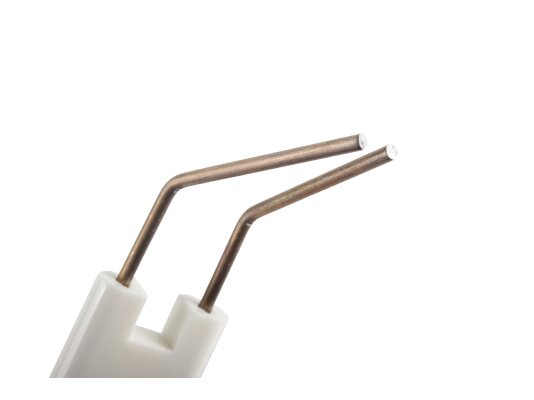

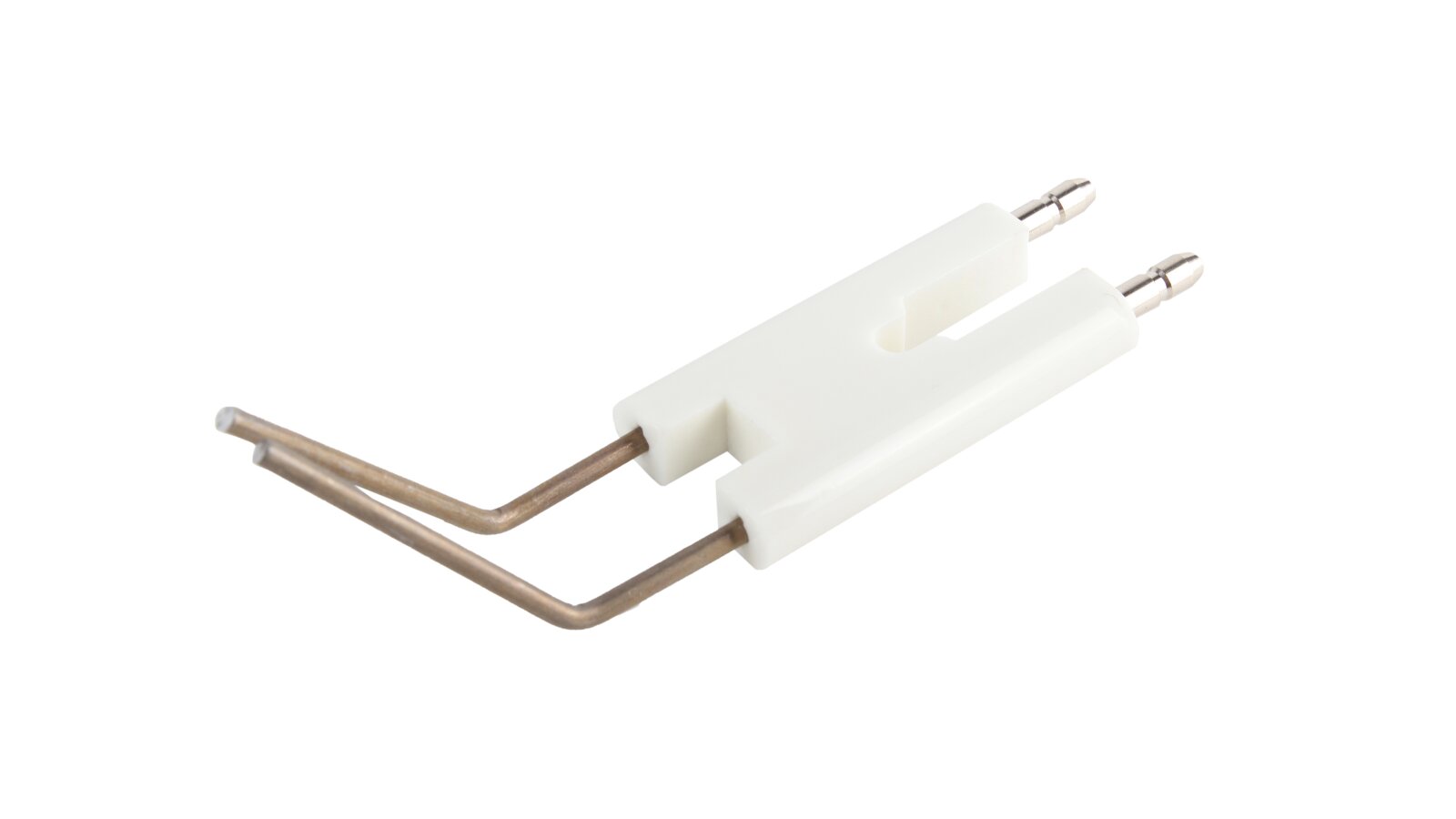

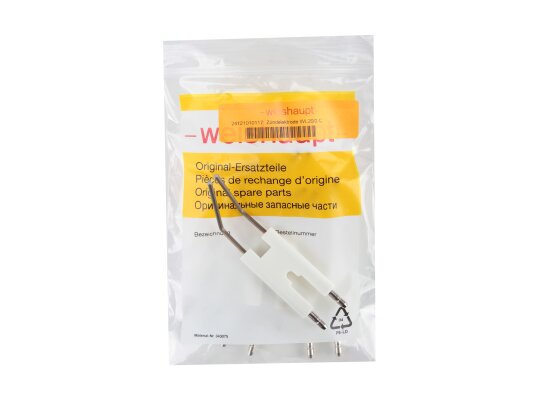

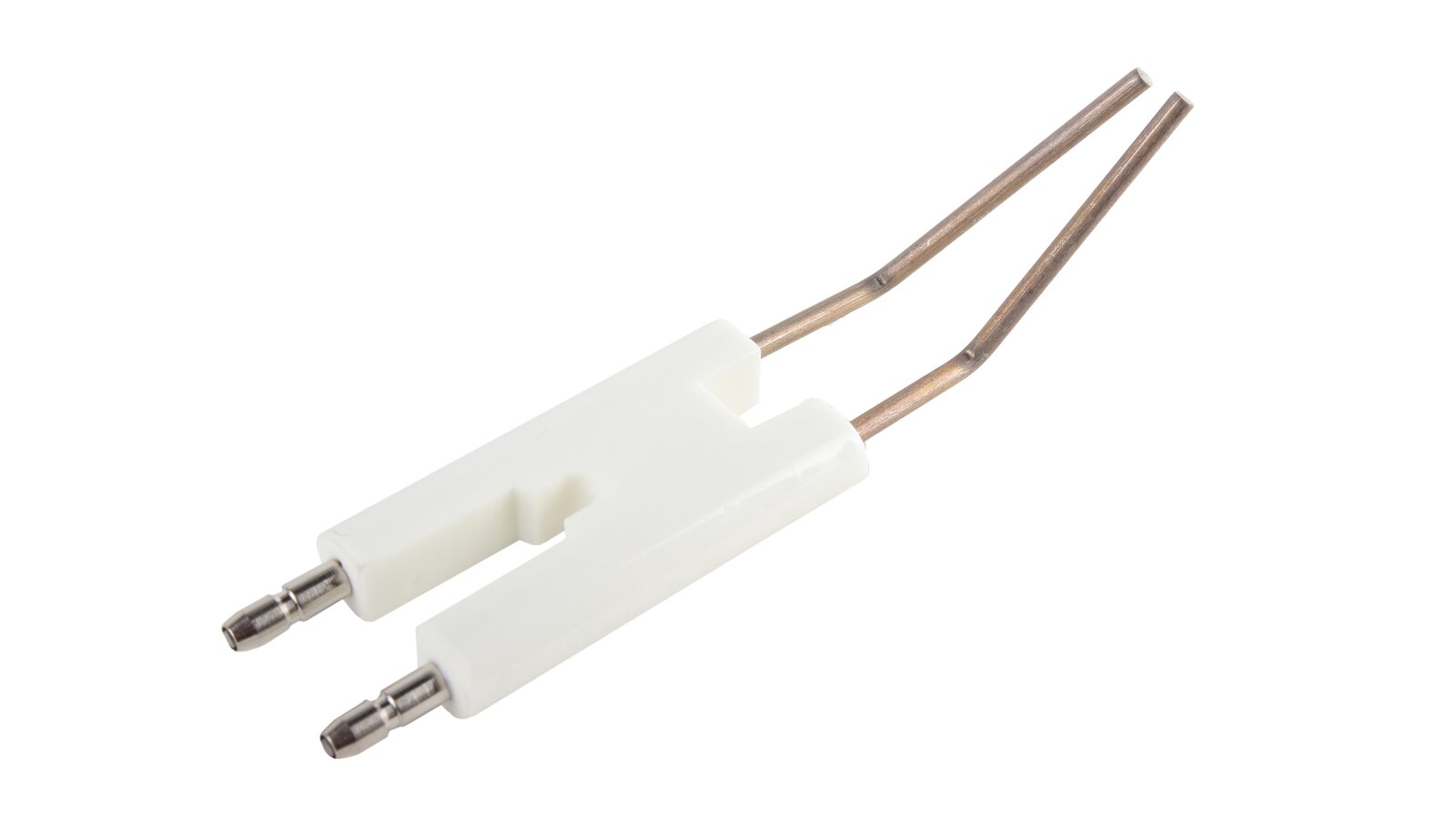

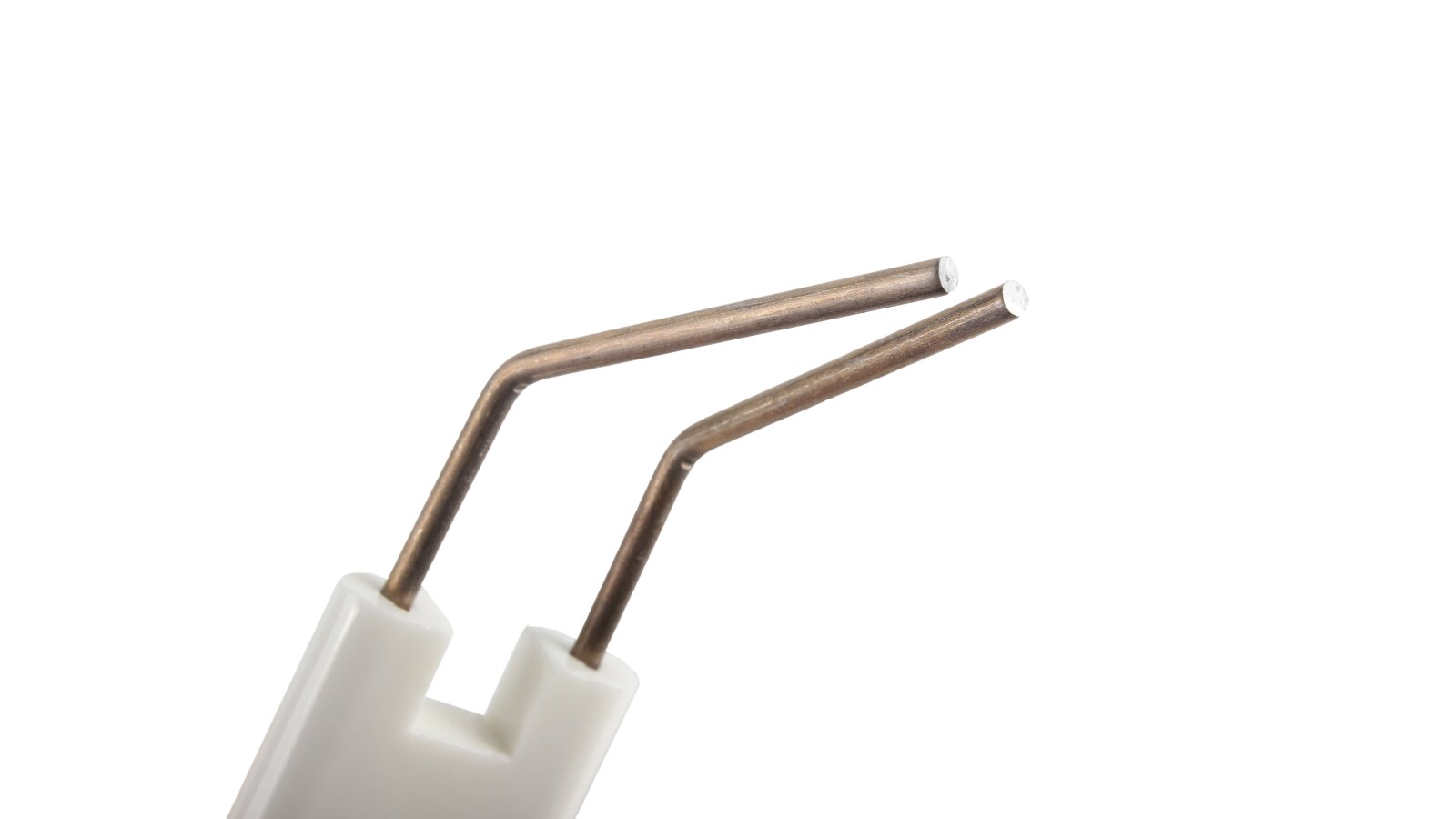

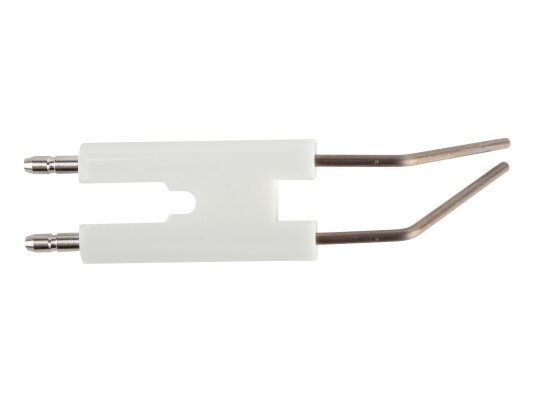

Ignition electrode block Weishaupt 102 mm, 24121010117

The Weishaupt 24121010117 ignition electrode block instantly ignites the fuel with a powerful electric spark. It consists of two metal rods insulated with a single ceramic insulation. A plug connection is used to connect to high-voltage current-carrying cables.

Features of the ignition block:

• 2 metal rods in a single housing, size Ø2.4x42 mm;

• adaptation for use in Weishaupt burners;

• reliable heat and electrical insulation of metal rods to protect against electric shock;

• size of the fixed insulation housing 47.5x24.5x8 mm;

• total length of electrodes - 102 mm;

• fast and reliable connection using plugs.

Ignition electrodes for burners and other original spare parts are available from stock and on order.
