Blower Wheel Riello, 3005444

Riello fan impeller, Part Number: 3005444 – original part for assembly and repair of industrial forced draft burner fan. Serves for effective air injection into the combustion chamber for purging and formation of homogeneous fuel-air mixture.

Features:

• for installation on the engine shaft with right rotation;

• number of working blades in the impeller – 40;

• wear- and corrosion-resistant design;

• installation in active type fans;

• reinforced sleeve for strong fixation;

• for use in Riello industrial forced draft burners;

• precise balancing, vibration-free operation;

• easy installation, easy replacement.

Design and purpose

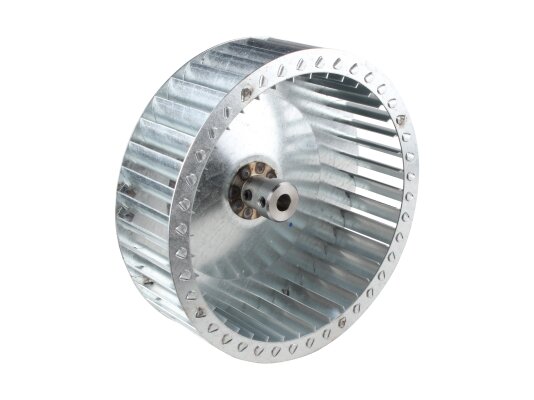

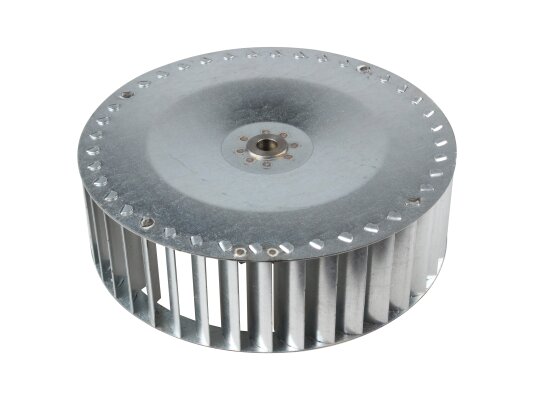

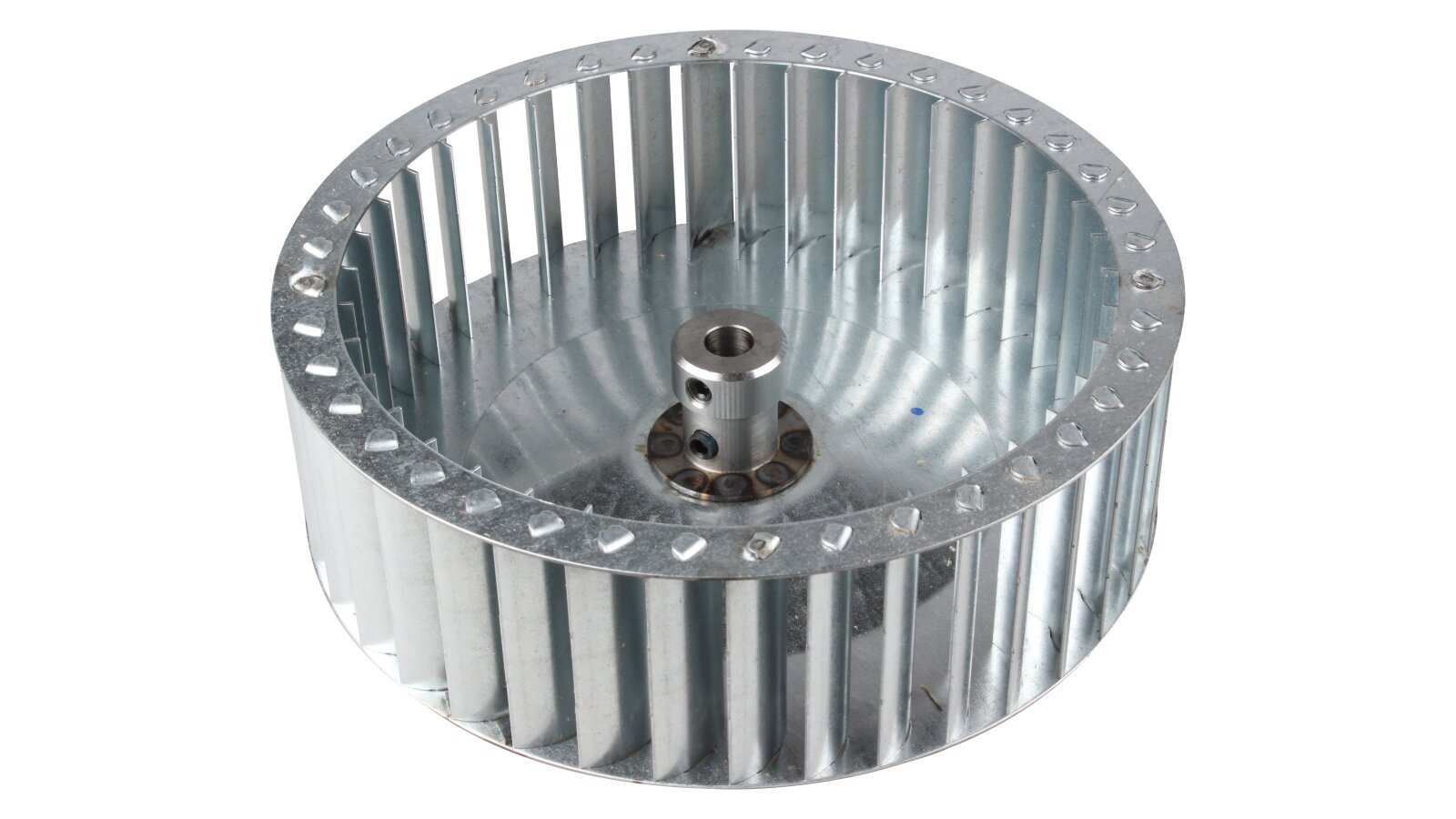

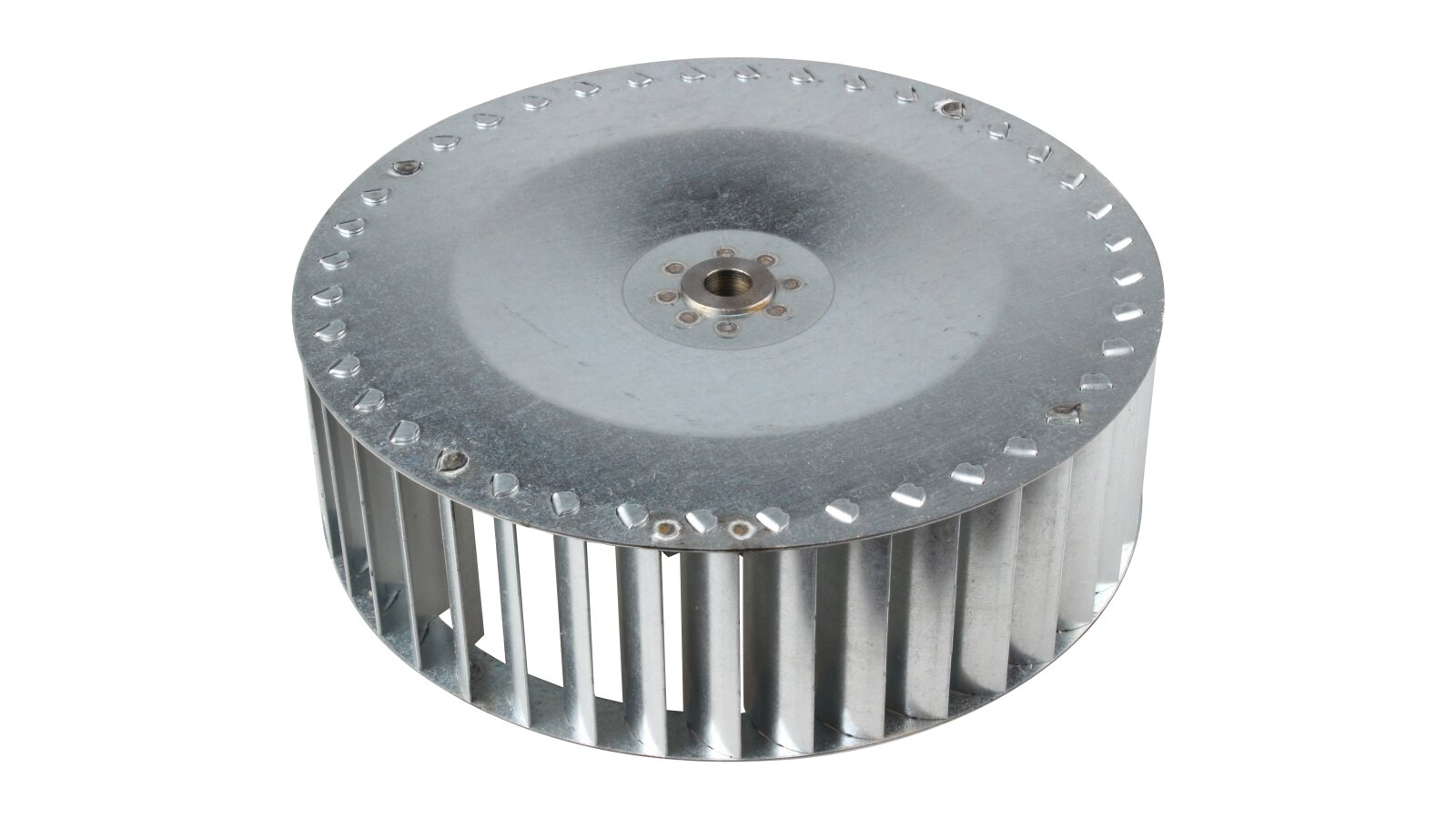

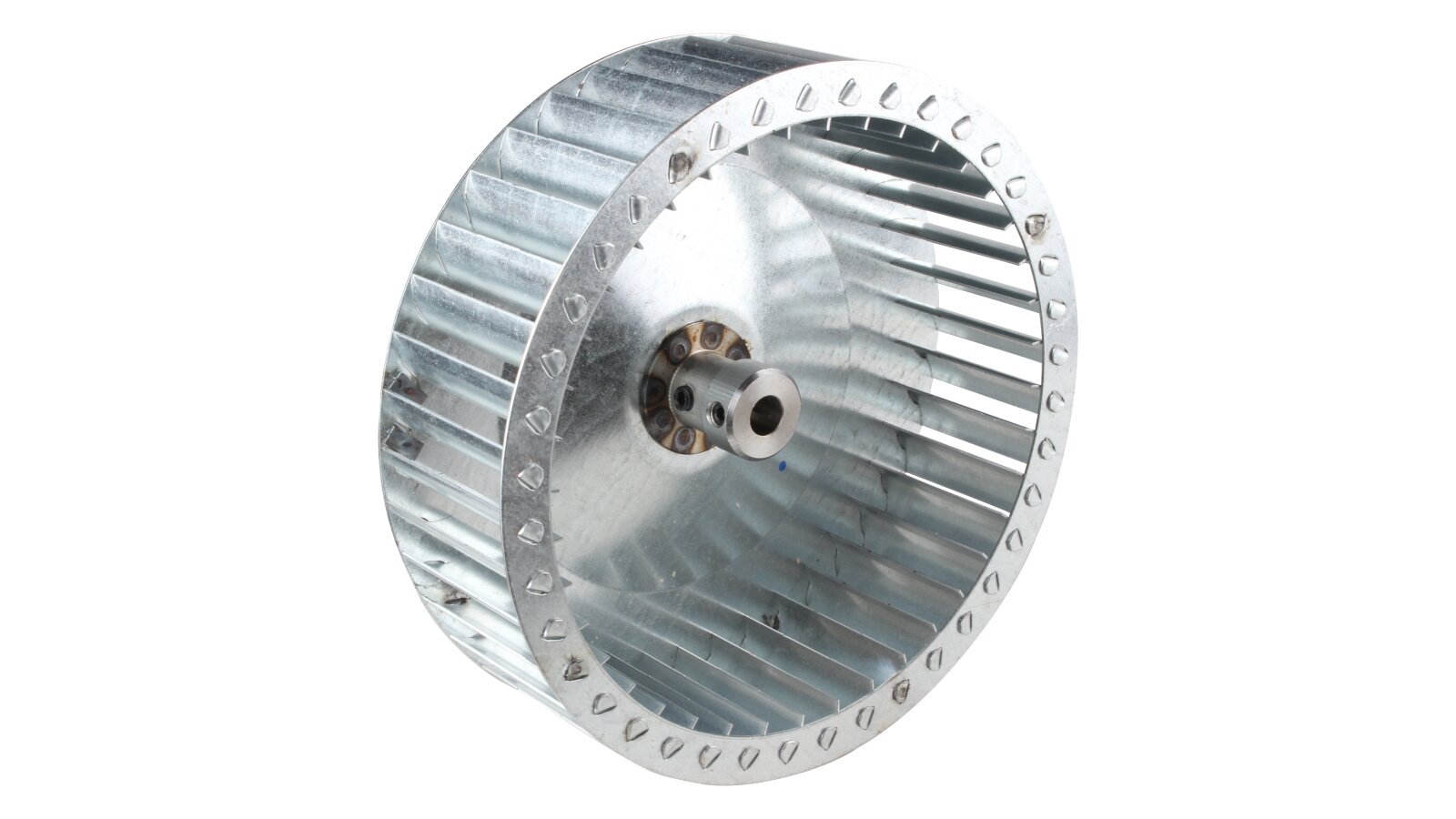

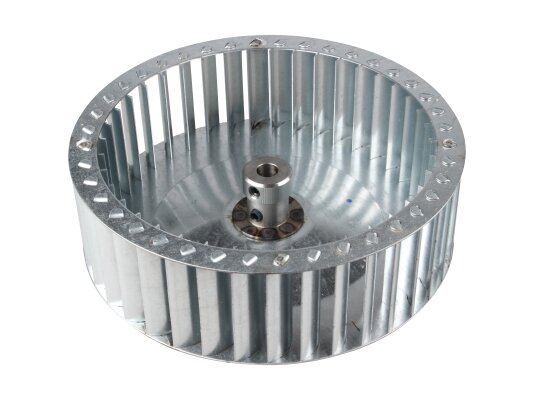

The impeller is made of an alloy resistant to corrosion, loads, high temperatures and wear. It consists of a flat disk, ring, blades, hub, securely connected to each other. The curved blades facilitate efficient air intake and supply into the combustion chamber by a turbulent flow. Due to the twisting, air masses are easily distributed throughout the combustion chamber and mixed with fuel. The homogeneous composition of the fuel-air mixture improves combustion processes, accelerates ignition, and increases the burner efficiency. The impeller has a reinforced bushing, which facilitates reliable fastening.

You must fill out the order form on the website to buy a fan impeller and other original spare parts for furnace equipment.
