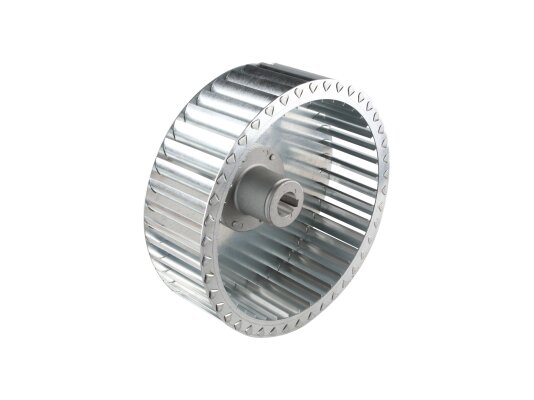

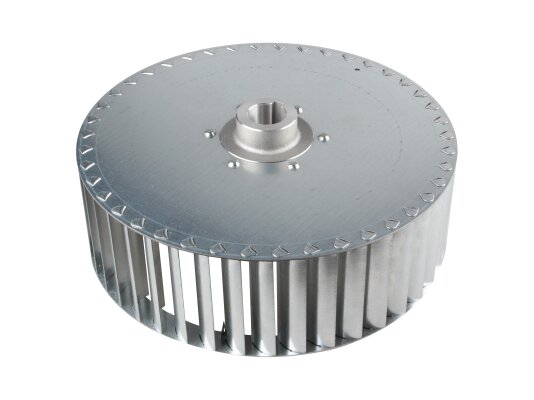

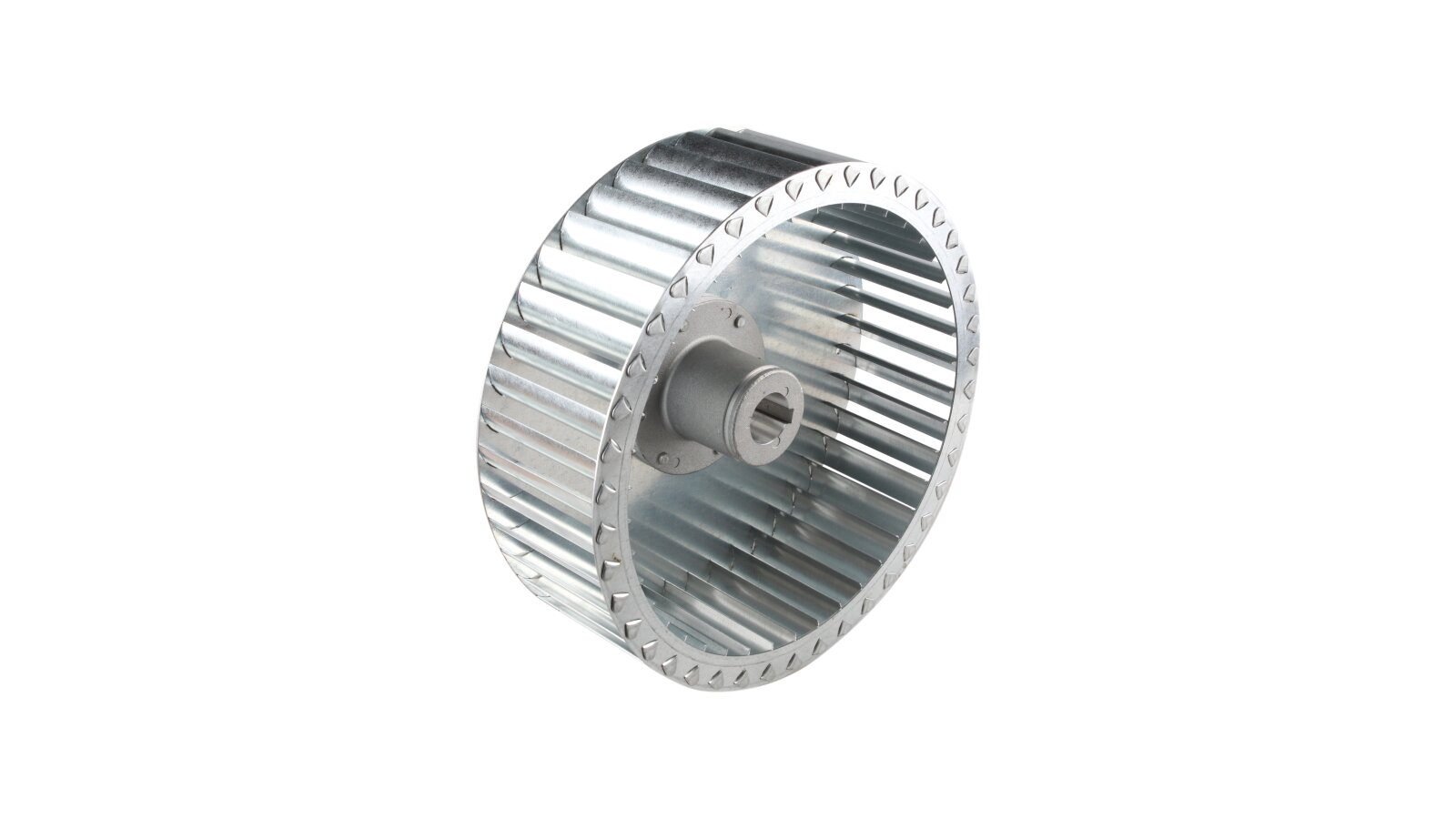

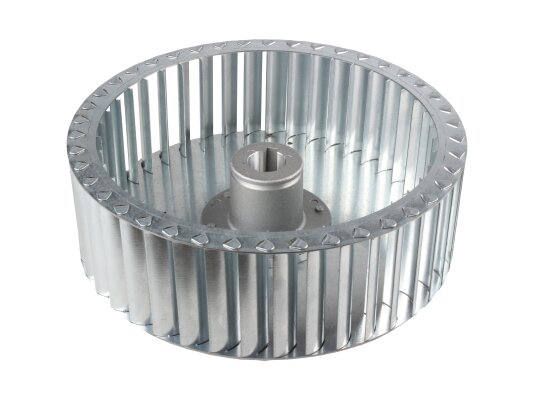

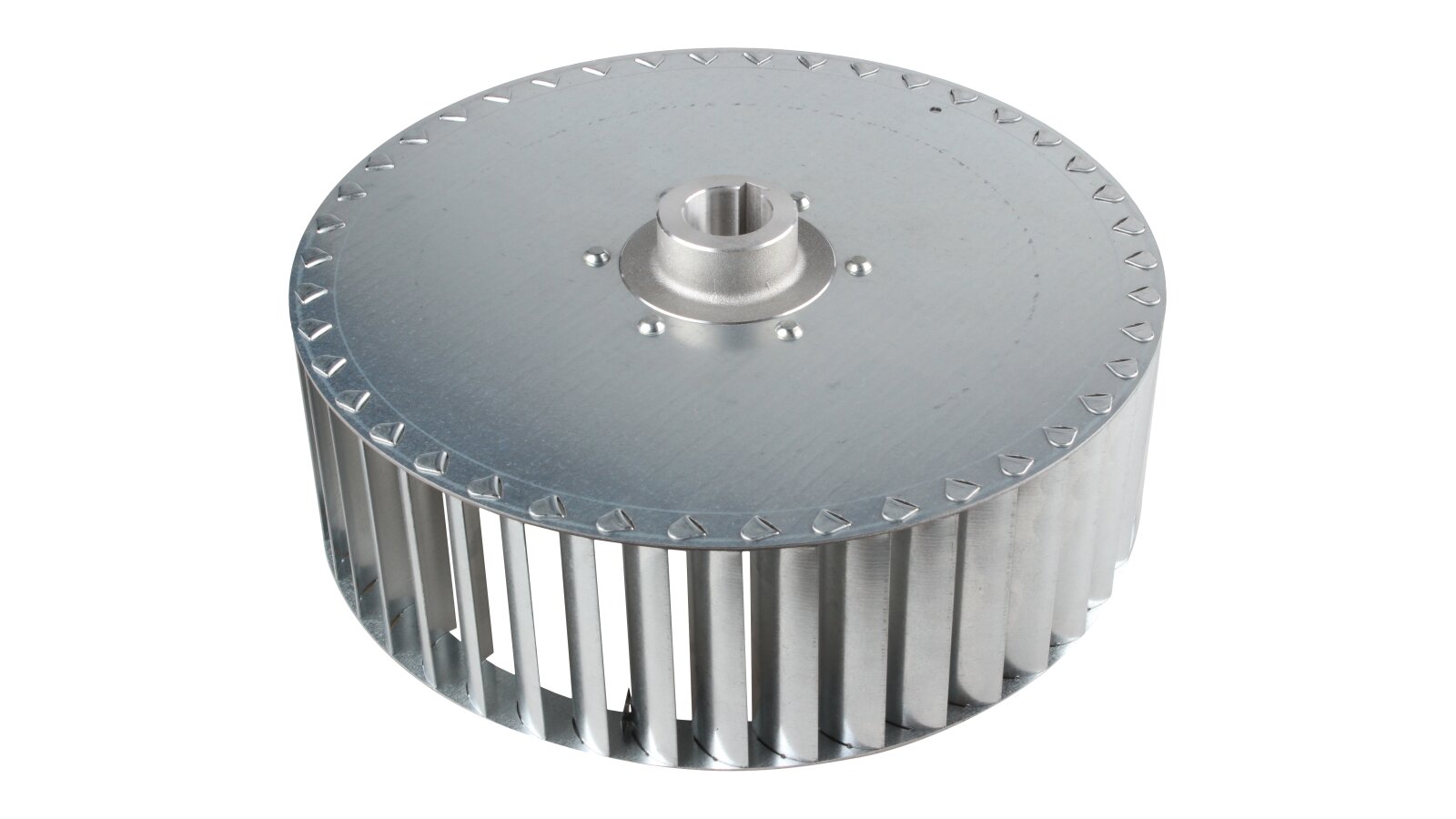

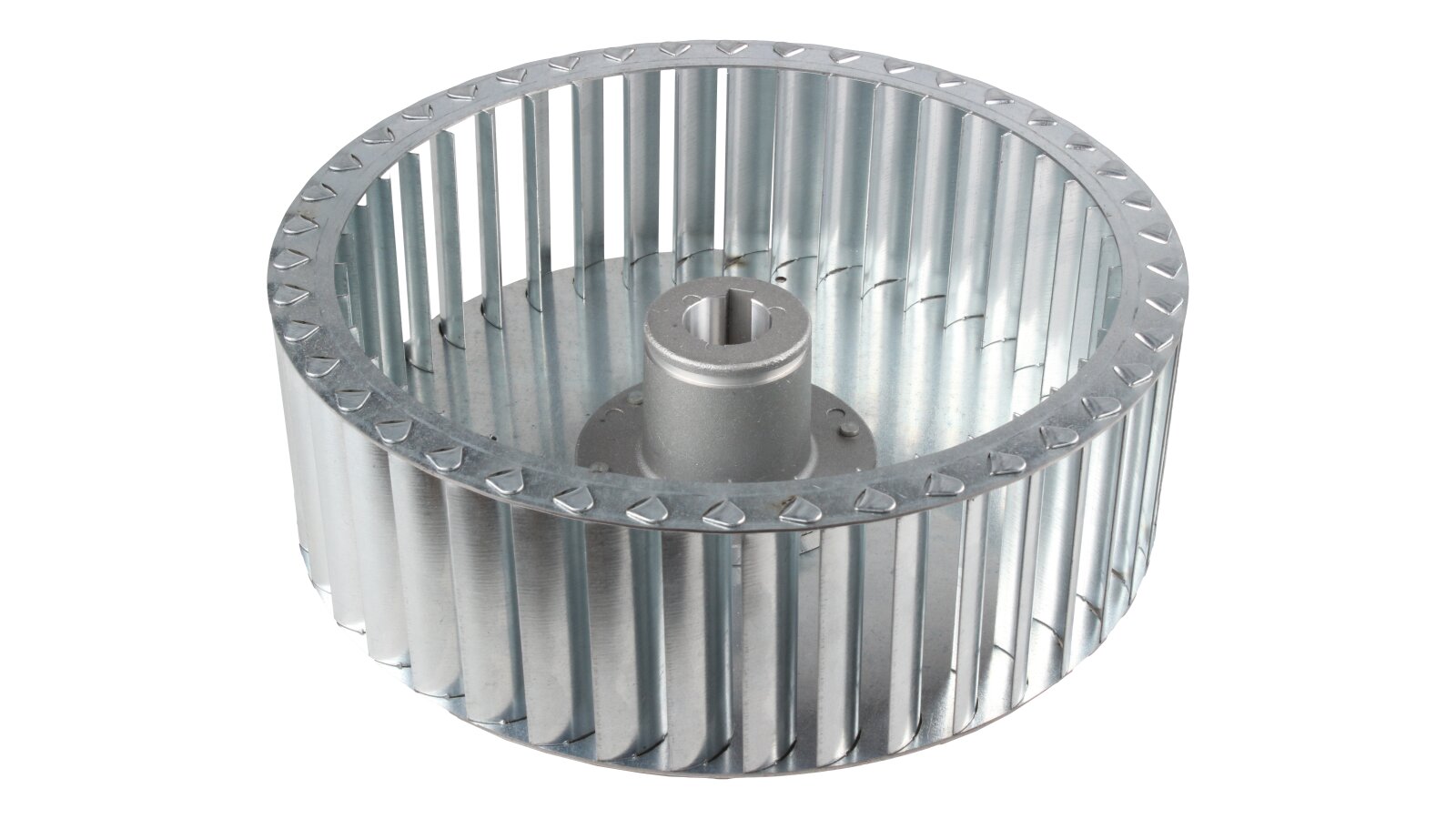

Blower Wheel Riello Ø280 x 90 mm, 3012070

Riello fan impeller Ø280 x 90 mm, Part Number: 3012070, due to its special shape and optimal number of blades, effectively forces air into the combustion chamber with a swirling flow, which ensures the most uniform distribution of air masses throughout the volume. It is used to equip Riello industrial forced-draft burners.

Features:

• for assembly and repair of active type fans;

• external Ø 280 mm, seat diameter - 28 mm;

• installation on the motor shaft with right-hand rotation;

• the number of working blades in the impeller is 42;

• reliable, wear-resistant design for long service;

• reinforced sleeve for a rigid fit on the motor shaft;

• precise balancing, vibration-free operation;

• easy installation, maintenance and removal for replacement.

Composition and purpose of the impeller

The design consists of a flat disk, working blades, a ring, and a hub. The blades have a forward-curved shape, due to which they create a turbulent flow for the best mixing of air with fuel and complete combustion of the resulting mixture. The reinforced bushing allows you to securely fix the impeller on the engine shaft and eliminates vibrations during rotation.

In the catalog, we have selected fan blade wheels for burners of various modifications and power. You can buy a fan wheel from us taking into account the direction of air flow, the diameter of the engine shaft and other characteristics of the burner.
