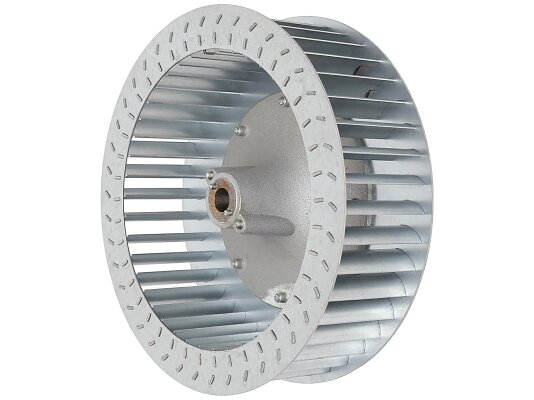

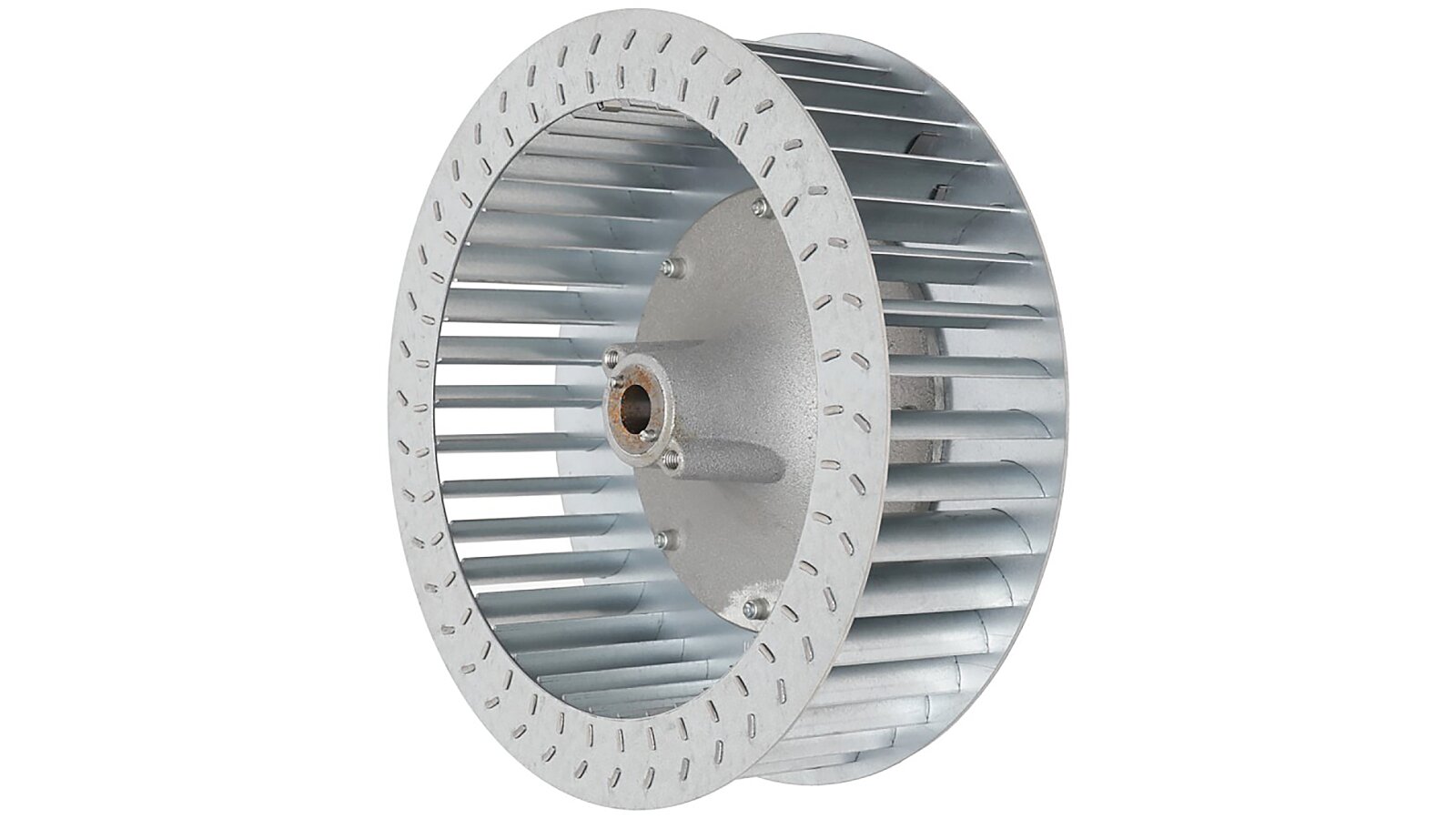

Blower Wheel Weishaupt Ø330 х 104.5 mm, 11197408201

The impeller of the Weishaupt TS-S 330x104.5 S1 fan, Part Number: 11197408201 is used for the assembly and reliable operation of industrial burners with forced air supply for combustion. Designed for active fans. Due to the numerous blades, the impeller provides effective air blowing to obtain a homogeneous composition of the fuel-air mixture and thorough purging of the combustion chamber. Due to the use of reliable materials, the fan wheel is designed for long service.

Features and parameters:

• wheel with an external diameter of 330 mm, height 104 mm;

• installation in active fans of industrial burners with Weishaupt blowing;

• 42 blades to create a powerful air flow;

• impeller color - green;

• precise balancing, vibration-free operation;

• reliable design, designed for intensive industrial use, mechanical loads;

• easy to install and replace (if necessary).

Purpose

The fan wheel effectively forces air with a swirling turbulent flow, which promotes uniform distribution of air masses in the combustion chamber and the production of a homogeneous fuel-air mixture. The rigid bushing ensures a secure fit of the impeller on the fan motor shaft.

Installation location

The impeller is installed in Weishaupt burner fans of size 9.
