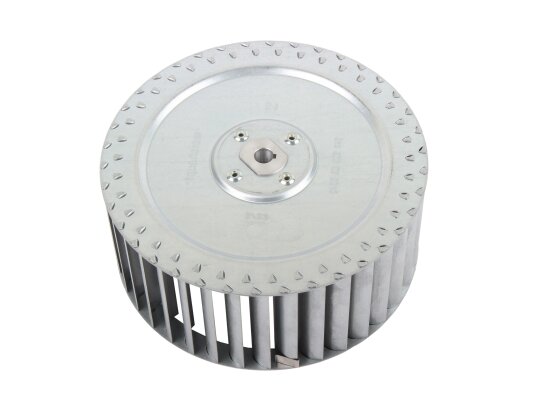

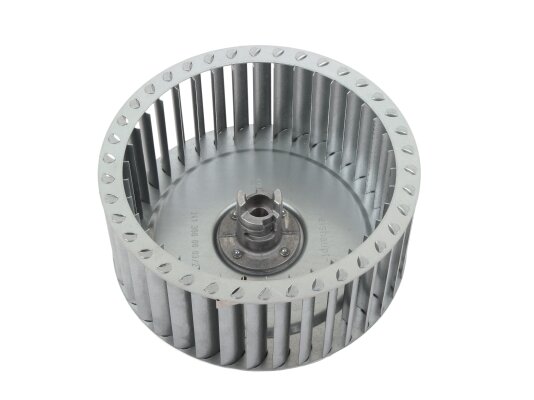

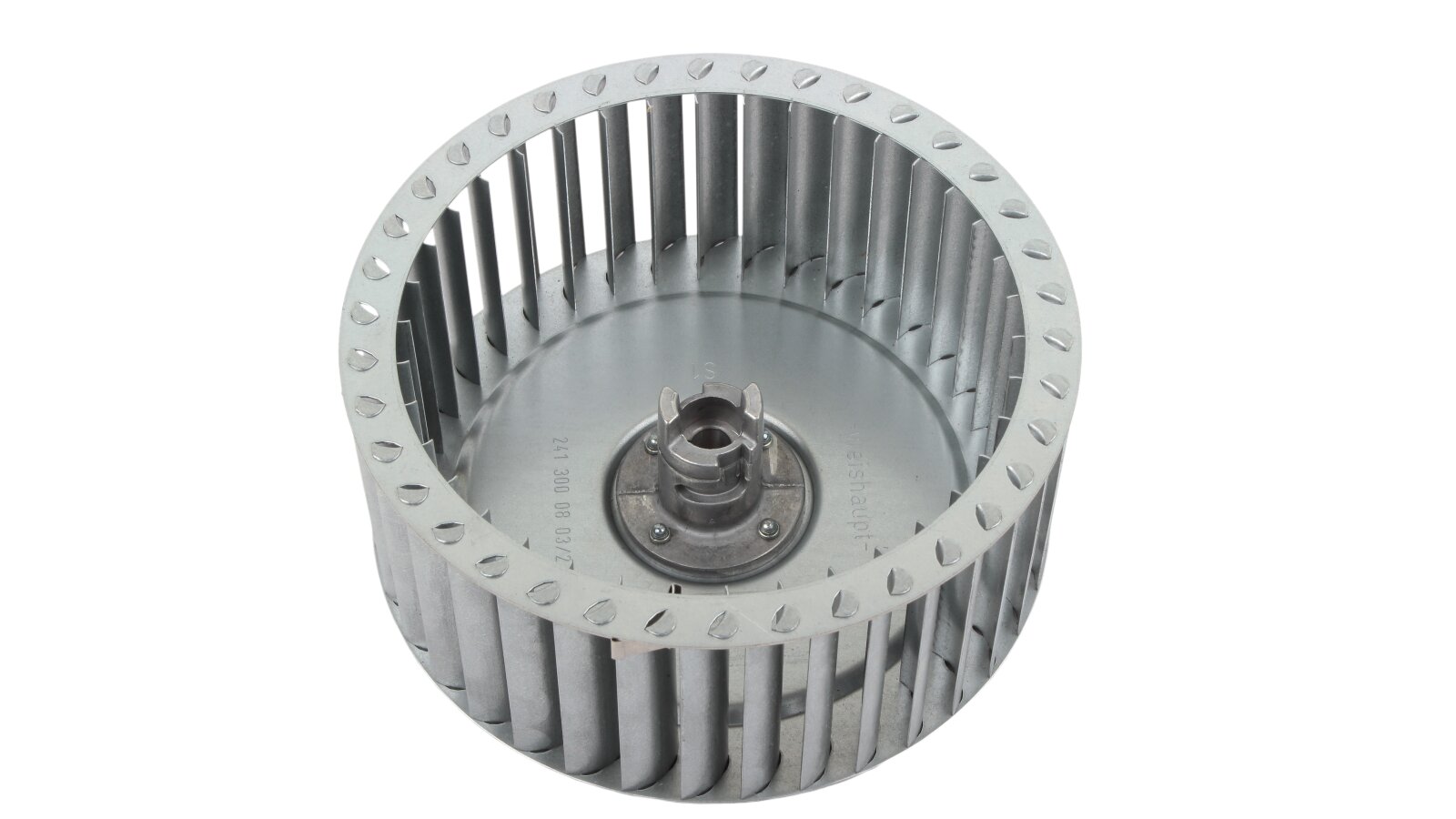

Blower Wheel Weishaupt Ø170 x 71.6 mm, 24130008032

The impeller of the Weishaupt TLR-S Ø170 x 71.6 mm R S1 fan, Part number: 24130008032 effectively forces the air flow for combustion for the best mixing with the fuel and complete combustion of the resulting mixture. It is installed in the fans of the active type of the Weishaupt industrial burner.

Features:

• The main parts of the wheel are the disk, blades, ring, hub;

• The optimal number and location of the working blades in the impeller;

• Reliable assembly of the wheel elements;

• Resistance to intensive loads, wear;

• Quick and rigid fixation on the motor shaft;

• External Ø of the wheel is 170 mm, height - 71.6 mm;

• For installation on a fan with clockwise shaft rotation.

Purpose

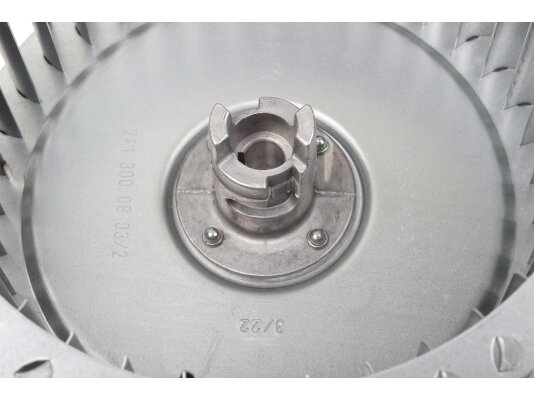

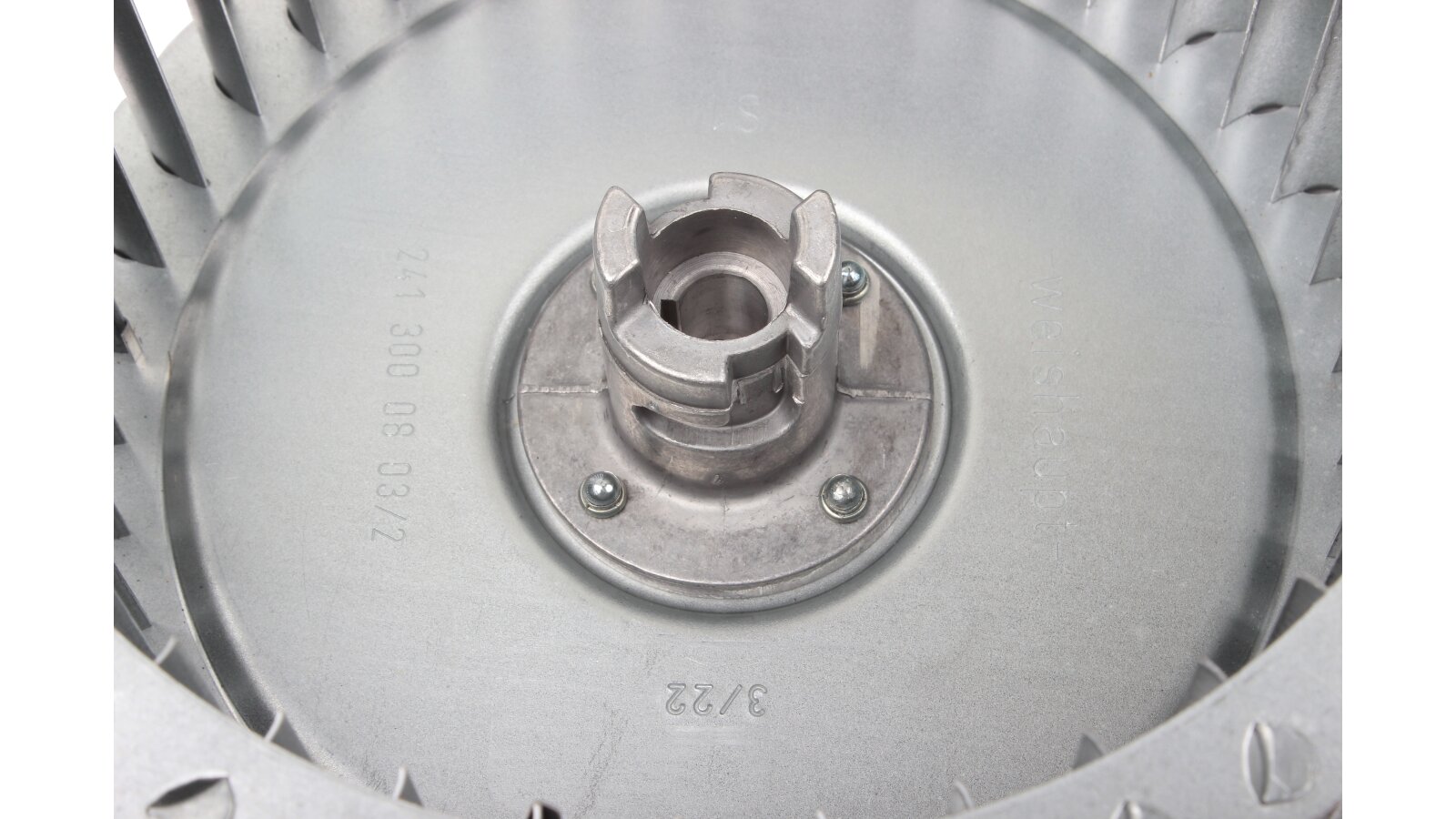

The fan impeller, due to the special shape and arrangement of the blades, effectively draws in air and forces it with a swirling flow. Such air supply contributes to the best distribution of air masses inside the combustion chamber, the formation of a homogeneous, flammable mixture. The reinforced bushing guarantees a rigid fit on the shaft.

On the ANKAS website, you can select and buy fan blade wheels, guides and other original equipment for burners and boiler equipment.
