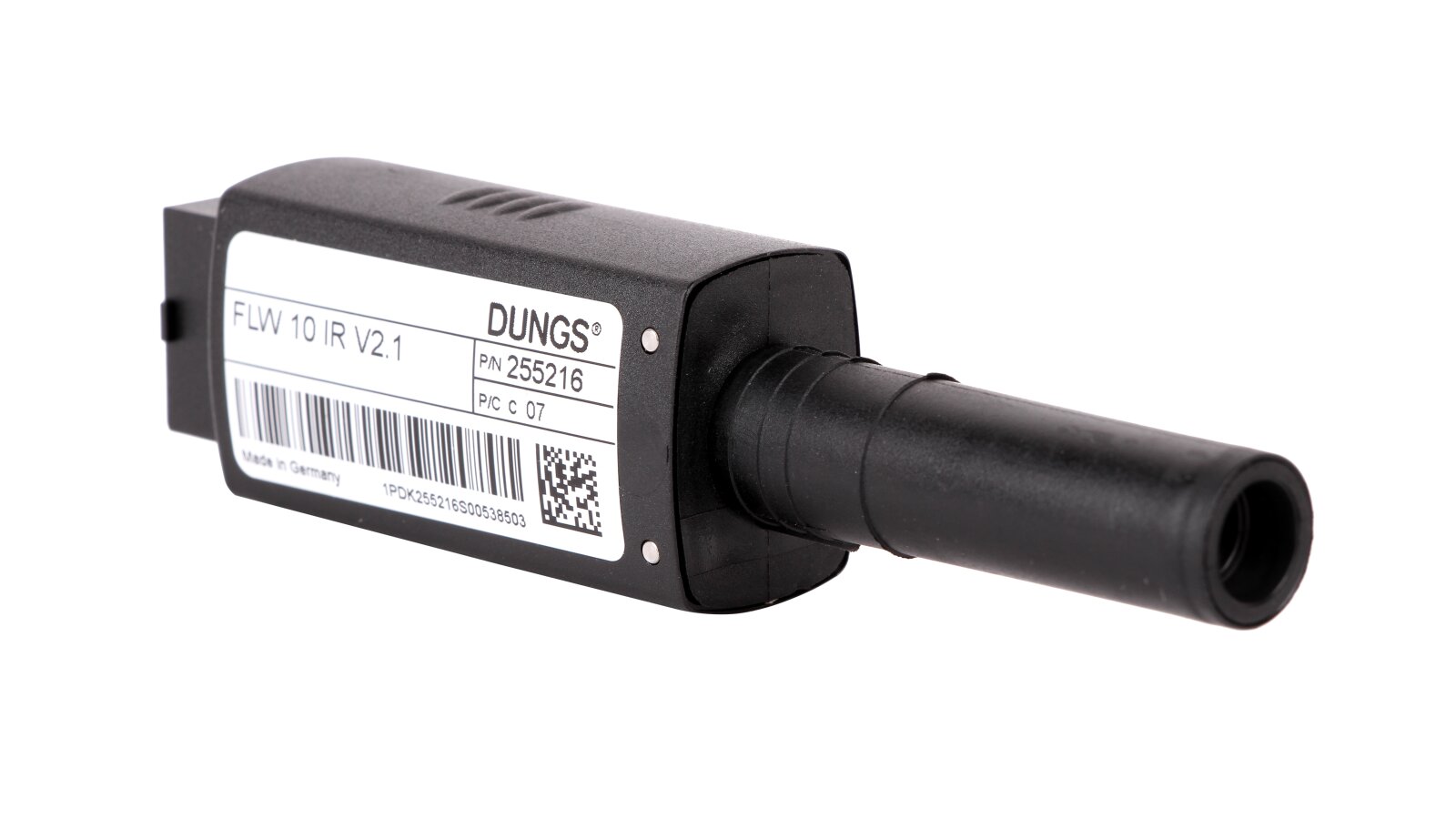

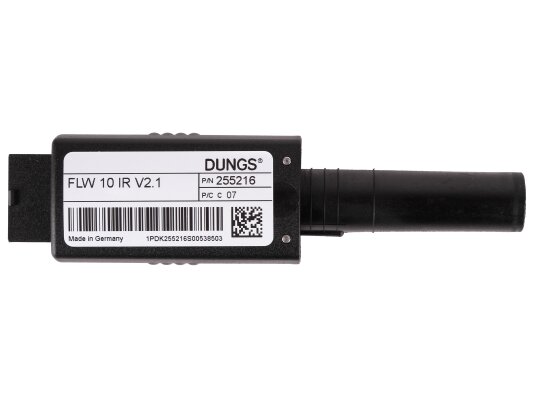

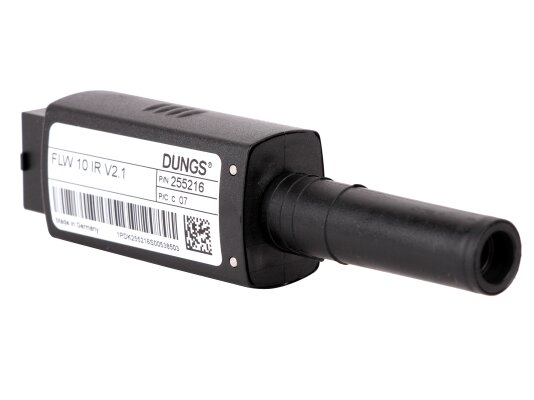

IR Flame Detector Dungs FLW 10 IR V2.1

Flame sensor Dungs FLW 10 IR V 2.1, art: 255216 has high spectral sensitivity. Equipped with an IR sensor for recording radiation from the burner's blue flame. Suitable for systems with an intermittent cycle.

Parameters and features:

• Registration of the infrared spectrum of the flame;

• High sensitivity element;

• Frontal measurement;

• Operating voltage: 220-230 V, -15%, +10%, frequency 50/60 Hz;

• Operating temperatures (ambient air): from -20 to +60 °C;

• Variable installation;

• Protection of the housing from dust and moisture according to the IP 41 standard;

• Length of the device housing - 115 mm;

• For combustion systems with an intermittent cycle.

More about the model

The infrared sensor determines the frequency of flame flickering. Extraneous light coming from fluorescent lamps and other objects is not registered as a flame. At the same time, when installing the device, direct vision of the transformer spark and exposure to external lighting should be excluded. The sensor is installed in the system in any position convenient for detection. A flange connection or holder is used for installation.
