IR Flame Sensor Riello QRI2B2.B180B1, 20039362

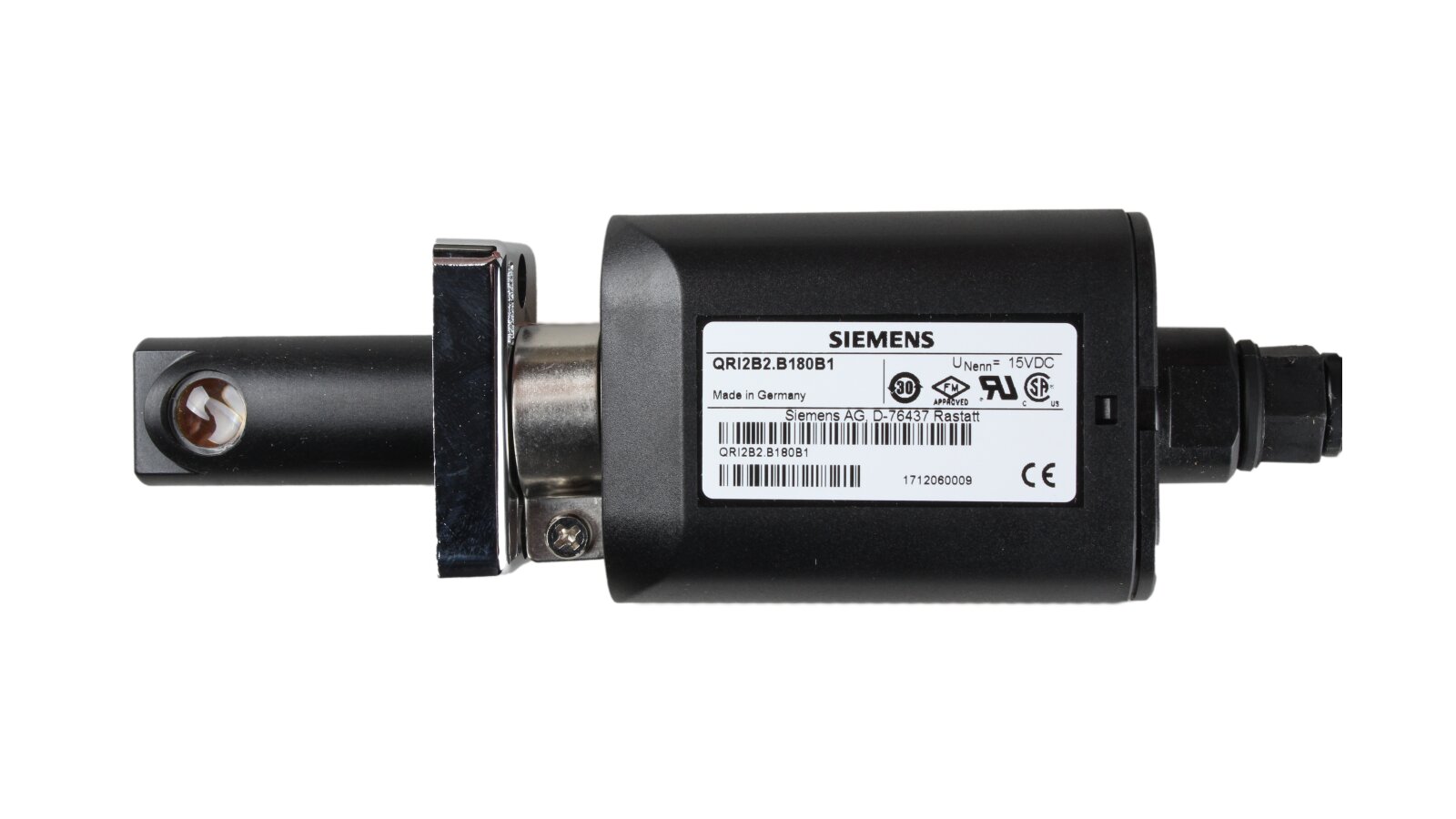

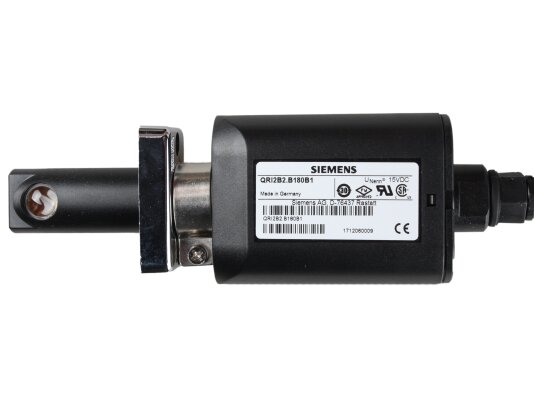

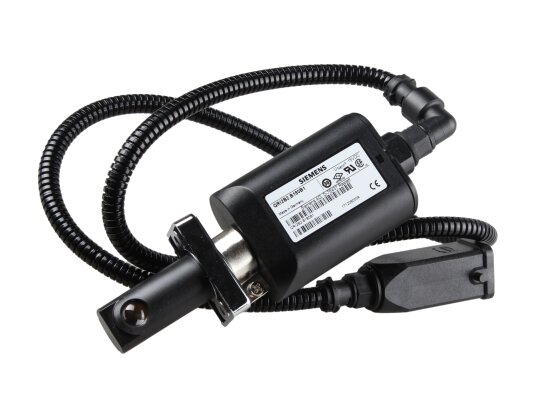

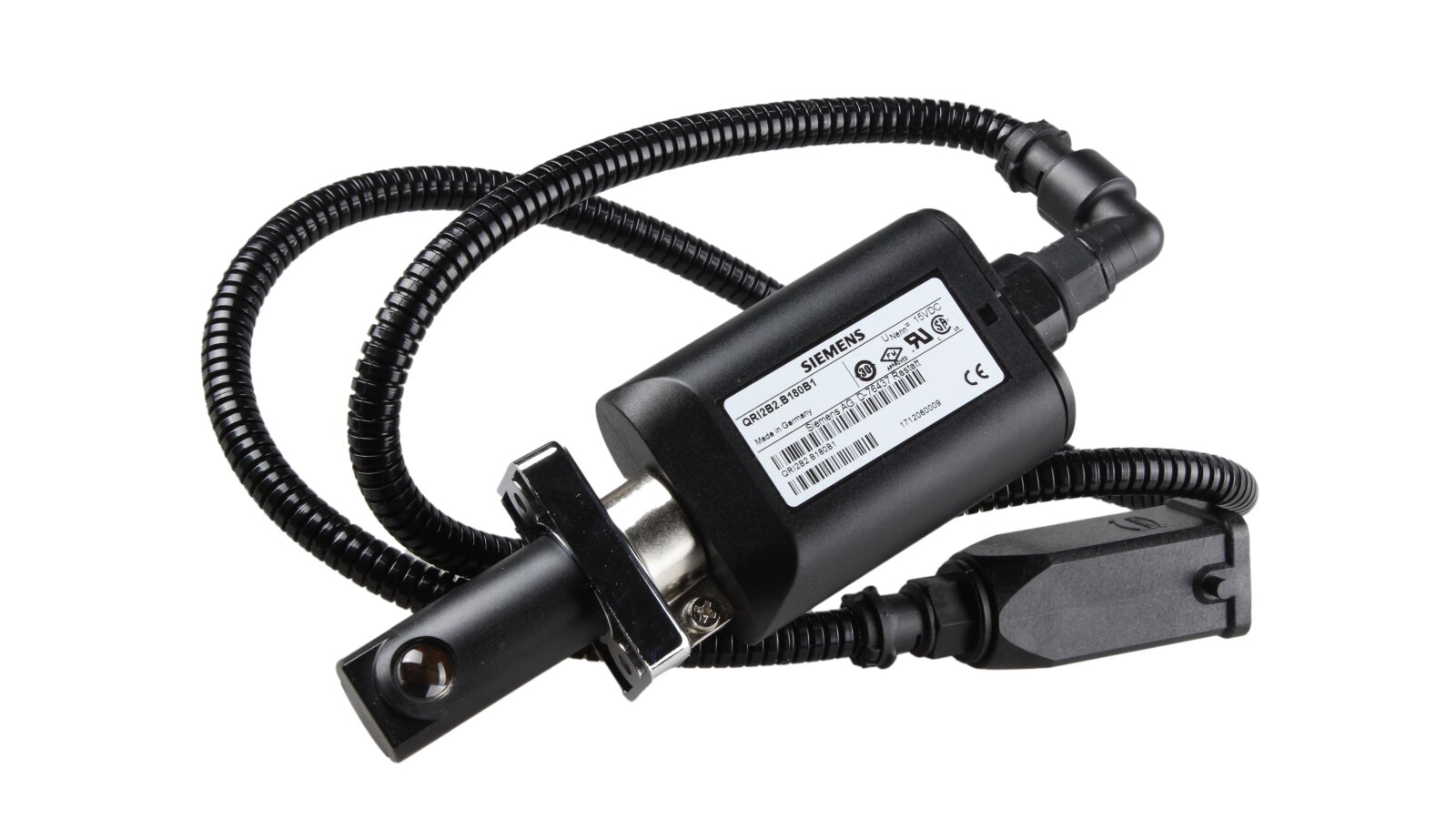

Flame sensor Siemens QRI2B2.B180B1 950, art: 20039362 registers infrared flame light. Together with the flame signal amplifier provides high sensitivity. Connects to the automation of a gas/liquid fuel burner. Suitable for systems of any capacity with continuous and intermittent mode.

Features:

• side visibility;

• highly sensitive infrared element;

• rubber retaining seal;

• high-quality insulation;

• dust and moisture protection level - IP 54;

• shockproof plastic housing;

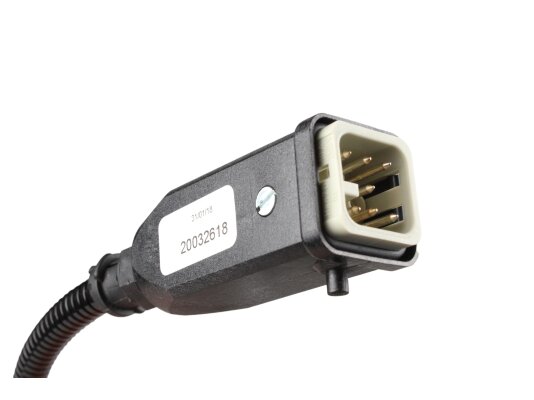

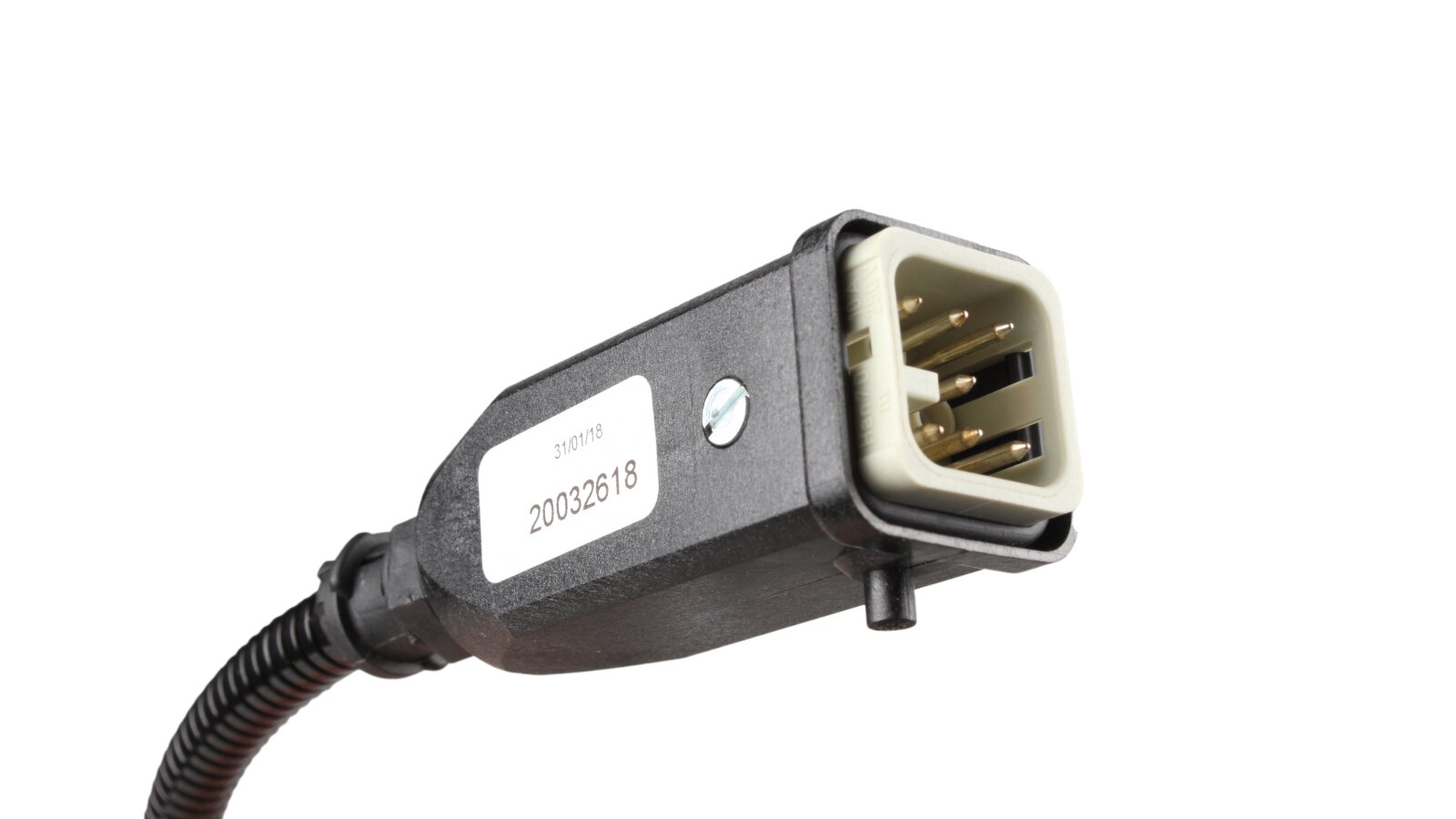

• three-core power cable 180 mm long;

• easy installation on the burner;

• range of operating temperatures: from -20 to +60 degrees;

• works together with LMV5 combustion managers;

• complete with mounting accessories: clamp and flange.

When using the Siemens sensor, ice, condensation and moisture must not form. Due to the high sensitivity of the sensor, it must be installed behind the burner reflective plate.
