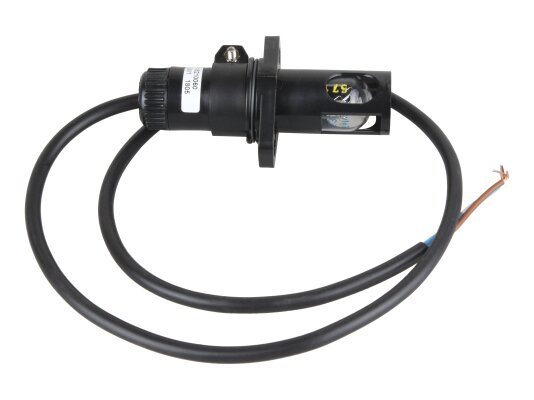

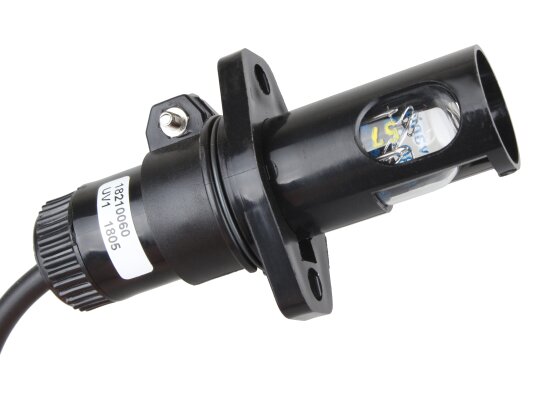

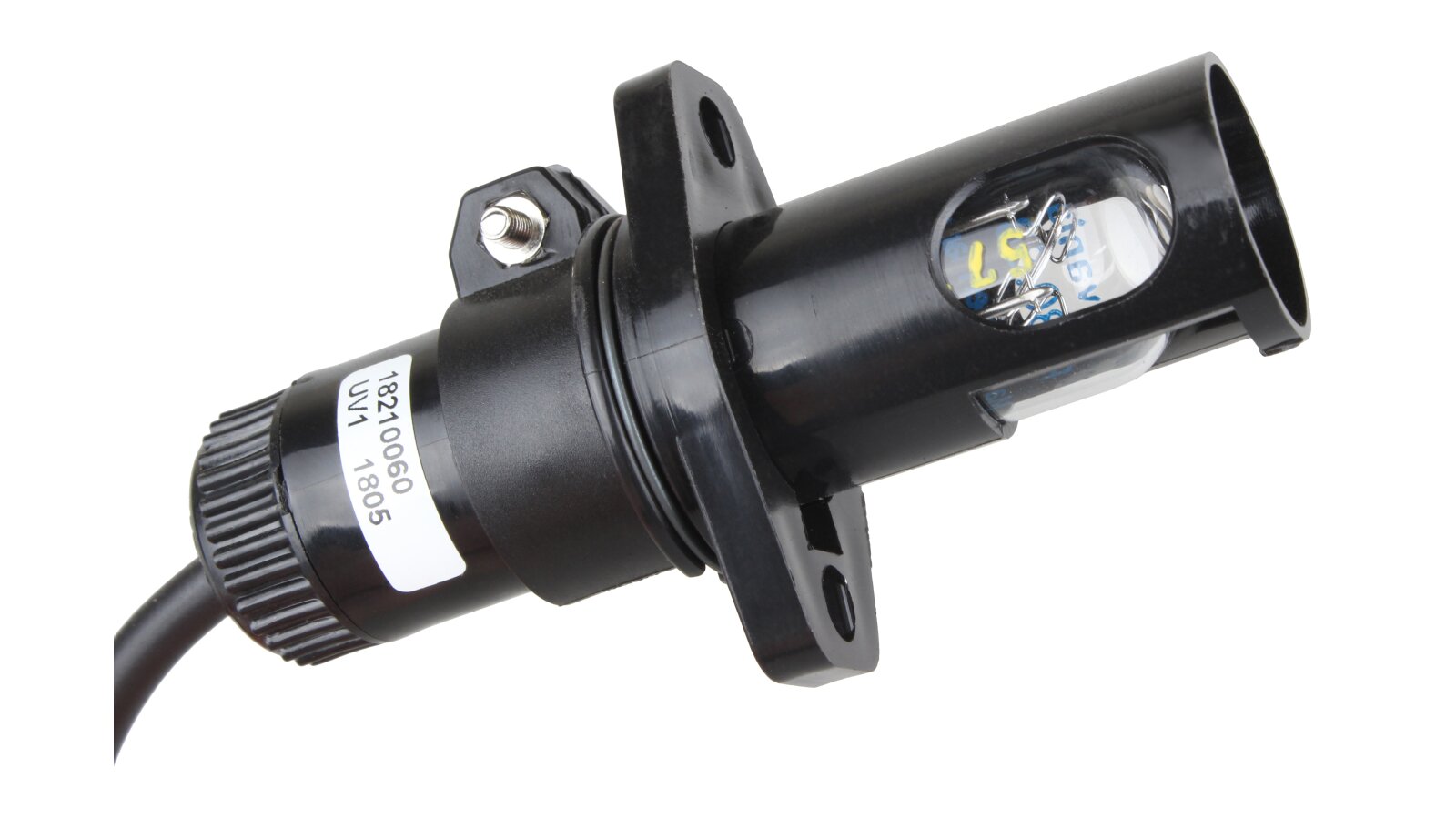

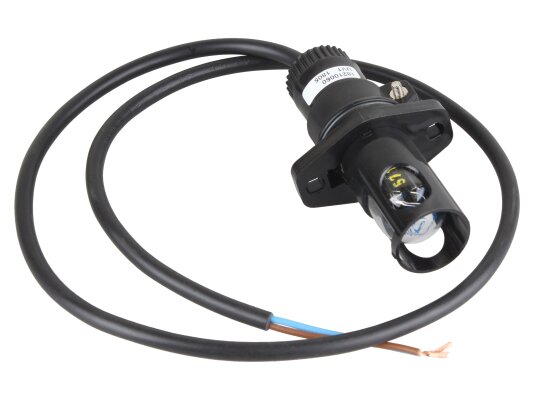

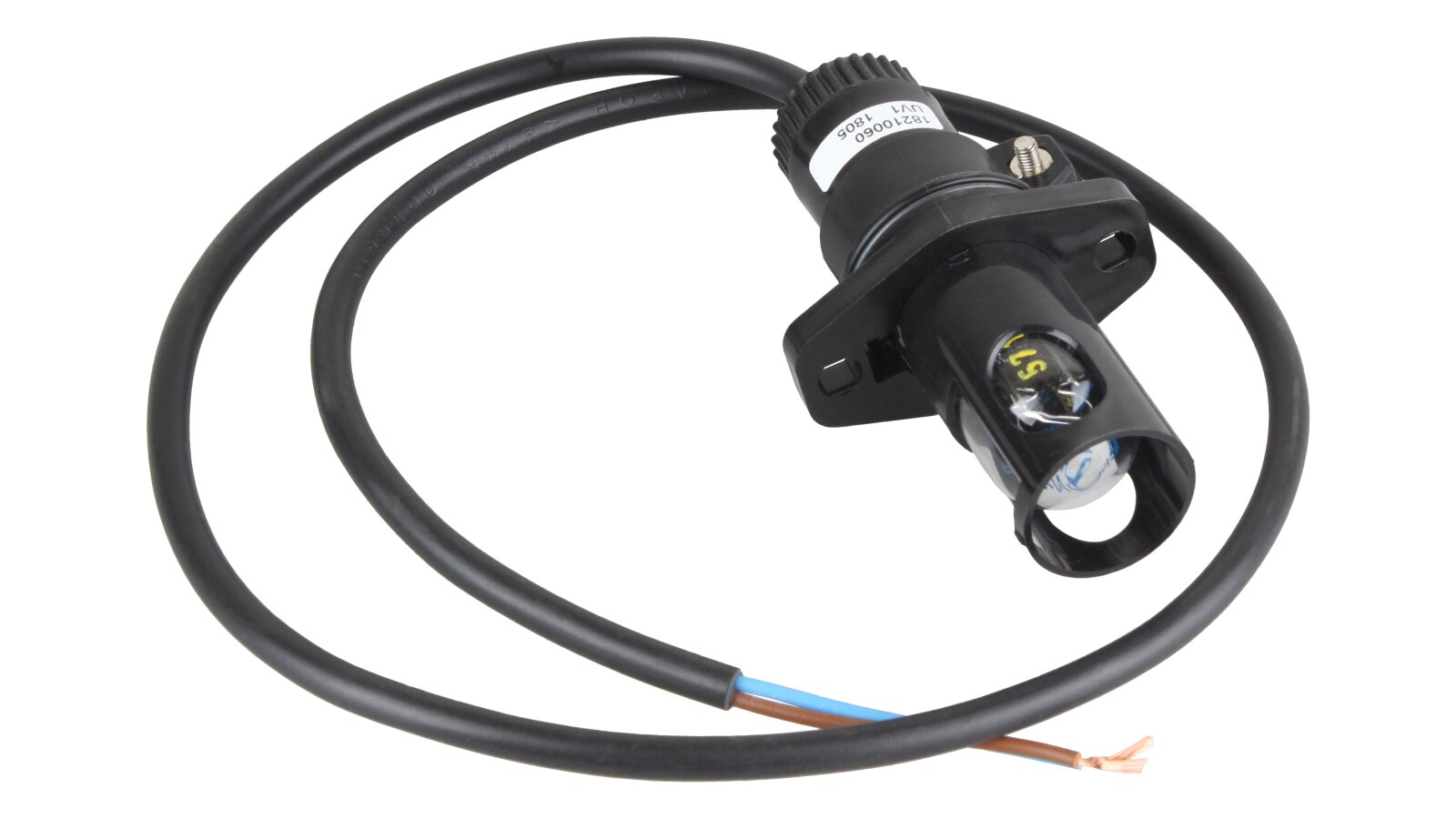

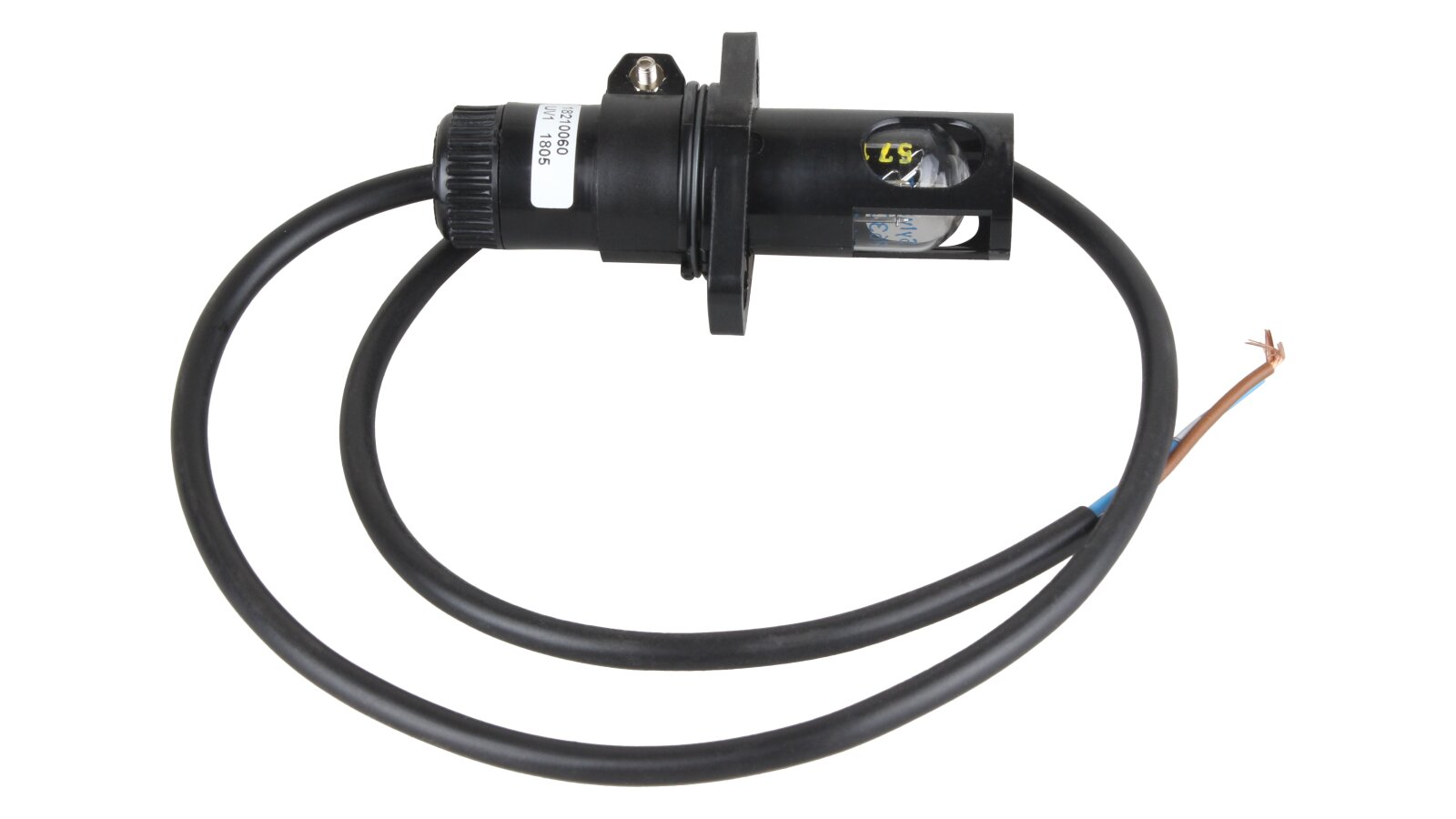

Photoelectric Cell Riello UV1 18210060

Flame sensor Riello UV1 18210060, art: 3006670 is designed to create an effective system for monitoring combustion processes during operation of an industrial burner with an intermittent cycle. Reacts to the ultraviolet spectrum of flame radiation.

Main parameters and features:

• Ultraviolet sensor with side and front visibility;

• Spectral sensitivity level - normal;

• Protection of the sensitive element from dust, moisture, impacts;

• Reliable heat-resistant housing;

• Permissible operating temperatures: from 20 to +50 °C;

• Use in industrial systems with an intermittent cycle;

• Power supply cable length - 650 mm.

The sensor is designed for use in industrial burner monitoring and control systems. Together with automation, it ensures safe operation of furnace equipment.
