Ultraviolet Flame Detector Weishaupt, 23530012012
Weishaupt23530012012
Alternative Part Number
Weishaupt
19120712022
Weishaupt
We23530012012
About product
Go to descriptionCasing length 97 mmOperating mode intermittentClass of sensitivity normalDirection of illumination lateral, frontalDegree of protection IP40Flame sensor type ultraviolet
AED 2,825
Description

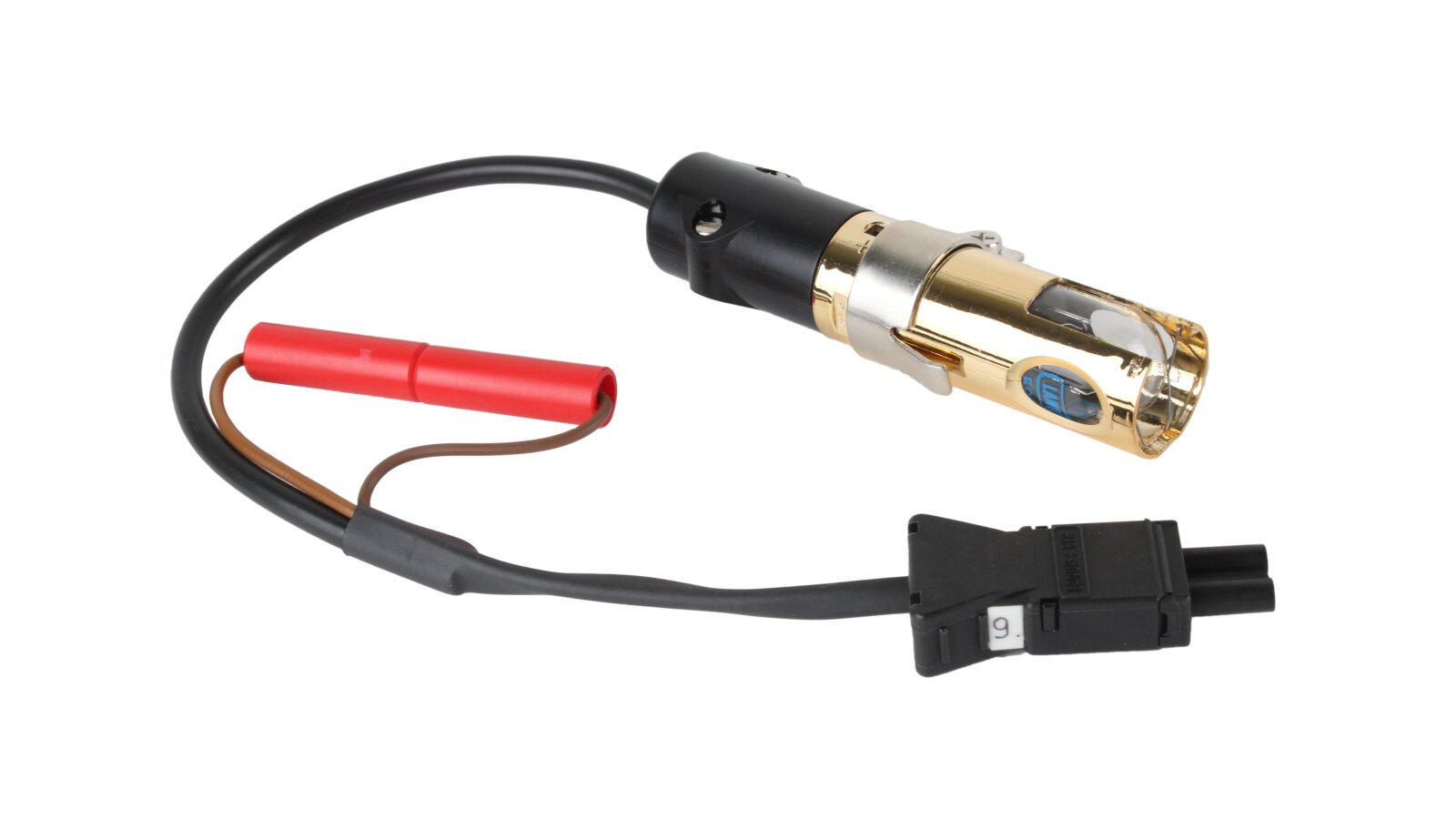

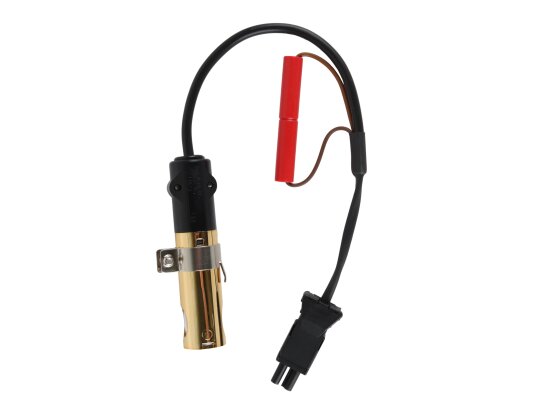

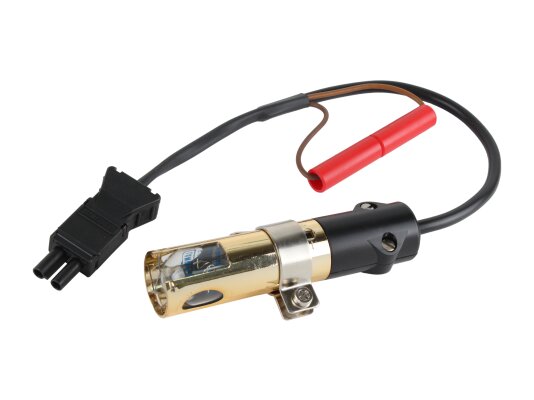

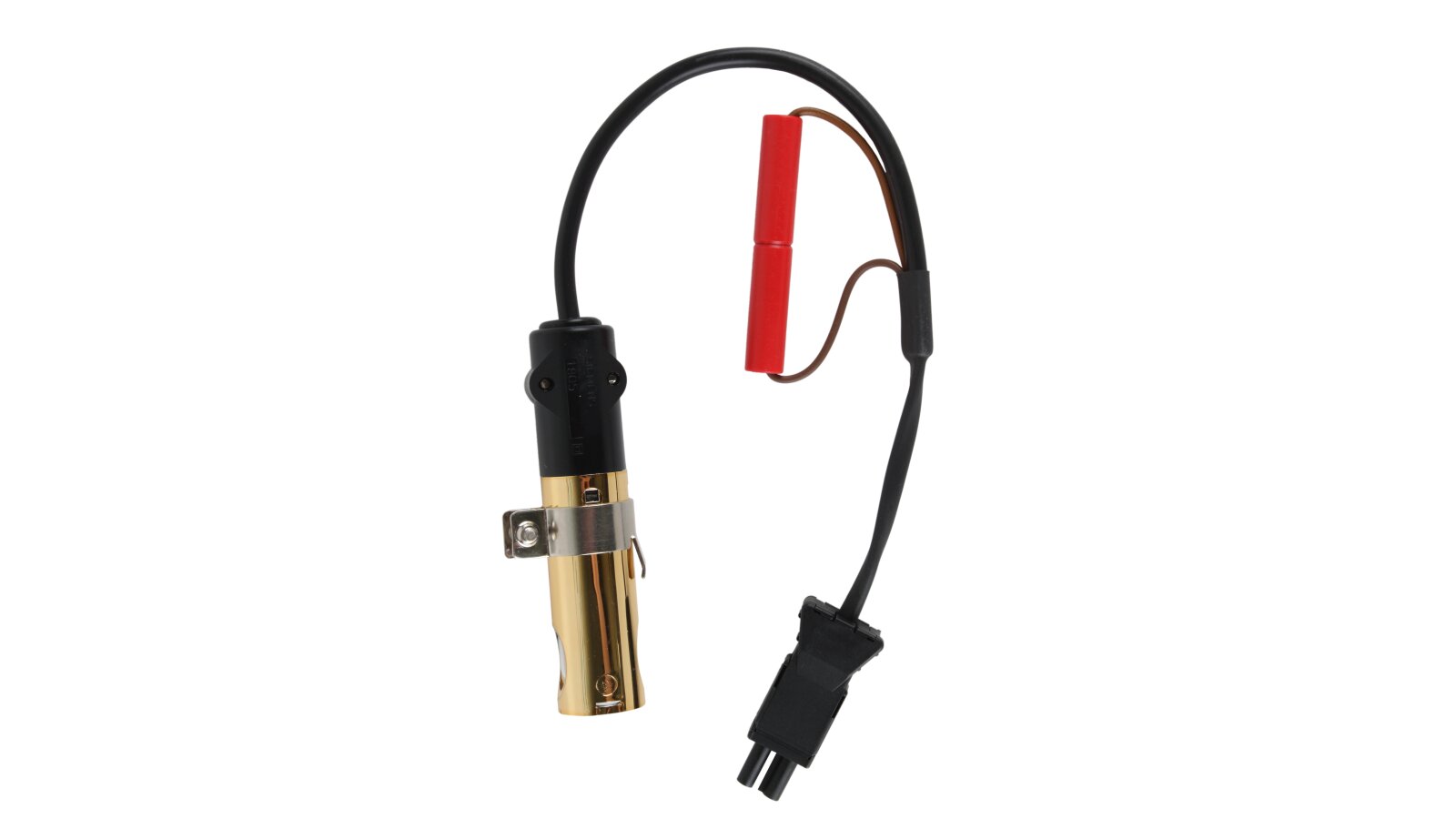

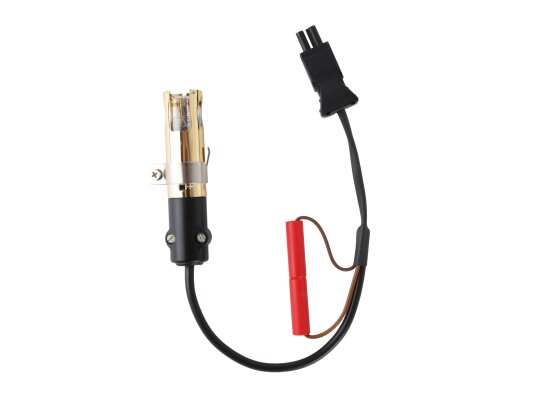

The Weishaupt 23530012012 flame sensor is used in Weishaupt burners for flame monitoring. Normal sensitivity.
Features:
Ultraviolet sensor;
lateral and direct visibility;
intermittent operation mode;
standard sensitivity detector;
reliable insulation, IP 40 dust and moisture protection level;
97 mm long housing;
protection of components from impacts and dirt;
maximum operating temperature +50 degrees;
easy installation on the burner.
The service life of the ultraviolet flame sensor declared by the manufacturer is 10 thousand hours.
Characteristics
Manufacturer Part Number: 23530012012Casing length: 97 mmOperating mode: intermittentClass of sensitivity: normalDirection of illumination: lateral, frontalDegree of protection: IP40Flame sensor type: ultraviolet
Information about the technical characteristics, appearance and color of the product is for reference only and is based on the latest information available at the time of publication
