IR Flame Sensor Weishaupt QRB1A-B036A25A, 24130012012

Flame sensor Weishaupt QRB1A-B036A25A 2-pin plug, art.: 24130012012 is used in liquid fuel equipment to monitor the combustion of a yellow flame in the visible light spectrum. Registers radiation and transmits the corresponding electrical signal to the burner control unit (LAL / LMV / LOA / LMO).

Main parameters and features:

• Monitoring of a yellow flame during combustion of liquid fuel;

• Lighting: from the side (90 °) and straight;

• Normal sensitivity of the photocell;

• Length of the connected power cable - 360 mm;

• Design class dust and moisture protection IP 40;

• Operating temperature range: -20 ... + 60 ° C;

• For systems with intermittent short-term operation.

More about the QRB1...A flame sensor

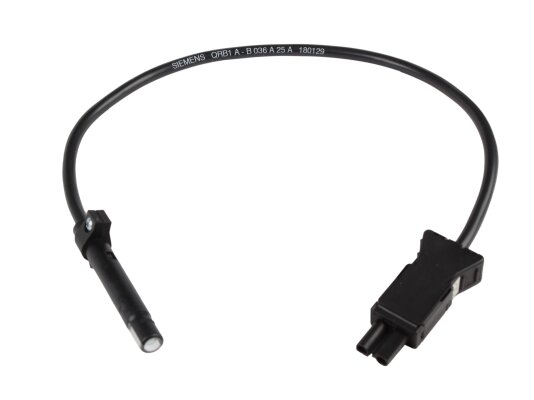

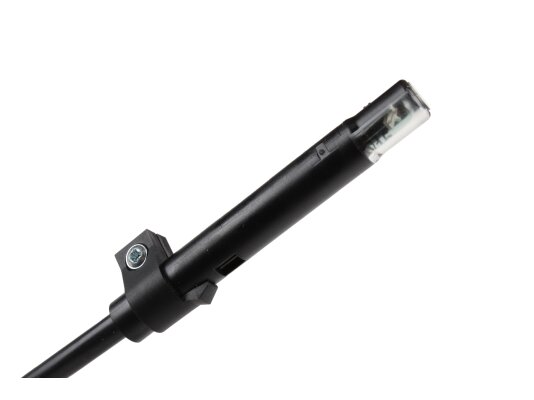

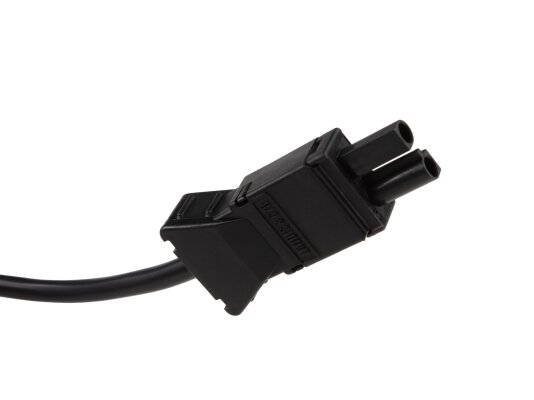

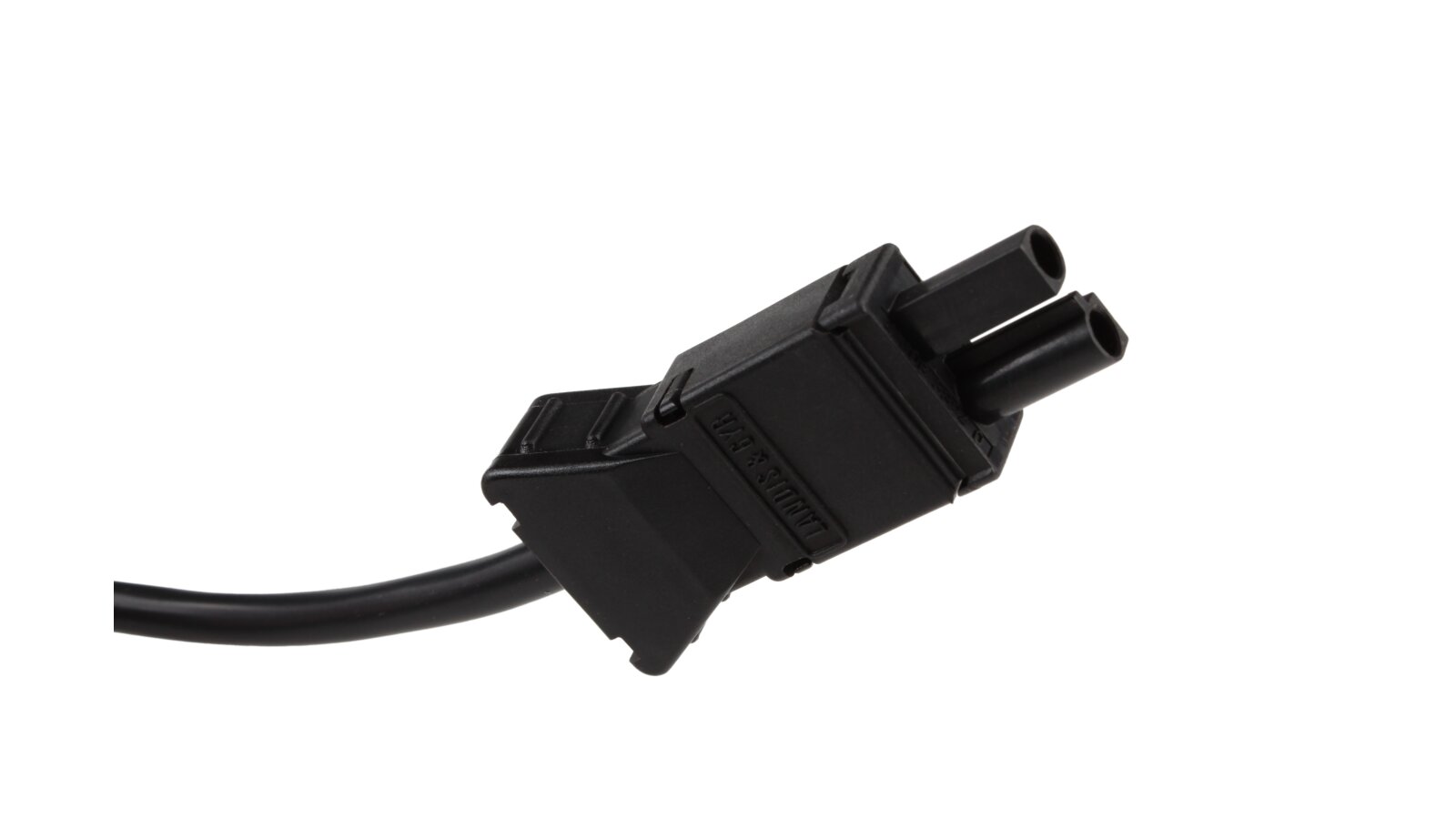

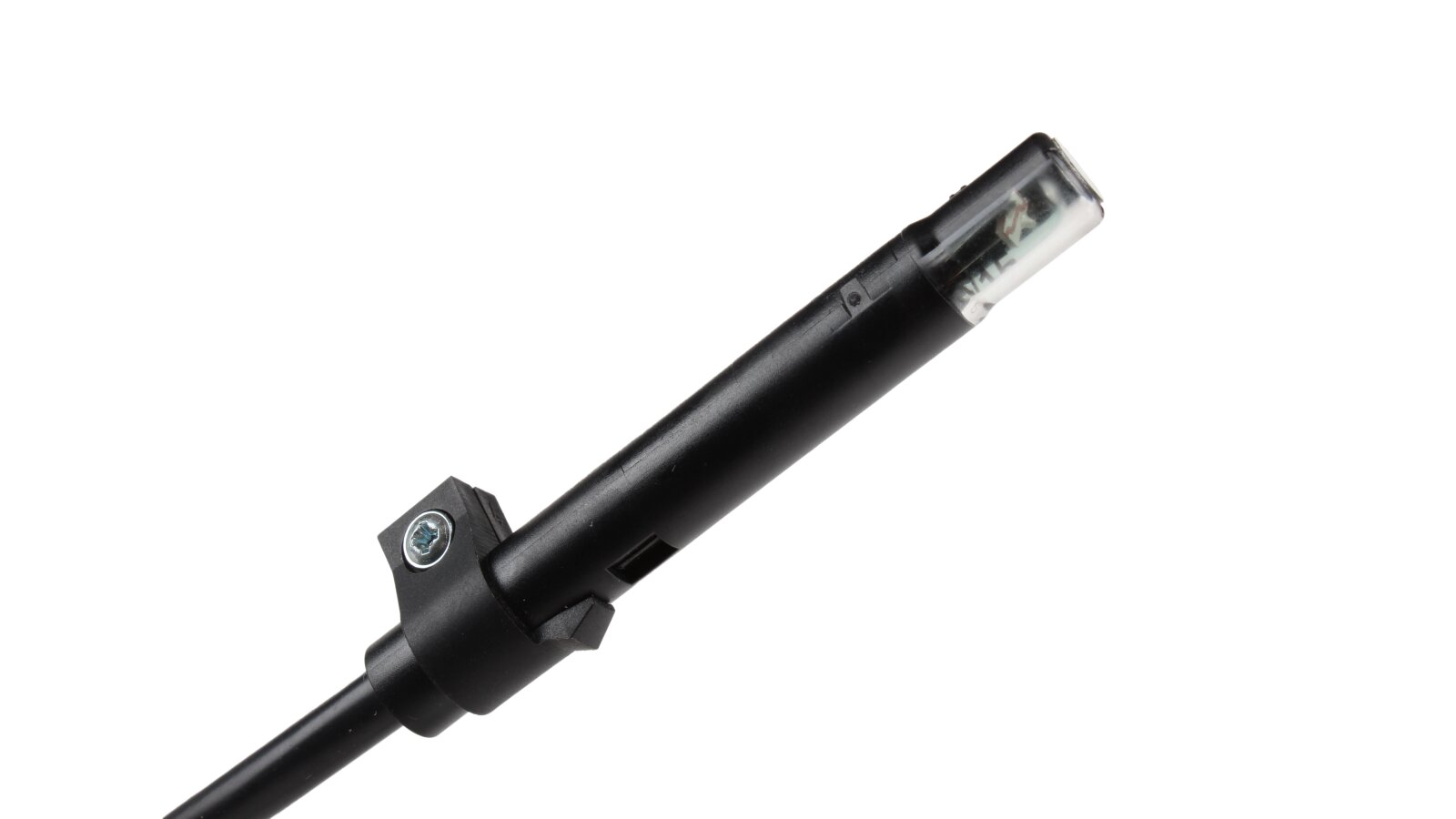

The sensor is equipped with a photoresistor with side and frontal measurement and normal sensitivity. It is assembled in a compact housing with a built-in power cable with thermal protection made of PVC. For quick and reliable electrical connection to the furnace machine, it is equipped with a two-pin plug. It is mounted on the burner using a flange, which is not included in the package (purchased separately).

The device can respond not only to flame radiation, but also to parts of the light spectrum from foreign objects: lining brick of the combustion chamber, lighting fixture and other sources, therefore additional measures to protect against light interference are required during installation.

Weishaupt QRB1 flame sensors are installed by a specialized company. To avoid the risk of breakage and electric shock, condensation, ice formation, and water getting on the housing should be excluded during installation and operation of the device.

Advantages:

• reliable protection of the photoresistor from external influences;

• registration of side and frontal lighting;

• optimal sensitivity;

• built-in cable with plug;

• wide range of operating temperatures.

The ANKAS catalog also presents other models of flame sensors for burners, with high, low, adjustable sensitivity, various mounting options, and configurations. You can buy the Weishaupt QRB1 flame sensor and other equipment on the website by placing an online order.
