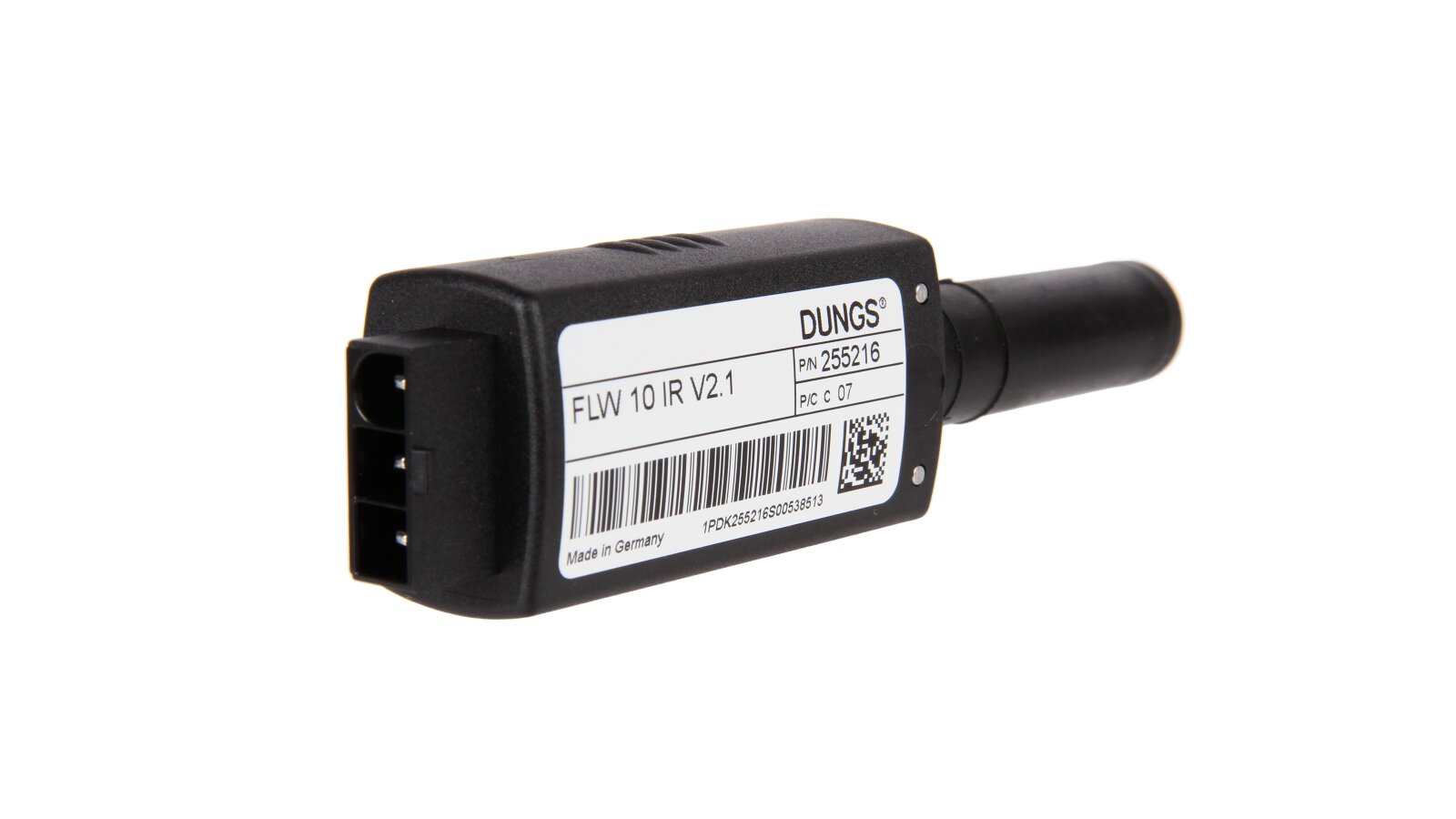

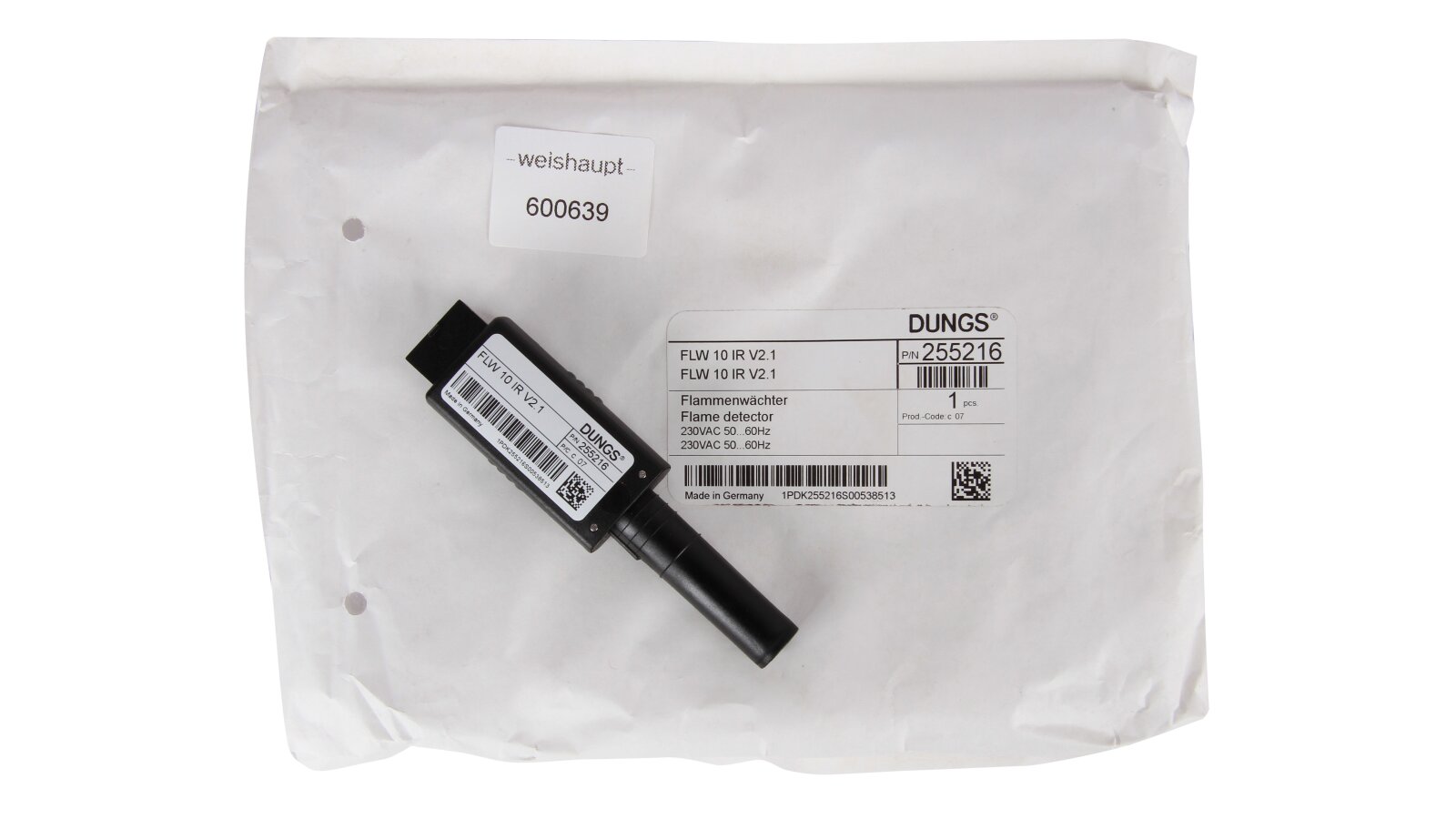

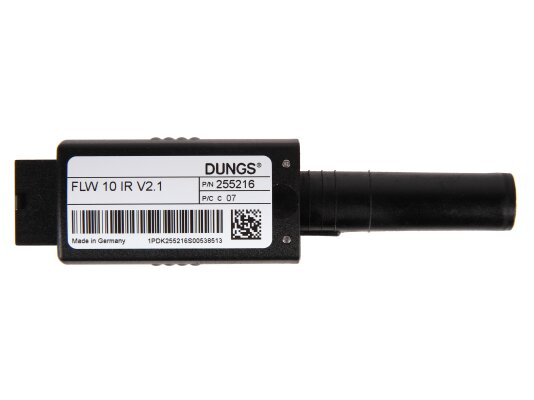

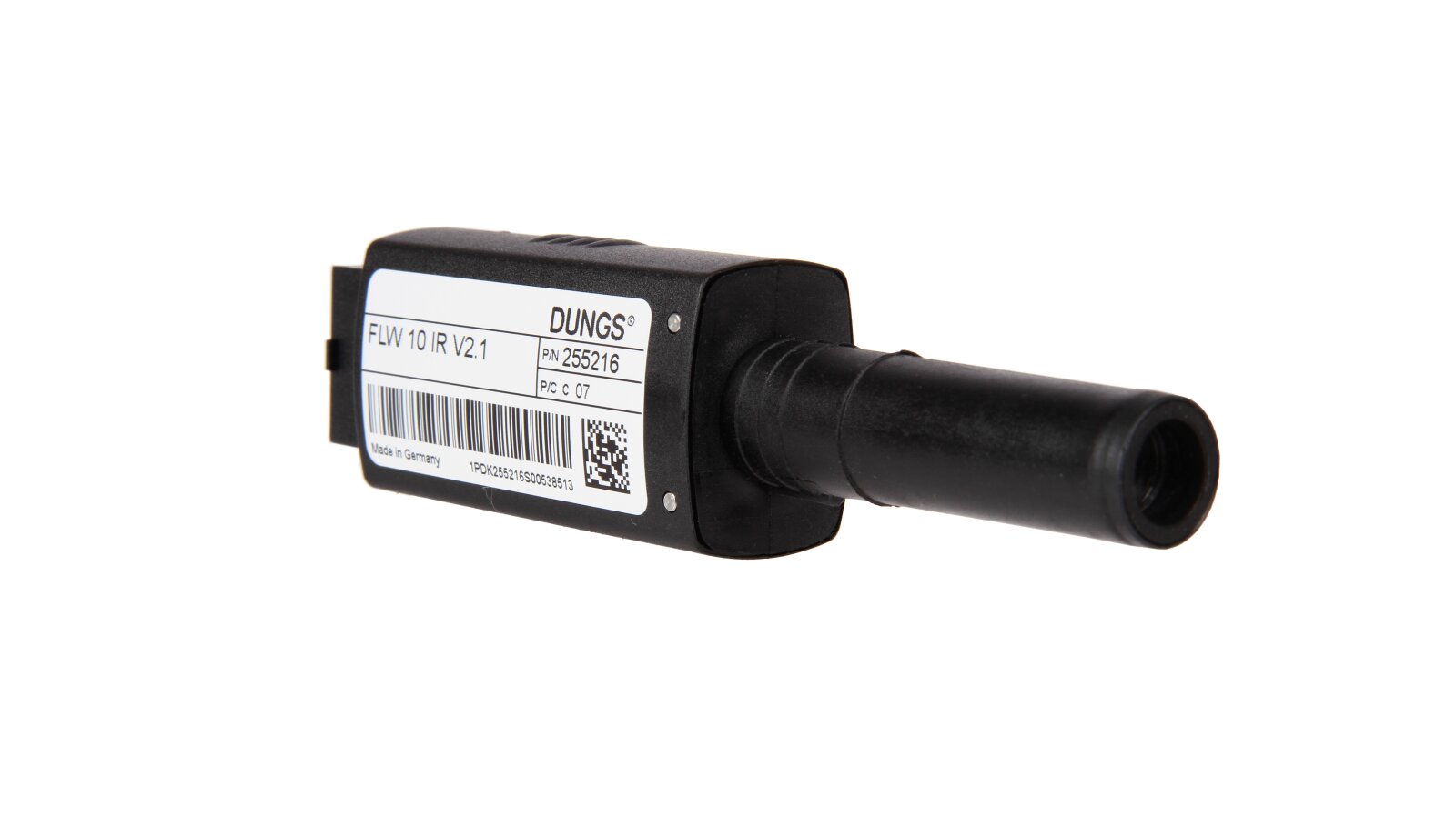

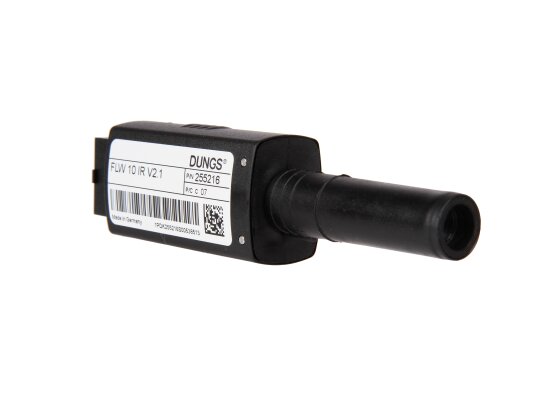

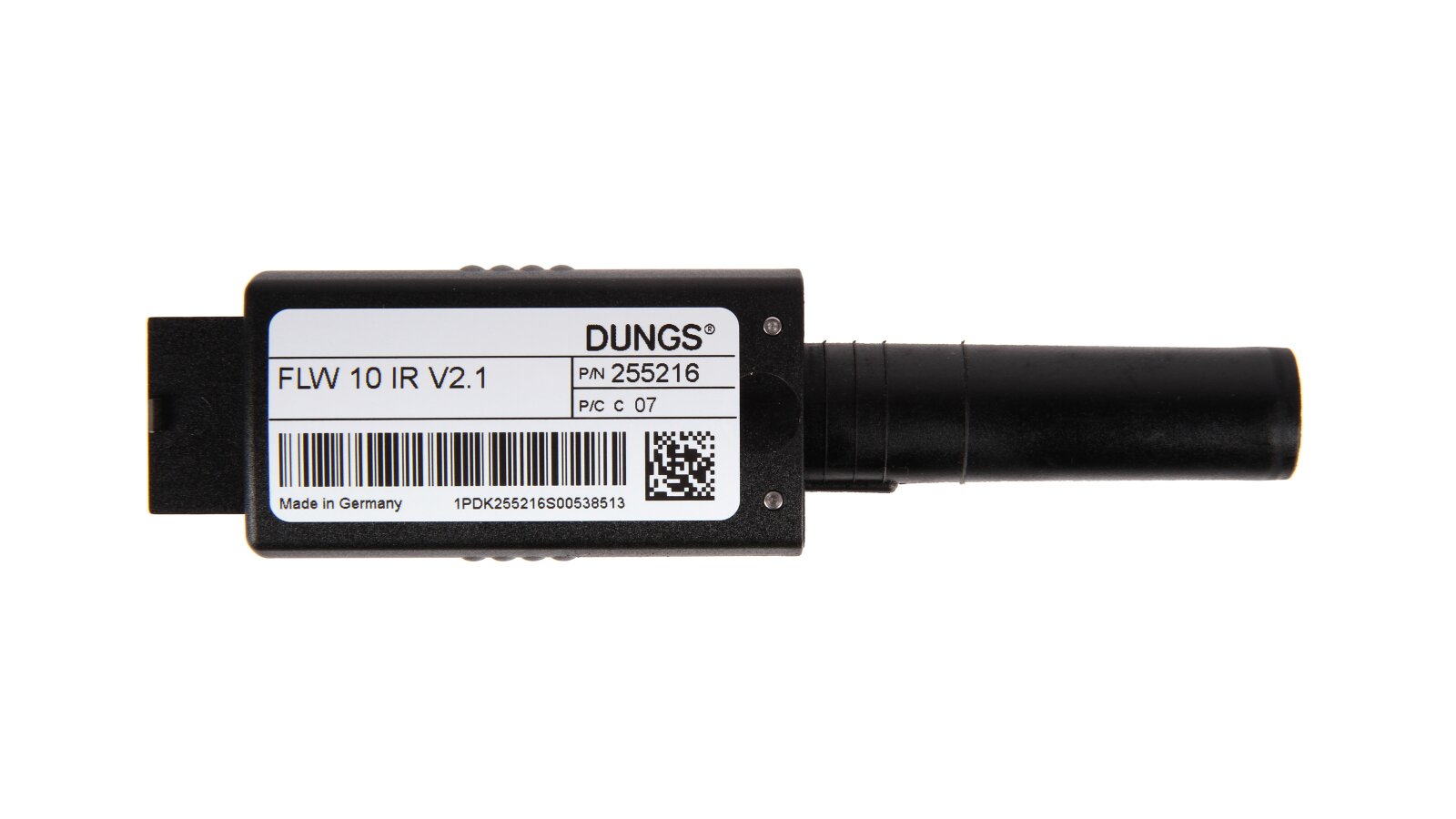

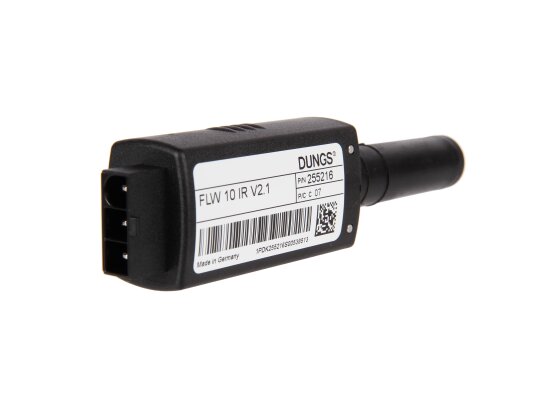

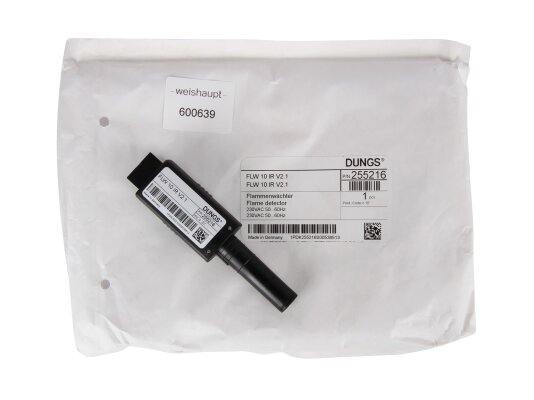

Flame Detector Weishaupt FLW 10 IR V2.1

Flame sensor Weishaupt FLW 10 IR V 2.1, art: 600639 allows you to organize a reliable system for monitoring blue flame combustion during industrial burner operation. It has high spectral sensitivity. Equipped with an IR sensor for recording flame radiation. Designed for use in furnace equipment with an intermittent duty cycle.

Parameters and features:

• IR sensor for recording blue flame radiation;

• high sensitivity element with frontal measurement;

• operating voltage: 220-230 V, -15%, +10%, frequency 50/60 Hz;

• shockproof plastic housing;

• operating temperatures: from -20 to +60 °C;

• various mounting options;

• protection of electrical components from dust and moisture according to IP 41;

• length of the device housing – 115 mm;

• for combustion systems with a short-term intermittent cycle;

• service life – 10 years.

More about the model

The FLW 10IR infrared sensor determines the flame flickering frequency. It ignores light radiation with a constant frequency. Extraneous light emanating from fluorescent lamps and other emitting objects is not registered by the device as a flame. At the same time, when installing the detector, it is necessary to exclude direct contact with the transformer spark and external lighting in the visibility zone. The sensor is placed in the system in any position. It is connected to the ionization input of the MPA41xx automation unit. A flange connection or holder is used for fastening.
