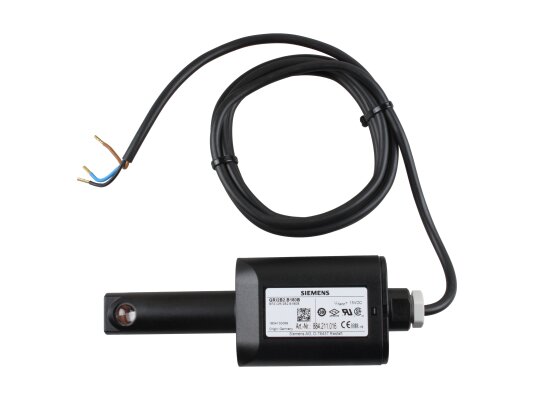

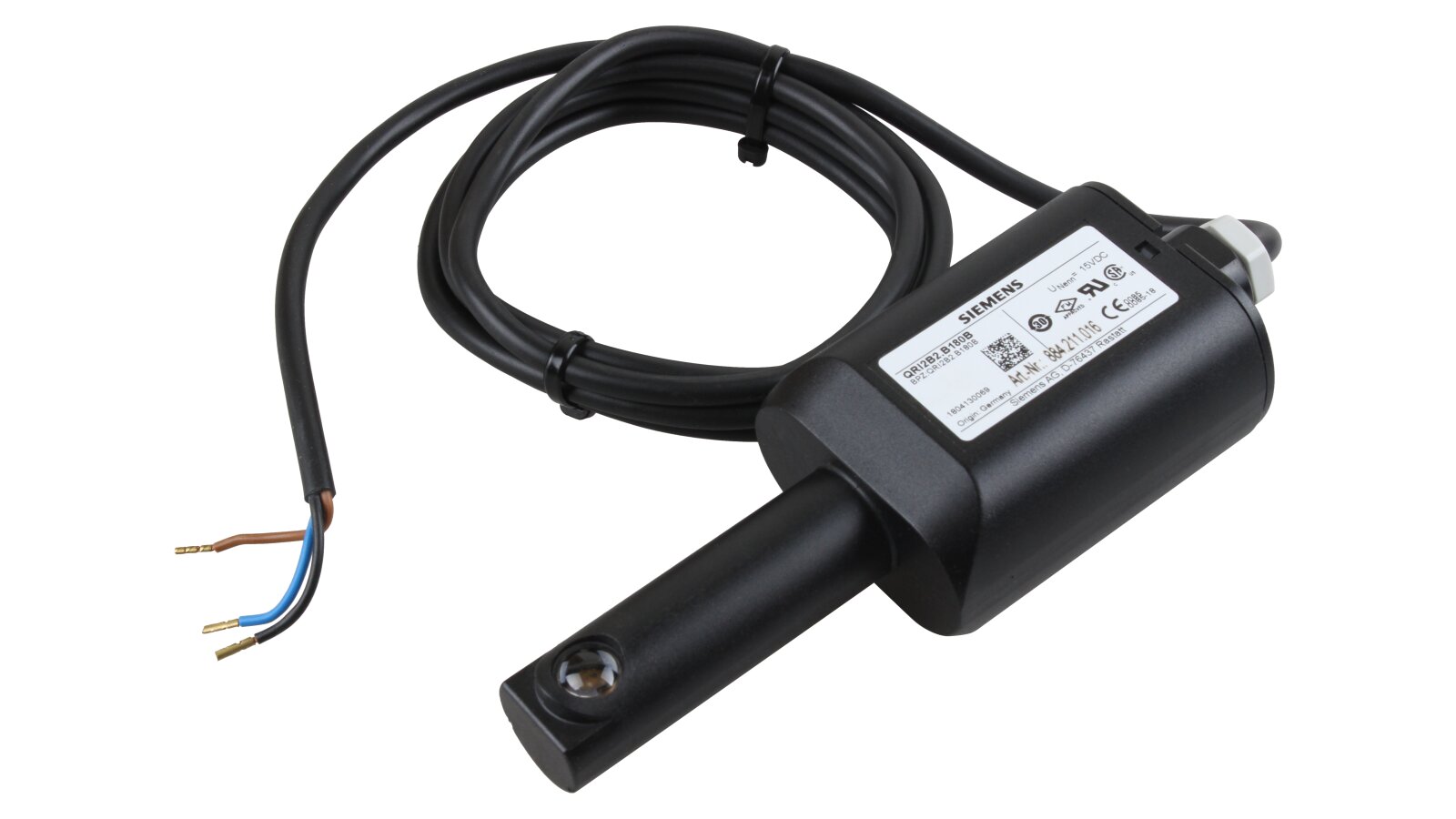

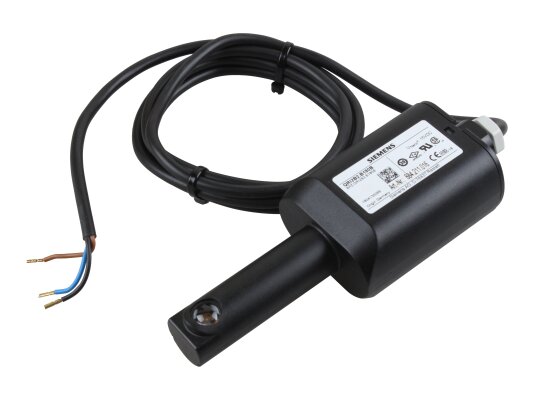

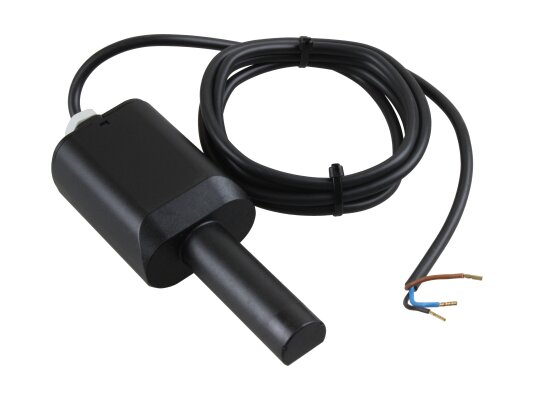

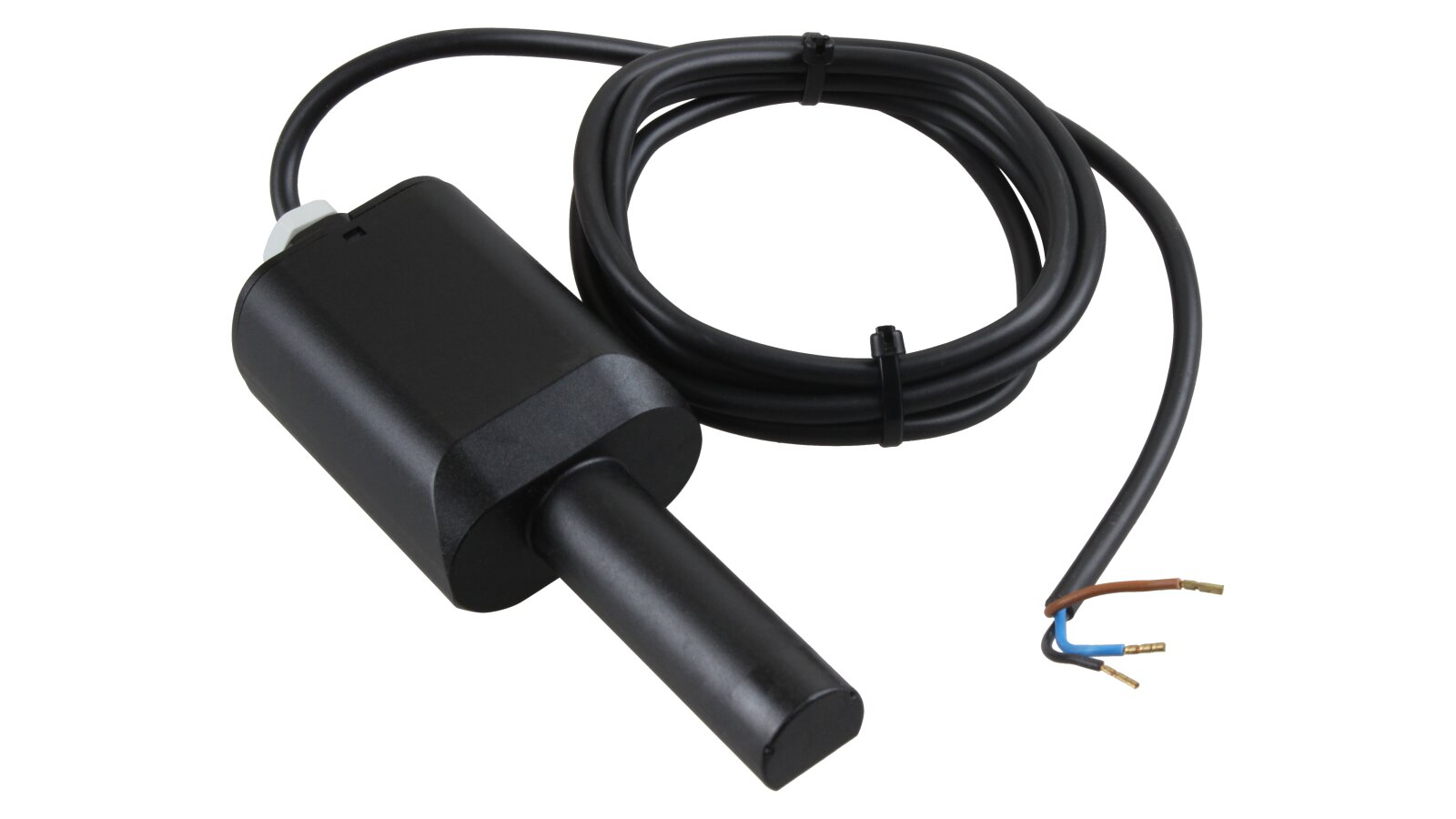

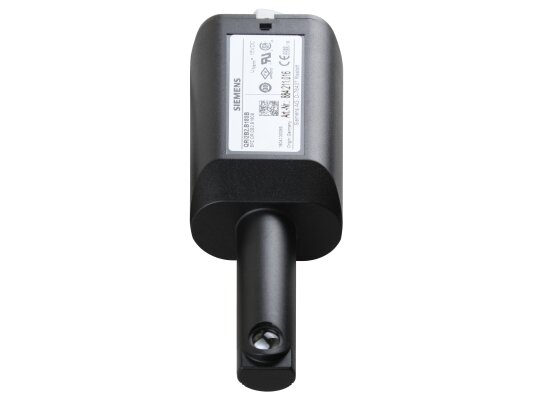

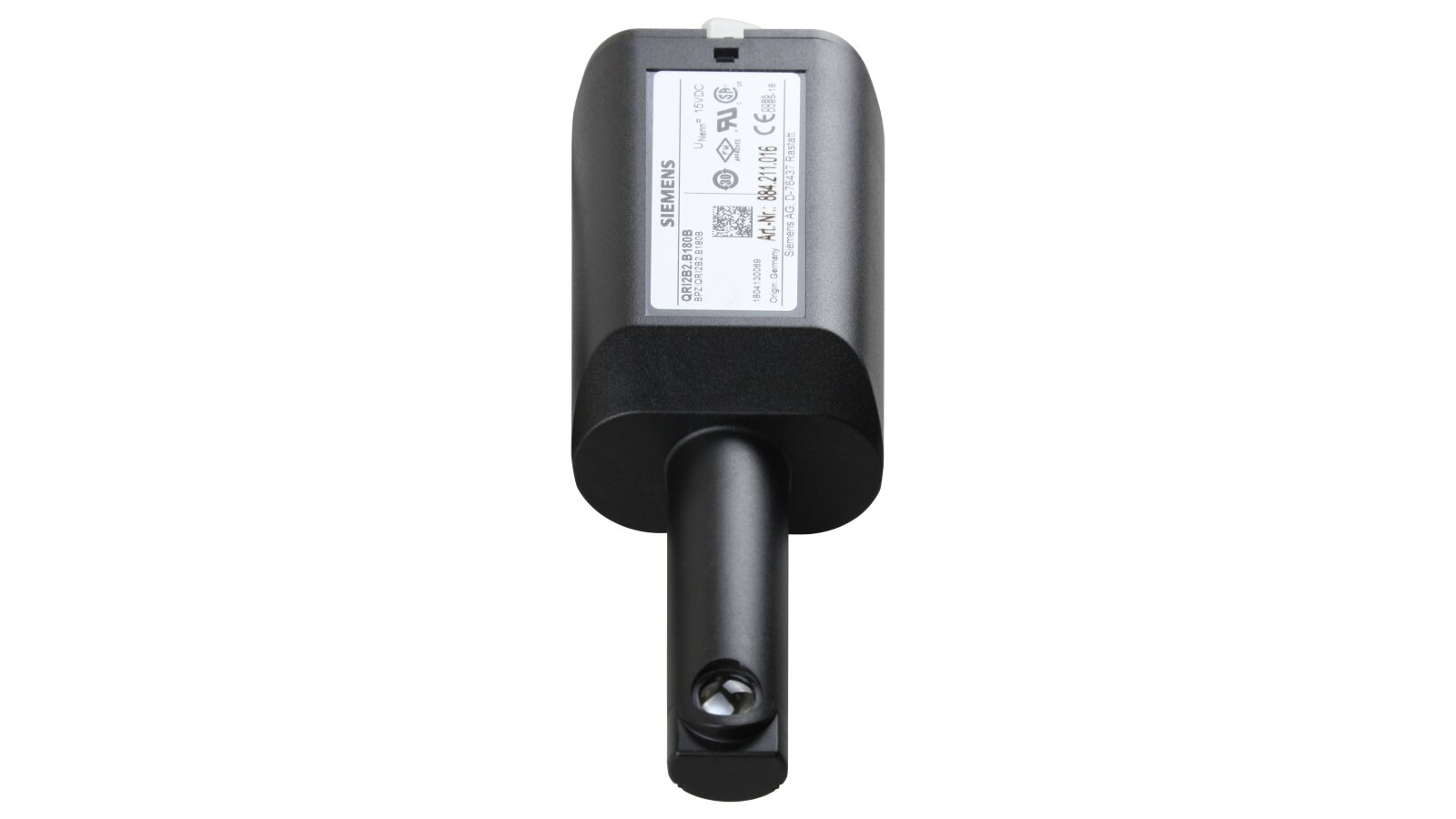

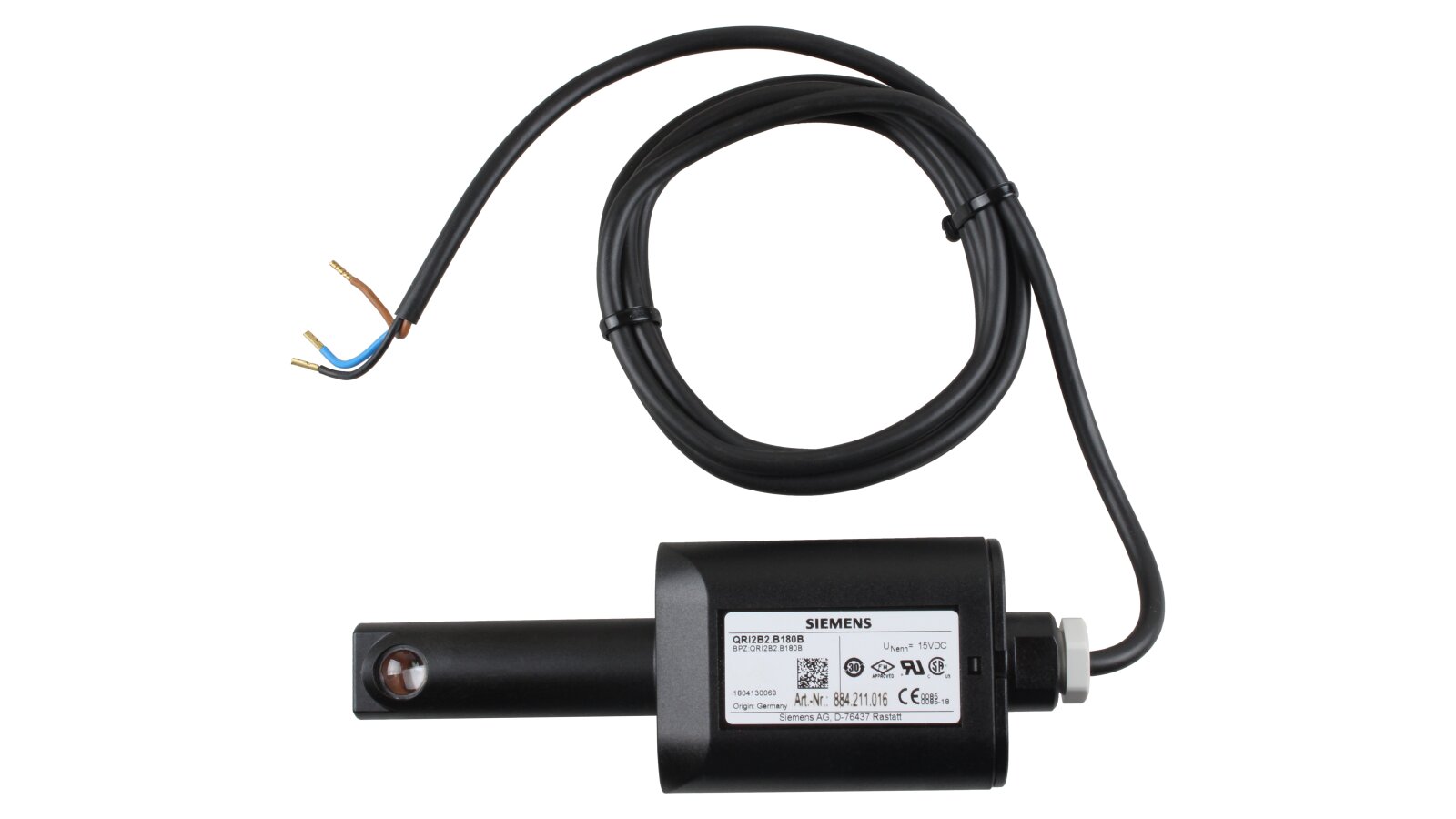

IR Flame Sensor Weishaupt QRI2B2.B180B

Flame sensor Weishaupt QRI2B2.B180B, art: 600651 reacts to infrared radiation of flame during combustion of gas or liquid fuel. Connects to automatic burner of any capacity, with intermittent or continuous cycle. Fixed to the burner using a flange and clamp.

Working parameters and features:

• IR flame radiation control during combustion of gas, liquid and other fuels;

• built-in signal amplifier;

• side visibility;

• durable housing made of shockproof plastic;

• rubber seal for stable fixation;

• length of fixed power cable – 180 mm;

• housing protection from dust and splashes according to IP54 standard;

• 3-core power cable with thermal insulation;

• works together with LMV5 furnace automatic machine;

• operating temperatures: -20...+60 °C (an increase to +75°C for 1 min is permissible);

• installation using a flange and clamp behind the reflective plate (accessories are not included).

The QRI flame sensor must be installed by qualified personnel. Condensation, ice, and water must not be allowed to form on the housing, as this may result in damage to the device and an increased risk of electric shock.
