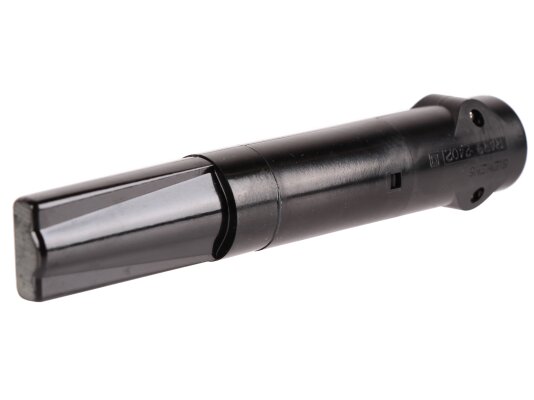

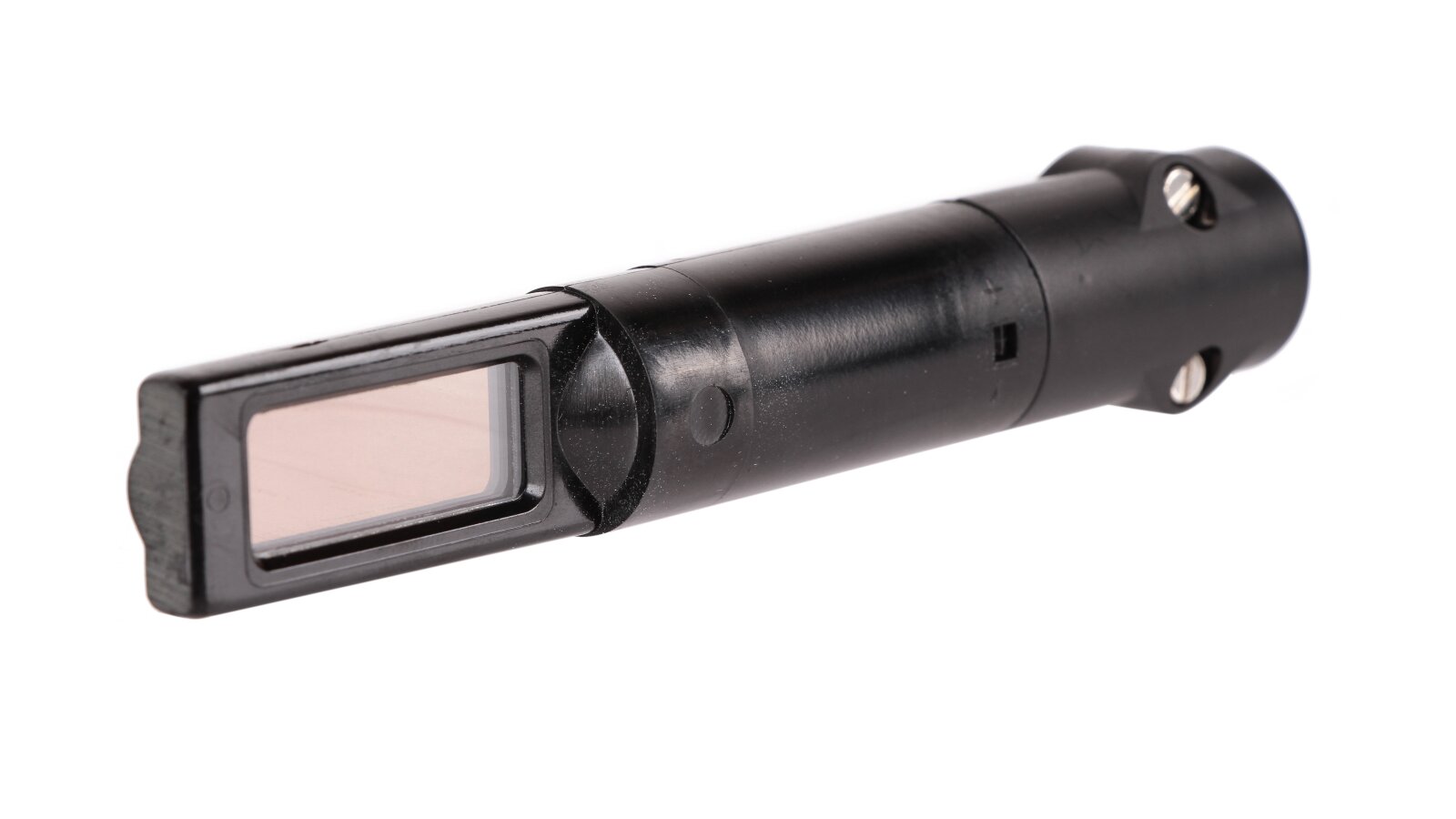

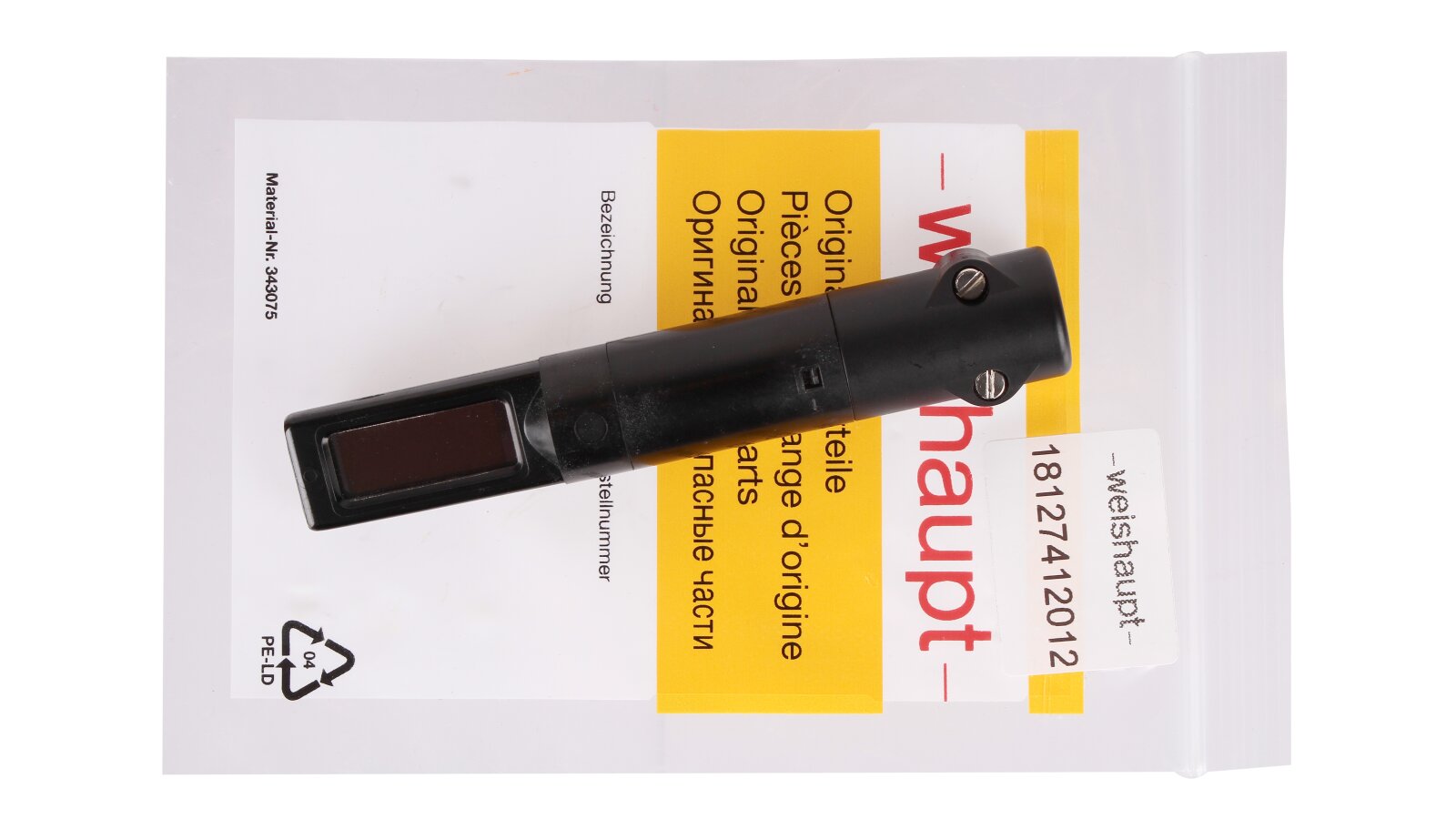

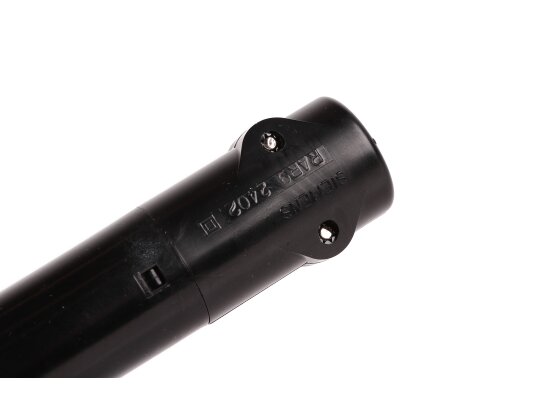

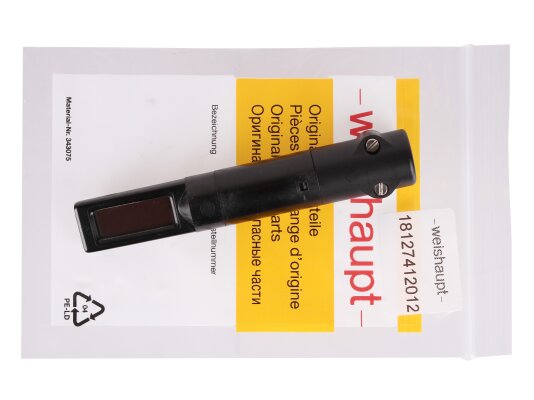

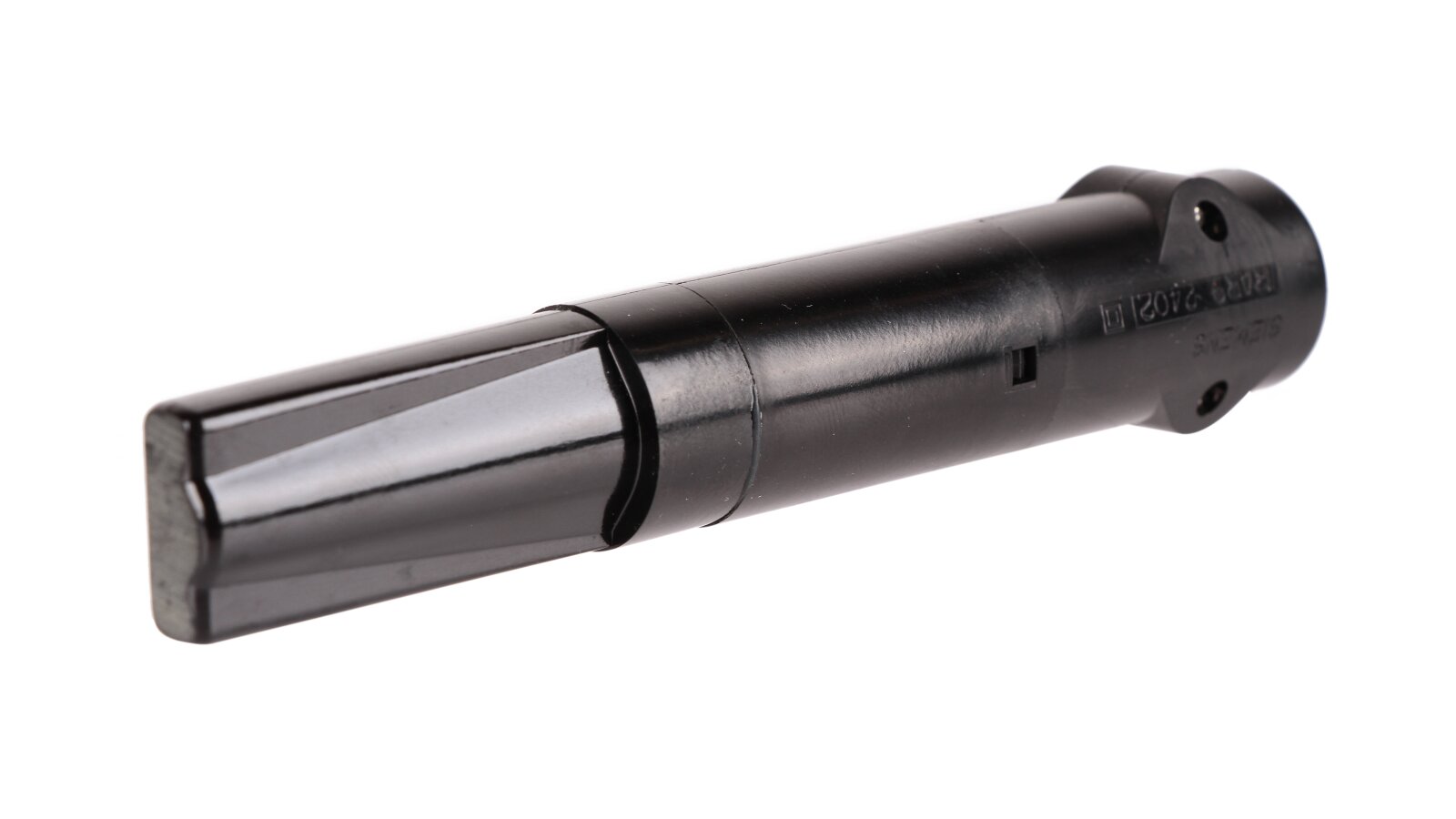

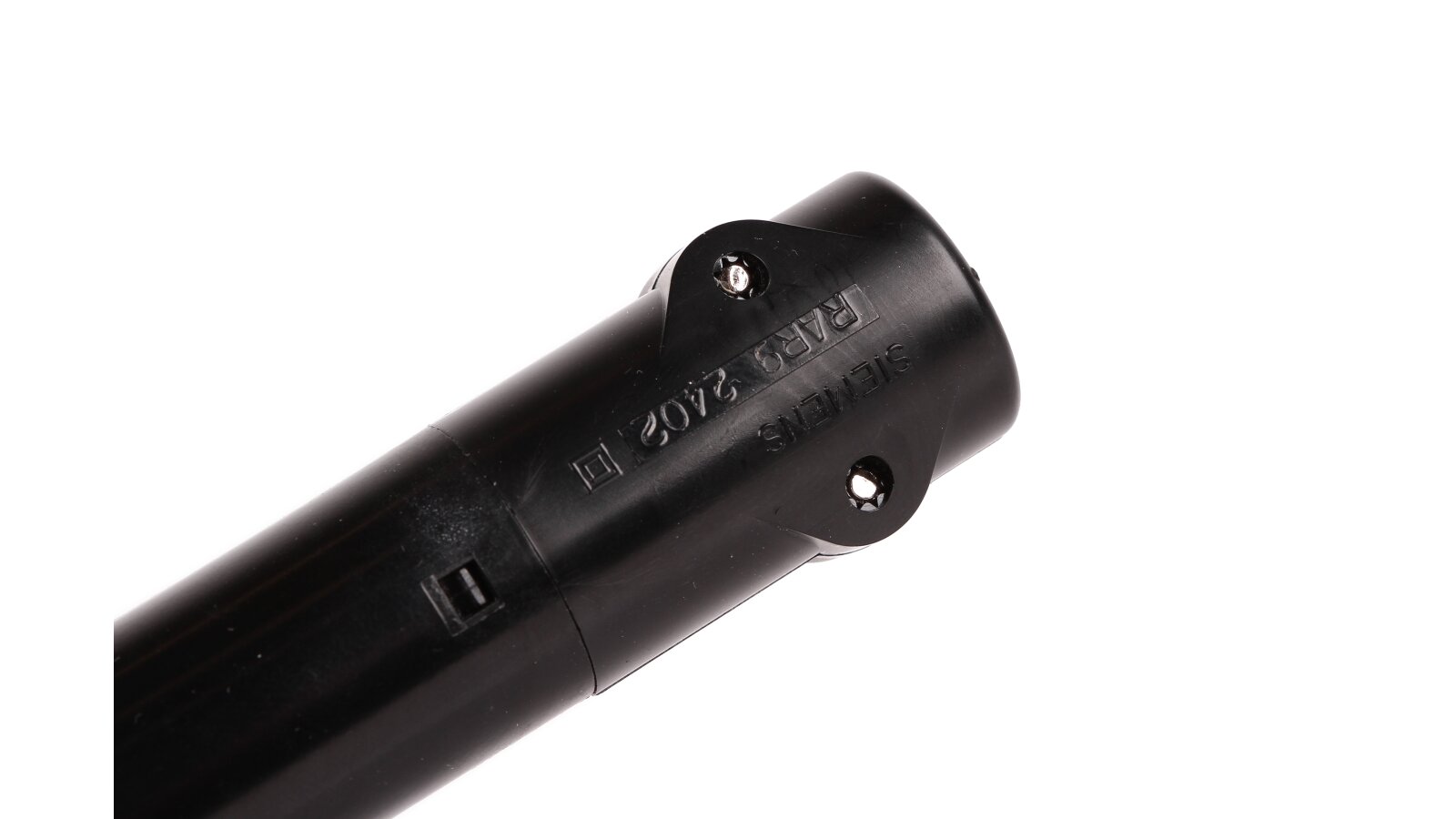

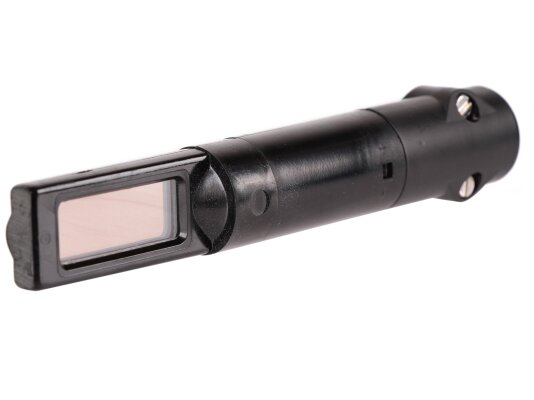

Photocell Detector Weishaupt RAR9, 18127412012

Flame sensor Weishaupt RAR9, art: 18127412012 works together with the furnace automatic control, to which it sends signals about the flame detection. Monitors the yellow flame of liquid fuel burning during the operation of powerful industrial burners. Supplied without mounting accessories (ordered separately).

Operating parameters and features:

• silicon light-sensitive element;

• lateral visibility of the flame;

• normal sensitivity;

• housing made of dust-proof duroplast;

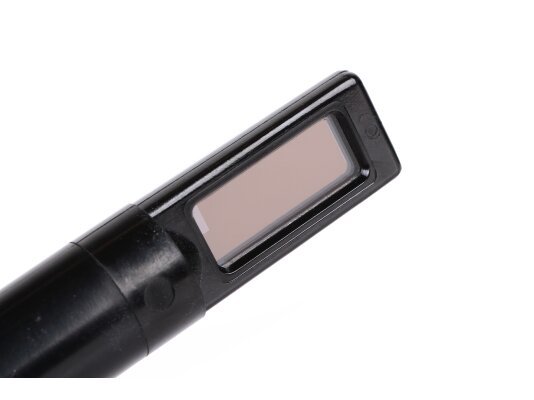

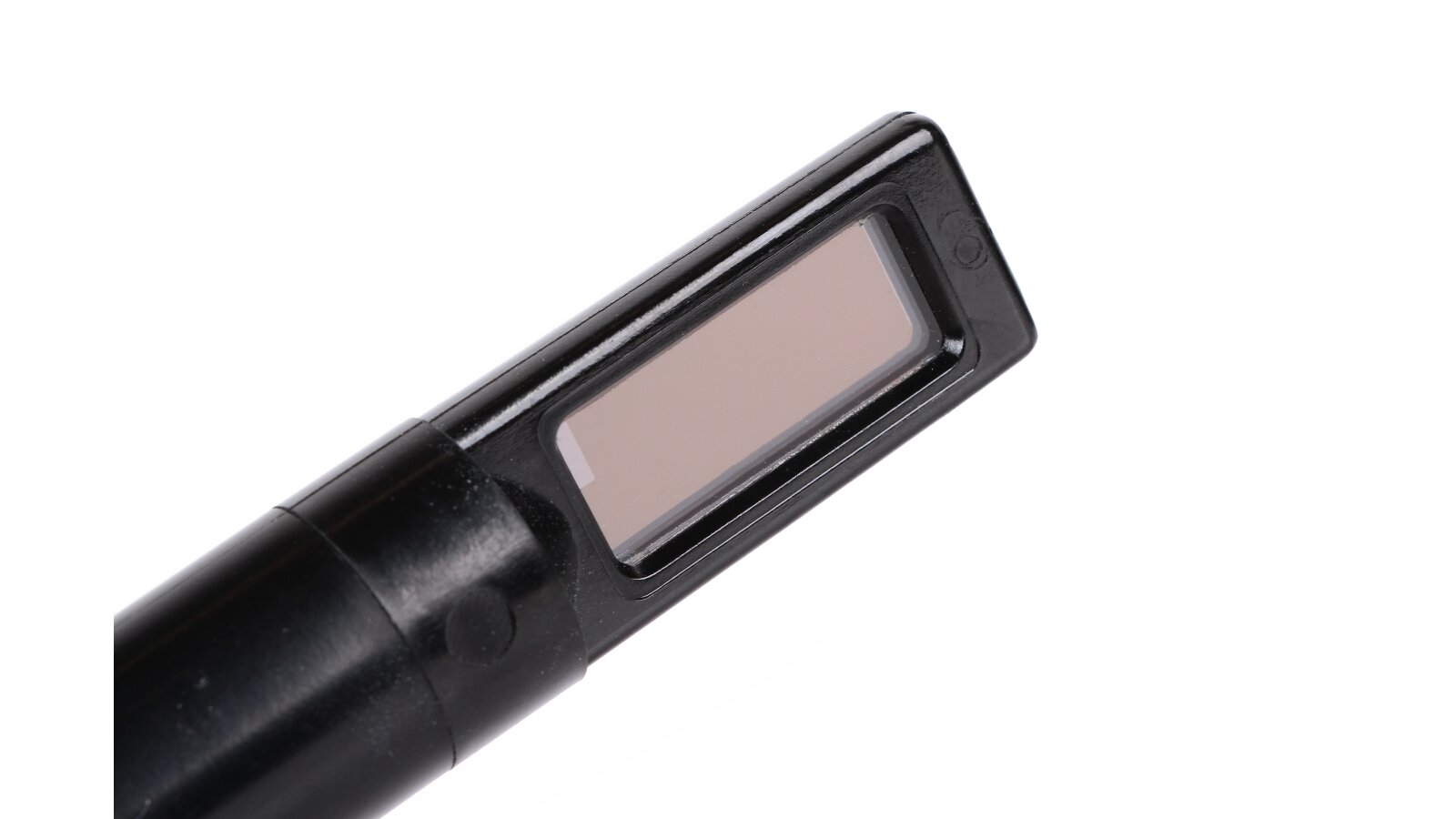

• photocell protection with sealed glass;

• built-in multi-core cable with tip;

• length of the fixed power cable - 140 mm;

• work together with the control unit LAL / LAE1 / LOK16, LAE10;

• protection from contact, dust according to the IP20 standard (IP40 when using AGG09);

• electrical connection on screw terminals;

• permissible operating temperatures: -20...+60 °С;

• without flange and bracket (optional).

When installing and operating the Siemens RAR9 flame detector, ice, condensation, and water getting on the housing are not allowed. All installation, adjustment, and maintenance actions must be performed only by a qualified specialist.
