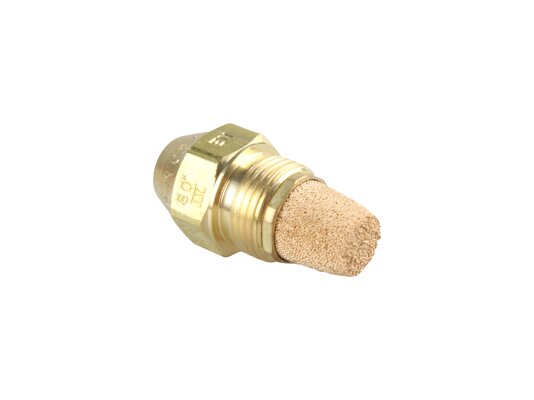

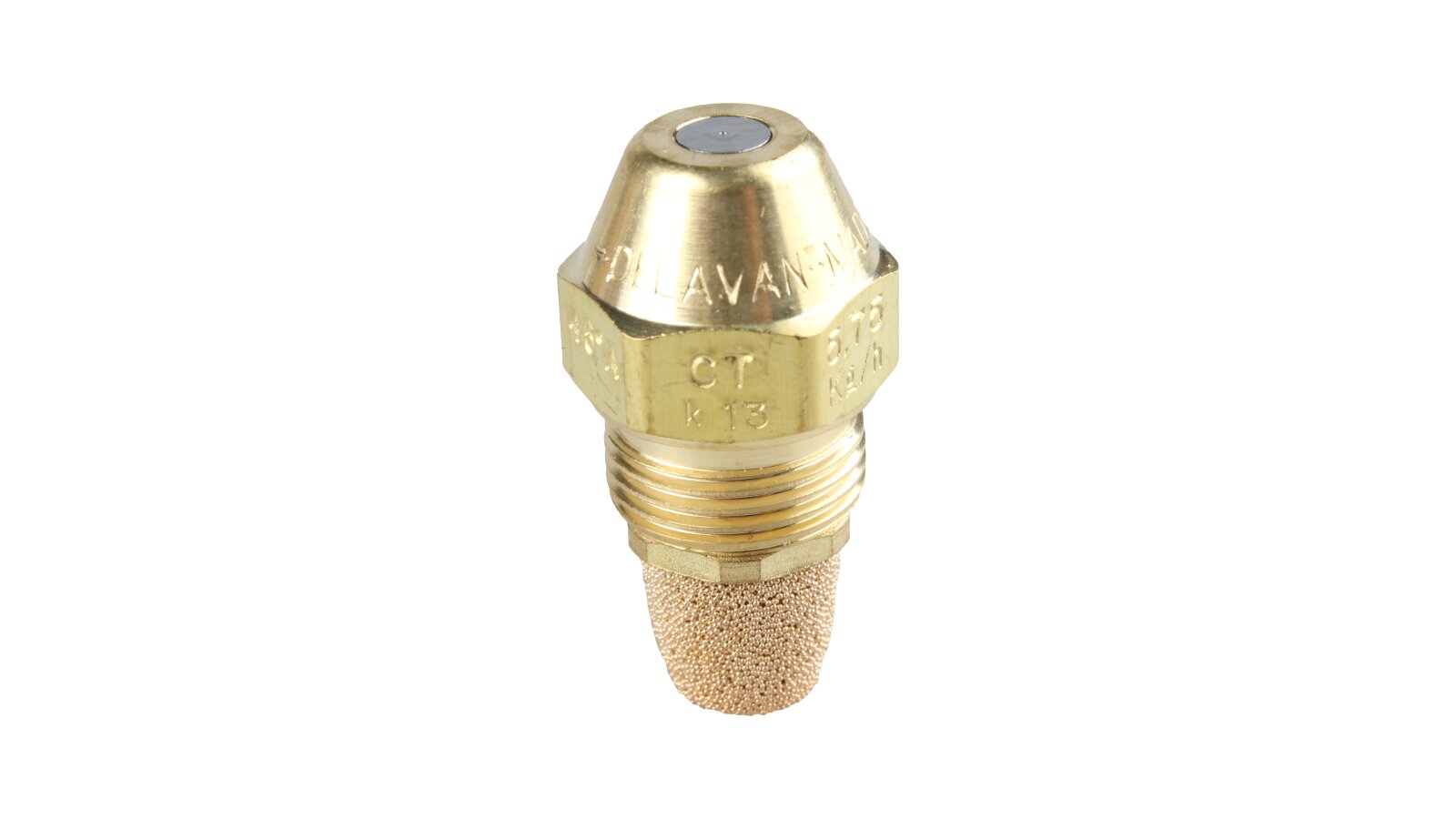

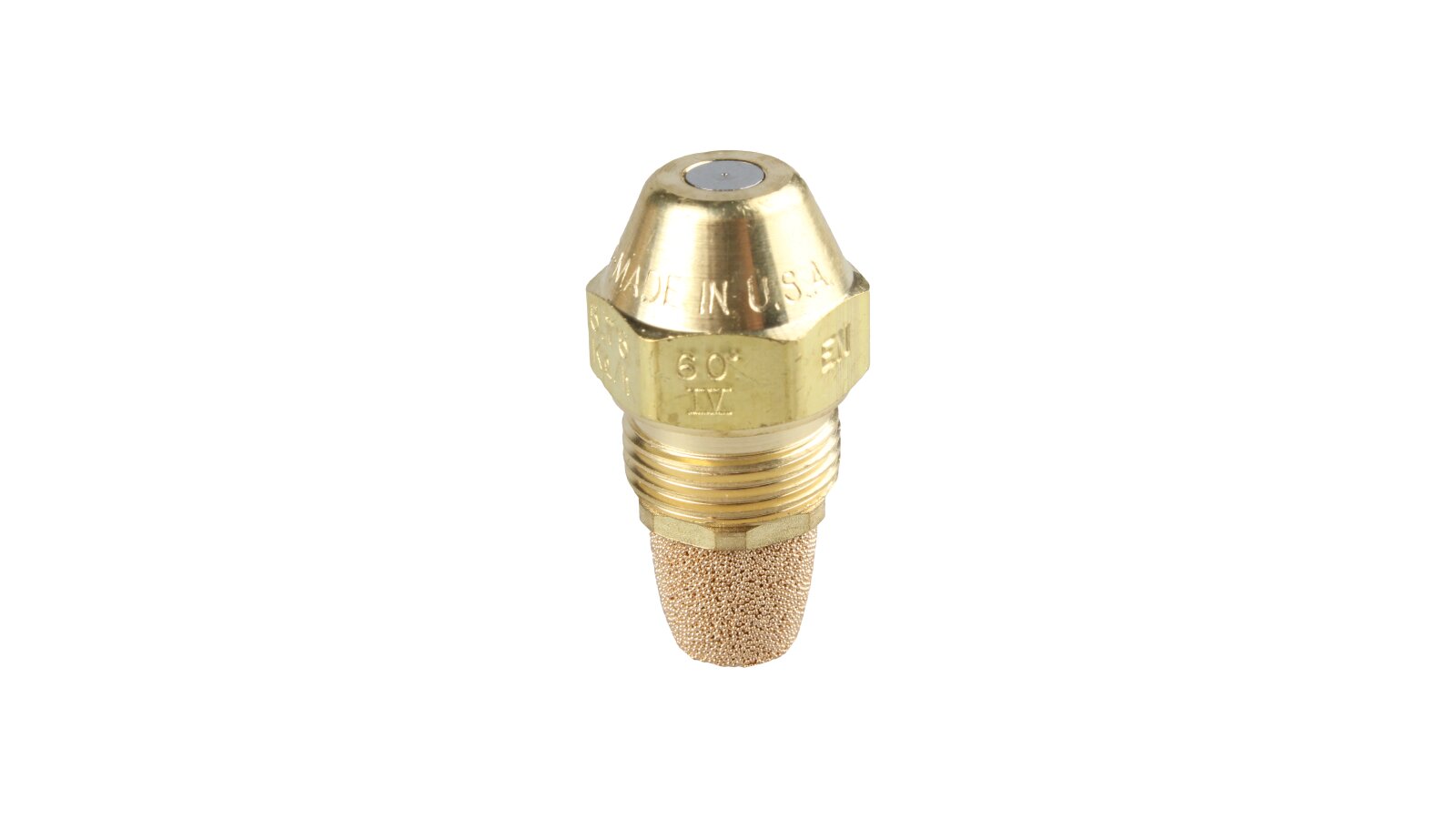

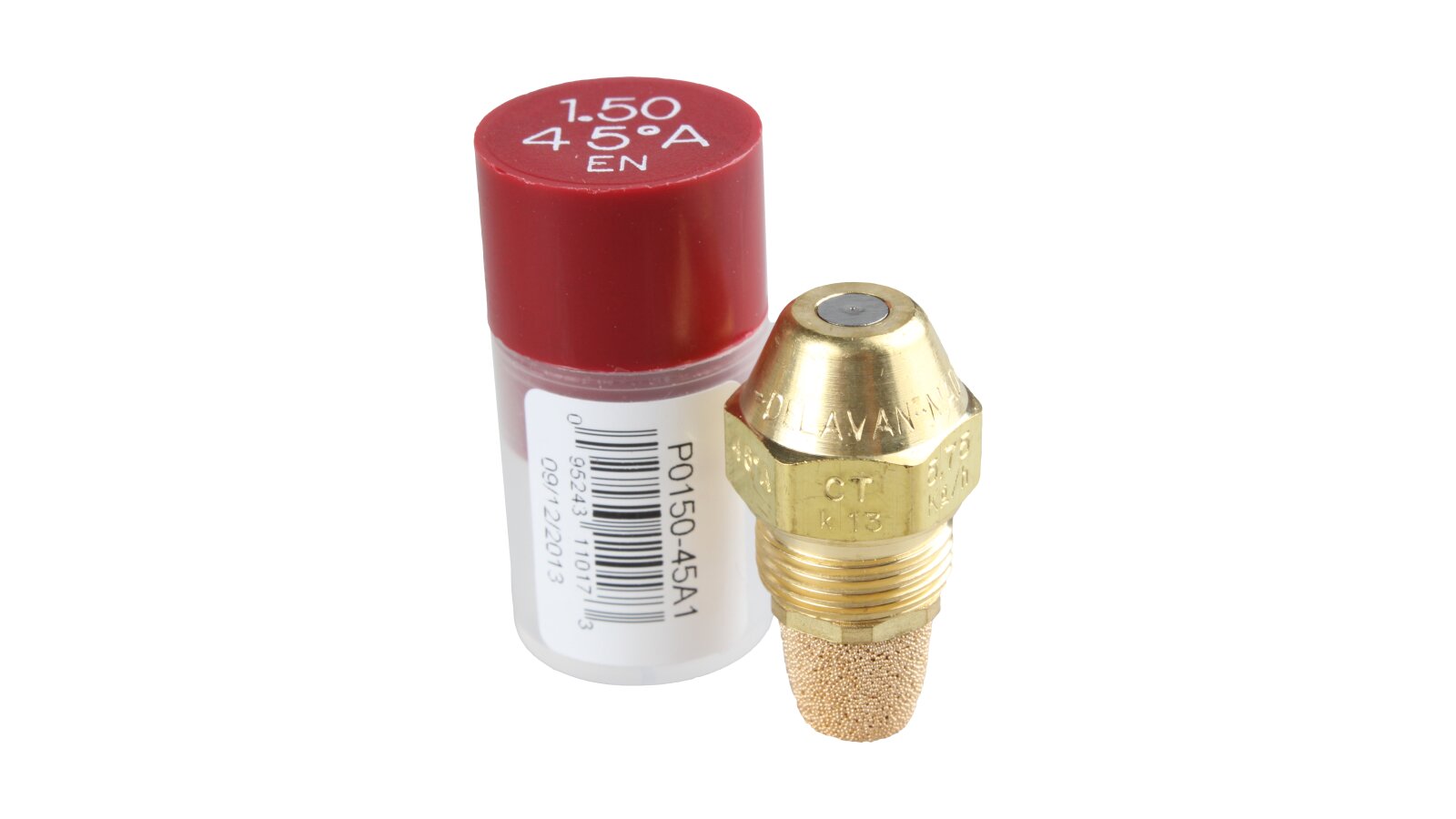

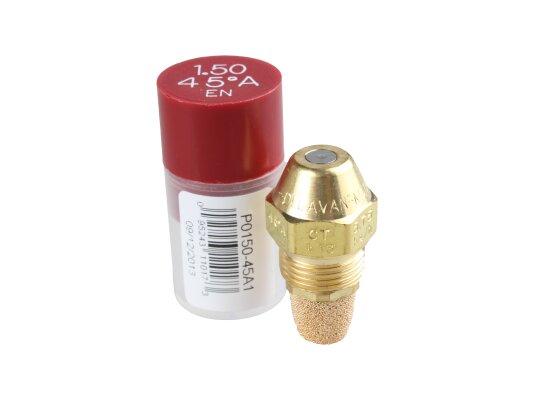

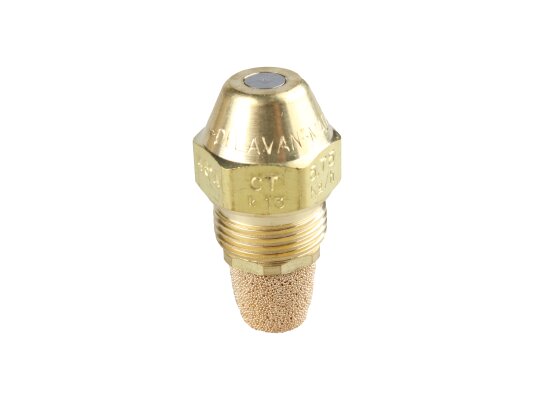

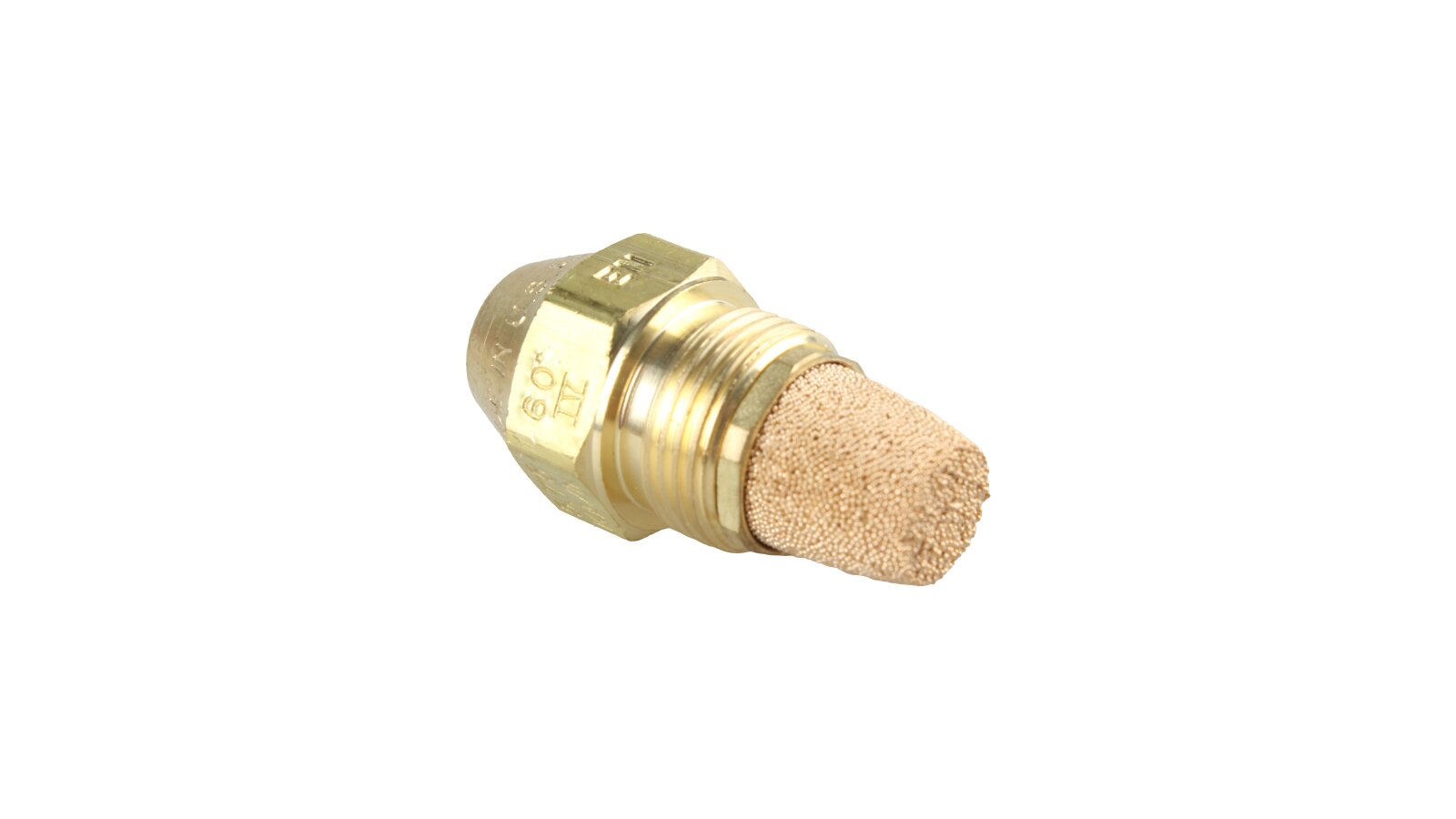

Oil nozzle Riello 1.50/45° A

The Riello 1.50/45° A nozzle, art.: 20011655, complies with environmental standards and quality requirements. It is responsible for uniform atomization of fuel of any viscosity when using household and industrial high-pressure burners. The hollow jet pattern promotes rapid ignition and low-noise combustion.

Features and main characteristics:

• atomization of fuel oil, diesel, boiler fuel;

• hollow spray cone, concentration of fuel droplets along the circumference;

• corrosion-resistant brass body with a conical head;

• shortened tangential grooves to prevent clogging;

• aerodynamic configuration of the atomizer;

• high precision of parts processing with minimal tolerances;

• precise spray angle, uniform distribution of droplets inside the cone;

• filter with granulated filler of increased cleaning area;

• easy installation and dismantling;

• rolled thread, no metal chips or burrs on the surface;

• permissible error in throughput capacity ± 4%.

Spray parameters and application

The Riello 1.50/45° A nozzle creates a hollow jet spray at 45°, which is optimal for long and narrow combustion chambers. Suitable for household and industrial burners on all types of fuel with low consumption.

Advantages:

• works with all types of liquid fuel;

• uniform distribution of droplets inside the stream;

• brass body, built-in filter;

• stability of the angle and pattern of spraying;

• quick and reliable connection using a thread.

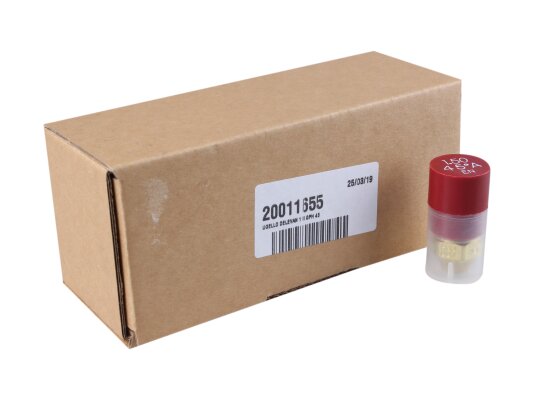

All nozzles are supplied packed in protective cases. They have passed the necessary checks and tests, confirming that the operating parameters correspond to the declared ones. On the ANKAS website you can also select and buy nozzles with other angles and spray patterns.
