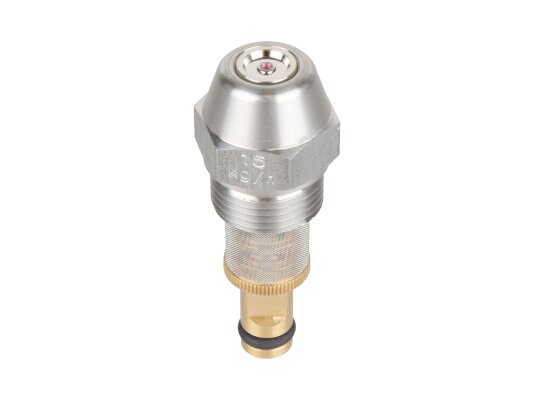

Oil nozzle Riello 15/45º

The Riello 15/45º modulating nozzle, art.: 3009850, is built into liquid fuel burners. Provides uniform fuel atomization for homogeneous mixing with air and subsequent complete combustion. The throughput capacity allows the nozzle to be used for low-performance fuel combustion systems, with a flow rate of up to 15 kg/h. The design is equipped with a built-in mesh filter to maintain the declared throughput during operation.

Features:

• conical shape of the nozzle head;

• stainless steel construction;

• mesh metal fuel filter;

• constant angle of the spray jet (45°);

• for modulating burners;

• check valve;

• universal installation by screwing on the thread.

The Riello nozzle is supplied in an individual plastic case.
