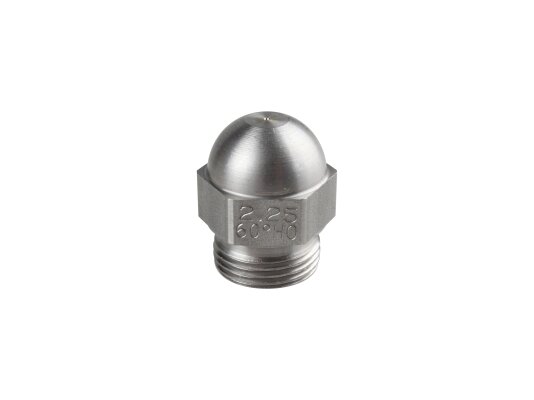

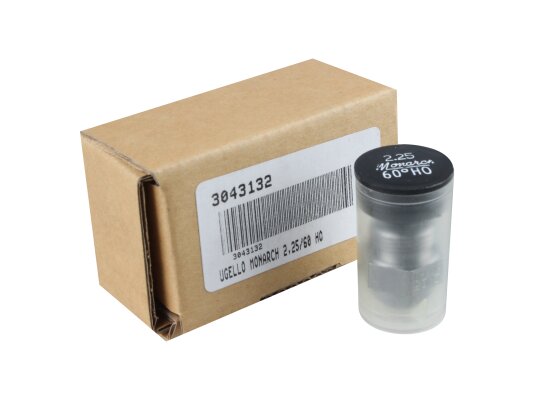

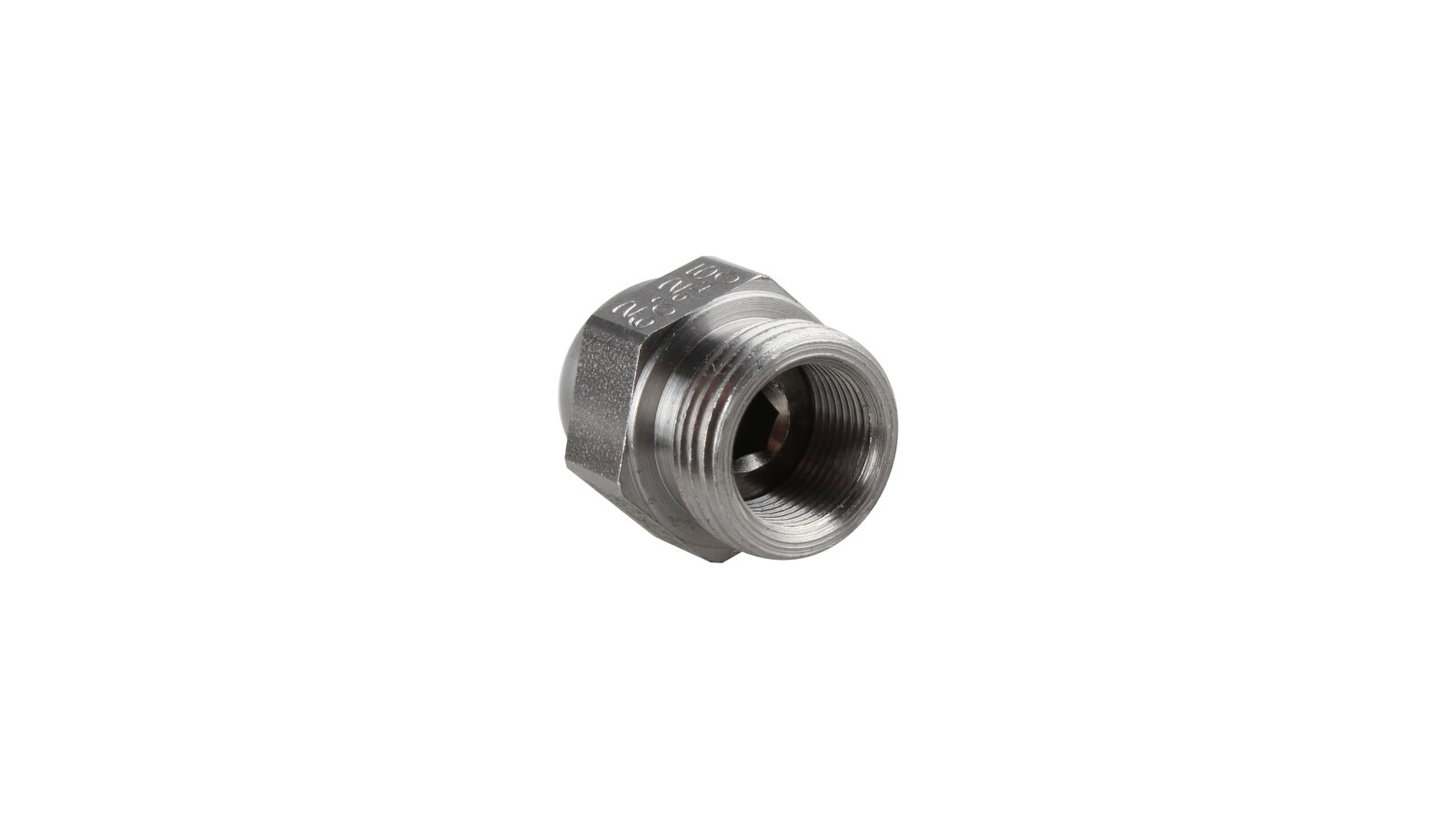

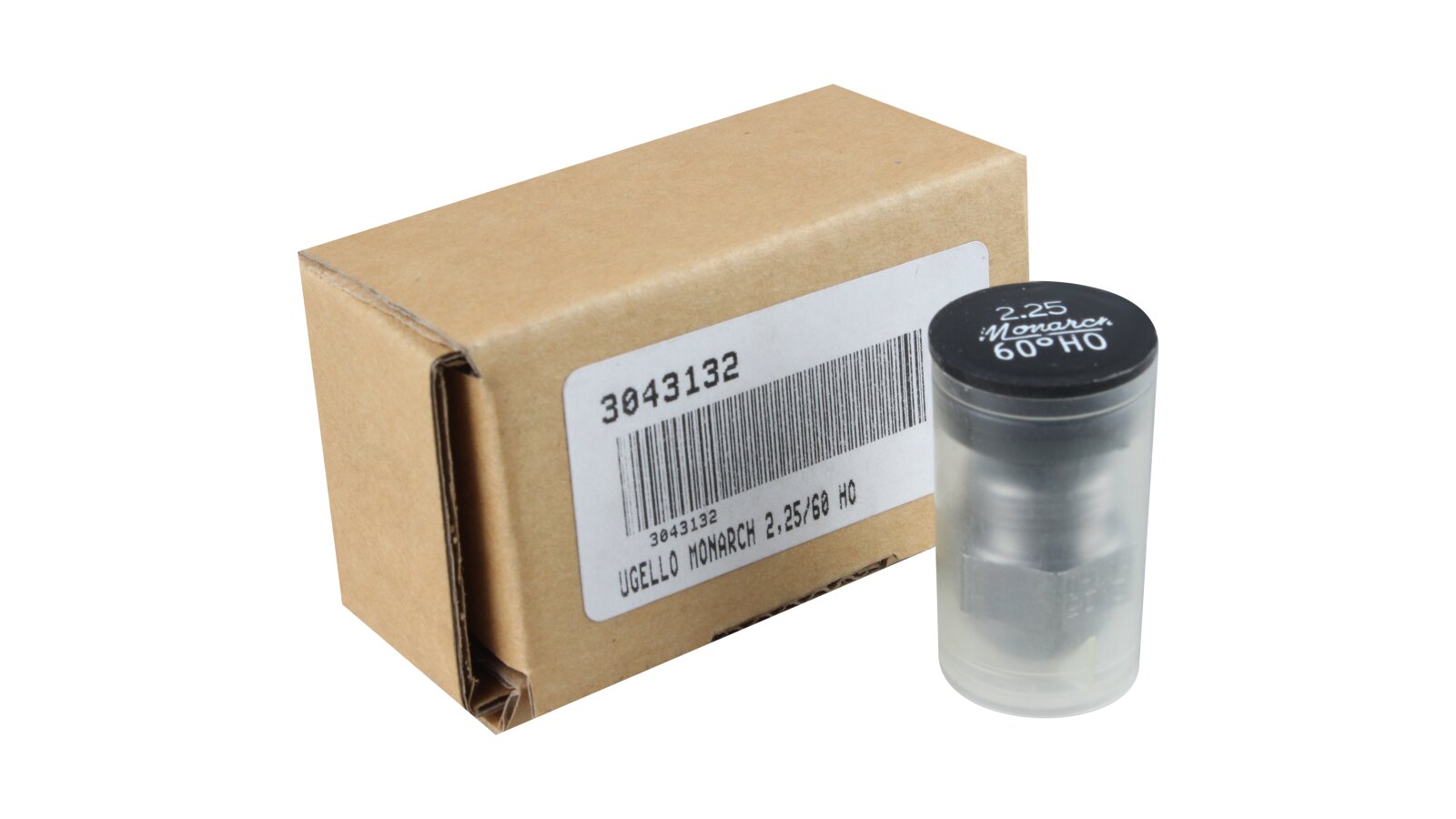

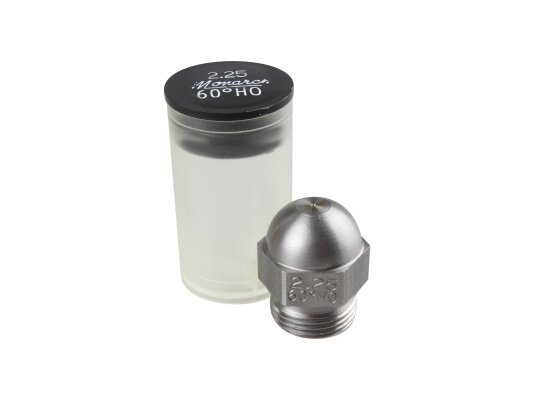

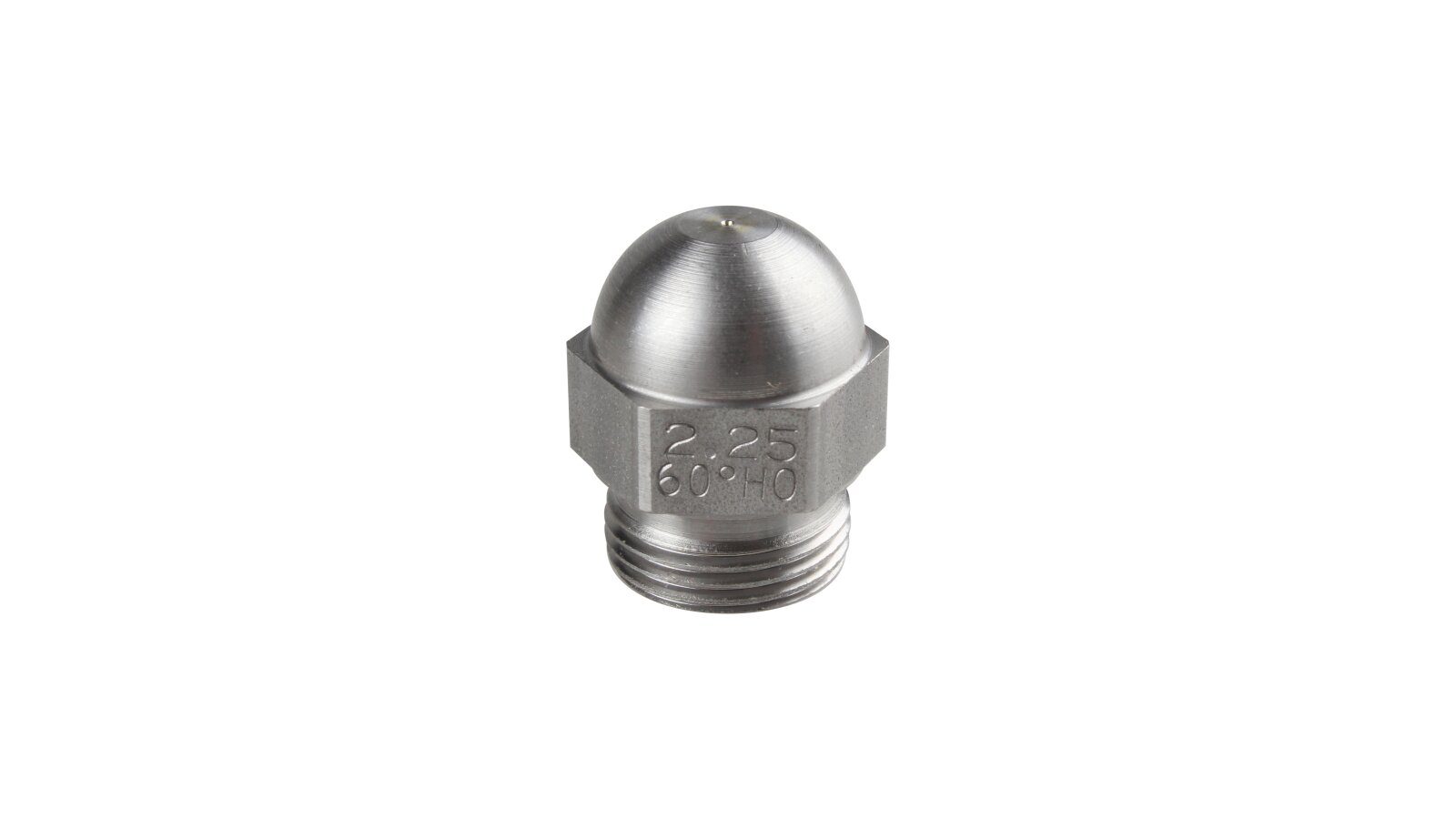

Oil nozzle Riello 2.25/60° HO

The Riello 2.25/60° HO nozzle, art.: 3043132, sprays fuel in a hollow stream with uniform distribution of fuel droplets around the circumference, which facilitates rapid ignition and stable, silent combustion. The homogeneous composition of the combustible mixture ensures efficient and environmentally friendly operation of the burner.

Features and main parameters:

• universal application, operation with diesel, fuel oil, oil;

• increased wear resistance, nozzle with a round head made of stainless steel;

• high-precision processing and assembly of parts on electronic equipment;

• hollow spray stream, fuel droplets distributed around the circumference;

• without a filter in the kit that limits the flow rate;

• standard threaded connection, protrusion on the body for gripping with a key;

• throughput - 2.25 gph;

• plastic case for protection against dust and impacts during transportation.

Spray pattern and application

The Riello 2.25/60° HO nozzle creates a hollow spray cone with a standard angle of 60°. Fuel droplets are concentrated on the outer part of the cone. The place of application is domestic and industrial high-pressure burners operating on fuel oil, diesel fuel, boiler fuel, oil.

Advantages:

• universal application;

• stainless steel body and parts;

• stable spray parameters;

• spray angle maintenance during the service life;

• threaded connection method.

Nozzle size, flow rate and spray pattern are checked and tested at the factory. Electronic tests and visual inspection confirm 100% compliance with the declared characteristics and environmental standards. A wide range of fuel nozzles allows you to choose and buy a nozzle with optimal spray characteristics.
